Silicone Rubber Material Full Cable Cold Shrink 11KV Terminal Kit
- Category: >>>
- Supplier: Suzhou Dasheng Heat Shrinkable Material Co. Ltd.
Share on (60537026337):
Product Overview
Description
Product Description
Silicone Rubber Material Cable Cold Shrink 11KV Terminal Kit
Product facts:

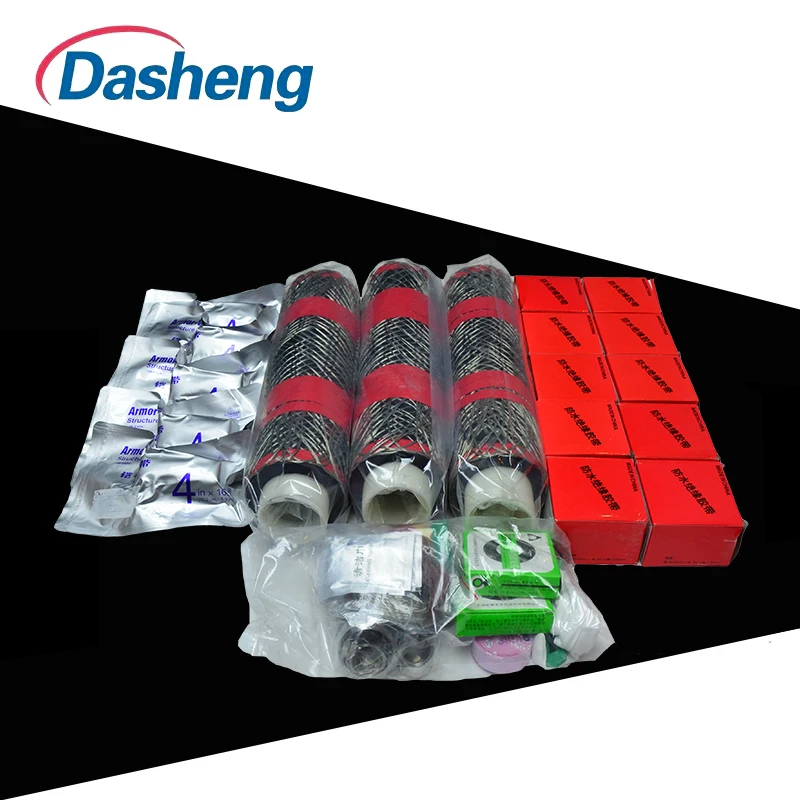

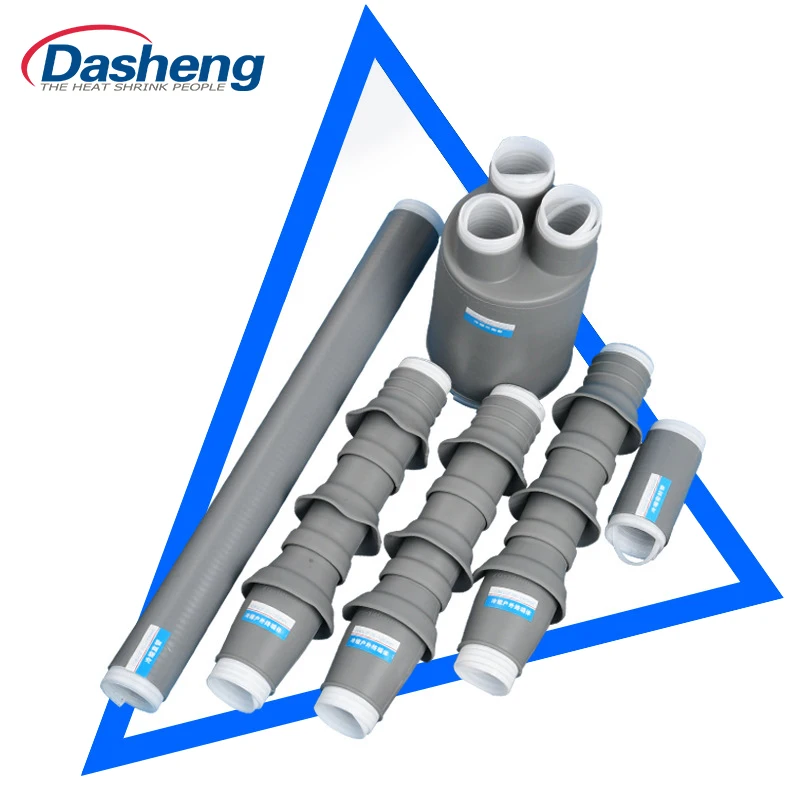

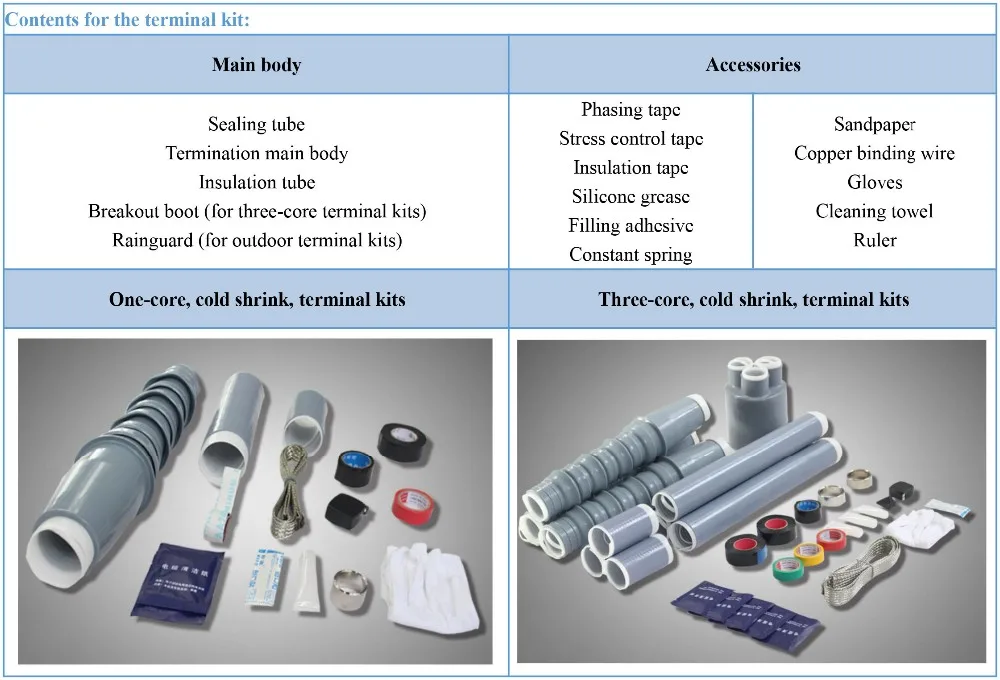

The cable terminal is one-piece design manufactured from high quality liquid silicone rubber. The cold shrink terminal is factory expanded on a removable inner-supporting core. Once the terminal is positioned onto the cable core, the supporting core is unwound and removed, and the live-memory action of the material shrinks the terminal into place. The terminal kit includes all the necessary components to make the installation.
- Material:silicone rubber
- Nominal voltage:8.7/15KV
- Allowable highest continuous operating voltage: 17.5KV
- Type: indoor/outdoor
- Cores number:1 core/3 cores
-Transmission capacity: consistent with the cable
Product features/benefits:
- Simple and fast installation, no heat or special tools required.
- One-piece design with integrated stress control.
- Offering protection against aging, tracking and erosion.
- High resistance to fungus, acid, alkalis and ozone.
- Accommodating a wide range of cable sizes: 25~630 sqmm.
Technical data: | ||||||||
Product name | Test item | Standard | Test result | |||||
8.7/15KV, cold shrink, cable terminal kit | Power frequency withstand voltage test | under 45kv, within 1min. no flash and no breakdown | under 45kv, within 1min. no flash and no breakdown | Qualified | ||||
Partial discharge test | The magnitude of discharge at 13KV shall not exceed 20pC. | The magnitude of discharge of combination samples is 3pc at 13KV. | Qualified | |||||
Heating cycles voltage test for 3 weeks | Heated for 5 hours, cooled for 3 hours, and the conductor temperature is 95℃ while heating. | Decided by the following 4 test results. | ||||||
Partial discharge test | The magnitude of discharge at 13KV shall not exceed 20pC. | The magnitude of discharge of combination samples is 3pc at 13KV. | Qualified | |||||
Impulse withstand voltage test | No breakdown shall occur at 10 positive and 10 negative impulses of 105KV. | No breakdown occured on the combination samples at 10 positive and 10 negative impulses of 105KV. | Qualified | |||||
Negative polarity DC withstand voltage test | No breakdown shall occur at 52KV for 15min. | No breakdown occured on the combination samples at 52KV for 15min. | Qualified | |||||
Power frequency withstand voltage test for 4 hourss | No breakdown shall occur at 35KV for 4 hours. | No breakdown occured on the combination samples at 35KV for 4 hours. | Qualified | |||||
