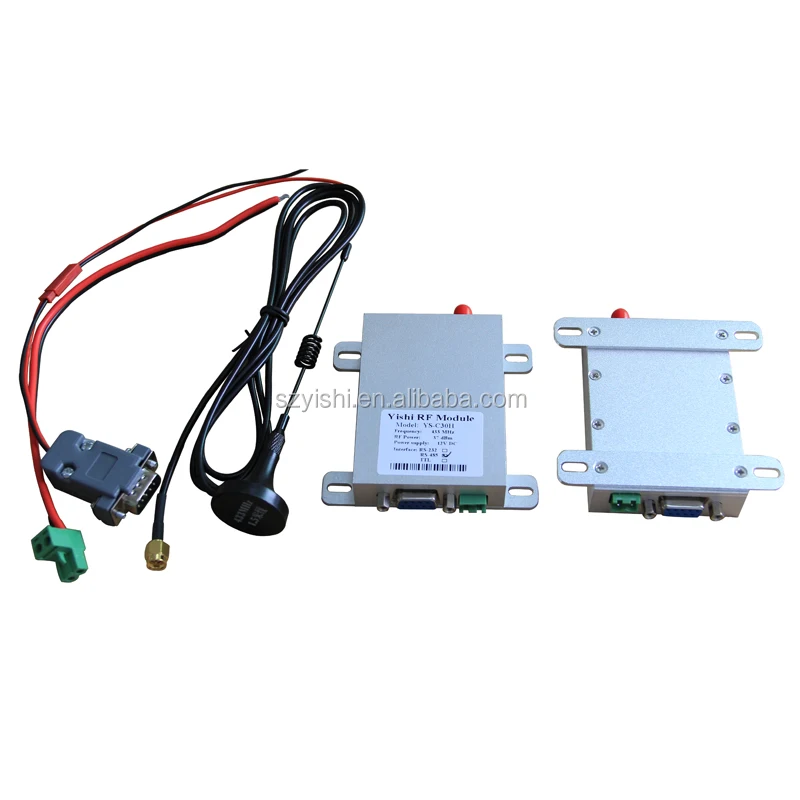

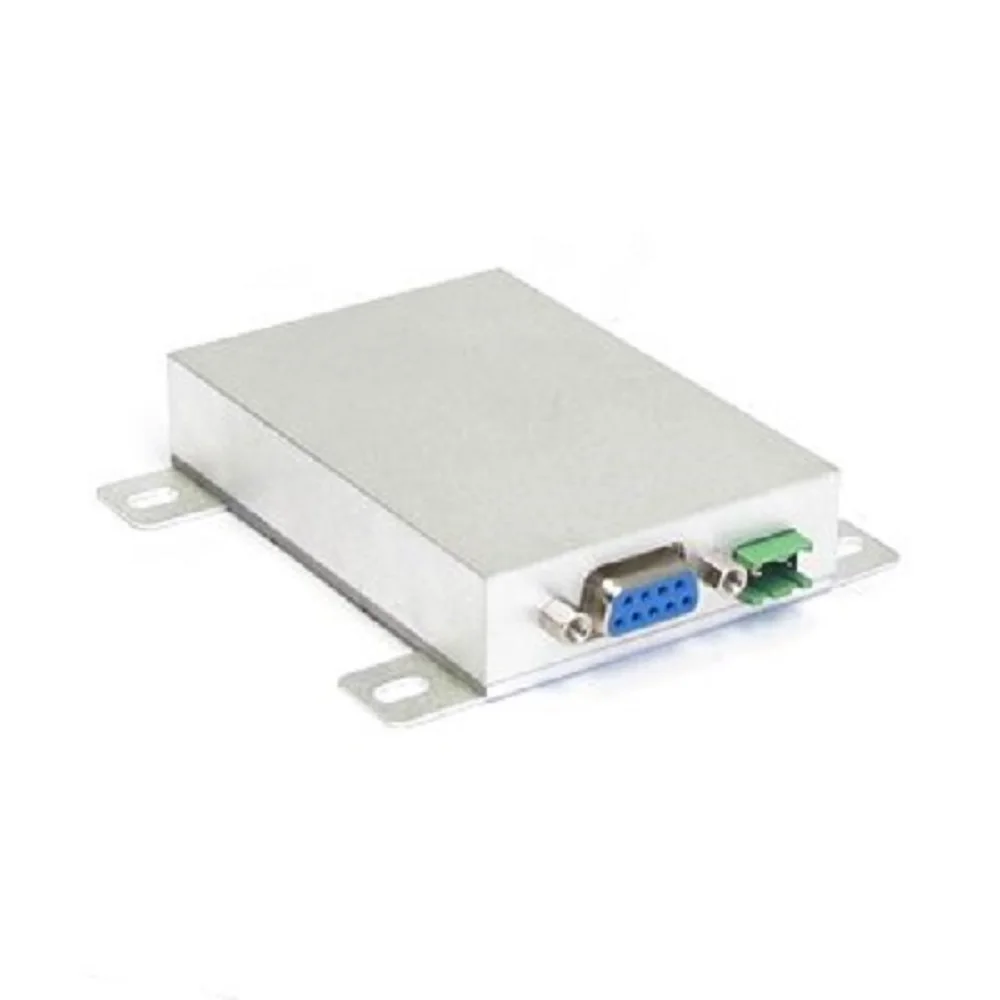

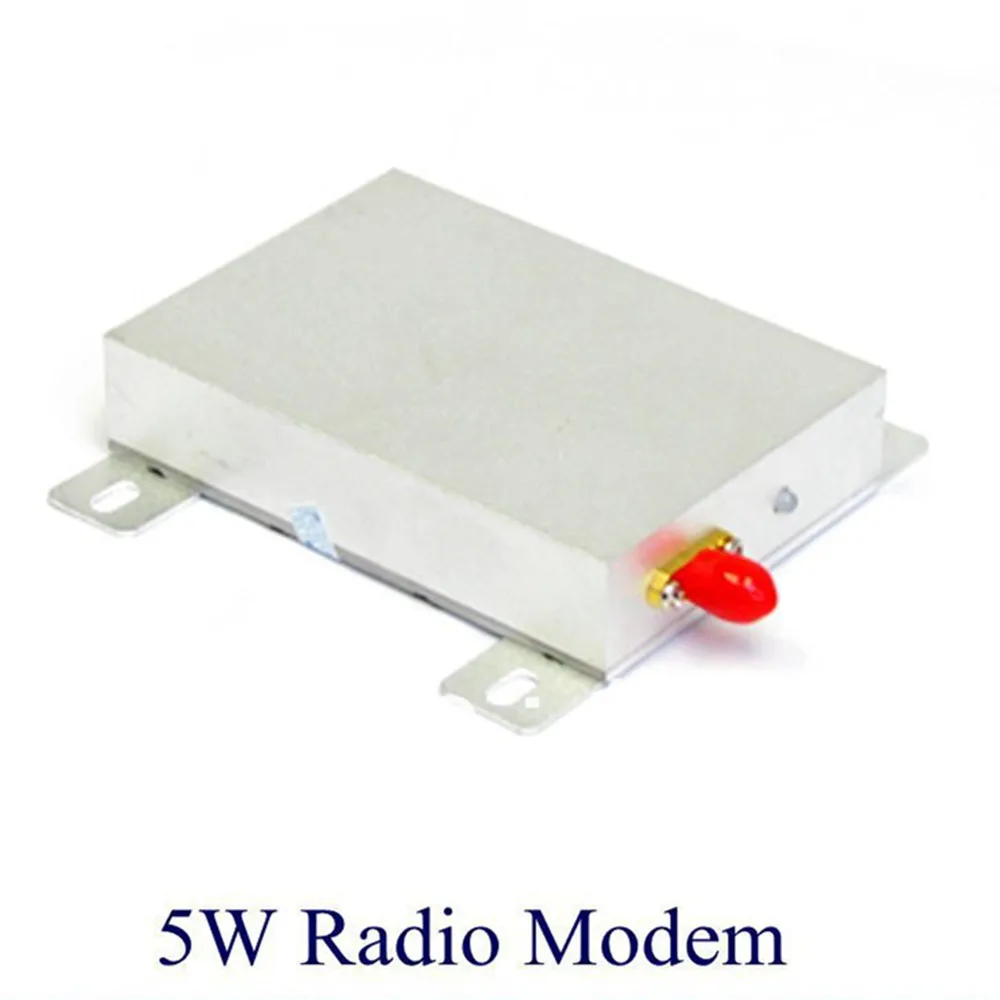

433MHz RS232 Data Transceiver 5W 10km USB Industrial Wireless Remote Control Module, RF Wireless Transmitter and Receiver Module
- Category: >>>
- Supplier: Shenzhen Yishi Electronic Technology Development Co. Ltd.
Share on (60537189593):
Product Overview
Description
433MHz RS232 Data Transceiver 5W 10km USB Industrial Wireless Remote Control Module, RF Wireless Transmitter and Receiver Module
Product Description
Detailed Product Description
5W RF output, 433Mhz
Range: 8-12KM
Low power consumption
RF power:less than 5W /37dBm
Detailed Product Description
433Mhz RF Module, 8-12Km Wireless Data Transceiver
Long range module
RF Power: 5W, DC12V
Meter Reading, wirelss system
433Mhz RF Module, 8-12Km Wireless Data Transceiver, Long range module:
1. Products Main Features
* Interface: RS-232/ RS-485/ TTL/USB optional;
* Multi-channels: 8 channels, expandable for 16/32 channels;
* Baud rate in air: 1200/2400/4800/9600/19200bps, set before delivery;
* Transparent data transmission: What has been received is exactly what has been transmitted, suitable for any standard or non-standard user protocols;
*SMT techniques, Aluminum alloy crust with good thermal and Shielding Performance
* Integrated power amplifier and TCXO components, Watchdog strengthen reliability
* Interface format: 8N1/8E1/801 user-defined, or customization for other format interface;
* Modulation: GFSK. Based on the Gaussian Frequency Shift Keying (GFSK) modulation, High anti-interference and Low BER (Bit error Rate);
* Half duplex: Integration of receiver and transmitter,auto change for receiving and sending;
* Low power consumption and sleep function;
* Widen Temperature: -35 ~ +75 (-31~167 F);
* Working humidity: 10%~90% relative humidity without condensation;
* Impedance50Ω (SMA antenna port, multiple antenna options available);
* Complying with EN 300220 and ARIB STD-T67.
2. Application areas
* Automatic meter reading(AMR);
* Environment monitor system;
* Wireless electronic display screen;
* Wireless smart terminal: POS, PDA, PTZ;
* RS-485 wire multi-drop system changeover wireless system;
3. Specifications
* RF power: ≤5W /37dBm;
* Receiving current: <30mA;
* Transmitting current: <1.5A;
* Sleep current: <1mA
* Power supply: DC 12V;
* Size: 85mm×58mm×16mm (without antenna port).
* Range: ≤8Km (BER=10-3@9600bps, when antenna is 2m above ground in open area),
≤12Km (BER=10-3@1200bps, when antenna is 2m above ground in open area);
Packaging & Shipping
Our Services
OEM and Customizable Software.
One year quality warranty and Life-long repair.
