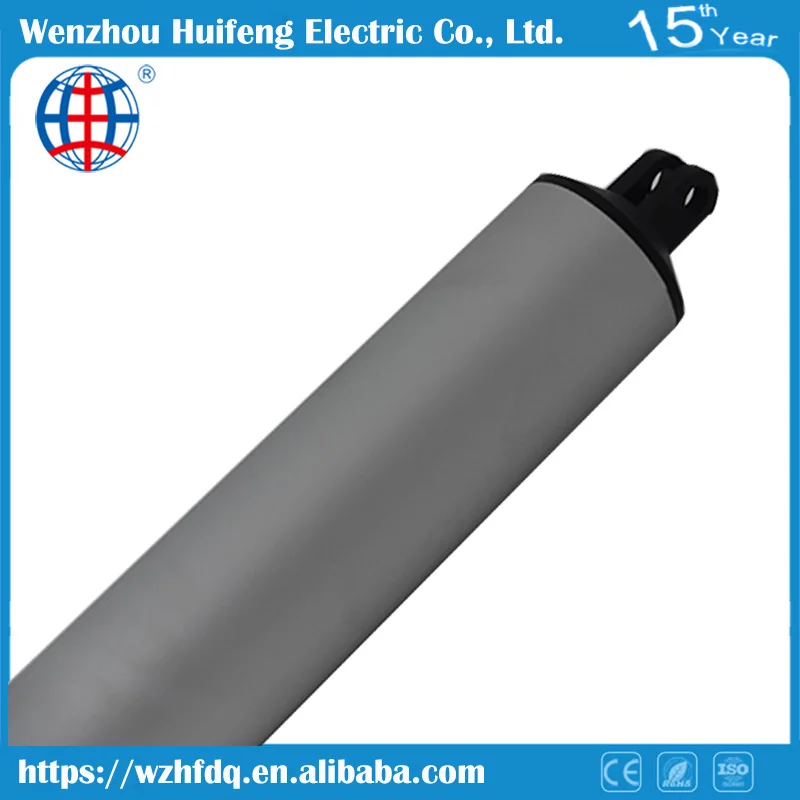

Small motor actuator with ACME screws, built-in Micro switch and  an internal diode, and can automatically stop and enables the change of direction by simply reversing the applied voltage polarity. Stroke length can be customized. Switches are not made to be adjustable. It is little power, but high-speed.

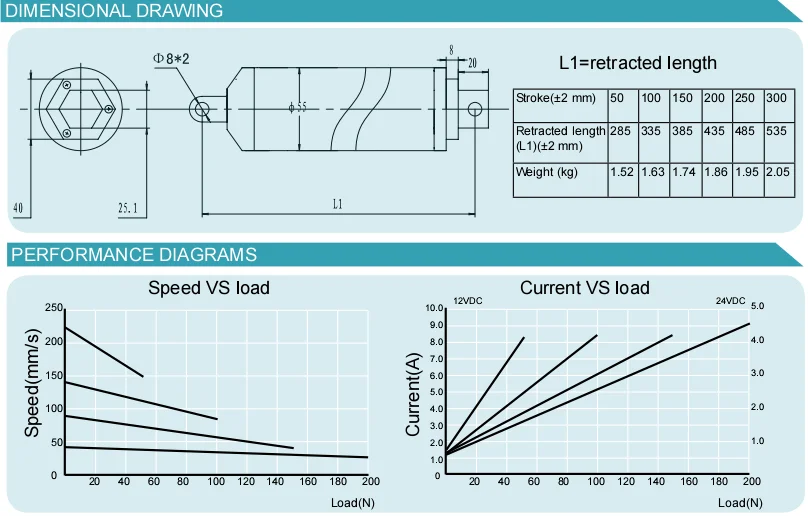

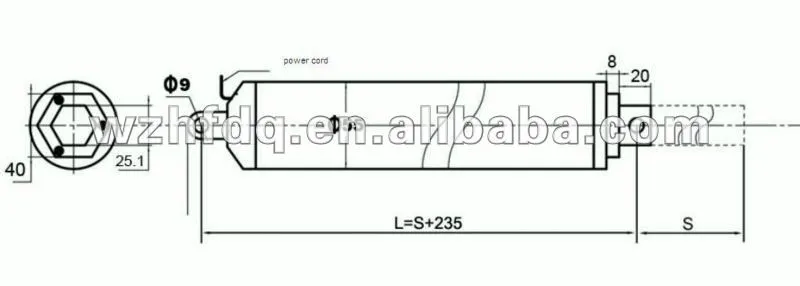

SPECIFICATIONS FOR LINEAR ACTUATOR


 Stroke
50mm、100mm、150mm、200mm......
Retracted length
285mm、335mm、385mm、435mm......
Extended length (L1)
L1= stroke + extended length


HF-TGD

Speed
45mm、80mm、140mm、230mm......
Load
50N、‘100N、150N、200N’
Input voltage
12V、24V、36V、48V


Material
aluminium alloy
Duty cycle
20%
IP grade
IP 65

Main Features

1) Simple structure in linear type ,easy in installation

2) Adopting advanced components in electric and machanical parts.

3) Limit switch to control the opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Wireless or hand control is available
