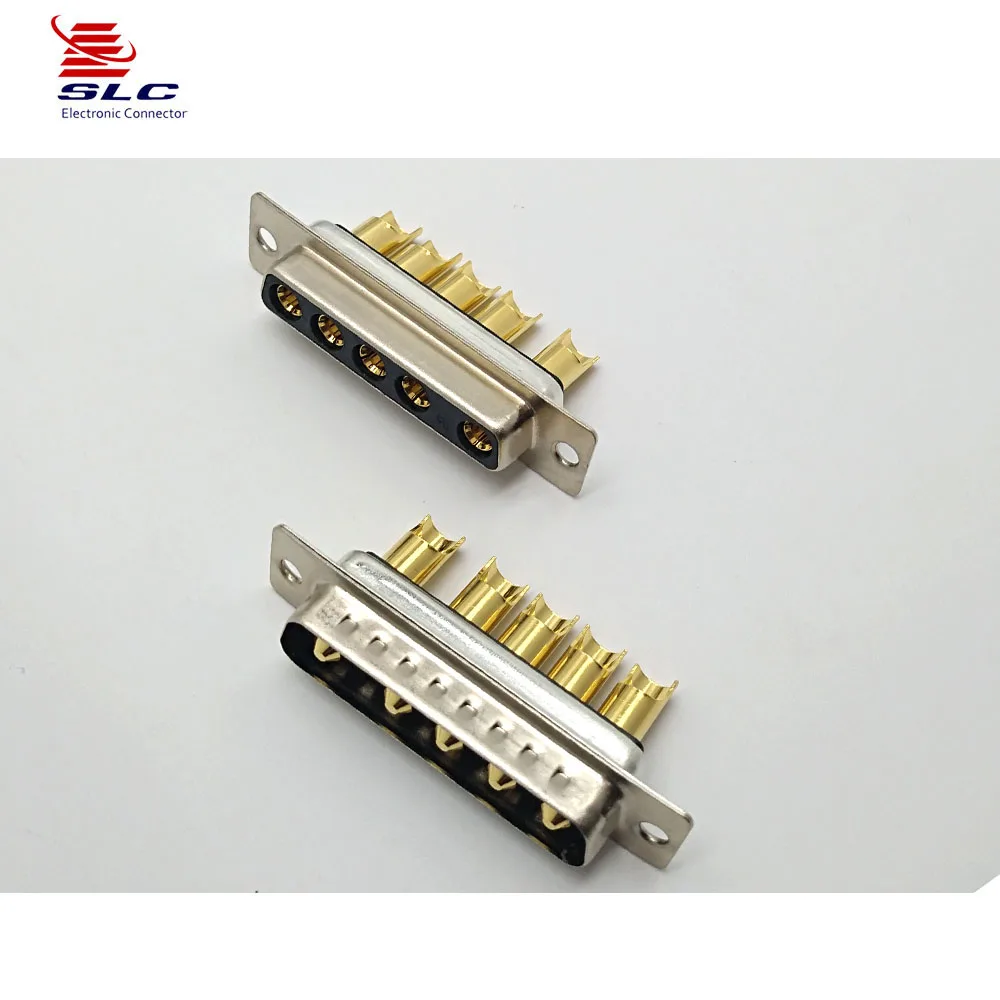

D SUB Connector 5W5 Female Comtact Solder type,dtecker/power D SUB connector
- Category: >>>
- Supplier: Dongguan Sanling Electronics Co. Ltd.
Share on (60537496221):
Product Overview
Description
| Series No. | 6235P-08FSXXBNX01 | |||
| Description | Electric power D-sub 5W5 solding female power contact solder type | |||
| Standard Dimension | PA | PB | W | Length |
| Custom Dimension | ||||
| Pin ways | 5P | |||
| Alternative Plating | G/F | Tin | Sel. Gold/Tin | |
| GO | SN | S0 | ||
| Packing way | PE Bag /Tube/ Tray/ Plastic box/ Tape&Reel Packing. | |||
| MOQ | 500PCS | |||
| Delivery time | 1-2weeks after confirm order | |||
| Engineering Specifications | Rated Current:10.0/20.0/30.0/40.0AMP | |||
| Contact Resistance: 2.7Milliohms Max | ||||
| Withstand Voltage:1000V AC/DC | ||||
| Insulation Resistance:5000megaohms Min | ||||
| Operation Temperature: -55°c to +125°c | ||||
| Contact Material : Steel material,Tin finished | ||||
| Contact Plating: Brass Full Gold flash | ||||
| Insulator Material :Polyester (UL94V-0) | ||||
| Standard: PBT | ||||

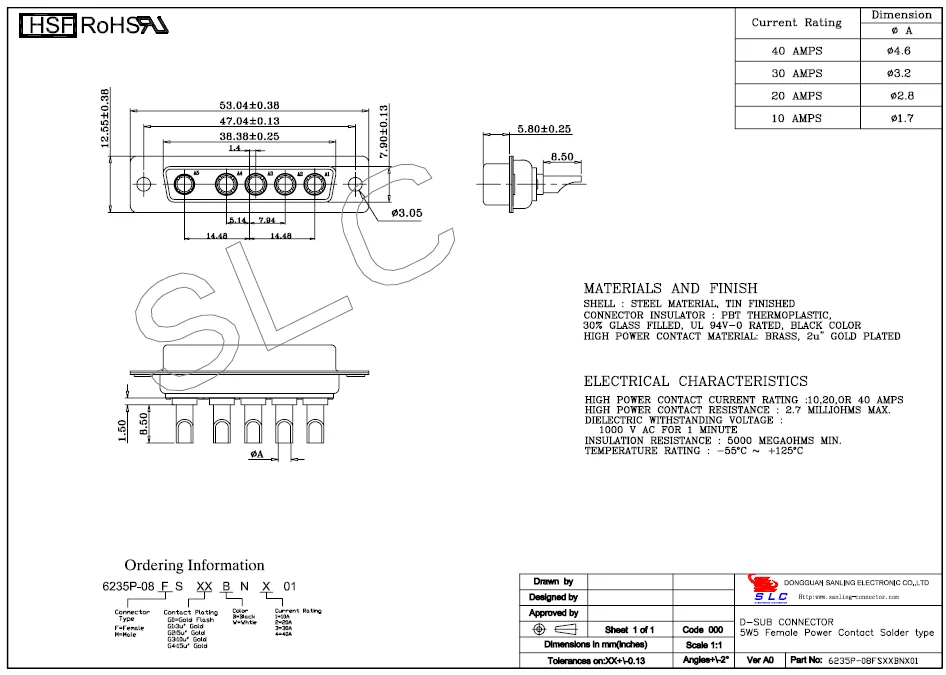

Drawings details
