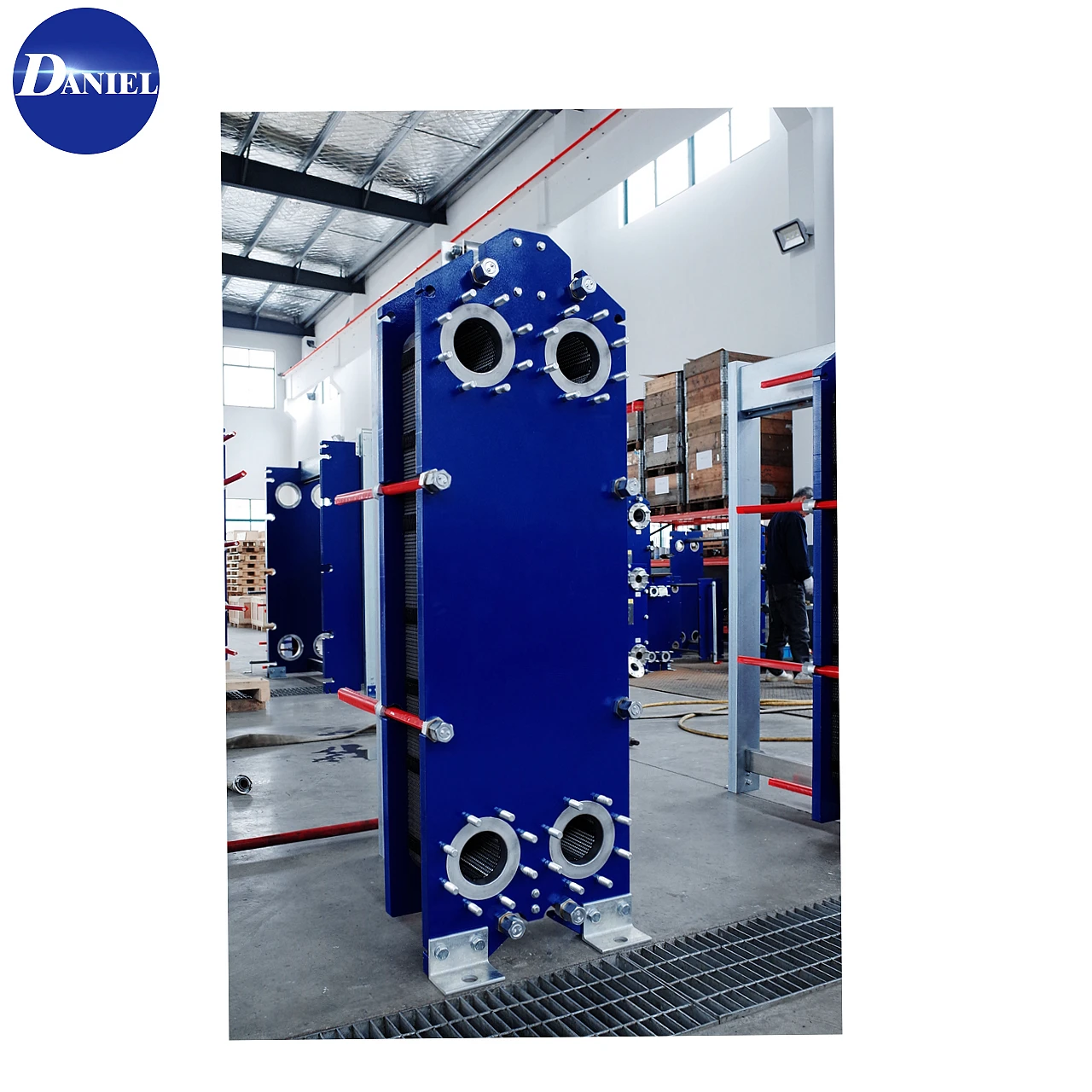

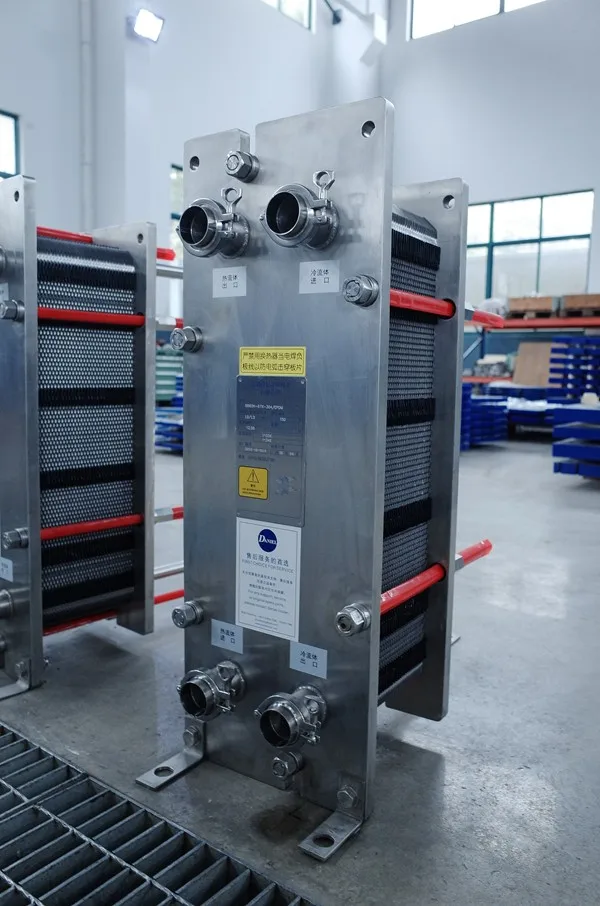

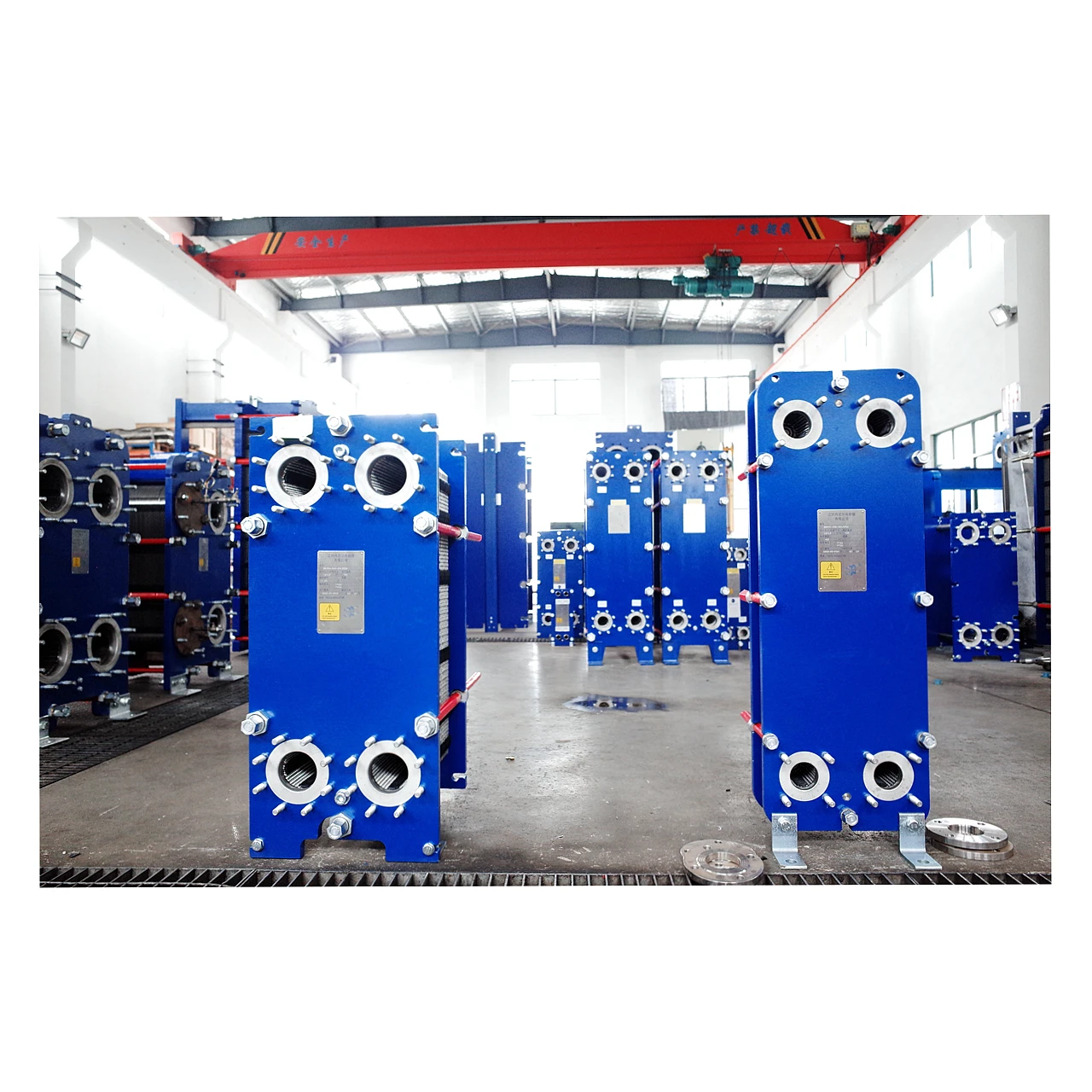

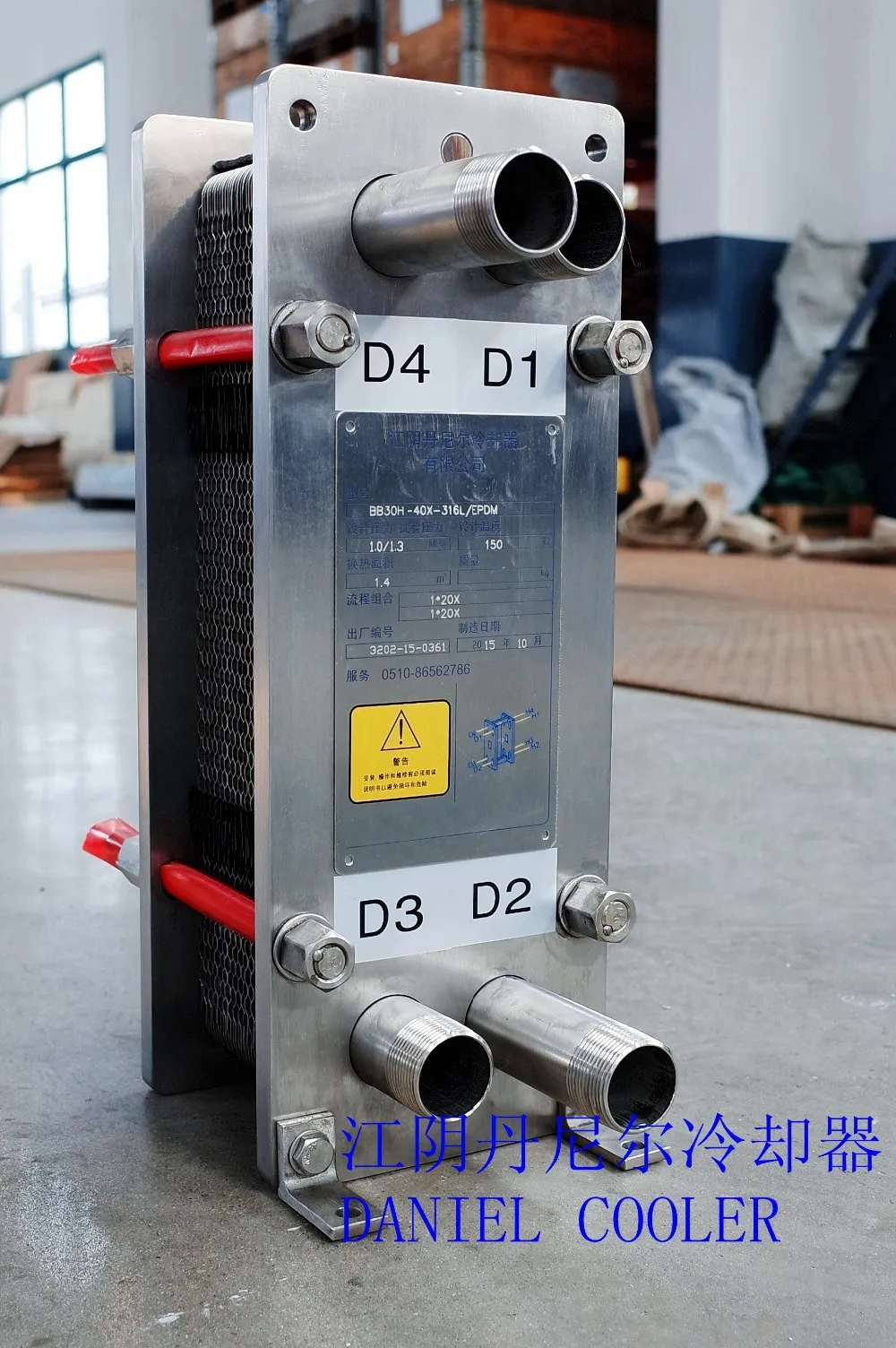

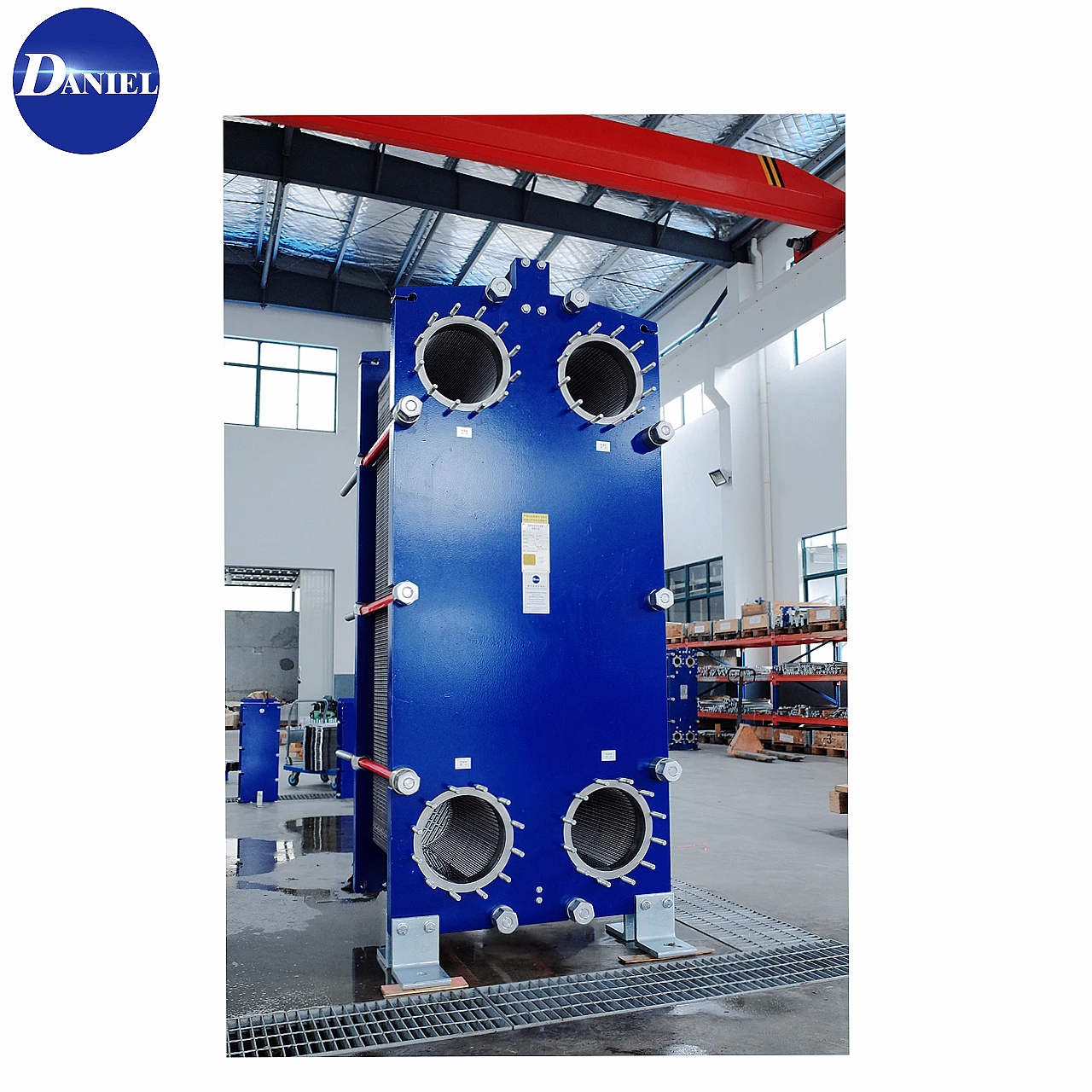

fruit juice food grade pasteurizer plate heat exchanger
- Category: Heat Exchanger >>>
- Supplier: Jiangyin Daniel Cooler Co. Ltd.
Share on (60537611015):
Product Overview
Description
Product Description1
| Packaging Details: | Plywood Box PHE equal Alfa Laval stainless steel beer plate heat exchanger. |
| Delivery Detail: | Shipped in 7 days after payment |
| Model | BB30 | BB60B/BB60H | BB60T | BB100L | |
| Cross Reference ALFA LAVAL | M3 | M6, M6M | TS6M | TL10B | |
| Height, H [mm] | 480 | 920 | 940 | 704 | 1885 |
| Width, W [mm] | 180 | 320 | 330 | 400 | 480 |
| Minstandardlength, L [mm] | 400 | 500 | 500 | 530 | 850 |
| Max standard length, L [mm] | 650 | 1500 | 1500 | 1430 | 2350 |
| Verticalportdisance, VC [mm] | 357 | 640 | 640 | 380 | 1338 |
| Horizontal portdistance, HC [mm] | 60 | 140 | 140 | 203 | 225 |
| Max temperature[℃] | 180 | 180 | 180 | 180 | 160 |
| Max pressure [barg] | 16 | 10 | 16 | 16 | 10 |
| Flange size Pipe | Pipe 1 1/4" | DN50/2" | DN50/2" | DN65/2" | DN100/4" |
| Max. Flow rate [kg/s] | 4 | 16 | 20 | 50 | |
|
Model |
BB100B/BH100H | BB150B/BH150H | BB200H | ||
| Cross Reference ALFA LAVAL | M10M, M10B | M15M, M15B | M20M,T20M,T20B | ||
| HeigHt. H [mm] | 1084 | 1084 | 1885 | 1885 | 2150 |
| Width, W [mm] | 470 | 470 | 610 | 650 | 750 |
| Min standard length,L [mm] | 700 | 700 | 1150 | 1150 | 1250 |
| Max standard length,L [mm] | 2300 | 2300 | 2050 | 3250 | 3350 |
| Venical portdistance,VC[mm] | 719 | 719 | 1294 | 1294 | 1478 |
| Horizontal port distance, HC [mm] | 225 | 225 | 298 | 298 | 353 |
| Max temparature [℃] | 180 | 180 | 180 | 180 | 180 |
| Max pressure [barg] | 10 | 16 | 10 | 16 | 42659 |
| Flange size | DN100/4" | DN100/4" | DN150/6" | DN150/6" | DN200/8" |
| Max. flow rate [kg/s] | 50 | 80 | 225 | ||
| Model | BB200T | BB250H | BB300H | ||
| Cross Reference ALFA LAVAL | TS20M | MX25B | M30 | ||
| HeigHt. H [mm] | 1405 | 2595 | 2920 | ||
| Width, W [mm] | 740 | 920 | 1190 | ||
| Min standard length,L [mm] | 900 | 1550 | 1650 | ||
| Max standard length,L [mm] | 2700 | 3350 | 5200 | ||
| Venical portdistance,VC[mm] | 698 | 1939 | 1842 | ||
| Horizontal port distance, HC [mm] | 363 | 439 | 596 | ||
| Max temparature | 180 | 180 | 180 | ||
| Max pressure [barg] | 42659 | 42659 | 42659 | ||
| Flange size | DN200/8" | DN200/DN250/8"/10" | DN300/DN350/12"/14" | ||
| Max. flow rate [kg/s] | 190 | 250 | 250 | 497 |
|
Related Products2
PHE PLATE,PHEGASKET,GASKETED PHE ,BRAZED PHE.
Certifications3
Company Information4
Packaging& Shipping5
FAQ6
Q : 1. Can I have a sample order?
A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : 2. What is the lead time?
A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we are support different product mix wholesale.
Q : 4. How do you ship the goods and how long does it take arrive?
A : For sample order ,we usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.
Q : 5. Can you provide container packed in wooden cases if I order more products?
A : Yes,we are can provide a set of wooden packaging products,but only in big quantity.
Q : 6. We want to visit your company?
A : No problem,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
