3 axis cnc milling machine VMC 600 cheap cnc lathe machine / small milling machine

Product Overview

Description

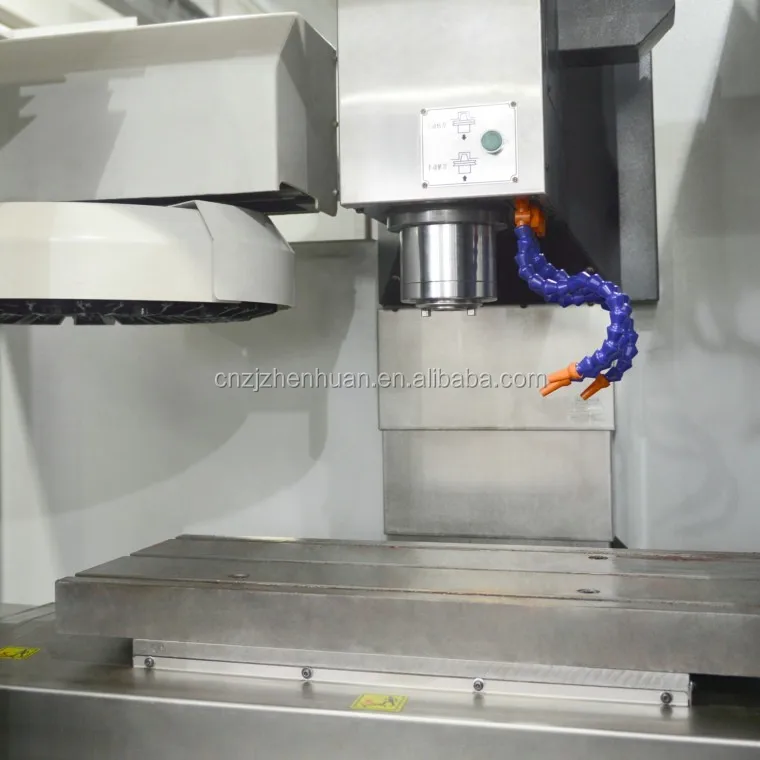

3 axis cnc milling machine VMC 600 cheap cnc lathe machine  / small milling machine

Machinery characteristics:



1.TH250 precision casting is introduced for the machine base, column, spindle box, cross slide table, working table, and etc. After the aging treatment twice, the machine has a long term stability.

2.Taiwan ROYAL spindle unit with 5.5KW servo motor can achieve a rotation speed of 8000r/min. Low speed is for gravity cutting, and high speed is good for precision light cutting.

3.X, Y, Z axis are all use linear guideway, and they are all imported from Germany. The big size of linear guideway can decrease the gap of different guide way, and it can increase precision meantime.

4.It adopts Taiwan PMI precision ball screw, Taiwan YINSH precision locknuts and Japan NSK bearings. It directly connected to flexible coupling, so that it can achieve a high effectiveness and low backlash.

5.It has disc type tool changer, can load up to 16 tools, and so that it can choose the closest tool and save time.

6.All the transmission shaft pitch is used high-precision laser interferometer to fulfill the adjusting of pitch error and clearance error, so that the positioning accuracy of each axis is more accurate, and it’s more suitable to produce high - precision parts.

7.It introduced an automatic quantitative clearance centralized lubrication system to lubricate moving parts such as: guide way, ball screw and so on.



Technical parameters:





Work table size	800 x400mm
Max. Loading capacity of worktable	500kg
X-axis travel	600mm
Y-axis travel	400mm
Z-axis travel	500mm
Dist ance between spindl e center and column surf ace	400mm
Distance from end face of spindle to work table	100-600mm
Guide way type	Sliding guide way
Rapid traverse rate of X, Y, Z axes	12000mm/min
Spindle speed	50-8000r/min
Taper hole of Spindle	BT40 ( 7/24 )
Spindle Spindle motor power	5.5kw (servo motor)
Tool storage capacity	16 with Carousel style /16 with disc style(option)
Tool shank	BT40
Max. tool weight	7kg
Tools changing time	≤8 with carousel type magazine ( ≤3 with disc-style magazine)
T-slot of work table	(3 slots) 18x100
X, Y, Z axis positioning accuracy	0.020/0.016/0.016
X, Y, Z axis repeat positioning accuracy	0.008/0.008/0.008
Air source pressure	0.5-0.8MPa
Overall dimension (L X W X H)	2300x2100x2500mm
Mass o f Machine (about)	3100kg









Reason 1. High Precision
All machinery that are launched by Z-MaT, has tested with laser interferometers, dynamic balancing instruments and other advanced manufacturing equipment and measuring instruments
Reason 2. High Stability
All machinery base that launched by Z-MaT have  went through aging treatment for at least two years.
Reason 3. Well-known brand
Z-MaThas been awarded the honor of"Zhejiang SME,""High-tech Industry,""Top Ten Industry in Yuhuan,""Top 50 CNC Machine Tool Manufacture in China"and"Taizhou Great Brand."
Reason 4. Flexibility
Because we are one of the few machinery company that have product line of more thant 70 CNC machine tools in China, so that we can choose the best CNC machine tools for our customers. We have a strong R&D team, so that we can design specific machinery to satisfy customers' requirements.
Reason 5. On time
We always deliver machinery on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.
