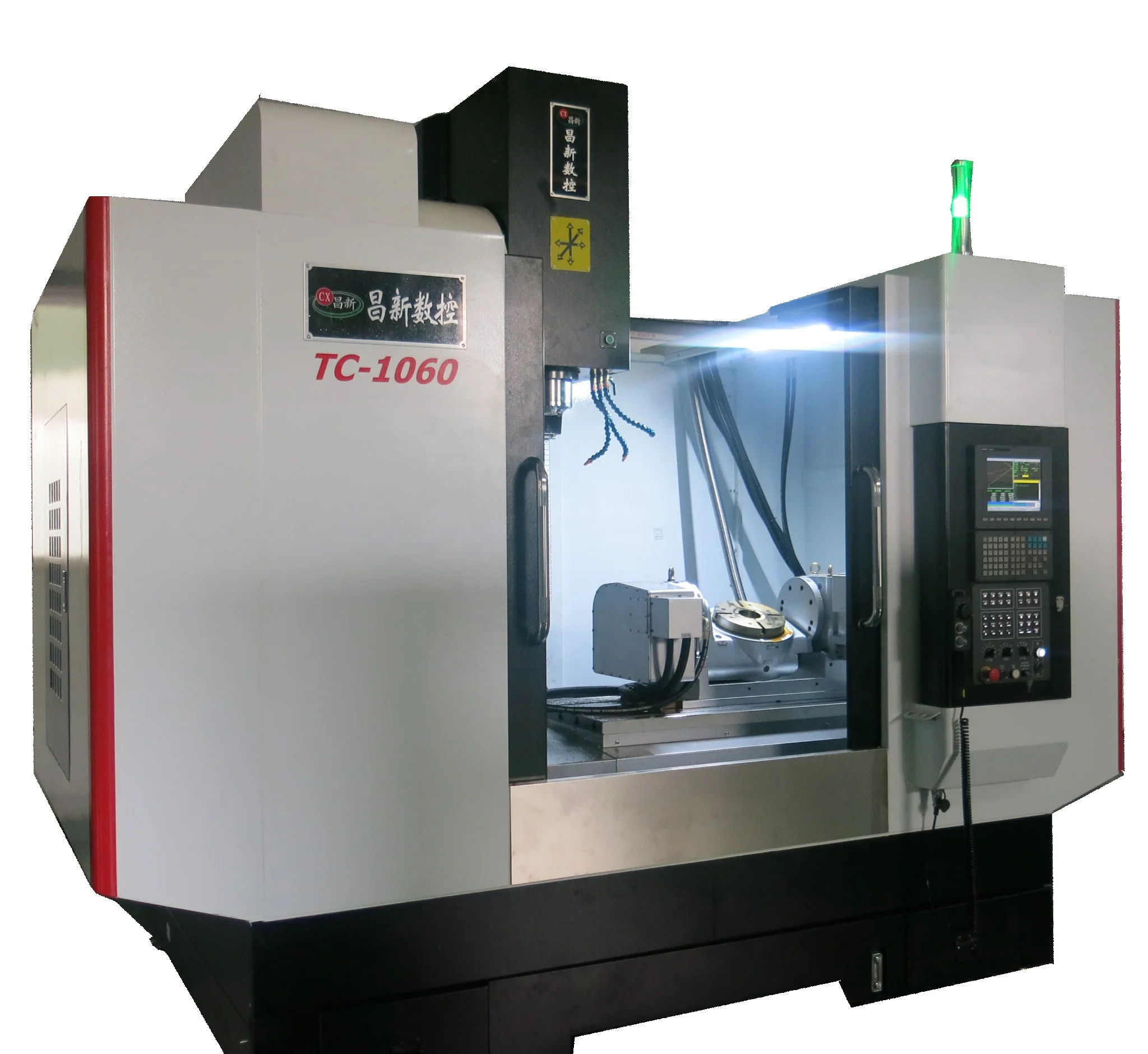

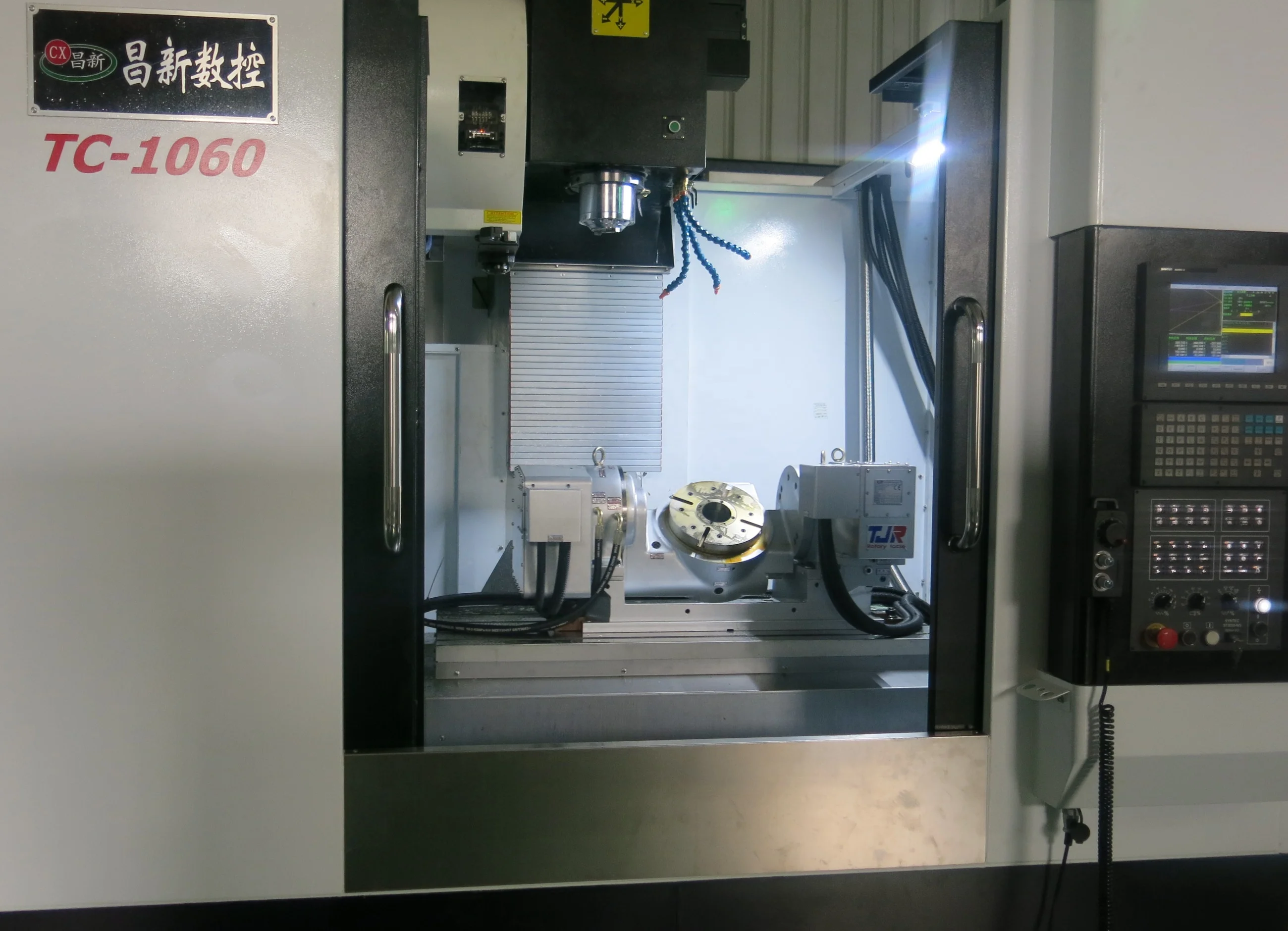

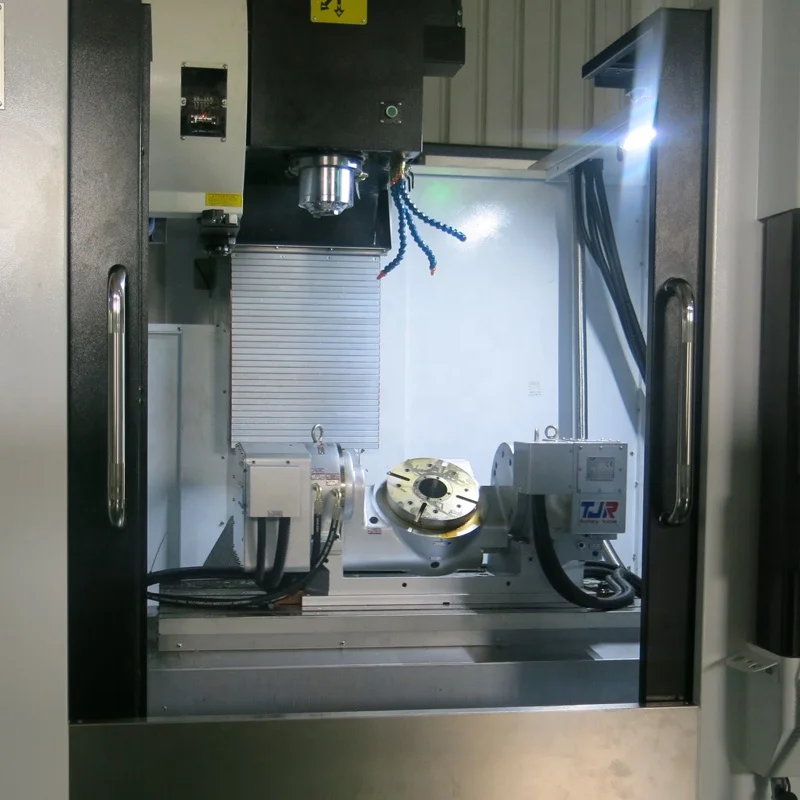

23 Year Manufacturer CE Certified One Year Warranty High Quality VMC1060 5 Axis CNC Machine Milling

Share on (60537712985):


Price:$59,796.00 - $59,996.00

Quantity:


Product Overview

Description


23 Year Manufacturer CE Certified One Year Warranty High Quality VMC1060 5 Axis CNC Machine Milling






























































































































SystemSyntec/Siemens
MotorYaskawa/Mitsubishi/Siemens/Fanuc

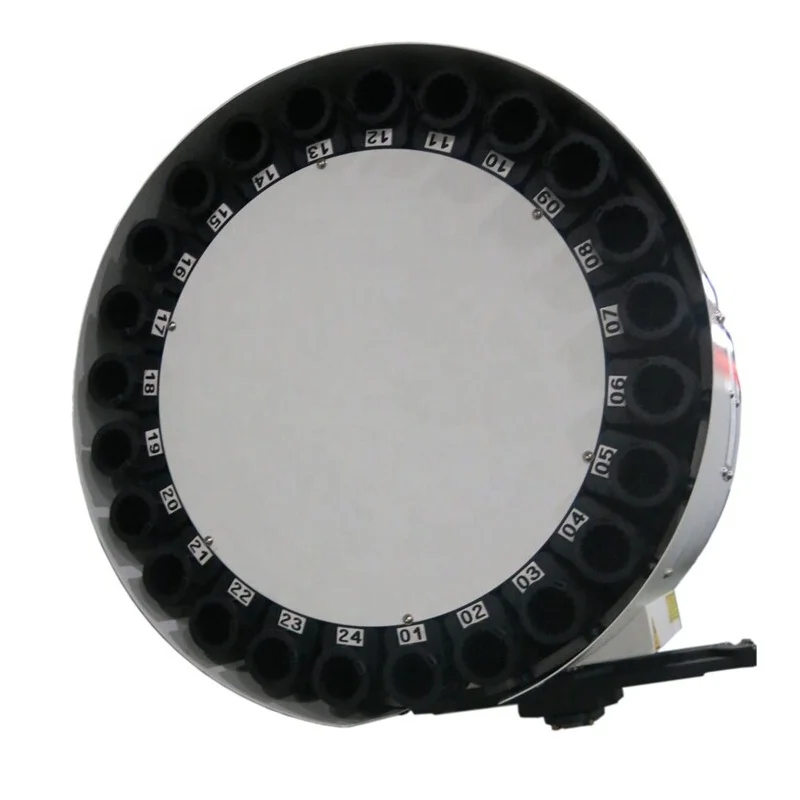

Tool Magazine CapacityDisc type tool magazine
Tool number: 24
X/Y/Z-axis Travel1000mm/600mm/600mm
Distance from Spindle Nose to Table120mm-750mm
Distance Spindle Center to Column Guide Rail650mm
Working Table Size1200*600mm
Table Max Load800kg
T Slot5pcs,Size:18T,Interval:110mm
Spindle Speed8000/12000rpm
Spindle Motor Power11kw
X/Y/Z-axis Motor Power3.0kw/3.0kw/3.0kw
Rapid Traverse(X/Y/Z)36000/36000/36000mm/min
Cutting Speed0-15000mm/min
Spinldle TaperBT40
Positioning Accuracy±0.005mm
Repeat Positioning Accuracy±0.003mm
Machine Size3400*2900*2750mm
Machine Weight7ton
Main Component Brand
SystemSyntec/Mitsubishi/Siemens/Fanuc
SpindleWaylong/Roaly/Volis in Taiwan
Tool MagazineOkada/Sanjet/Deta in Taiwan
BearingNSK in Japan or FAG in Germany
Lead screw/Guide RailHiwin/PMI in Taiwan
Coolant TankTaiwan Brand





Quality Control


QQ20170520114821.jpgQQ20170520103004.jpg540 pic5 766pixel.jpg





Company information







Our Partners


page 1.jpgpage 2.jpgpage 3.jpgpage 4.jpgpage 5.jpg





Our Services







Packaging & Shipping


package and shipping.jpg





FAQ





Q1: Are you a factory?


A1: Yes,we are a professional factory that was founded in 1998.





Q2: Payment term


A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.





Q3:Production time


A3: 20 days upon order confirmation





Q4:Check the acceptance


A4: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine. If there is any problem about machine, please take pictures and contact us immediately.





Q5:Warranty time


A5: 1) One year warranty. During the first year, if some parts need replacing, we will free provide. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals. 2)12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.





Q6:OEM Service


A6: We accept purchase orders with customers' brand or trade mark.
