Energy Saving 50KG 100KG 150KG 200KG Mini Oil Gas Steam Boiler for Laundry
- Category: >>>
- Supplier: Shanghai Yano Boiler Manufacturing Co. Ltd.
Share on (60537914727):
Product Overview
Description
Energy Saving 50KG 100KG 150KG 200KG Mini Oil Gas Steam Boiler for Laundry
Product Description
Features
1.High-efficiency Boiler Liner Structure
2.Advanced Automatic Control Function
3.Safe and Scientific Structural Design
4.High-quality and Fast Steam
Technical Paramete
| Type & Speci | LSS0.035-0.7-Y/Q | LSS0.05-0.7-Y/Q | LSS0.1-0.8-Y/Q | LSS0.2-0.8-Y/Q | LSS0.3-0.8-Y/Q | LSS0.5-0.8-Y/Q | LSS1.0-0.8-Y/Q |
| Rated evaporation(kg/h) | 35 | 50 | 100 | 200 | 300 | 500 | 1000 |
| Thermal effcieency | ≥93 | ≥93 | ≥93 | ≥93 | ≥93 | ≥93 | ≥93 |
| Rated pressure(MPa) | 0.7 | 0.7 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Stem temperature(°c) | 170 | 170 | 175 | 175 | 175 | 175 | 175 |
| Fuel 0#Diesel (kg/h) | 2.2 | 3.2 | 6.1 | 12.2 | 18.3 | 30.5 | 61 |
| Coal gas(Nm3/h) | 6.2 | 8.9 | 17.0 | 34.0 | 51.0 | 85 | 170 |
| Natural gas(Nm3/h) | 2.8 | 4.0 | 7.6 | 15.2 | 2.8 | 38 | 76 |
| LPG (kg/h) | 2.25 | 3.3 | 5.7 | 11.4 | 17.1 | 28.5 | 57 |
Dimension(mm) L | 800 | 800 | 900 | 1000 | 1150 | 1350 | 1480 |
| W | 800 | 800 | 900 | 1000 | 1150 | 1350 | 1480 |
| H | 1350 | 1400 | 1800 | 2320 | 2400 | 2650 | 3100 |
| Steam caliber | DN15 | DN15 | DN25 | DN25 | DN40 | DN40 | DN50 |
| Drain caliber | DN15 | DN15 | DN25 | DN25 | DN25 | DN25 | DN40 |
| Water inlet caliber | DN15 | DN15 | DN15 | DN15 | DN25 | DN25 | DN25 |

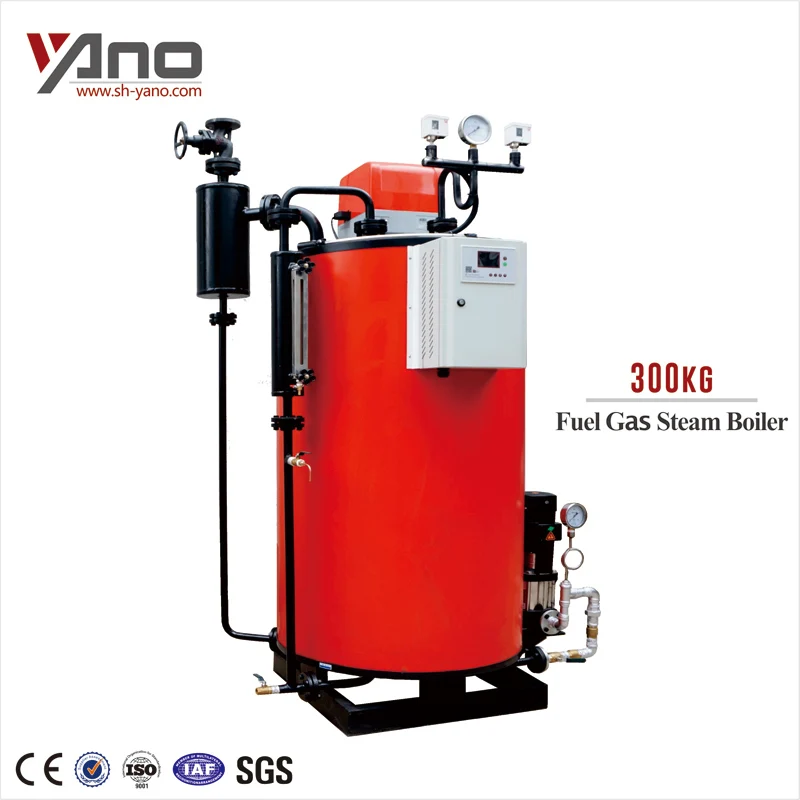

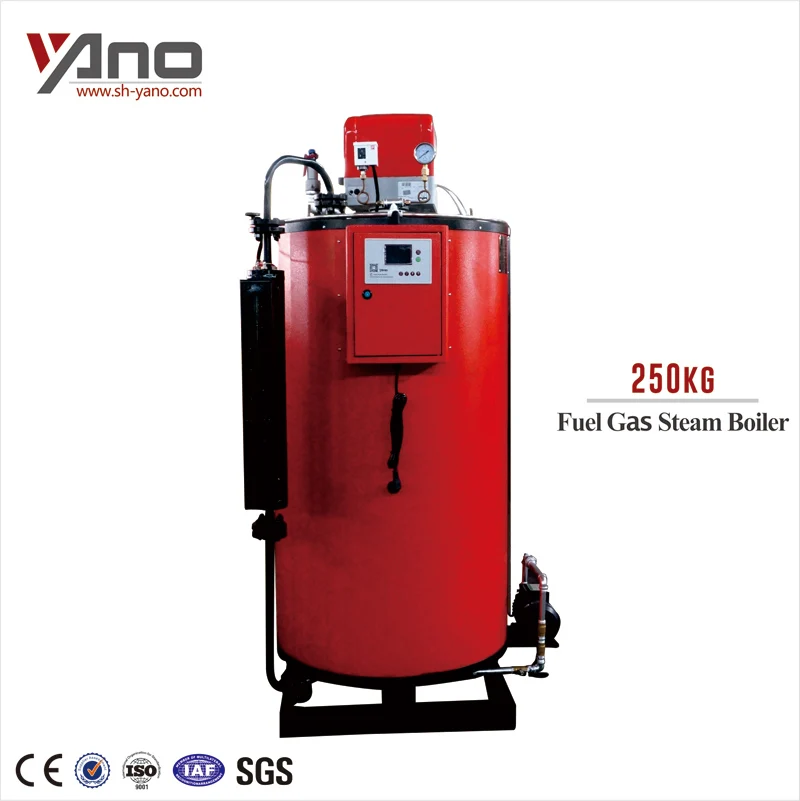

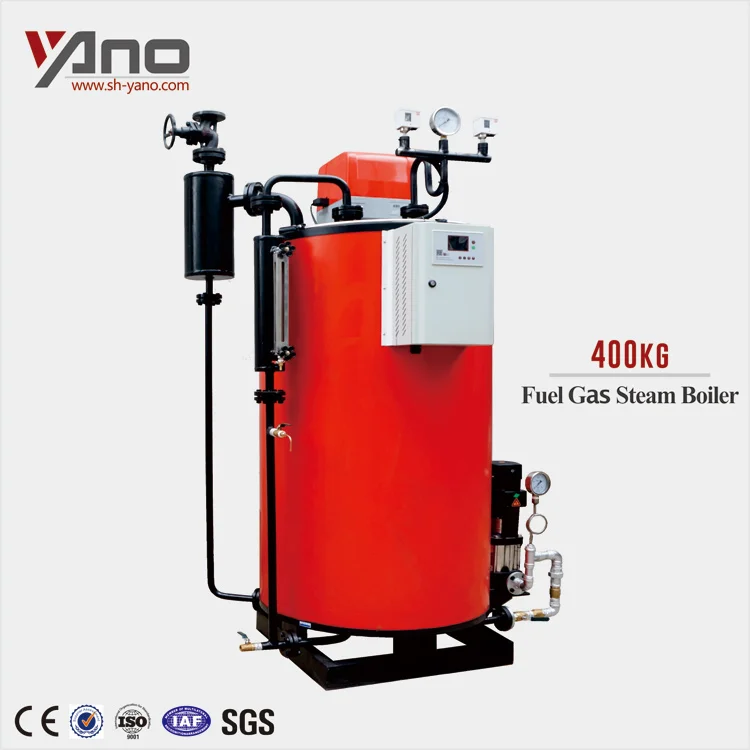

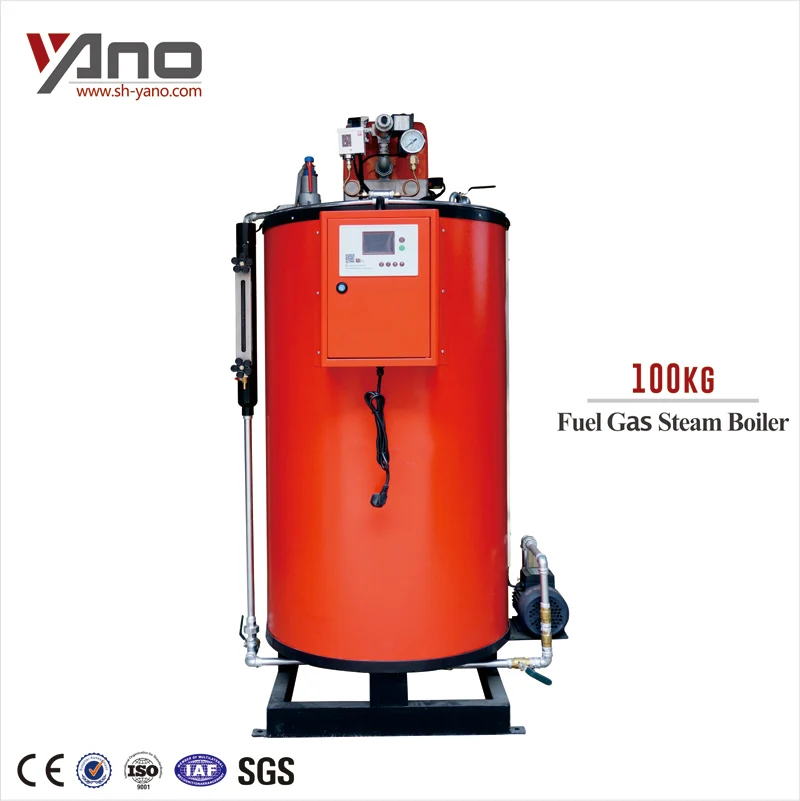

Products Photos
Packaging & Shipping
Our Package: Standed Export Wooden Package
Delivery Time:Usually 5-10 Days/Depend on the QTY
Company Information
Our company was established to serve the steam boiler
worldwide with an objective to be recognized as one of chinese leading manufacturers,exports and markets of top quality steam boiler.
our main products are electric controlled steam boiler.fuel gas/oil fuel steam boiler and so if you have any needs of steam boiler.please feel free to emall us.Thank you.
Our Services
Warranty
In Accordance with our company warranty conditions,the warranty period is one year and we guarantee for the steam boiler.
Beyond the warrancy period ,we also provide serive for our product.
CE Certificates
