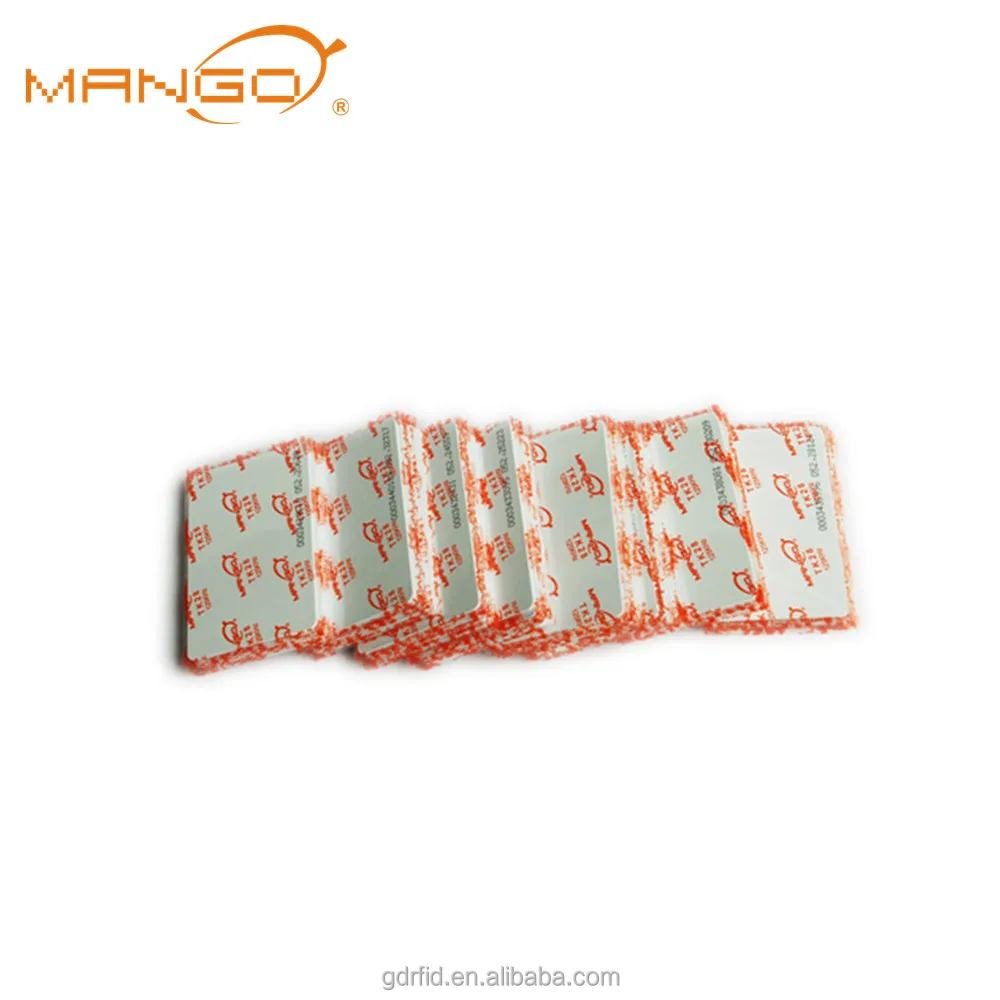

125khz proximity mango rfid card with TK28 chip
- Category: >>>
- Supplier: Guangzhou Taihe Dahua Intelligent Technology Co. Ltd.
Share on (60537996076):
Product Overview
Description
125khz proximity mango rfid card with TK28 chip
TK28 is a CMOS integrated circuit for use in electronic Read Only RF transponders. It is compatible with EM format.
The circuit is powered by external coil in an alternating magnetic field, and via one of coil terminal to get its clock from this field.
The circuit is powered by external coil in an alternating magnetic field, and via one of coil terminal to get its clock from this field.
The other coil terminal turns on and off the modulation current, the chip will send back the 64 bits of information contained in a factory pre-programmed memory array.
MANGO is a trademark was born in 2004! As a famous trademark, MANGO is well-known in China as well as overseas.
TK28 mango proximity card with best quality in the market.
Feature
* Read only, Manchester, compatible with EM4200/ H4200
* On chip voltage limiter
* Full wave rectifier on chip
* Large modulation depth due to a low impedance modulation device
* Very small chip size convenient for implantation
* On chip 480PF resonance capacitor
* Operating frequency 100-150 kHz, typical frequency:125KHz
* Low power consumption
Application
Employees ID Card
Animal Tag
Access Control ID Card
Time Attendance ID Card
Read only memory in identify serial number
Automatic Management
Industial Production

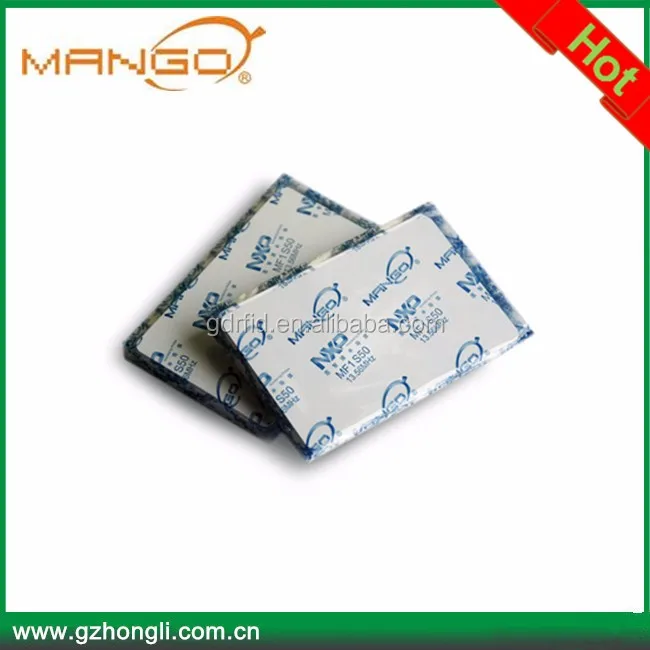

For Blank cards
For Blank cards

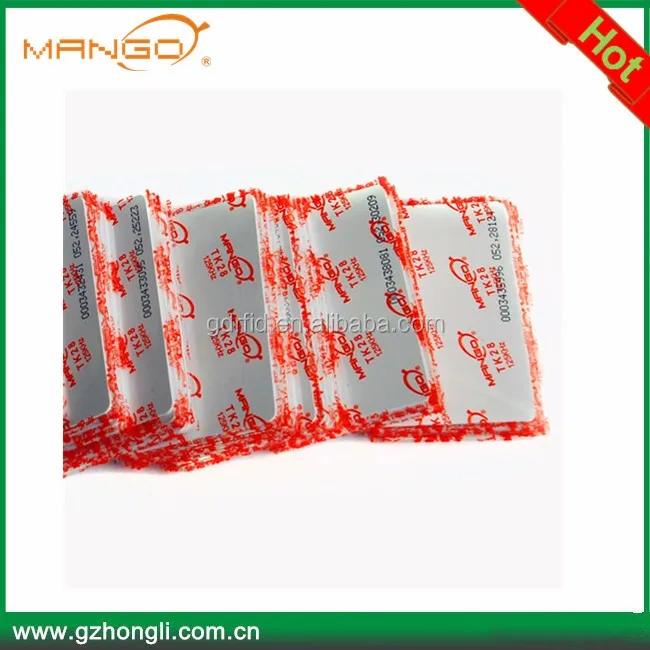

MANGO proximity card 125Khz TK28 chip
* Read only, compatible with EM4200/ H4200
With 18 digits number printing or without number printing

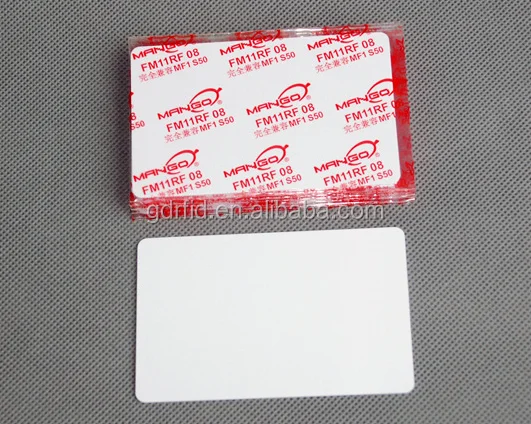

MANGO 13.56MHZ card FM11RF08
FM11RF08 (F08) is is according to ISO14443 Type A developed by Shanghai FuDan Microelectronics Co., Ltd. This chipset has 1K × 8bits EEPROM organization. The maximum communication rage between the reader and contactless card is approximately 10cm.

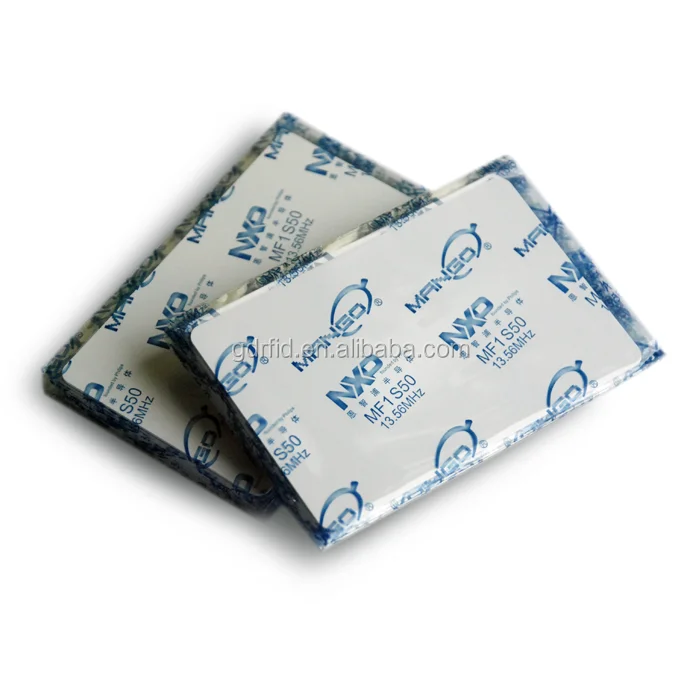

MANGO 13.56MHZ card
1K,4K
There is no any printing content on the blank card. Many customer order large quantity blank card.
They print the blank cards by their printer that can save a lot of cost.
Generally laminated coated overlay should be added on blank card, and then it is printable by customer.

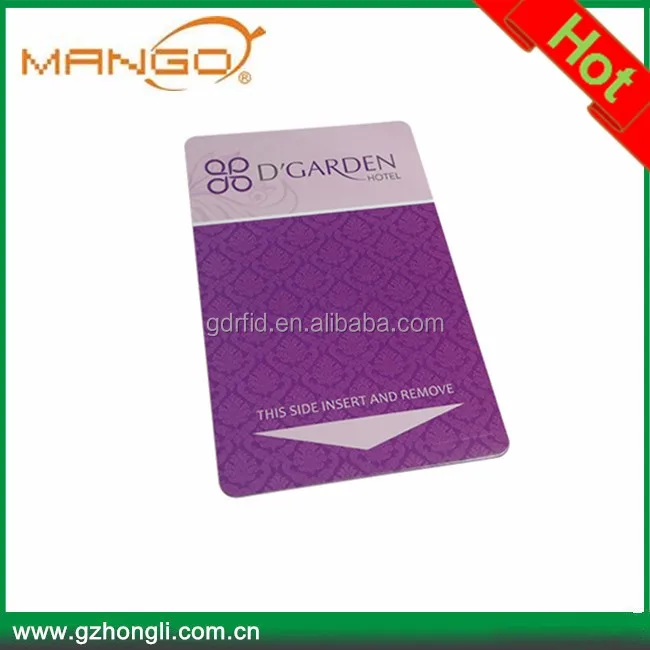

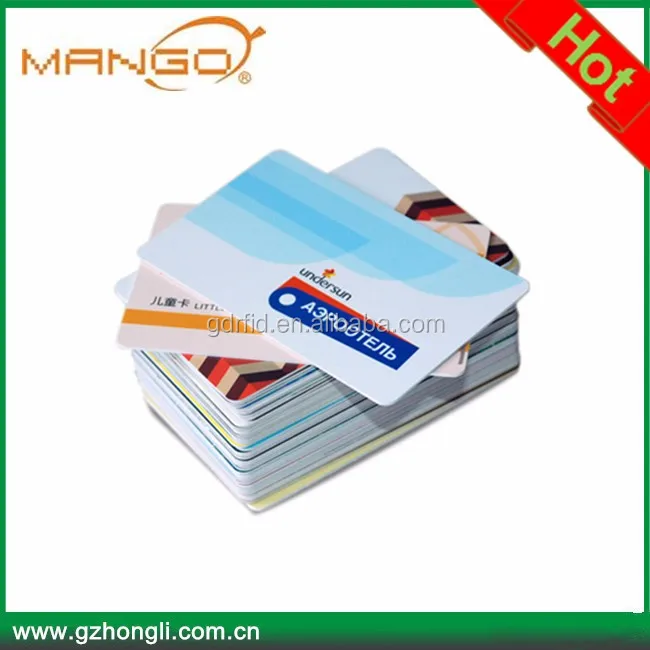

For printed cards
Available crafts:
1: Glossy, matt, frosted laminated/finished
2: Magnetic strip(Loco:300oe, hico:2750oe)
3: Signature panel and scratch panel
4: Barcode in different types(39/EAN 13/EAN 128...)
5: Hotstamping gold/silver color
6: Personalization:Numbers or texts in thermal/inkjet /embossed/laser engraved/UV printing , Offset printing CMYK full color printing, Silk printing Panton Color value, digital printing, thermal printing, laser printing and ink-jet printing.
- Offset CYMK 4 colours
This is the most common method used in commercial printing. The CMYK refers to the four inks used in the printing process: Cyan, Magenta, Yellow and Key (Black)
- Screen Printing
This method is used when the artworks only have limited colours and the accuracy is important.
Product Application
Access control System, Patrol system, Attendance system, Business management system, and etc. It can be customized to produce individualized business card, medical care card, member card, and etc.
We accept custom material and artwork/design order
Free design for you , we prefer you give us artwork file with either of below format
Coreldraw (.Cdr)
Adobe Illustrator (ai/.EPS/PDS)
Photoshop (PSD , 300dpi at least)
Pictures:

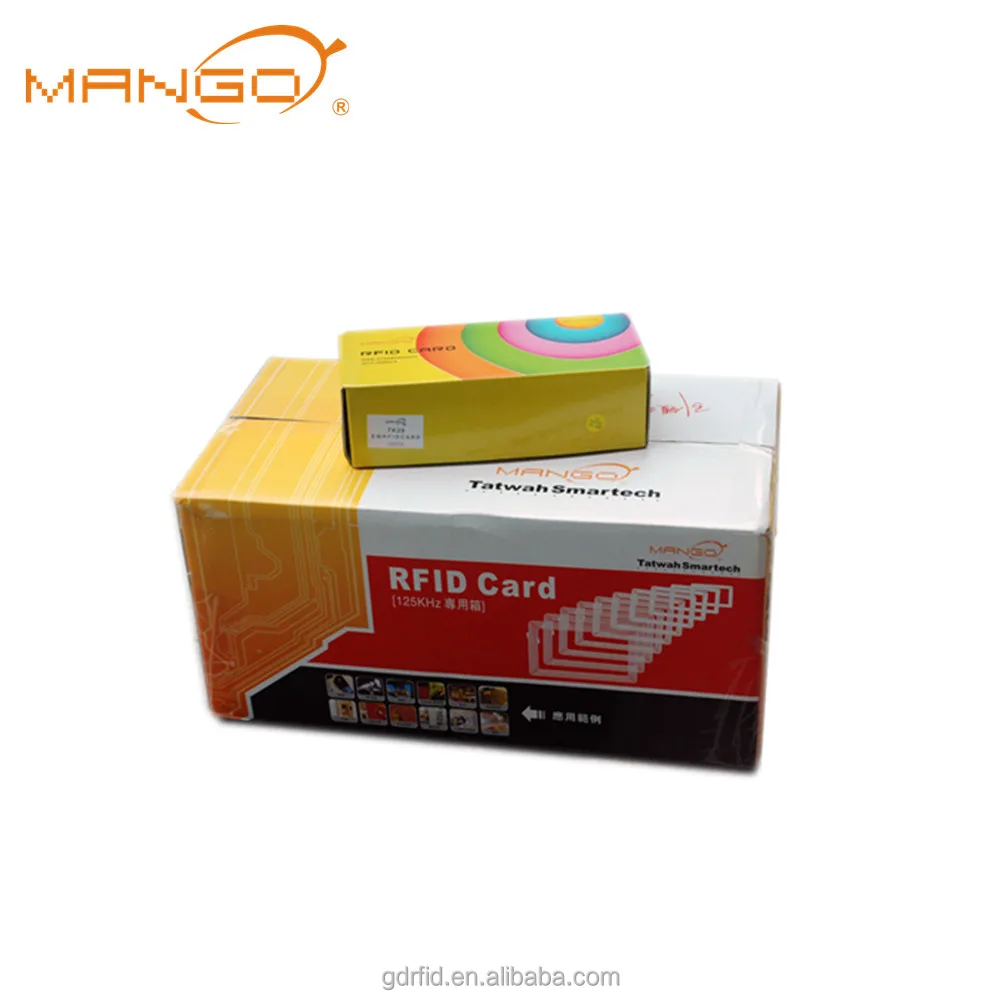

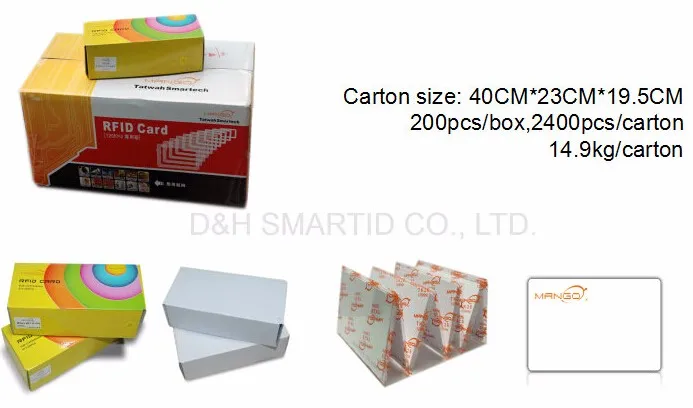

Packing details:
About our company:
Since 2000,we have provided billions of pieces RFID products to domestic and international users, which are widely used in security,transportation,tourism,anticounterfeiting,financial,
produton and other fields.
We provide RFID contactless smart tags,including a various specification cards,non-standard tags;different protocol interfaces reader circuit modules;customized smart card and tags.
