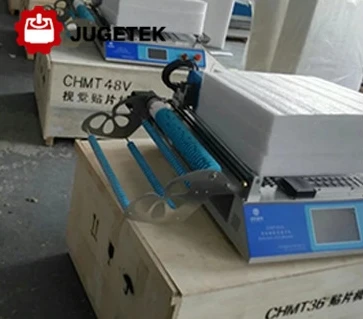

CHMT48VA or VB benchtop pick and place machine

Product Overview

Description

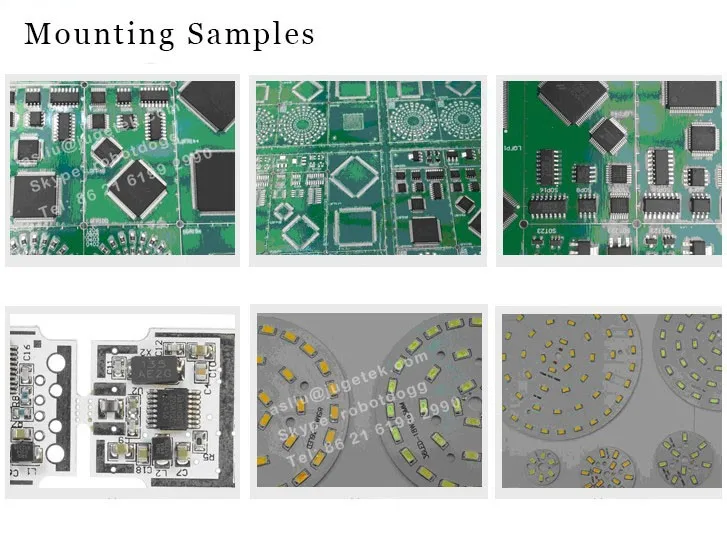

This Desktop Pick and Place Machine works very stably with chips inlcuding: 0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89,TO-252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm) 220V/110V Available. Model CHMT48V PCB area 10mm×10mm~380mm×415mm X,Y axis stroke 420×460mm Z axis stroke 15mm number of nozzle 2 material stack number ordinary material stack 29, IC material stack up to 14 visual support dual cameras mount speed do not use the visual: 6000 cph (maximum 7200 cph); use visual: 4000 cph; Note: cph is chip per hour SMT precision ±0.025mm support footprint 0402~5050,SOP,QFN tape width:8mm,12mm,16mm machine size L 960mm×W 705mm×H 335mm vacuum pump -92KPa number of pump 2 need external air pump no(built-in mute air pump) need external PC no

power supply 220V(110V), 50Hz
power 250W

weight 75Kg.

volume of packaging. 0.51m­­3

 Features:
1, Good system, computer windows7 inside the machine, independent operation, operation more easy and convenient

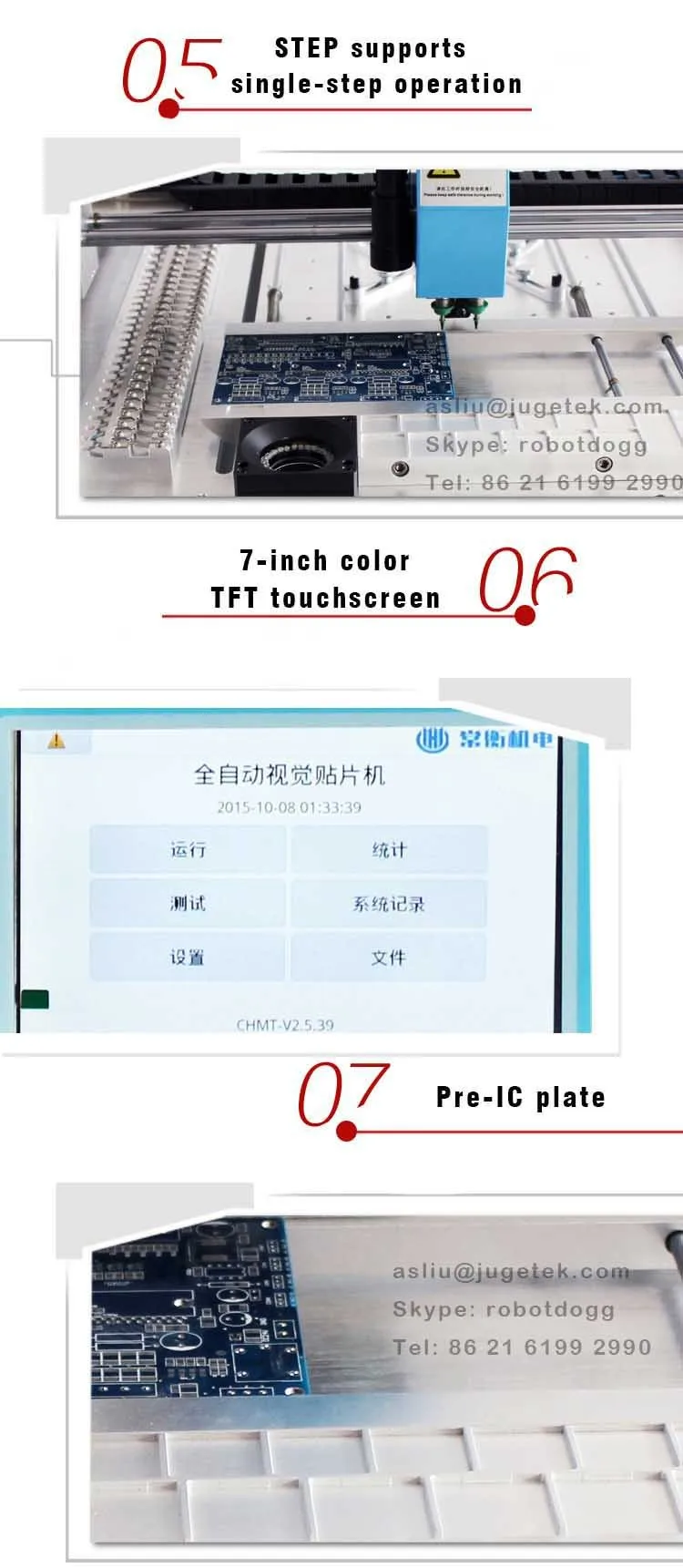

> 2, 7’’ TFT touch screen, it can connect a external USB mouse on the usb port to operate the machine like a computer.

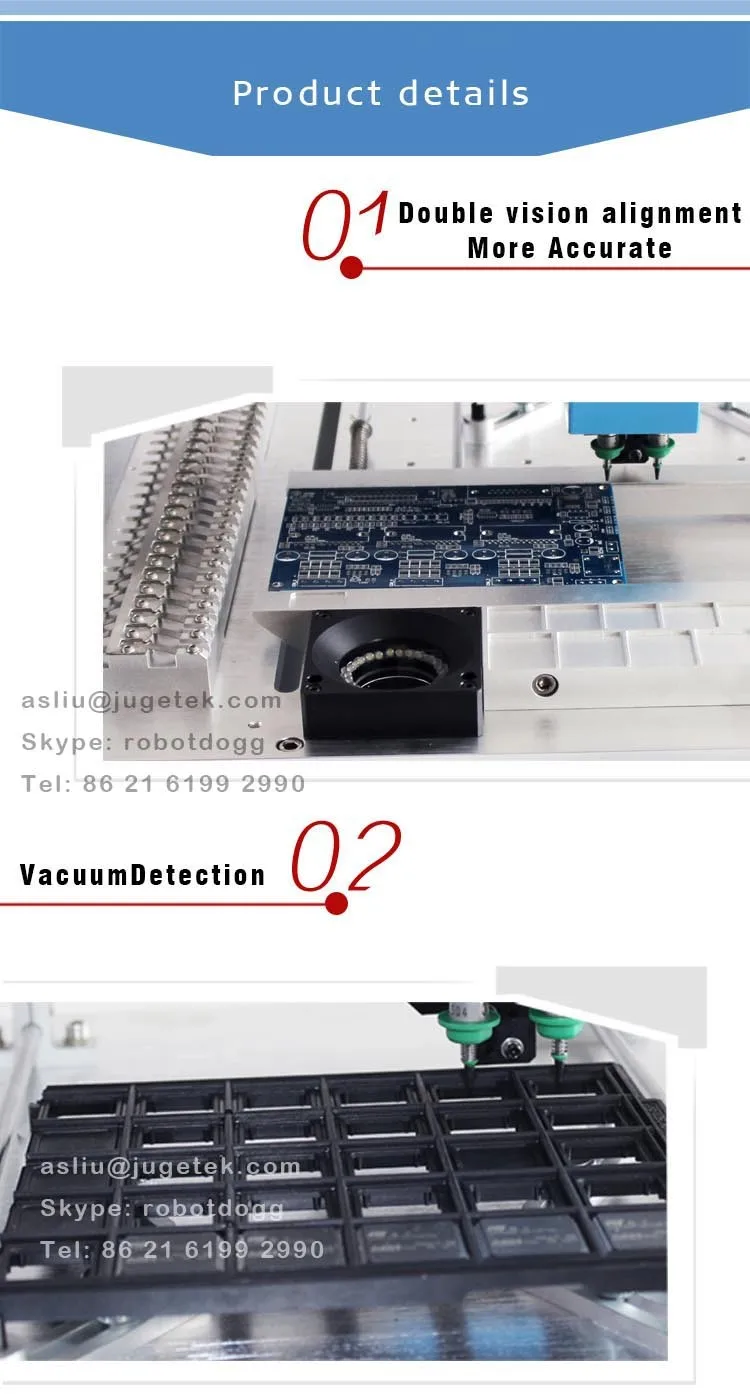

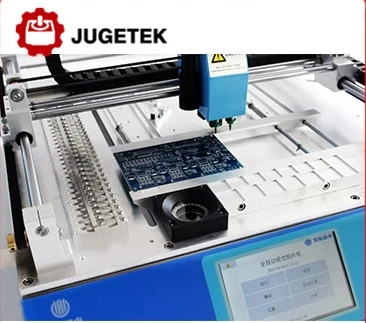

3, Up and down two cameras correct the position of each components very accurate, specally for IC.
4, It has flexible PCB clamping fixture, user-defined from stack NO.80. convenient and quick.
5, The vision also can second correction machine origin point, make sure origin point correct.

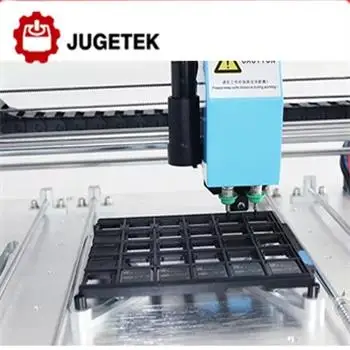

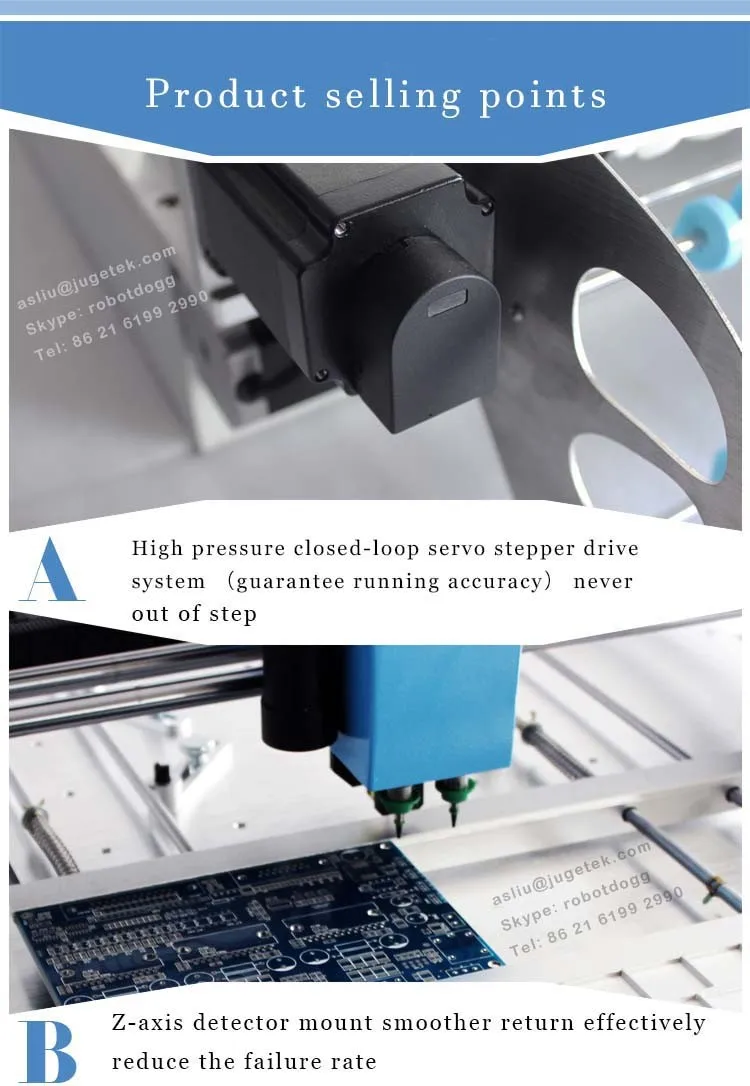

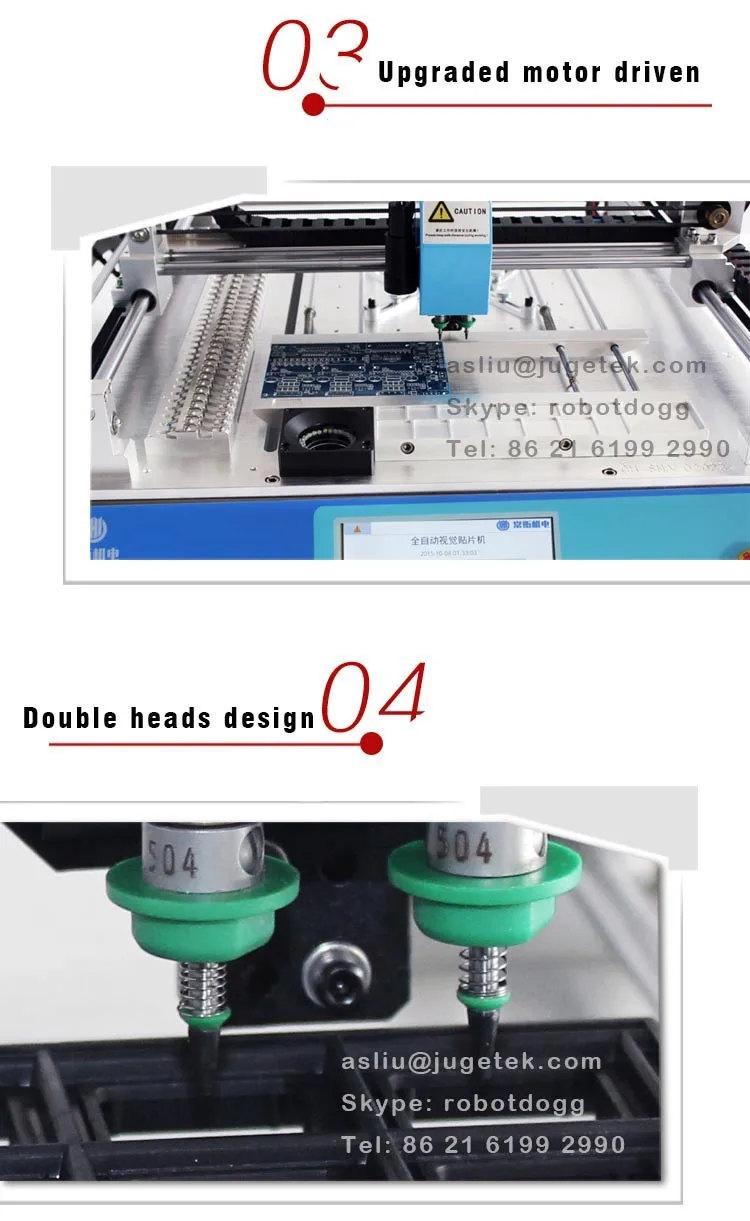

6, With two nozzles placing heads, high precise Juki Nozzles with magnet, no need to disassemble with wrench. 2 nozzles arbitrary rotation angle -180 degree~ +180 degree. Placing height can adjustable, accuracy of 0.1 mm.
7, PCB by two visual calibration, first and last componet, amend the offset of PCB.
8, Calibration can be rapidly and accurately for PCB, do not need to care about offset, no need to calculate the input.

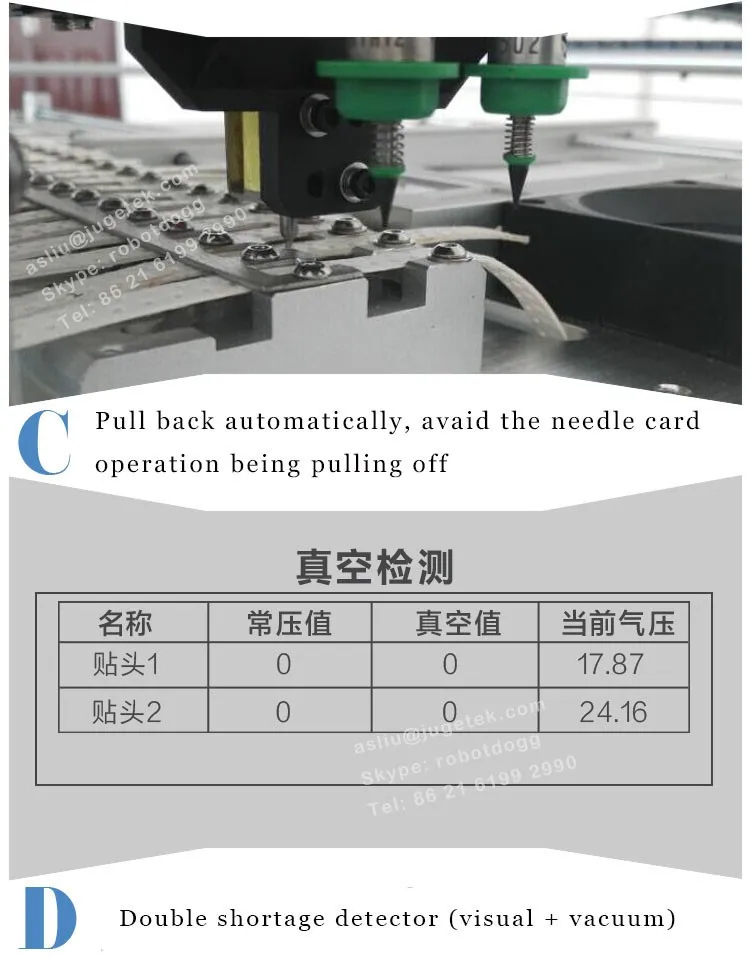

9, Comes vacuum testing, with automatic feeding; if one component suck crooked, it will automatically throw it to the feed zone, then pick a new one to mount again.
10, If lack material it will automatic detection, then alarm; after supply the material then continue working, no need to re-start.
11, Support any number of PCB batch.
12, If no PCB file, or don’t use protell software, you can creat a new file to program. Support single step.
