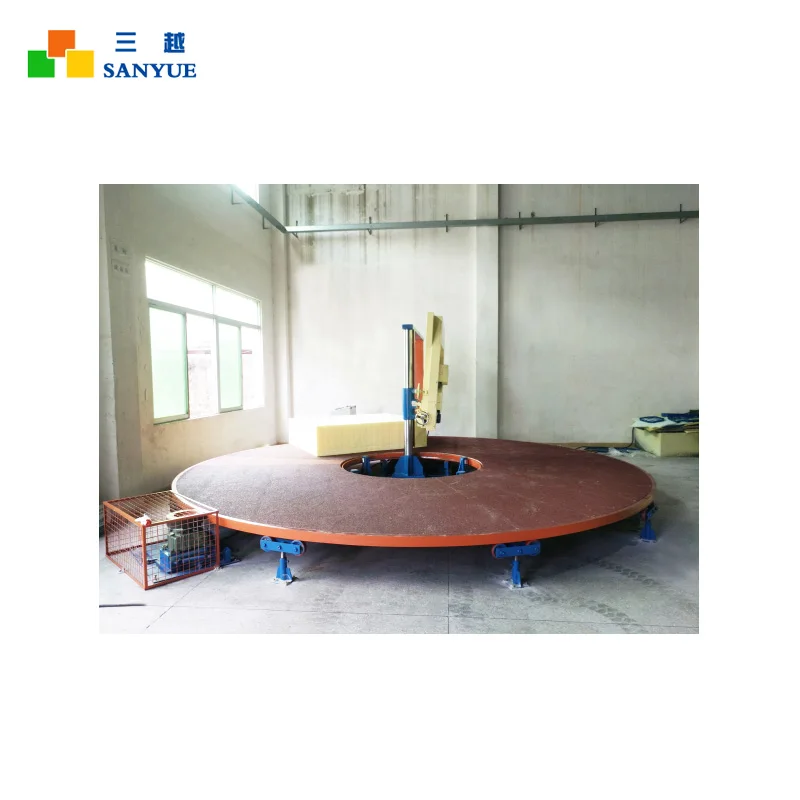

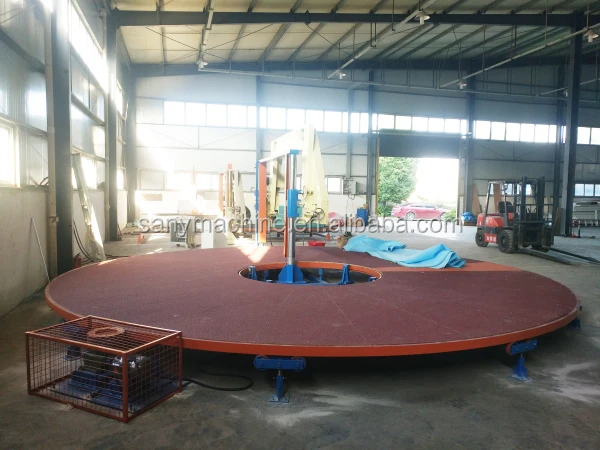

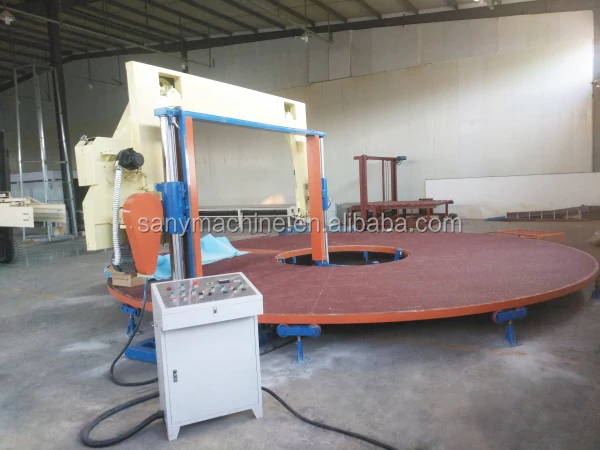

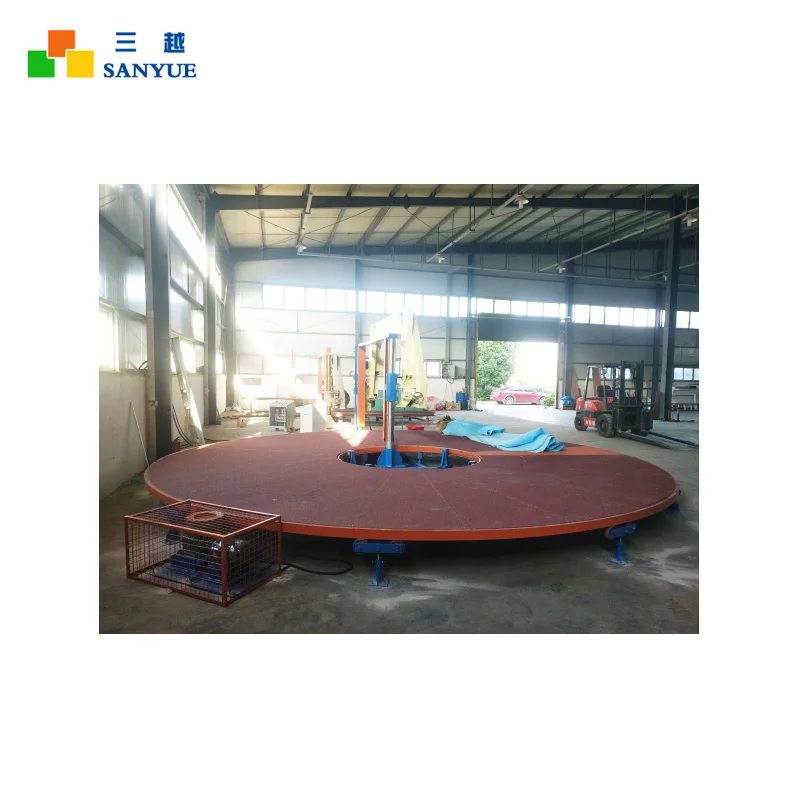

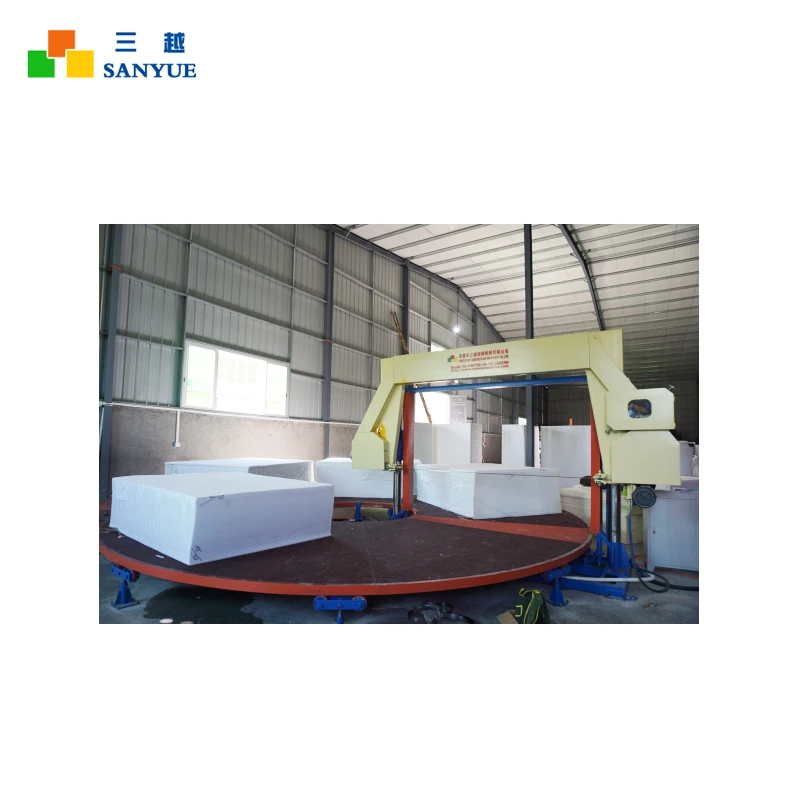

Carousel Splitting Horizontal Slitter Polyurethane Foam Machine
- Category: >>>
- Supplier: Dongguan Sanyue Foam Machinery Co. Ltd.
Share on (60538175089):
Product Overview
Description
Product Name

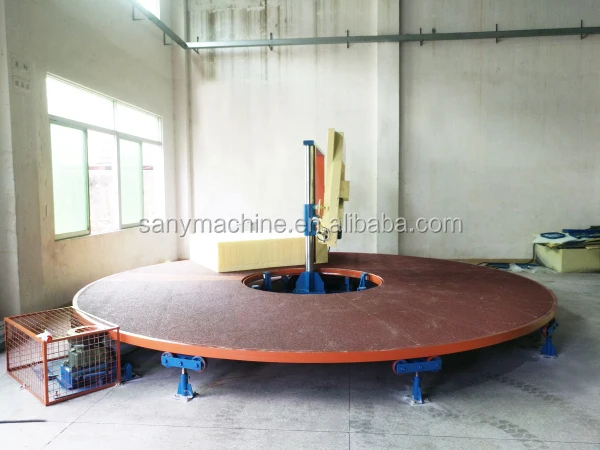

SYYP - 6M / 7M / 10M Carousel Splitting Horizontal Slitter Polyurethane Foam Machine
Product Description

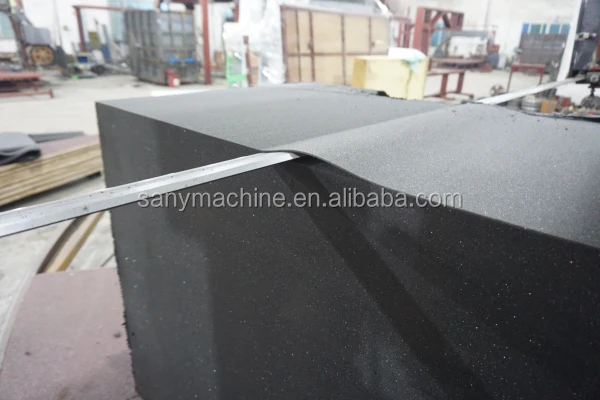

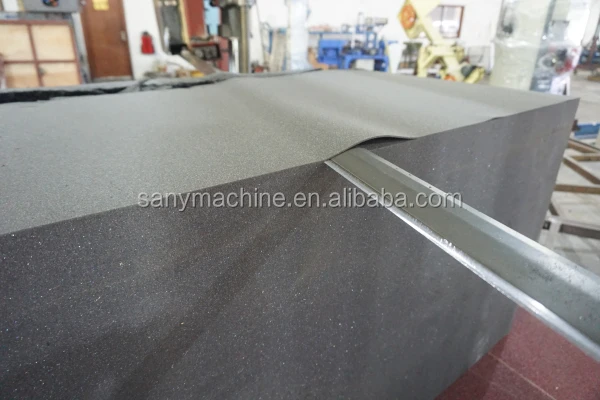

The carousel splitting foam machine is mainly for cutting multi- blocks foam into slices at the same time, adopts fully Automatic Mattress Circle Foam Cutting Machine automatic digital control, and setting the number as need cutting thickness and foam density by control box. The worktable runs automatically. The turning speed of worktable is adjustable, continuously cutting, high production efficiency ( The worktable also can be added options of a vacuum system).
Specifications
Model | SYYP-6M | SYYP-7M | SYYP-10M |
Cutting Foam Size | L2000*W1500*H1200mm (4pcs) | L2000*W1500*H1200mm (5pcs) | L2000*W1500*H1200mm (8pcs) |
Cutting Foam Thickness | 2-150mm | 2-150mm | 2-150mm |
Worktable Turning Speed | 0-3.5r/min | 0-3.5r/min | 0-2.5r/min |
Worktable Diameter | Dia. 6m | Dia. 7m | Dia. 10m |
Blade Length | 8940mm | 10620mm | 11000mm |
Total Power | 8.92kw | 8.92kw | 10.52kw |
Machine External Size | L7000*W6500*H2500mm | L7500*W7000*H2500mm | L11500*W11000*H2500mm |
