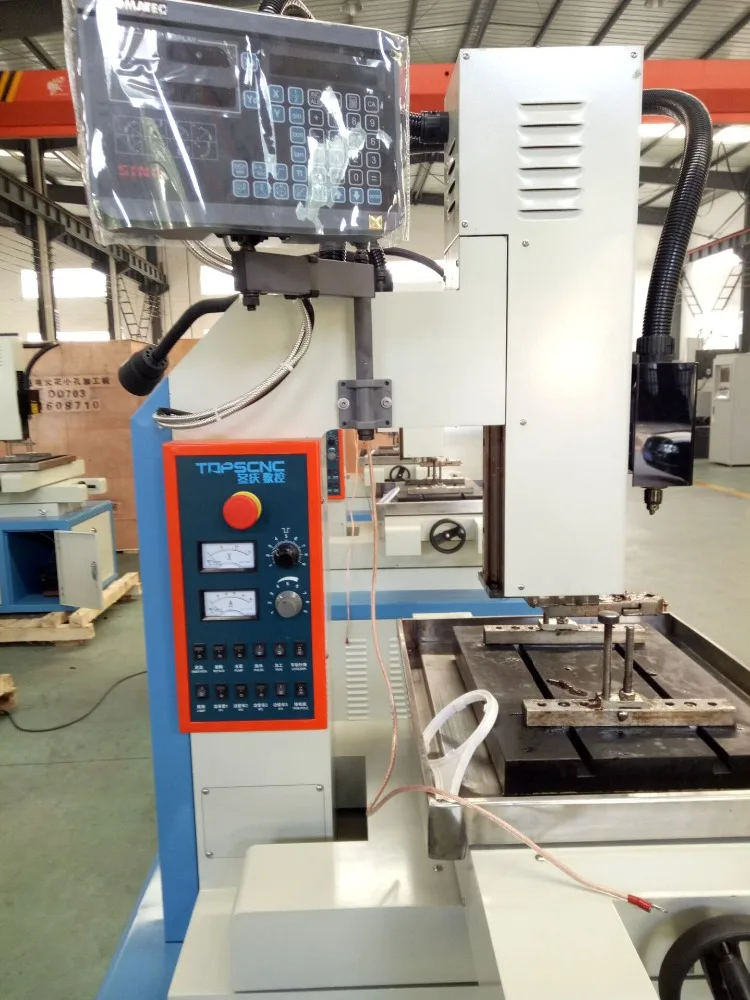

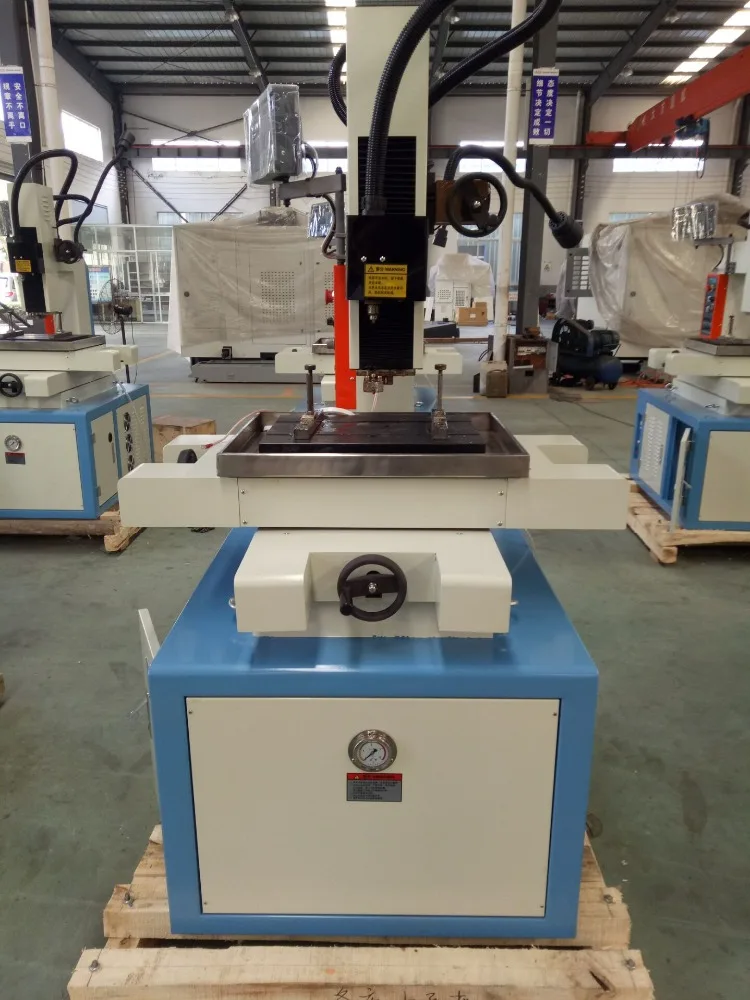

TOPSCNC DD703 Micro Hole Drilling EDM Machine
- Category: >>>
- Supplier: Jiangsu Dongqing Cnc Machine Tool Co. Ltd.
Share on (60538178043):
Product Overview
Description
Product Description
Technique parameters | unit | DD703 | DD703.30 | DD703.40 | ||||
Worktable size | mm | 320x440 | 320x440 | 460x690 | ||||
Worktable travel | mm | 200×300 | 300×400 | 400x500 | ||||
Z-axis travel | mm | 280 | 300 | 300 | ||||
Max.load on table | mm | 200 | 200 | 200 | ||||
Main spindle speed | rpm | 60 | ||||||
Diameter of electrode | mm | φ0.3-φ3 | ||||||
MAX.distance from guider to worktable | mm | 240 | 300 | 500 | ||||
water tank | L | 25 | ||||||
Filtering model | Shallow-gap filter | |||||||
Working medium | water | |||||||
MAX.working pressure | Mpa | 7 | ||||||
Power supply | 380V,3Ph,50Hz | |||||||
Max.woking current | A | 30 | ||||||
Power consumption | Kw | 3 | ||||||
Machine weight | kg | 700 | 850 | 1700 | ||||
Machine demensions | mm | 1060×750×1700 | 1060×750×1760 | 1800x1380x1800 | ||||
Products Advantages
1) It can drill small holes on the materials. Such as stainless steel, quenched steel, carbide,copper, aluminium,etc.
2) It can drill the deep holes with diameters 0.3-3mm and depth-diameter ratio 200:1 or more.
3)Working speed is 30-60mm depth per minute it can directly drill on oblique curved surfaces.
4) It can water as workingfluid.
5) It can become a machine with multi-axis numerical control or numerical display for the user requirement.

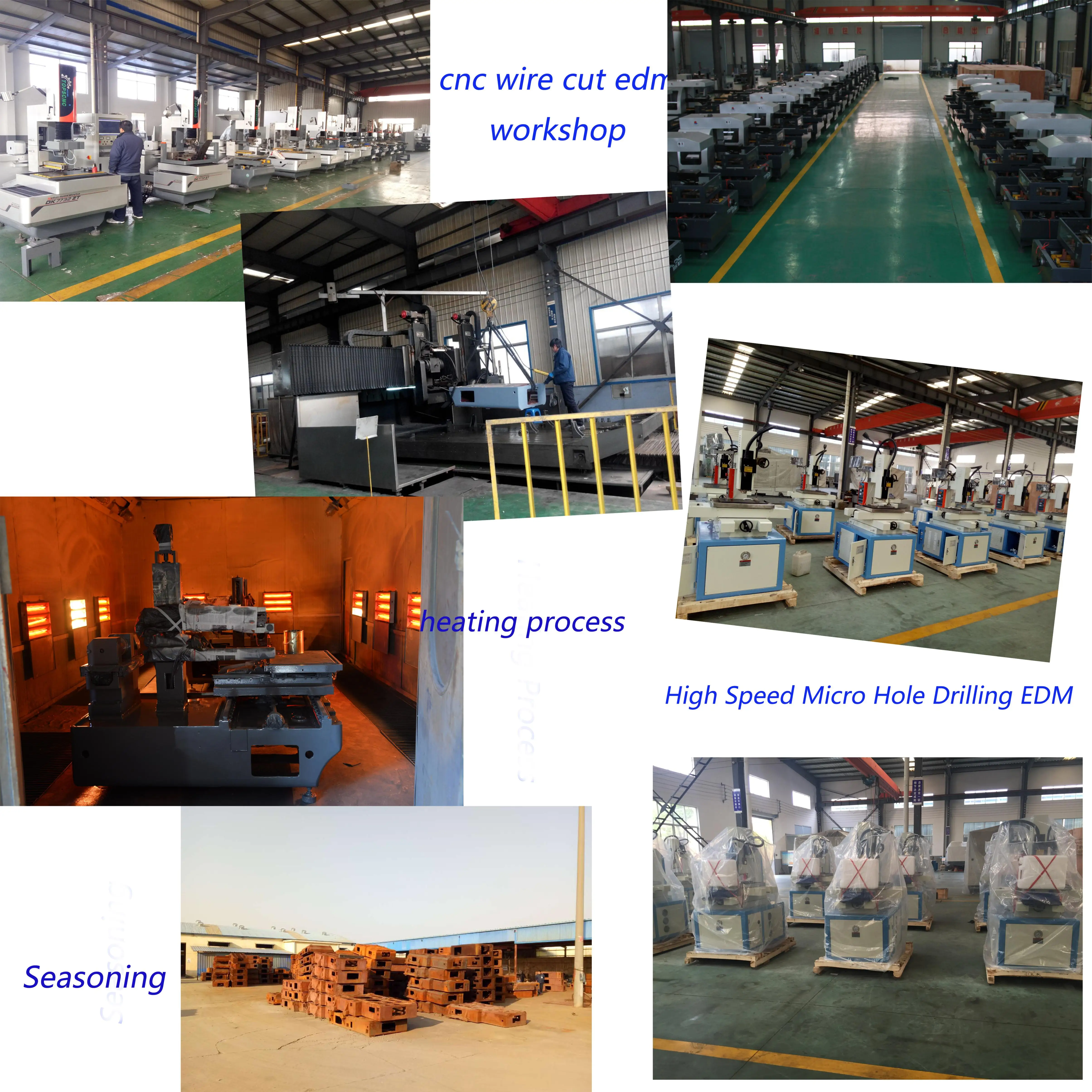

Our Company
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. “Innovation, development and win-win situation” makes TOPSCNS enjoy high reputation in this line.
TOPSCNC people wish to share success with you in the future!
Our Service
1) Quality & Service : We take care of the product quality in order to provide good service to our customers. | ||||||
2) Price : In order to serve more better to our customer we are always finding the way to reduce the price. | ||||||
3 )Warranty: One year after shipment, consumables are not included. | ||||||

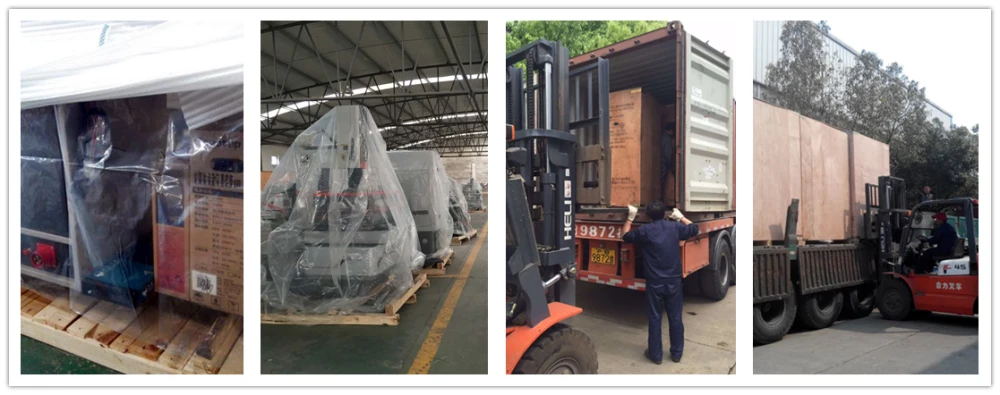

Packing & Delivery

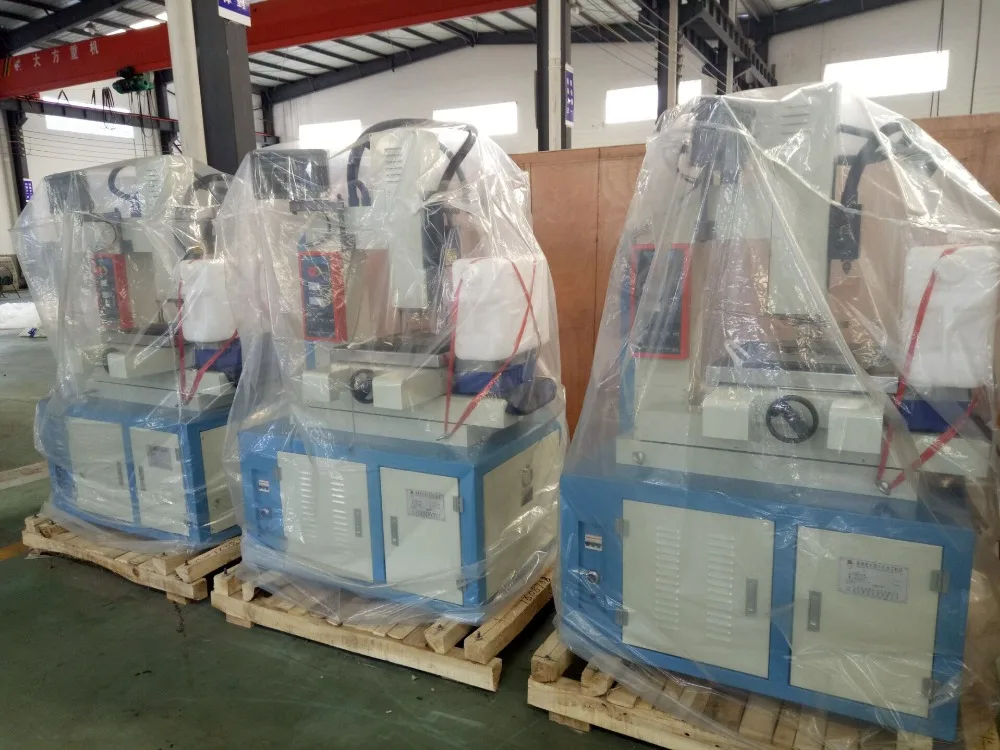

Packing Details : To be packed in wooden cases, suitable for export. | ||||||
Delivery Details : 25-30 days . | ||||||
MOQ: 1 set | ||||||
Port: Shanghai or any China port | ||||||
Payment Method : L/C or T/T | ||||||
Validity: one year | ||||||
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A:Normally our delivery time is 28~35 days, but if we have the goods you want in our stock, then the delivery time will be in about three weeks or less.
Q: Do you provide samples ? is it free or extra ?
A. No, we could not offer the sample.
Q: What is your terms of payment ?
A: Term payment: T/T30% with the order, the rest 70% of total amount T/T before shipment.
If you have another question, pls feel free to contact us as below:
Contact me
Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd
Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China
Tel:0086-523-86290115
Whatsapp:+86-18860892195 Skype: doria-xm QQ: 3242420873
Web:www.topscnc.cn
