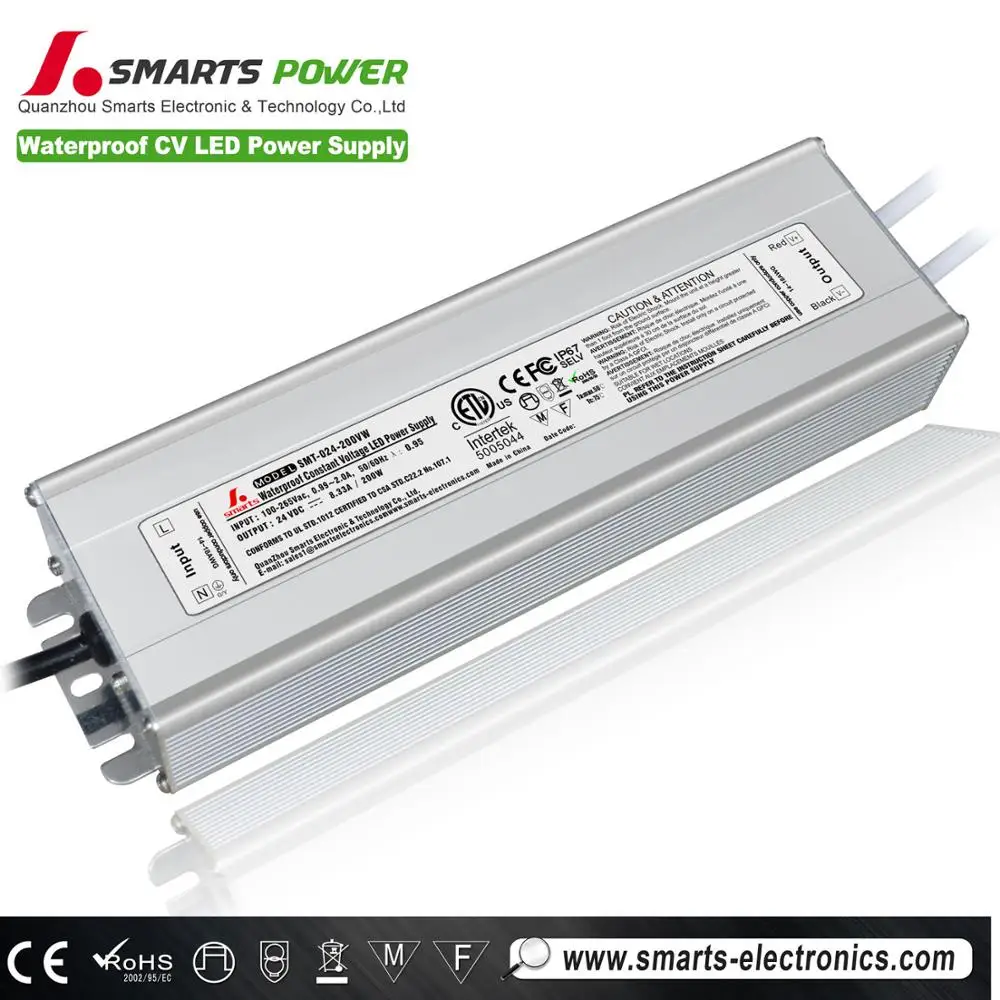

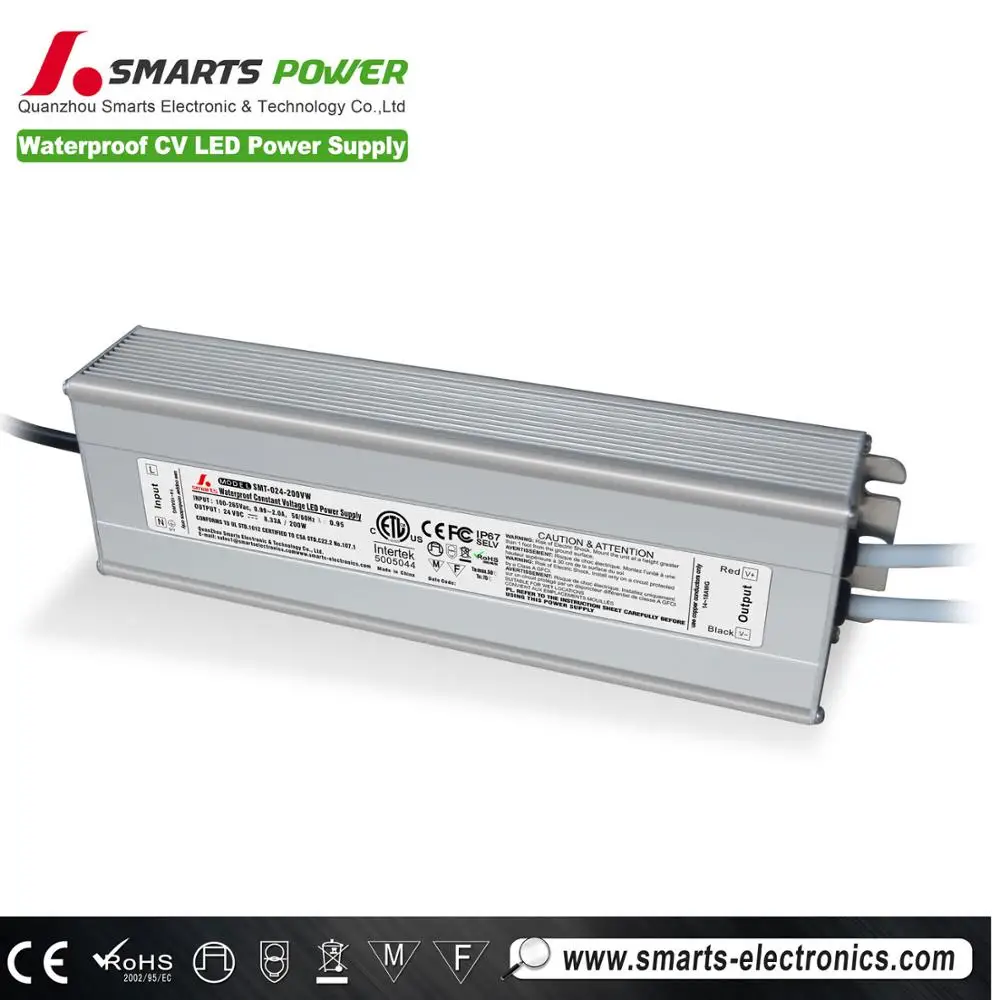

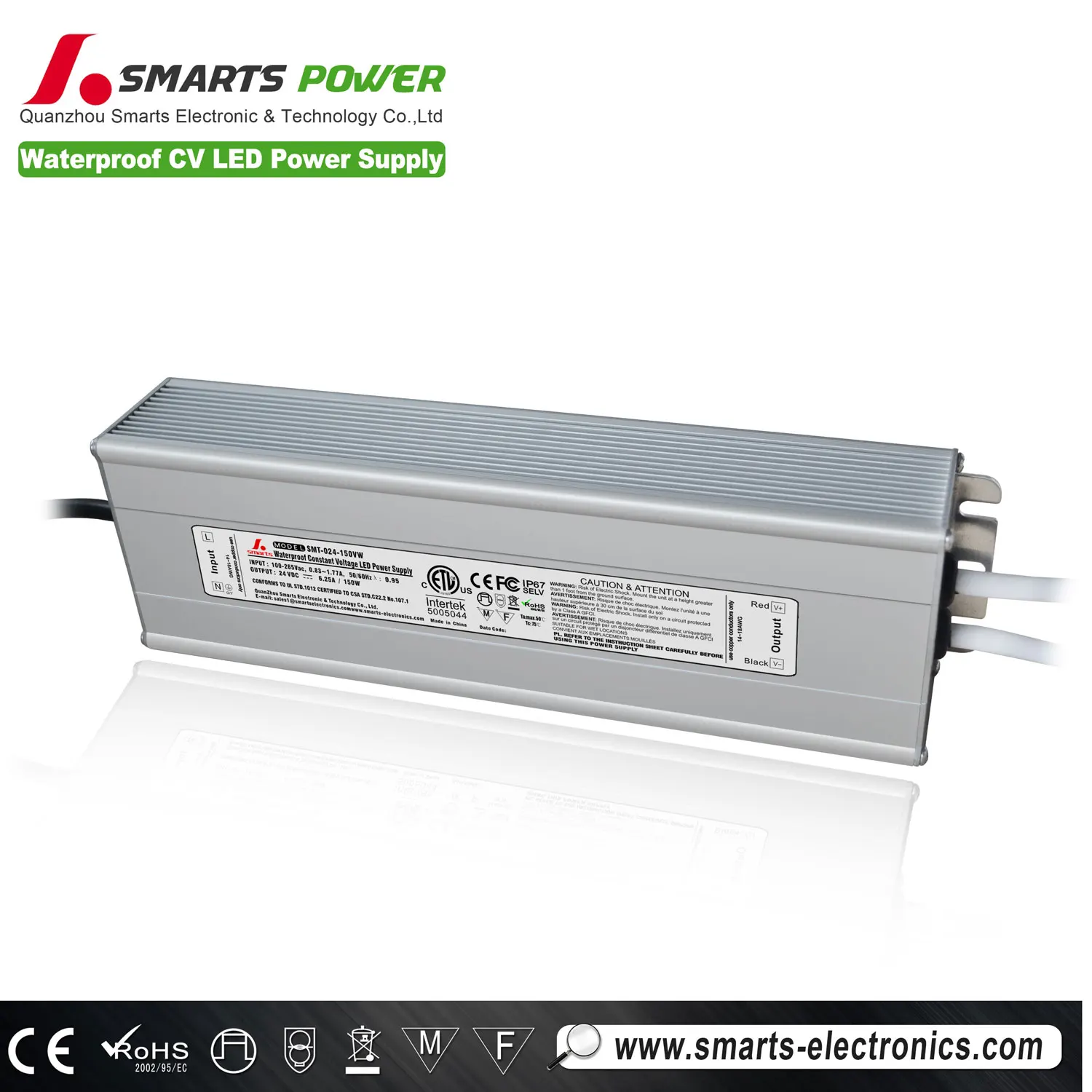

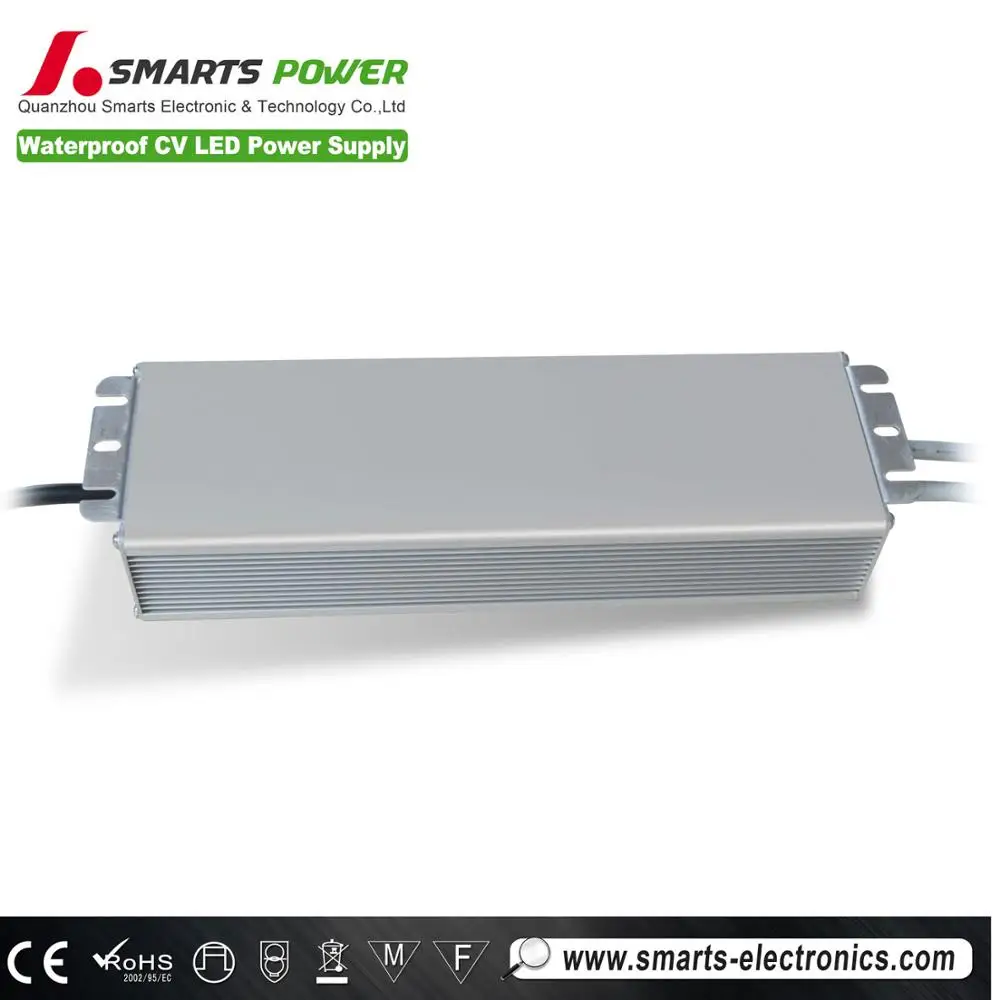

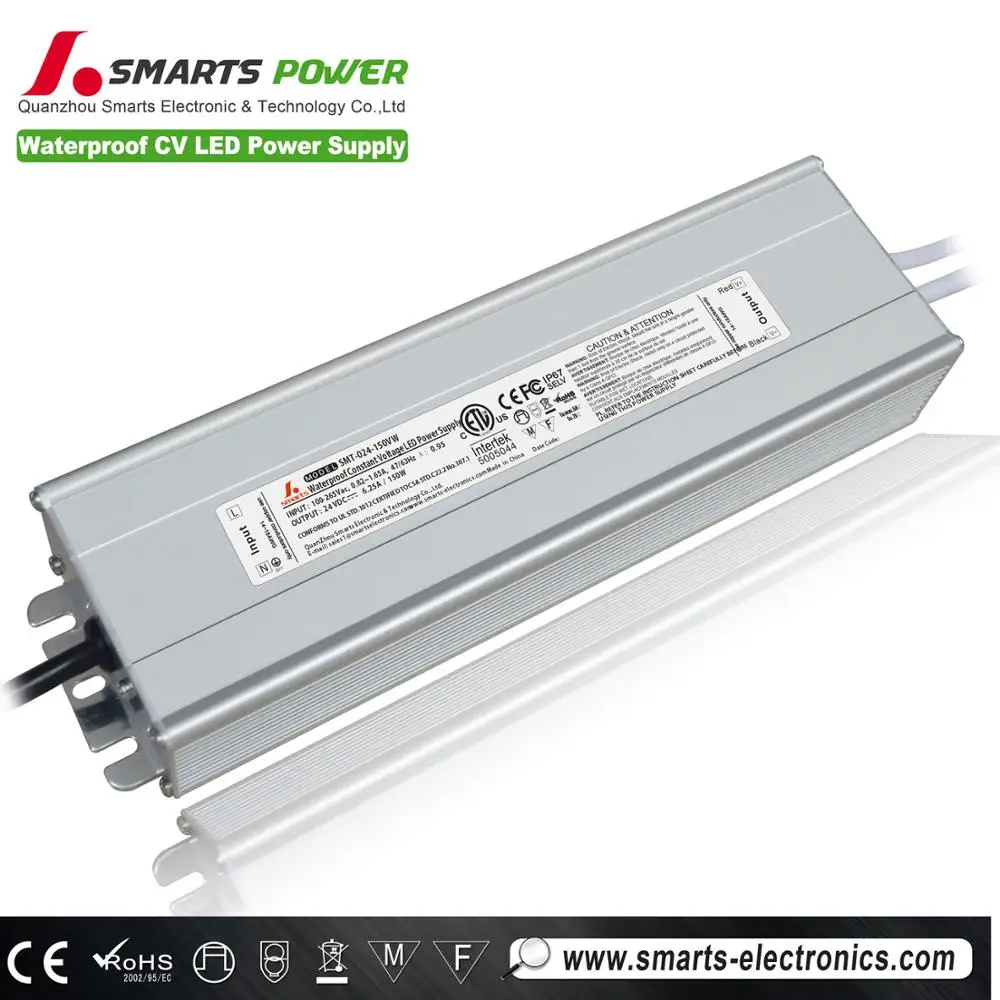

12V 24V 36V 48V DC 200w led driver waterproof power supply
- Category: >>>
- Supplier: Quanzhou Smarts Electronic & Technology Co. Ltd.
Share on (60538210452):
Product Overview
Description
12V 24V 36V 48V DC 200w led driver waterproof power supply
Product Description
| Label |
 |
| Description |
|
| SPECIFICAION | ||||
| MODEL | SMT-012-200VW | SMT-024-200VW | SMT-036-200VW | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V |
| RATED CURRENT | 16.67A | 8.33A | 5.55A | |
| CURRENT RANGE | 0~16.67A | 0~8.33A | 0~5.55A | |
| RATED POWER | 200W | 200W | 150W | |
| RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | |
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | ±0.5V | |
| SETUP RISE TIME | 80ms/110VAC, 220VAC | |||
| HOLD UP TIME(Typ.) | 60ms/110VAC, 220VAC | |||
| INPUT | VOLTAGE RANGE | 90~265VAC | ||
| FREQUENCY RANGE | 50~60Hz | |||
| POWER FACTOR(Typ.) | >0.95@110VAC ; >0.98@220VAC | |||
| EFFICIENCY(Typ.) | >91% | |||
| AC CURRENT(Typ.) | 2.10A@110VAC; 1.01A@220VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | |||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | ||
| Overload | overload protected@145-160% above peak rating | |||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | |||
| ENVIRONMENT | WORKING TEMP. | -30~+55℃ (Refer to output load derating curve) | ||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | |||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | |||
| SAFETY&EMC | SAFETY STANDARDS | CE ETL Mark(EMC,LVD),IP67 | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.0KVAC IP-GND:3.0KVAC | |||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | |||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | ||||
