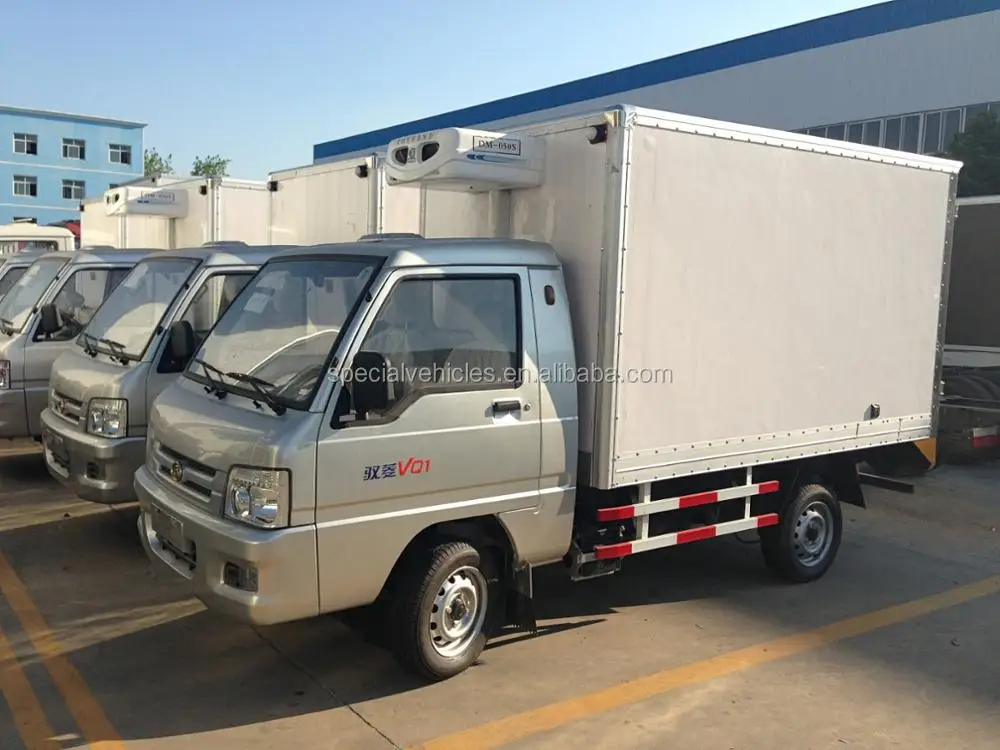

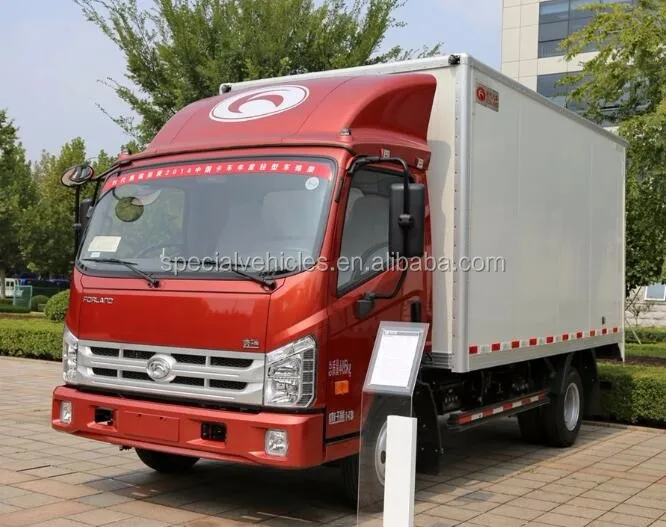

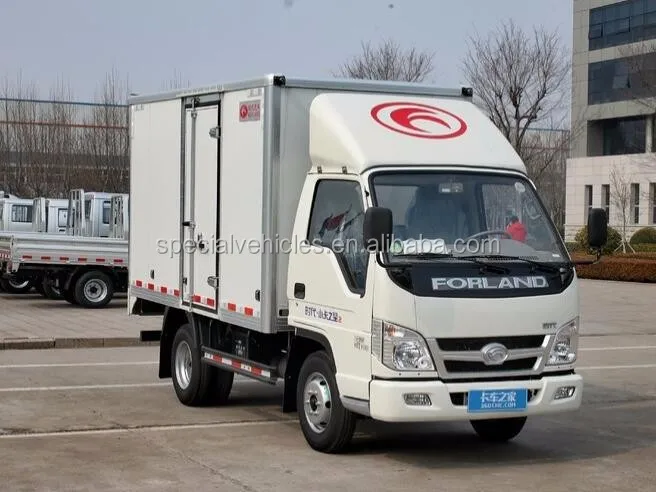

ice cream refrigerator freezer trucks, refrigerator truck 5 tons, refrigerator truck with thermo king engine

Share on (60538220960):


Price:RUB 1,248,695.28

Quantity:


Product Overview

Description







Product Description



Parameters



Refrigerator Truck ModelFoton BJ5049XLC

Total Weight(kg)

4495Cab TypeSingle Row
Curb Weight(kg)

3200

Passengers2,3

Loading Capacity(kg)

1165,1100

Number of Spring Steel3+1/6+7
Max. Speed(km/h)95Appro. Depart. Angle21/17

Axle Number

2Axle Load1350/3145
Wheelbase(mm)3360

Drive Type

2(Single Bridge)

Lowest Refrig. Temp.

-15 CelsiusBraking SystemHydraulic Brake

Emission Standard

Euro 3Fuel TypeDiesel

F/ R Suspension(mm)

1120/1515Fuel Consumption12.2,12.4,12.2,12.6

Refrigerated Truck Size

Overall Dimension (mm)

5995/2050,2200/3000

Box Internal size (mm)

4085/1820,1970/1820

Chassis Parameters

Chassis Model

BJ1049V9JD6-AATyre No.6

Front Wheel Tread(mm)

1530,1730

Rear Wheel Tread(mm)1485,1590

Tyre Specifications

7.00-16 8PR,7.00R16 8PR,7.50-16 6PR,7.50R16 6PR

Engine Parameters

Engine TypeEngine Power (kw)

Engine Capacity(ml)

4J28TC812771
ISF2.8S4117V87

2780

4B2-95C4070

2545

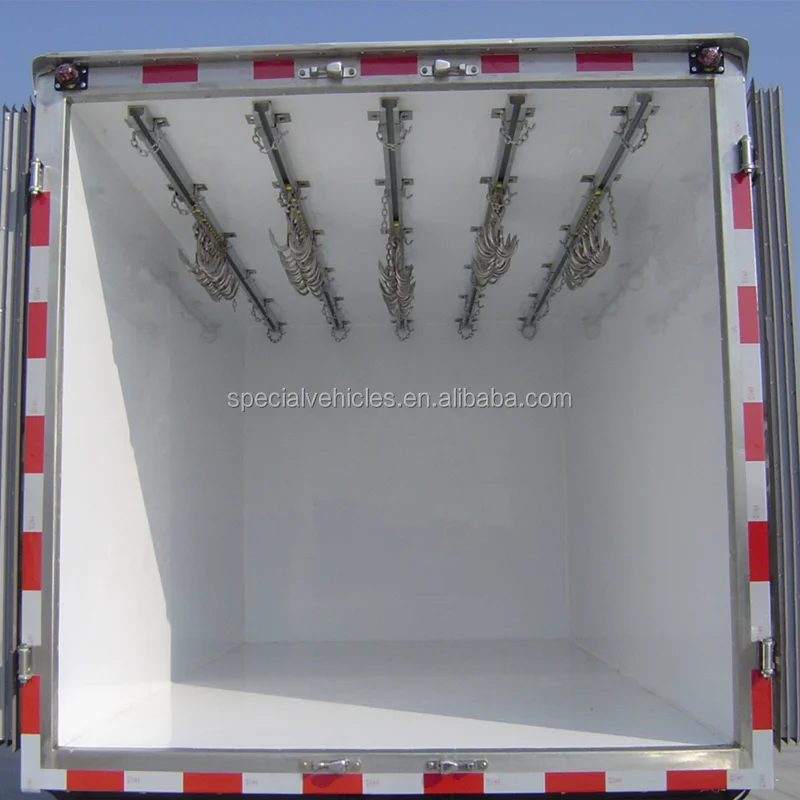

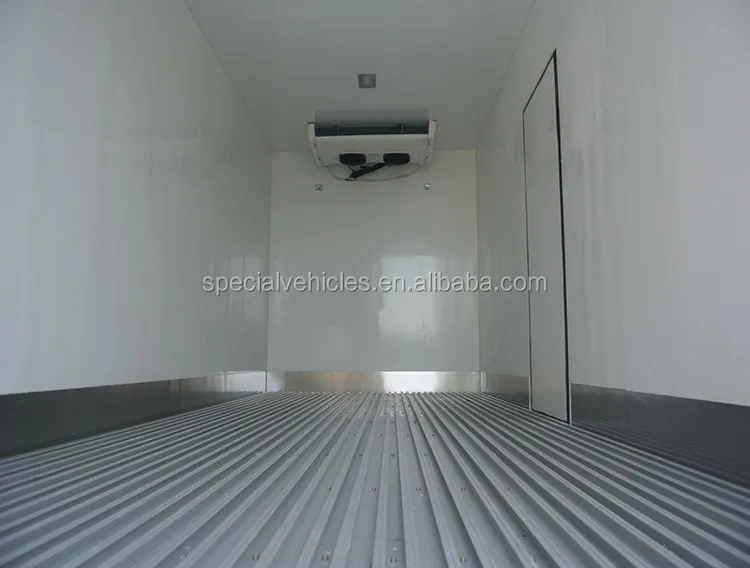

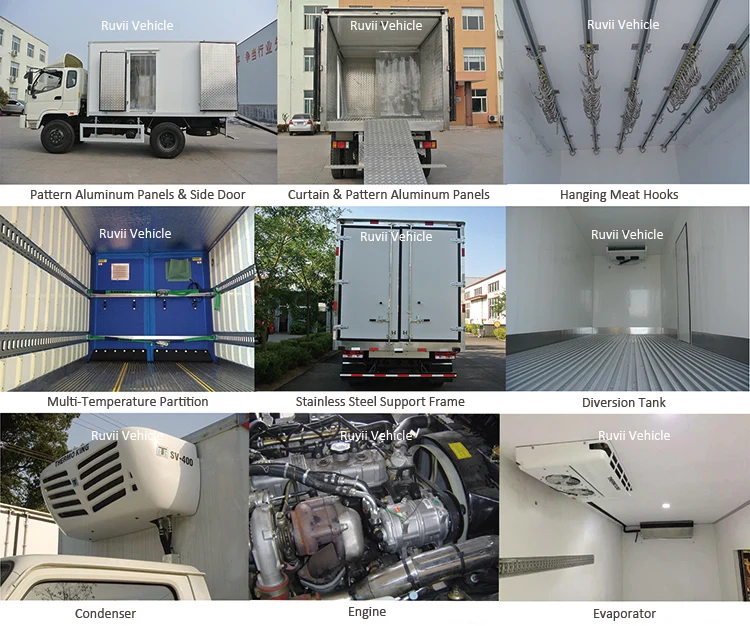

Refrigerated Truck Carrier Body Details:

Common Refrigerated Transport Cargo Temperature Selection:

Refrigerated Truck Goods

Product Series

Product

Temperature Range



Meat Products

Fresh Meat

  -2~4℃

Fresh Fish

  -2~1℃

Cooked Meat

   0~5℃

Farm Produce

Edible Mushrooms

   0~4℃

Fruit & Vegetables

  -1~5℃

Flower Grass Seedlings

   0~5℃

Poultry Eggs

  5~15℃

Sugar Alcohol Industry

Fresh Milk

  2~5℃

Beverage

  0~5℃

Wine & Beer

  5~20℃

Chocolate & Candy

  0~5℃

Frozen Food

Dumplings

 -18℃

Ice Cream

-18~-25℃

Frozen Beef, Mutton, Pork, Fish & Poultry

 -18℃

Biomedical Products

Vaccine

   2~8℃

Biochemicals, Medicines & Blood Plasma

 —4±2℃



Company Information

Qingdao Ruvii vehicle Co.,Ltd, is one of the subsidiaries of Shandong Joho Group. Which is founded in 1970s and after almost 40 years development, have had many subsidiaries engaged in various of industrial equipment, tourism development, international trading and special vehicles etc. One of the enterprise,the Shandong Joho Special Vehicle Co., Ltd is founded in 2005. It is licensed to established with necessary authorization and certification for special vehicle by Ministry of Industry and Information of China(the MIIT).

By now,we are one of the most professional manufacturer of all kinds of special vehicles in china. Such as the Garbage Truck, Watering truck, Sewage Suction Truck, Dump Truck, Mobile-media Truck and Refrigerator Truck etc.

We have more than 50 professional engineers and 700 experienced workers in our factory and have the world-class equipment and production lines. Which ensure we have the ability of independent research and design and also the high production quality.

With strong advantage and support of Joho Group,we can offer one-stop solution for customers. Including free designing, manufacturing, transporting, after-sale servicing and free technical supporting. We welcome all the customers to inquiry and visit our factory. we would offer you the one-stop professional and economical solution with time saving and labor saving.




With strong advantage and support of Joho Group,we can offer one-stop solution for customers. Including free designing, manufacturing, transporting, after-sale servicing and free technical supporting. We welcome all the customers to inquiry and visit our factory. we would offer you the one-stop professional and economical solution with time saving and labor saving.
