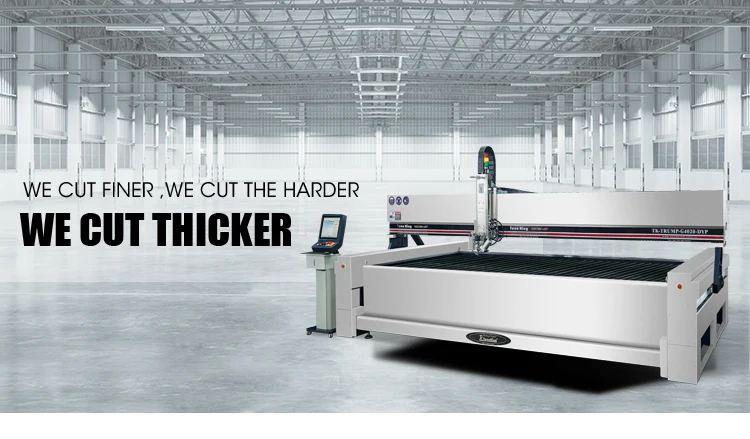

5 axis tilting water jet cutting machine, waterjet cutter

IGEMS is just built for waterjet cutting system, it has been developed for more than 30 years!

IGEMS software is a modular system. you can choose the module(s) what you need, to minimize your cost budget.

Modules & description:

I-CAD-a powerful cad to create part with, compatible with other cad format.

I-CAM-to create tool path, lead-in, pierce type, position, set material & thickness...

AWJ-to create part and cut with abrasive waterjet.

5X CAM-import 3D files into IGEMS and place toolpaths on the contour of the model.

CAM TOOLS-to inspect and fix errors from drawings to be used as a base for NC programming

NEST LEVEL 1-to layout same parts on a sheet in order to get as little waste material as possible.

NEST LEVEL 2- nest different parts at the same time on a predefined area of any shape.

TUBE CUT-to cut tubes with either C-axis(need additional rotary axis device) or the tube laying flat on the table.

SIGN MAKER- can take a picture with your camera and automatically use it to generate CAD vectors, or use as a background for manual generation of vectors.

TILE MAKER- developed for the stone industry. It include a special nesting utility for tile making and commands for making inlays(parquet)

OGENIZER-simple but effective SQL database to store parts and other documents related to the part.

Floating license is the network license of IGEMS and can be installed in any LAN network.

DATA EXCHANGE-you can import .wmf, .ps, .eps, .gen, .geo, .igs, .mec, .ord & .tag files, or import your NC code back into igems.I-CAMERA- It imports an exactly scaled image and places it right on the origo of your drawing, saving time and material.
