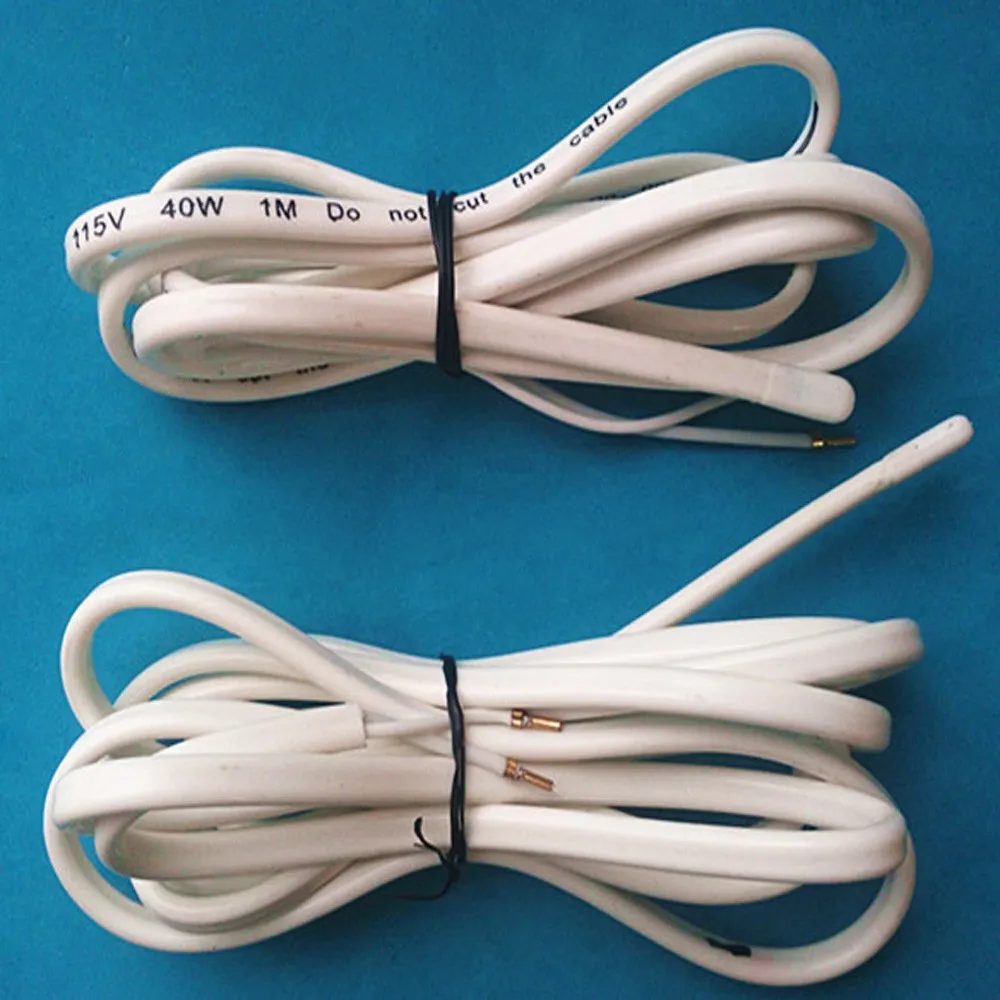

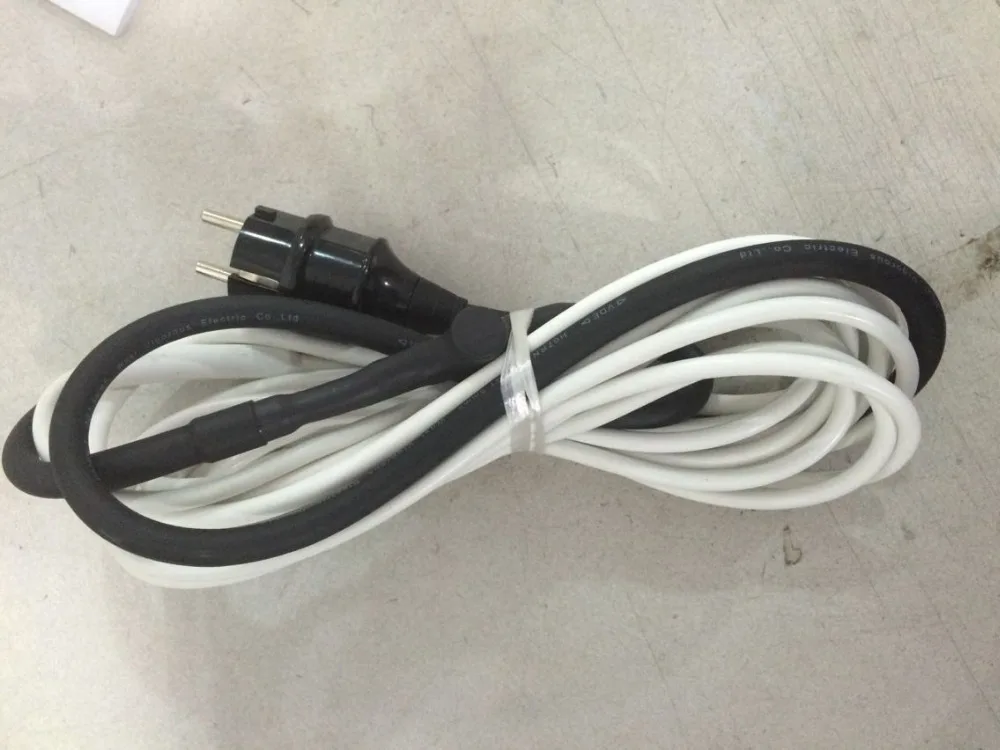

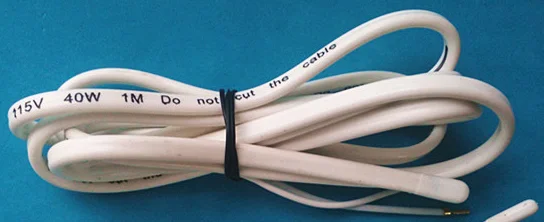

Heater element silicone heating cable and drainpipe antifreezing cable element heating cable230V for freezer
Product Structure:
Hzdg
Heating element
Nickel chromium or copper nickel alloy wire
Insulation
Silicone rubber
Shape
Flat or round
End of cable
Waterproof silicone moulding
Sold tail
1m
Output
40 or 50 w/m
Tolerance
5% on resistance
Voltage
230V
Surface temperature
-70~200ºC
Product model:Hzdg
Number
Length
Watt(w)
Voltage
M
1
1
40
230v
2
1.3
60
230v
3
1.5
80
230v
4
2
120
230v
5
3
160
230v
6
4
200
230v
7
5
240
230v
8
6
240
230v
Note The heating cable with 50W/m are most commonly used. For plastic popes however we recommend the use of heaters with 40W/m. Warning These cables can not be cut to reduce cold tail length.
Product application:
In cold storages, after a certain time of operation, there is build up of ice on the cooler fans and a defrosting cycle must take place. Electrical resistances are inserted between the fans to melt the ice, and the water is collected and passed through drain pipes for disposal.Some waters if the drain pipes are inside the cold storage, so consequently the water may freeze again.To avoid this problem, a drainpipe antifreezing cable is inserted into the pipe.It is switched on only during the defrosting cycle Packing:One in plastic bag +tewenty in carton or customized.
Features of the drainpipe antifreezing Cable Low installation and maintenance cost. Versatile to accommodate any layout configuration. Durable construction. Smart alternative to snow plowing and chemical snow melting.
Shipping:Fob shanghai / ningbo /tother ports
