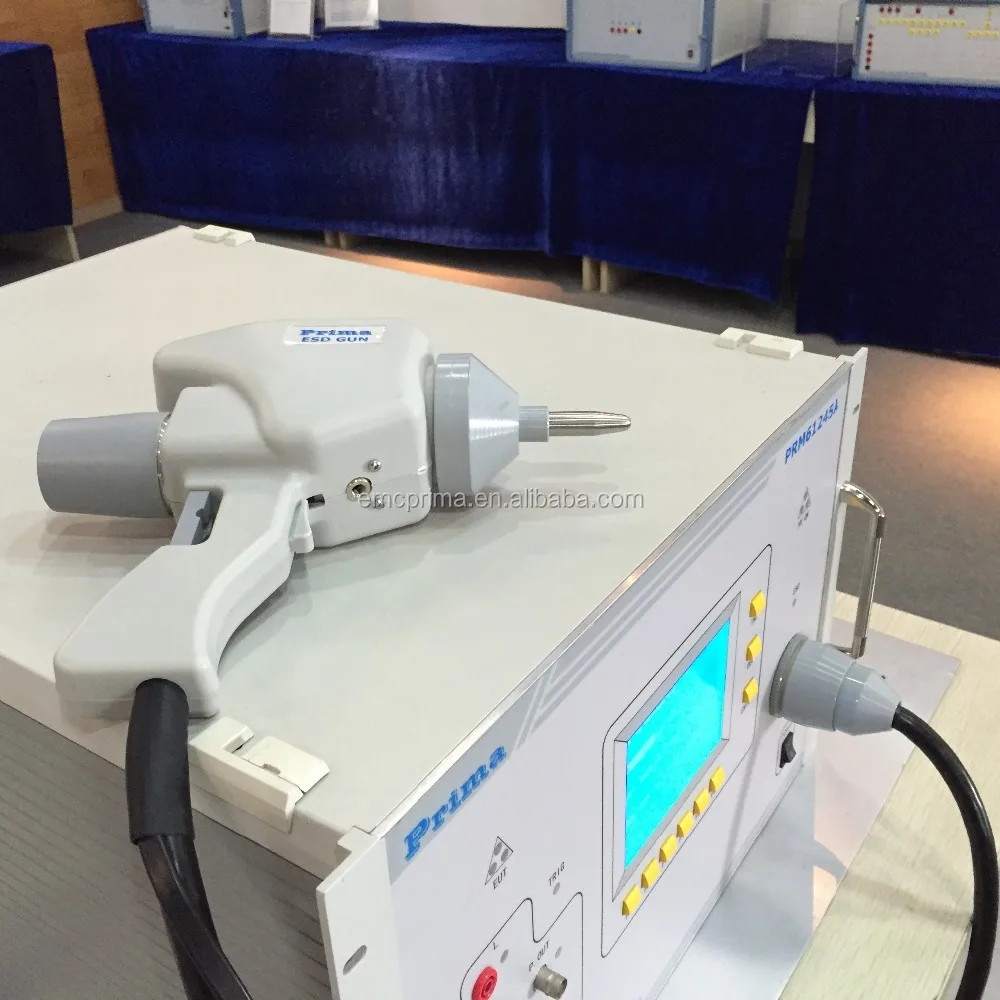

20KV EMC test ESD Generator
- Category: >>>
- Supplier: Shanghai Prima Electronic Co. Ltd.
Share on (60538726169):
Product Overview
Description
Product introduce:
ESD Generator is designed specifically for electrostatic discharge immunity test requirements, and used to assess the electrical and electronic equipment which may suffer from the operator and the surrounding objects electrostatic discharge interference and provide a performance rating basis.
Product characteristic:
Fully compliant with the latest standards of IEC61000-4-2
LCD interface display ,Chinese or English menu, easy to use
LCD display Intelligent control,Use the imported high-voltage power supply, Reliable performance
Built-in international standards level parameters, simple
Built-in international standards level parameters, easy to use Max output voltage up to 30kv
Built-in the RS232 interface ,Remote operated by the optional control software.Technical parameters:

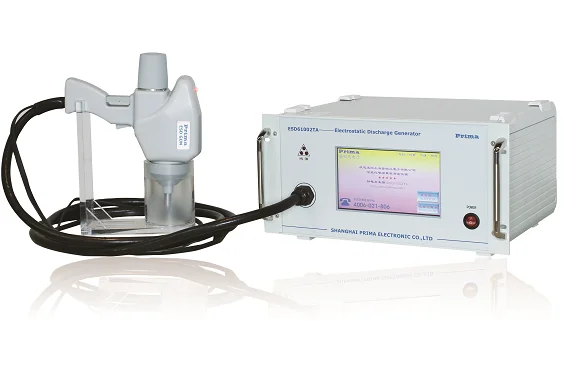

Model | ESD61002TA | |
Output voltage | 0.2-- ± 20kV ± 5% | |
Output polarity | Positive / Negative /Switchable | |
Discharge capacitor | 150pF | |
Discharge resistor | 330 Ω | |
Current rise time | 0.7 ~ 1ns | |
Working form | Discharge interval 0.05 ~ 99.99s ,Testing form20PPS discharge;setting less than0.05s,be called single discharge | |

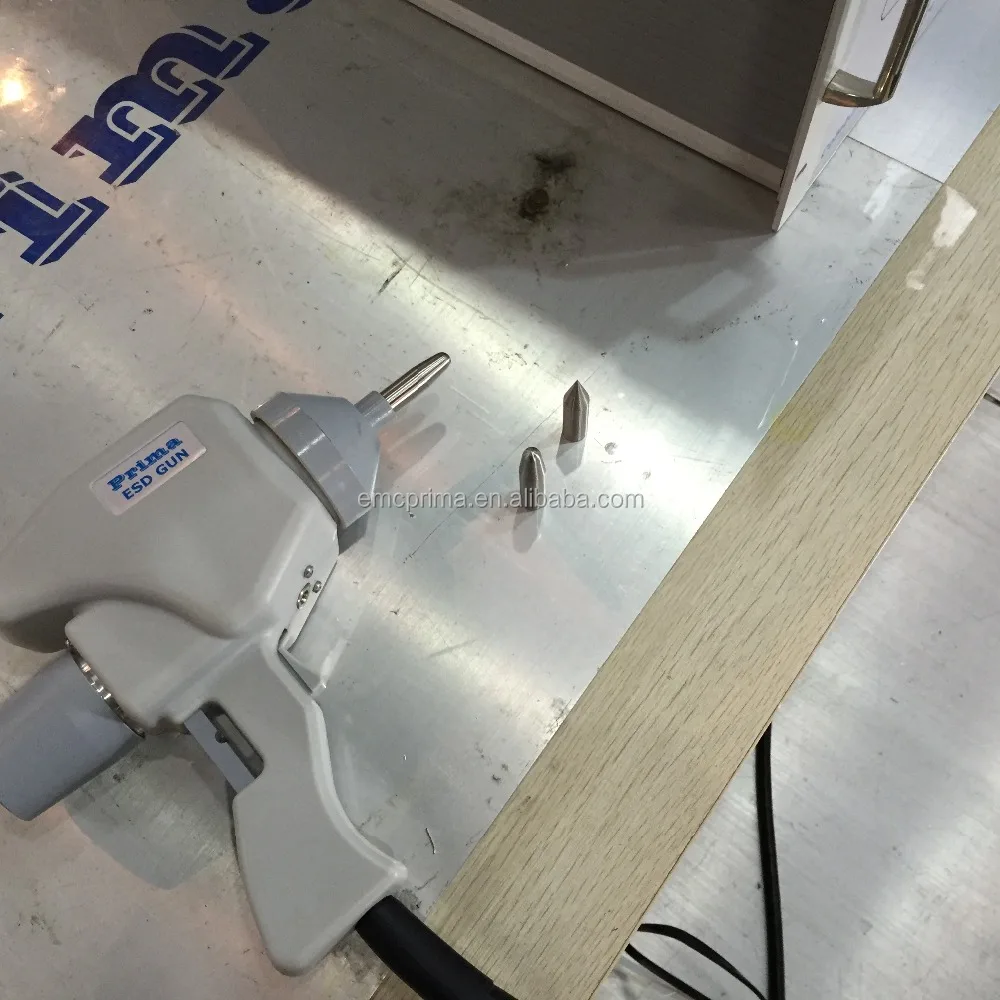

Testing functions | Contact discharge | |
Air discharge | ||
Discharge times | Presetting times 1-9999 or infinite times | |
Trigger mode | 1.Automatic 2.Manual 3.automatic voltage rises | |
Working power supply | AC220V ± 10%,50 Hz | |
Ambient temperature | 15 °C -35 °C | |
Outline dimensions and weight | 350×360×175 mm 10kg | |
TUV &CE certification
Customers visit our company

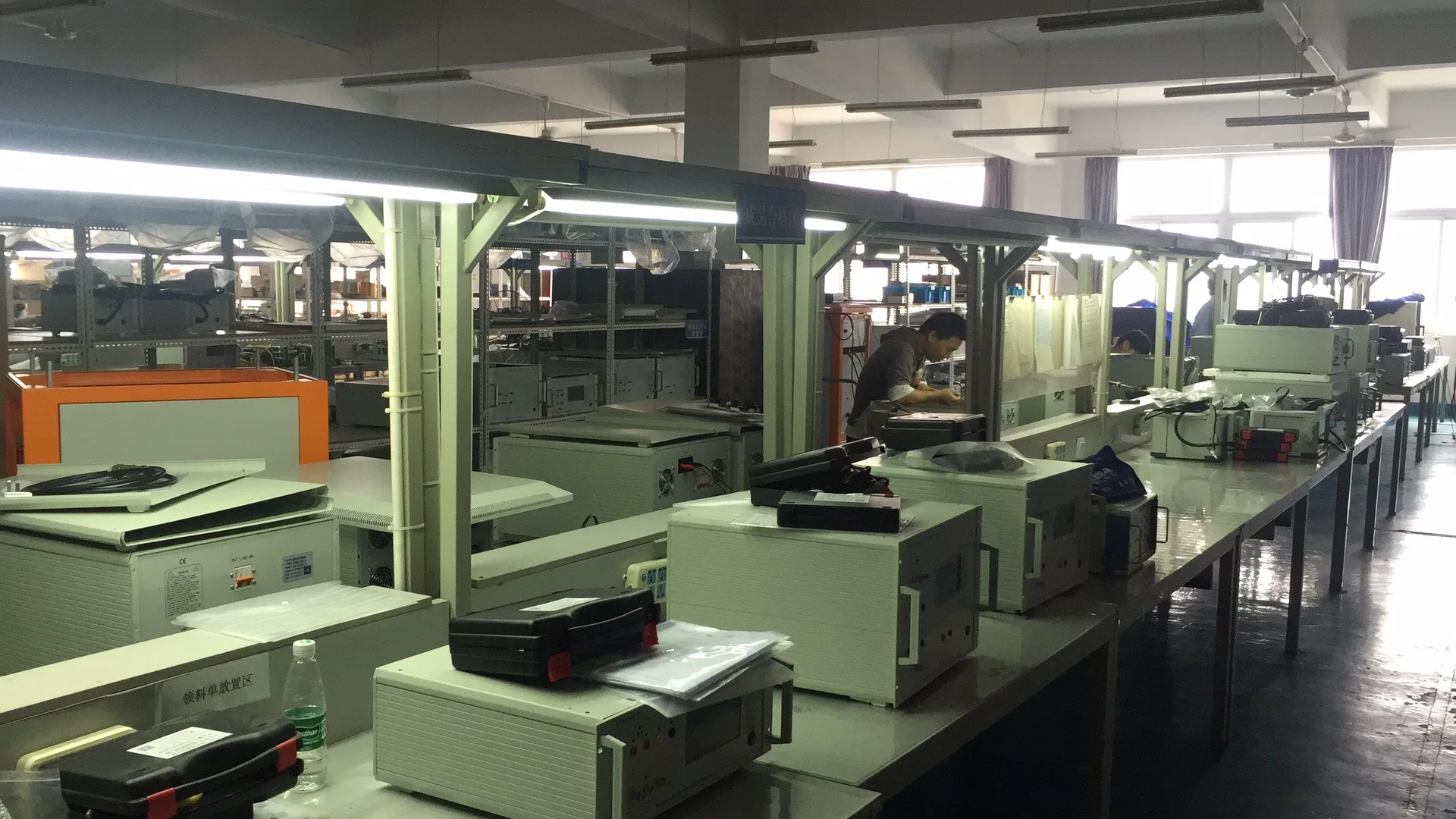

Manufacturing shop
On-sit traninning
Famous customers of us in China and beyond
