Product Overview
Description
Product Application

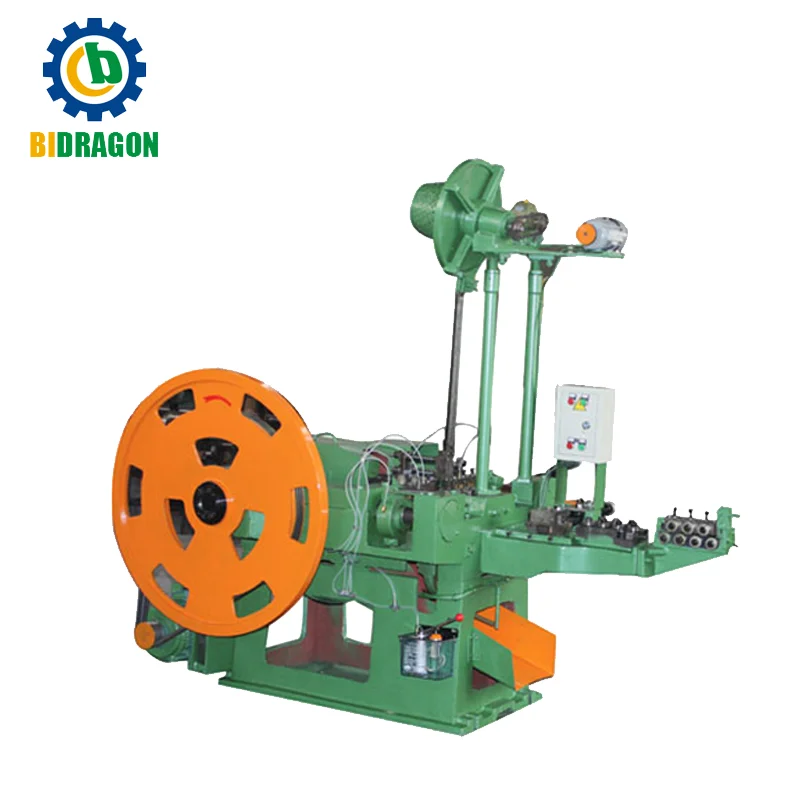

Z-94 automatic common wire Nail Making Machine is mainly composed of Nail Making Machine, Wire Drawing Machine, Nail Polishing machine.
A new type of common wire nails making machine ram mechanism applies articulated piston structure, Three shaft adopts rolling bearing, improve the structure of CAM curve, To ensure the machine running on high speed, low noise and less impact, and high accuracy. It Not only can produce high quality common nails, but also can produce good quality roofing nail, coil nail, nail linoleum, v-shaped nail, U-shaped nail,gun nails that used for high speed welding machine and nail gun. The steel nails can be widely used in industrial area, construction area, repair area and other area.
The wire nail making machine is used for producing various common nails and special nails. It has wide uses, simple operation, and reliable run. We can supply various machine parts and necessary fine auxiliaries for you.
This nail making machine adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact.Especially,it can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.
Technical items | Unit | BZ94-5C | BZ94-4C | BZ94-3C | BZ94-2C | BZ94-1C |
Max. Nail Diameter | mm | 5.0 | 4.5 | 3.4 | 2.8 | 1.6 |
Min. Nail Diameter | mm | 3.4 | 2.8 | 1.8 | 1.0 | 0.9 |
Max. Nail Length | mm | 150 | 100 | 75 | 50 | 25 |
Min. Nail Length | mm | 100 | 50 | 25 | 16 | 9 |
Designed output | pcs/min | 220 | 260 | 280 | 300 | 450 |
Motor power | kw | 5.5 | 4 | 3 | 2.2 | 1.5 |
Overall size | mm | 2400×1550×1650 | 2350×1500×1350 | 2060×1250×1300 | 1820×1200×1100 | 1500×1200×1100 |
Weight | kg | 2500 | 1900 | 1200 | 950 | 750 |
Certifications
Detailed Images

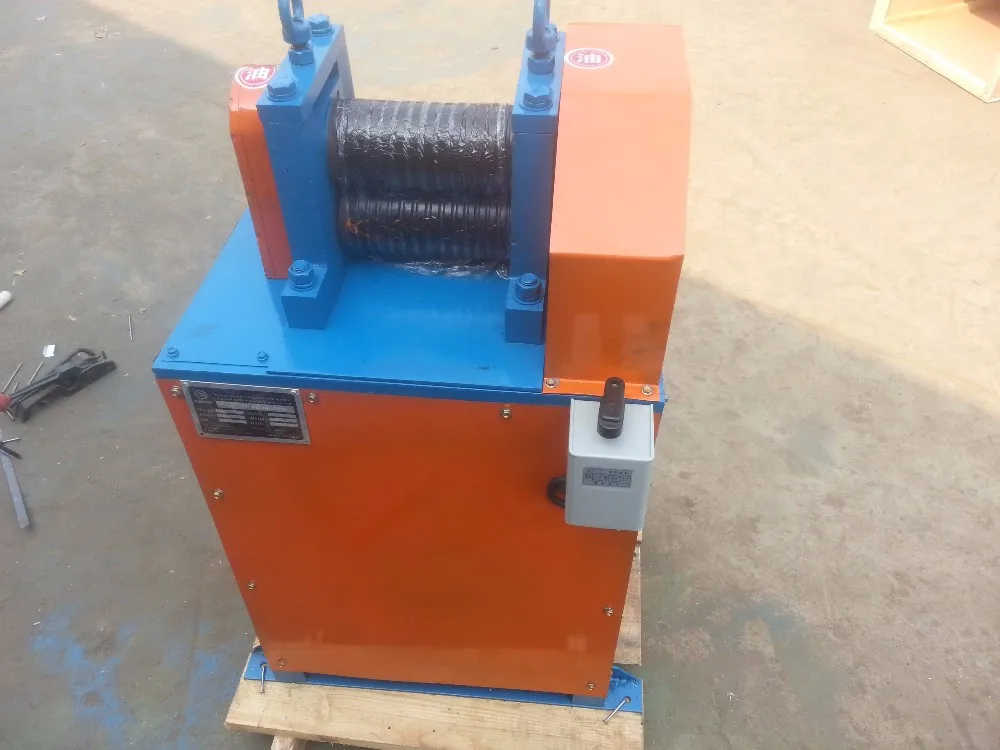

Wire Nail Drawing Machine
Wire nail drawing machine is used to get the fine dia. we need.
Combined wire drawing machine: it is can be matched with 2 rollers, 3 rollers, 4 rollers or more according to the daily capacity.

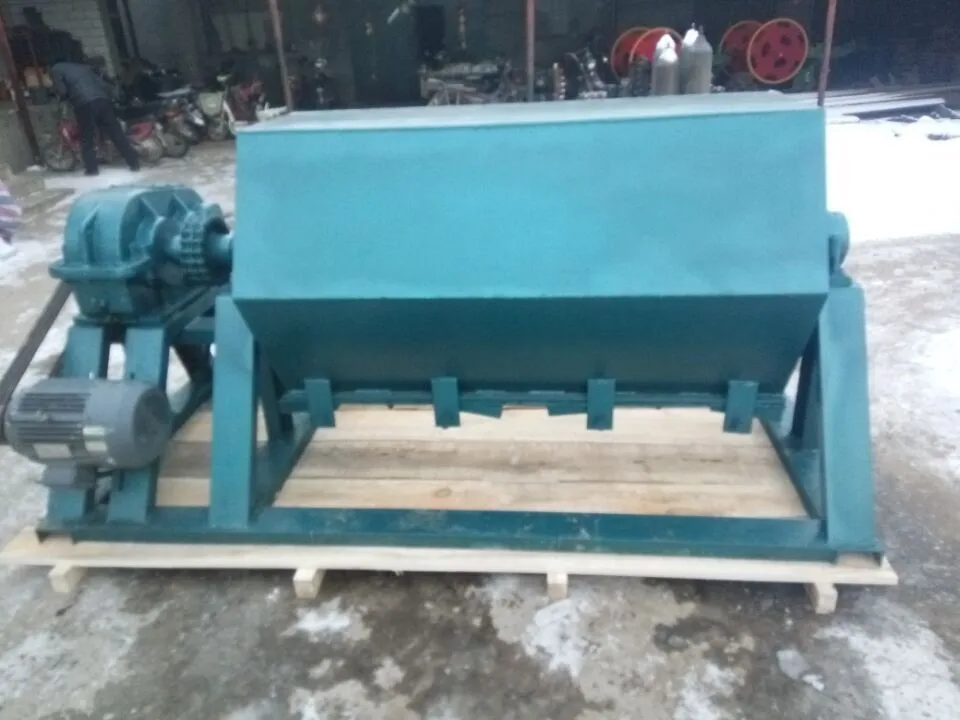

Nail Polishing Machine
when the nails comes out from the nail making machine, it is not so smooth and bright, to make it bright and have a good selling appearance, it needs to be polished. Firstly put the nail in the polishing drum, then put some saw dust onto the nails,then cover it and start the machine, in general it needs 2 hours’ polishing.

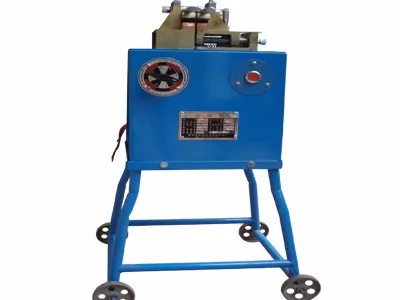

Butt Welding Machine
In case the wire breaks during drawing,you can use the butt welding machine to weld the broken wire together ,then continue the drawing.without this machine,if the wire breaks,you need to sharpen the wire head again and do all things from the start.
Nail Pointing Machine
It is used to sharpen the head of the wire, then the wire can beeasily get into the mouth of the nail machine.
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
