2019 new 36w 600x600 LED louver light led grille light for office
- Category: LED Grille Lights >>>
- Supplier: Jiangsu,TBI,Opto-Electronic,Ltd.
Share on:
Product Overview
Description
Product Description
Product features:
- Housing is made of high quality cold rolled steel.
- Refletor is high quality aluminium alloy
- High efficiency LED, 30,000hours lifetime
- High quality painted cold rolled steel body, no fade color with special surface treatment.

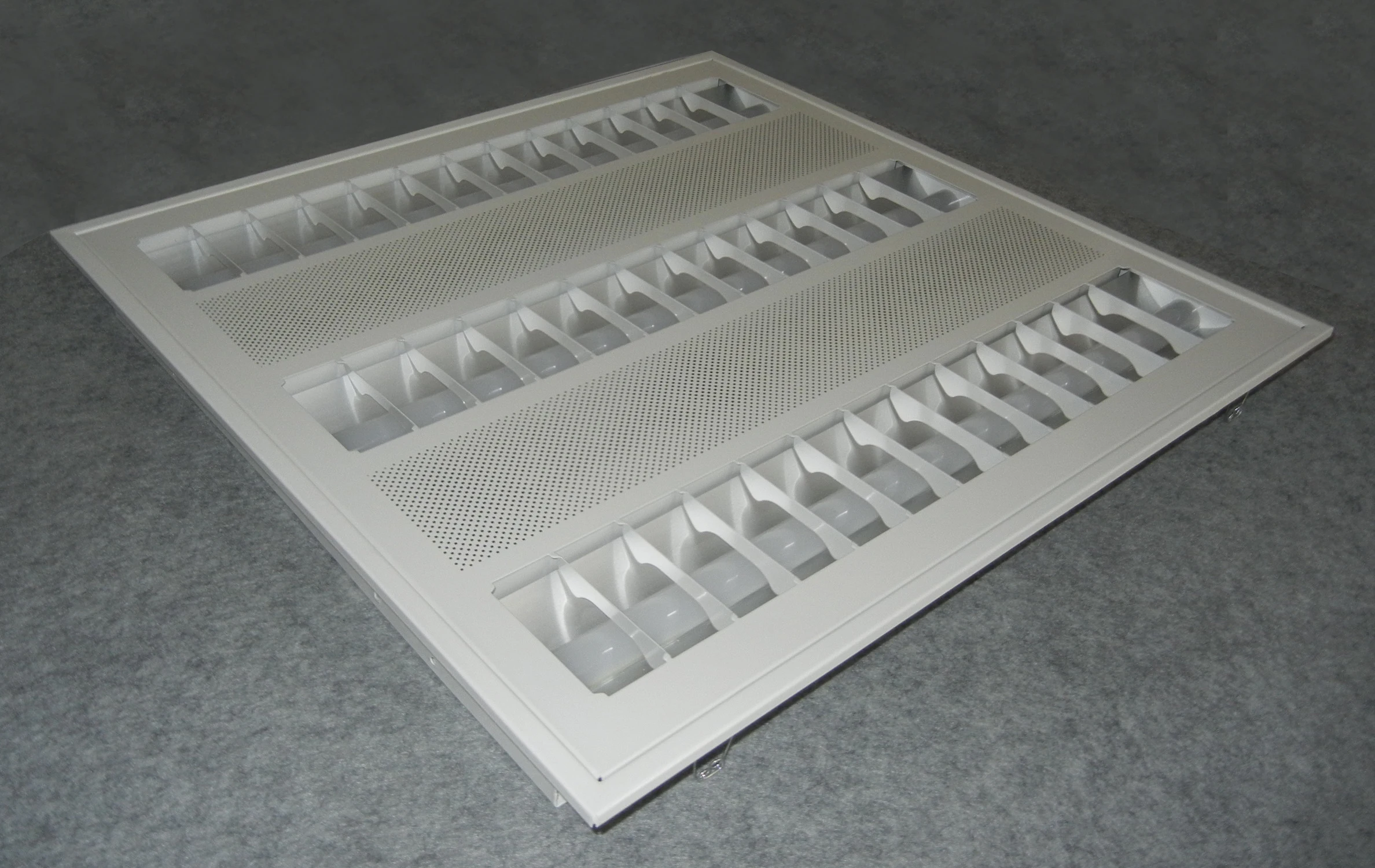

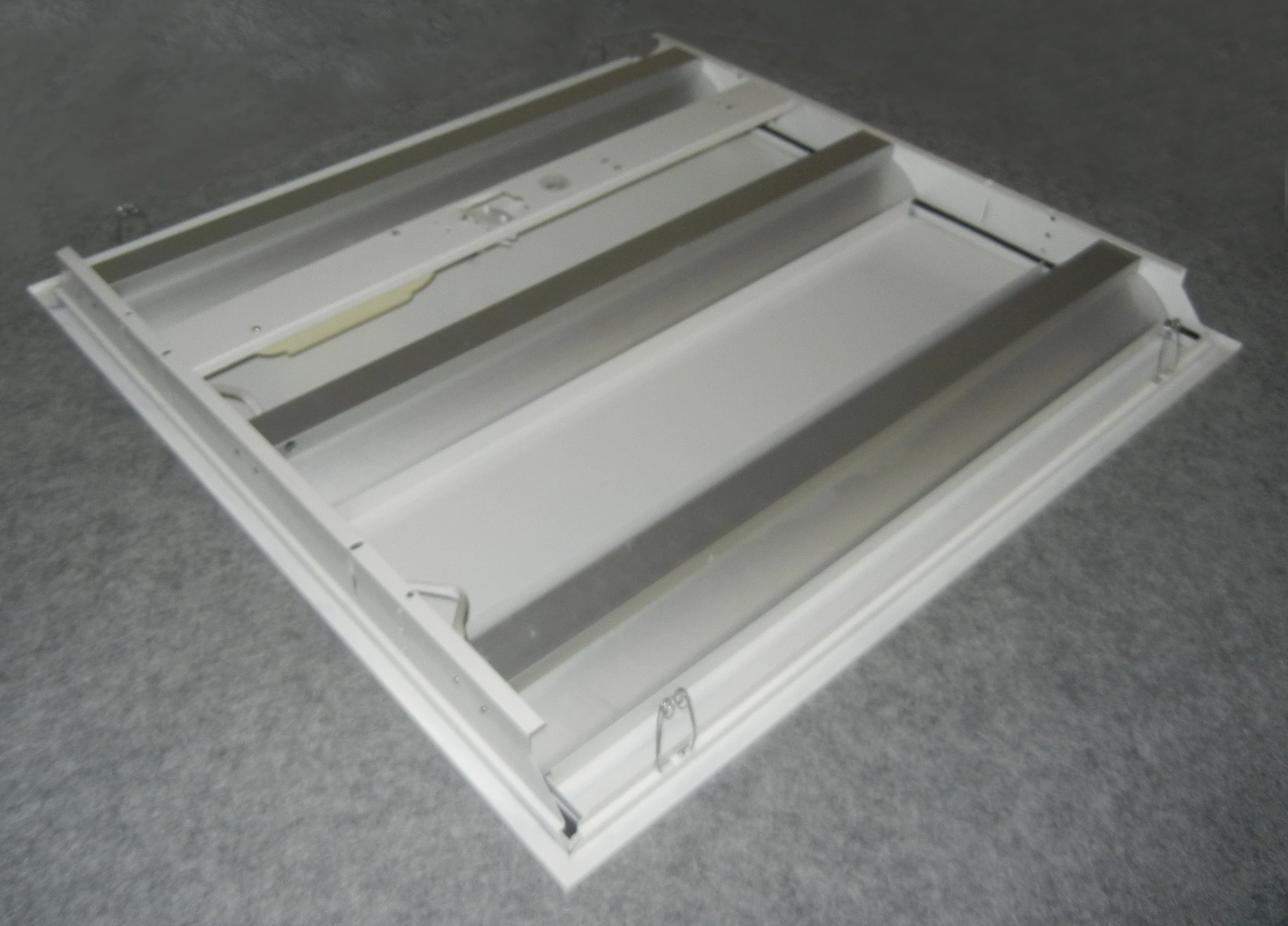

Detailed pictures:
Advantages:

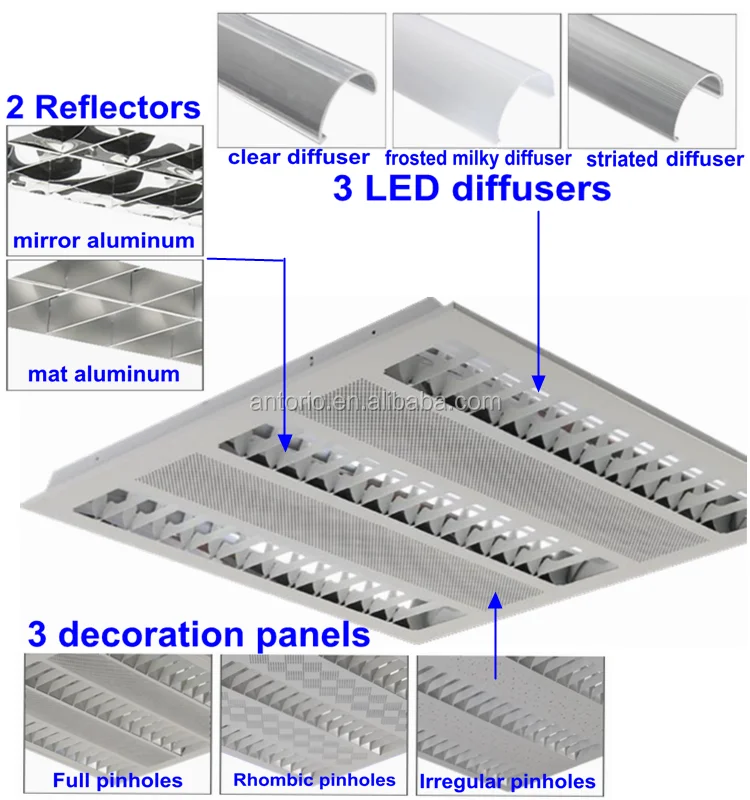

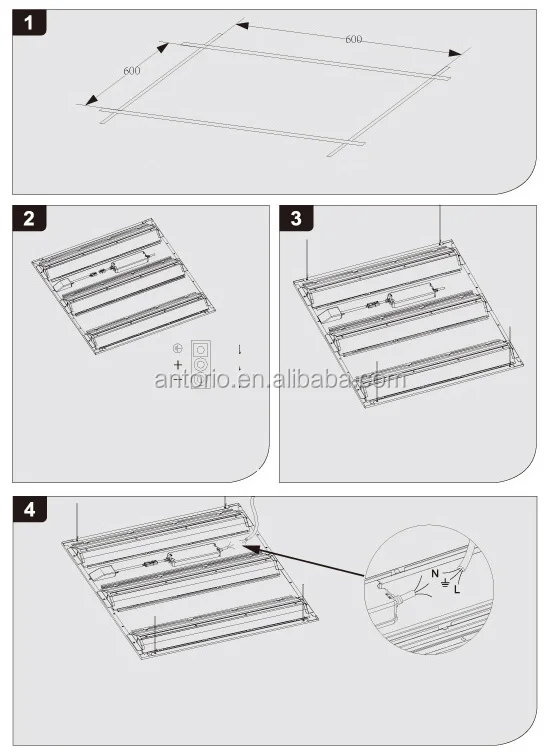

- Separate design, suitable for various installation, patented technology.
- Professional glare-resistance and scientific light distribution design.
- External constant current driver, it is very convenient to install and shunt the heat of power supply and light source.
- It can be dimmable control according to the customer's requirement, there are various color temperature for option.
Application :
office, marketplaces, hospital, business hall, factory, supermarket and some indoor using.
Description of type:
Technical specification:
| Ordering Code | Type | Wattage | CCT | Luminance | Beam angle | CRI | L | W | H | Carton Size | Packing |
| 600*600 | |||||||||||
| 497890 | TBI LL 220/30 RR.A.B.07.P | 30W | 6000K | 3000 | 100°*90° | ≥ 80 | 597 | 597 | 35 | 650*640*120 | 2pcs/5.6kg |
| 498360 | TBI LL 220/30 RN.A.B.07.P | 30W | 3000K | 2800 | 100°*90° | ≥ 80 | 597 | 597 | 35 | 650*640*120 | 2pcs/5.6kg |
| 498370 | TBI LL 220/30 RL.A.B.07.P | 30W | 4000K | 2950 | 100°*90° | ≥ 80 | 597 | 597 | 35 | 650*640*120 | 2pcs/5.6kg |
| 498320 | TBI LL 220/40 RN.A.B.07 | 40W | 3000K | 3200 | 100°*90° | ≥ 80 | 597 | 597 | 35 | 650*640*120 | 2pcs/5.6kg |
| 497970 | TBI LL 220/40 RL.A.B.07 | 40W | 4000K | 3200 | 100°*90° | ≥ 80 | 597 | 597 | 35 | 650*640*120 | 2pcs/5.6kg |
| 1200*300 | |||||||||||
| 498380 | TBI LL 220/28 RR.A.A.07.T.P.J | 28W | 6000K | 3000 | 100°*90° | ≥ 80 | 1197 | 297 | 35 | 1220*320*120 | 2pcs/5.6kg |
| 498400 | TBI LL 220/28 RN.A.A.07.T.P.J | 28W | 3000K | 2800 | 100°*90° | ≥ 80 | 1197 | 297 | 35 | 1220*320*120 | 2pcs/5.6kg |
| 498390 | TBI LL 220/28 RL.A.A.07.T.P.J | 28W | 4000K | 2950 | 100°*90° | ≥ 80 | 1197 | 297 | 35 | 1220*320*120 | 2pcs/5.6kg |
| 1200*600 | |||||||||||
| 498560 | TBI LL 220/42 RR.A.B.07.P.J | 42W | 6000K | 6000 | 100°*90° | ≥ 80 | 1197 | 597 | 35 | 1220*640*120 | 2pcs/11.2kg |
| 498570 | TBI LL 220/42 RN.A.B.07.P.J | 42W | 3000K | 5600 | 100°*90° | ≥ 80 | 1197 | 597 | 35 | 1220*640*120 | 2pcs/11.2kg |
| 498580 | TBI LL 220/42 RL.A.B.07.P.J | 42W | 4000K | 5900 | 100°*90° | ≥ 80 | 1197 | 597 | 35 | 1220*640*120 | 2pcs/11.2kg |
You may want:
(click the picture!)
Packaging & Shipping
Our Services
Why choose us? Our advantages:
1. We are a professional manufacturer with 10 -year experience in this field.
2. Super brightness, low decay.
3. No flicker, no mercury, eco-friendly.
4. High quality with competitive price & excellent after-sale services.
5. Free samples & freight charge available.
6. OEM/ODM service acceptable.
7. Long lifespan 30000 hours(average) with 3-year warranty.
Company Information
1.factory picture :
2.Certificate :
