RK900 01 Smart Agriculture Wifi GPRS Wireless Transfer Automatic Weather Station
- Category: >>>
- Supplier: Hunan Rika Electronic Tech Co. Ltd.
Share on (60539180961):
Product Overview
Description

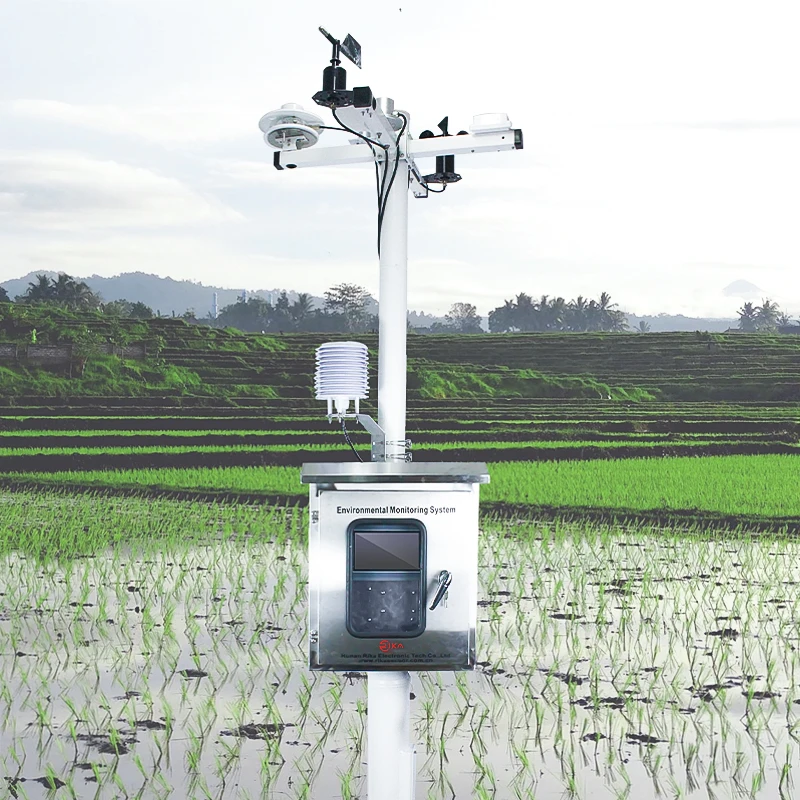

RK900-01 Smart Agriculture Wifi GPRS Wireless Transfer Automatic Weather Station
Product Description
RK900-01 Weather Station is used for atmospheric temperature, relative humidity, atmospheric pressure,wind speed & direction,solar radiation,light,rainfall,soil temperature and humidity parameters measurement.The station consists of various types of sensors, light screen, meteorological data collector, chassis, support and other parts.It can be widely used in meteorology, hydrology, agriculture, forestry, scientific research and other fields.
FEATURES
- High accuracy
- Strong resistance to harsh environment
- Strong corrosion resistant ability
- Automatic storage and backup
- Convenient data download
- All-metal construction of bracket
- Solar power supply optional

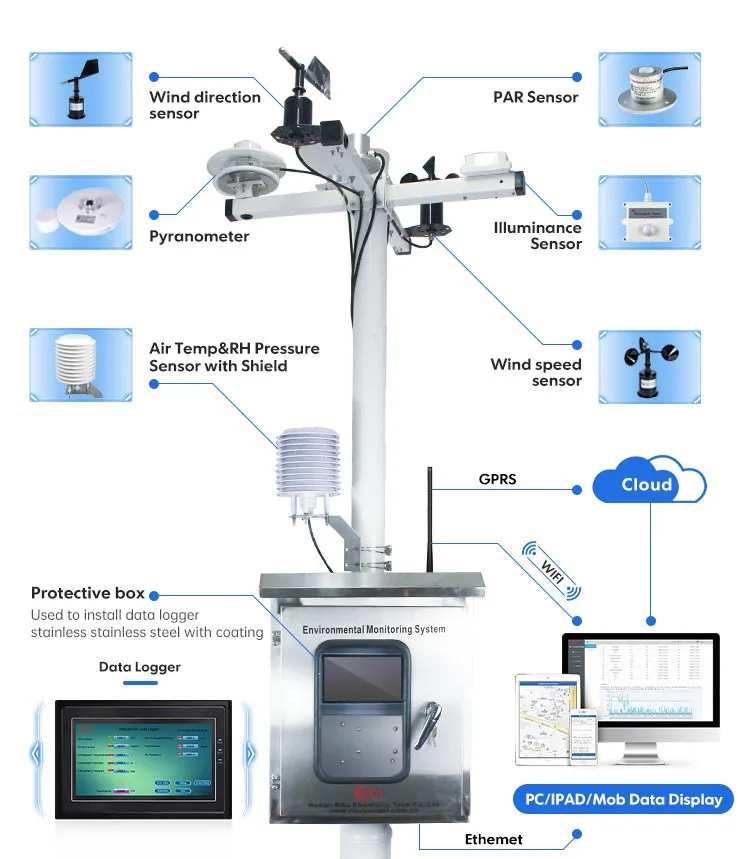

COMPONENT PARTS
| Parts | Details | Note |
| Data logger | Meteorological data collection, display, storage and communication |
|
| Sensors & cable | Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, atmospheric pressure, rainfall, solar radiation, soil temperature, soil moisture,etc. (Optional according to user’s requirements) |
|
| Meteorological monitoring software | Use to real-time display, analysis and storage data on the PC | Attached |
| Multi-plate radiation shield | Used to install the atmospheric temperature, atmospheric humidity and atmospheric pressure sensors |
|
| Tripod & accessories | 2.5m typ.,other height is optional, stainless steel or steel with coating |
|
| Data logger protective box | Used to install data logger, stainless steel or steel with coating |
|
| 110VAC/220VAC adapter | Optional when using AC power supply |
|
| RS232 cable | 2m typ.,other length is optional |
|
| RS485 cable | 2m typ.,other length is optional |
|
| USB to RS232 converter | Used to connect PC without RS232 serial port |
|
| U disk | Used for data storage | optional |

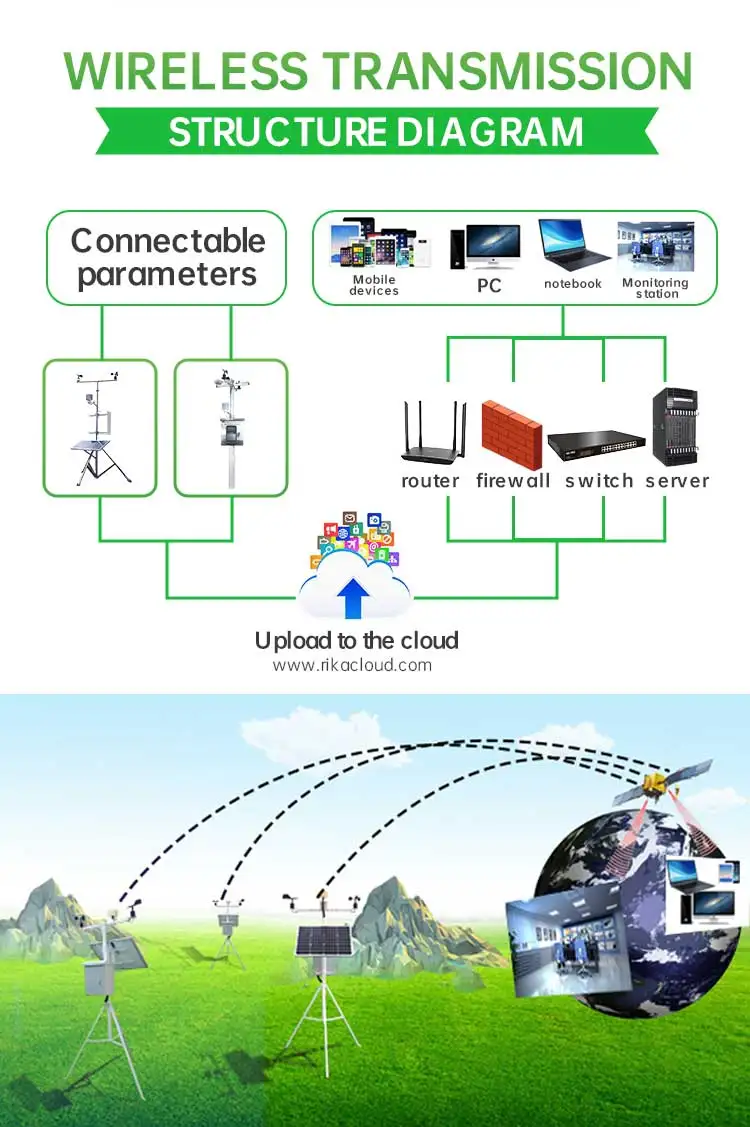

| GPRS module | Used for wireless data transmission, need to match with the local mobile communication network | optional |
| WIFI module | Used for wireless data transmission,need for wireless networking | optional |
| Ethernet module | Used for wireless data transmission,need for cable network | optional |
| LED screen | Size and display content can be customized | optional |
| Solar power supply system | Include photovoltaic panels(30W), controller, dual power supply controller, battery(25AH) | optional |
| Lightning protection device(optional) | Contain the lightning rod, connecting wires and grounding angle steel | optional |
Details Show
Ordering Process
|
Wind speed sensor |
Wind direction sensor |
Air Temp & humidity sensor |
|
Rain Gauge |
Solar radiation sensor |
Soil moisture & temp sensor |
FAQ for RK900-01 Weather Station:
1. Can you supply solar panel power ?
--- Yes, we can supply solar panel power, but you can use your own power source too.
2. How long can the solar panel work in non-sunshine days?
--- It can work 3-5 days , but the solar power and battery capacity depends on your local sunshine duration.
3. Do you supply tripod ?
--- Yes, we can supply tripod. But It is optional parts.
4. What is the height of the weather station?
--- It is 2.5meters high
5. Can we choose the required sensor for the weather station ?
--- Yes, you should tell us what sensors you require before order, then we will quote according to your requirements.
6. What is the transfer mode ?
--- Our data logger supports USB, RS485,RS232 ,wireless transfer.
Application
Testimonial
Certificates
Company Information
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days.
Q: What is your normal shipping method?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
