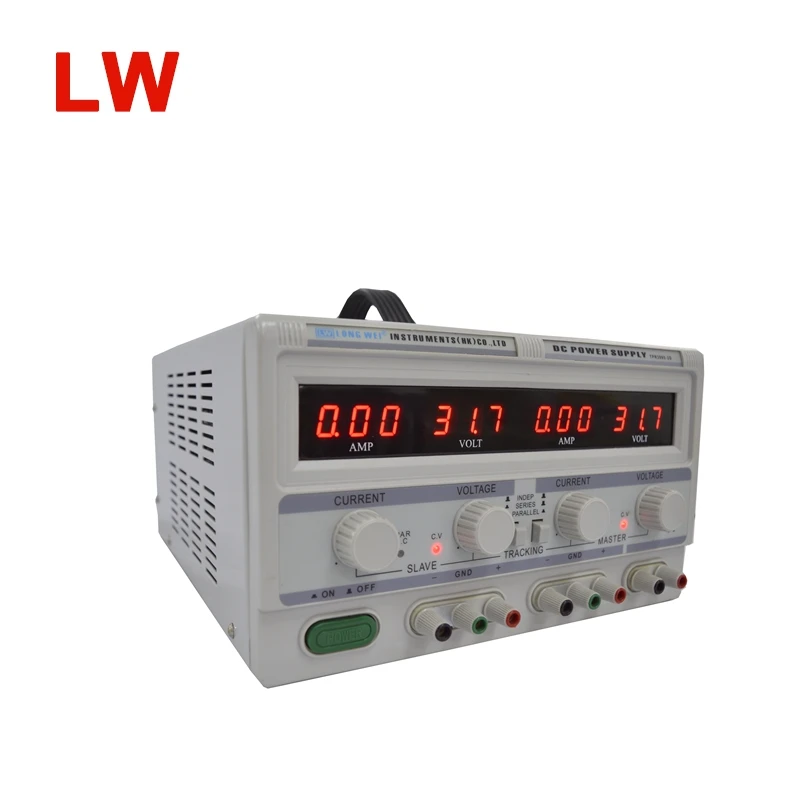

Dual dc power supply Linear Triple Output DC Regulated Power Supply 30V 2A fixed 5v 3a
- Category: >>>
- Supplier: Dongguan Longwei Electronic Technology Co. Ltd.
Share on (60539236964):
Product Overview
Description
Product Description
Model: TPR-3002-2D
This serial power supply is a kind of high-precision linear dc power supply. It composed of two way regulated output and one-way fixed output. In addition, it can be acted both as constant voltage and constant current power supply. What’s more, its constant voltage and constant current can convert automatic. With high stability, high reliability and low nose, it can be used in many different areas.
Application:
Educational Laboratories
Electronic production line
communications industry
product research
All other areas need dc power supplies
Suitable for the laboratory, electronic, communication equipment maintenance, products line, scientific research and teaching units
Products related to auto/products, related to electron/ products related to computer, research institutions, educational institutions can use it
Feature:
Panel design, Simple, generous and beautiful
Easy to operate and cheap cost
3Two adjustable outputs and one 5V/3A fixed output
Two-way regulated power supply can be randomly in series, in parallel or in dependently according to requirements. And do not need external connection, just control by switch
Have constant voltage and constant current operation mode. C.C and C.V convert automatically
Low Ripple and Noise
4groups 3LED digital display
Have current limitation protection
Specifications：
Model: TPR-3002-2D
Input voltage: 220V±10% 50Hz±2Hz or 110V±10% 60Hz±2Hz
Operating temperature: 0℃to 40℃
Relative humidity: <80%
Storage temperature:-10℃ to 70℃
Relative humidity: <70%
Output voltage: 2*0-30V
Output current: 2*0-2A
Series voltage/current: 0-60V/0-2A
Parallel voltage/current: 0-30V/0-4A
Current effect: CV≤ 1×10-4+ 0.5mV
CC≤ 2×10-3+ 6mA
Load effect: CV≤ 1×10-4+ 2mV (output current≤3A)
≤ 1×10-4+ 5mV (output current>3A)
CC≤ 2×10-3+ 6mA
Ripples and noises: CV≤0.5mVr.m.s. (Output current≤3A)
≤1.0mVr.m.s. (Output current>3A)
CC≤3mAr.m.s.
Voltage display accuracy: ±1%+2 figures
Current display accuracy: ±2%+2 figures
5V Regular output power supply
Nominal output voltage: 5V±3% Nominal output current:3A
Current effect : ≤1×10-4+1mV
Load effect: ≤1×10-3
Ripples and noises: ≤ 0.5mVr.m.s
Overall dimensions340*260*155mm
Working hours: constantly working more than 8 hours
REMARK:
WE COULD DO THE PRODUCT ACCORDING TO CUSTOMERS’ REQUIREMENT.
This serial power supply is a kind of high-precision linear dc power supply. It composed of two way regulated output and one-way fixed output. In addition, it can be acted both as constant voltage and constant current power supply. What’s more, its constant voltage and constant current can convert automatic. With high stability, high reliability and low nose, it can be used in many different areas.
Application:
Educational Laboratories
Electronic production line
communications industry
product research
All other areas need dc power supplies
Suitable for the laboratory, electronic, communication equipment maintenance, products line, scientific research and teaching units
Products related to auto/products, related to electron/ products related to computer, research institutions, educational institutions can use it
Feature:
Panel design, Simple, generous and beautiful
Easy to operate and cheap cost
3Two adjustable outputs and one 5V/3A fixed output
Two-way regulated power supply can be randomly in series, in parallel or in dependently according to requirements. And do not need external connection, just control by switch
Have constant voltage and constant current operation mode. C.C and C.V convert automatically
Low Ripple and Noise
4groups 3LED digital display
Have current limitation protection
Specifications：
Model: TPR-3002-2D
Input voltage: 220V±10% 50Hz±2Hz or 110V±10% 60Hz±2Hz
Operating temperature: 0℃to 40℃
Relative humidity: <80%
Storage temperature:-10℃ to 70℃
Relative humidity: <70%
Output voltage: 2*0-30V
Output current: 2*0-2A
Series voltage/current: 0-60V/0-2A
Parallel voltage/current: 0-30V/0-4A
Current effect: CV≤ 1×10-4+ 0.5mV
CC≤ 2×10-3+ 6mA
Load effect: CV≤ 1×10-4+ 2mV (output current≤3A)
≤ 1×10-4+ 5mV (output current>3A)
CC≤ 2×10-3+ 6mA
Ripples and noises: CV≤0.5mVr.m.s. (Output current≤3A)
≤1.0mVr.m.s. (Output current>3A)
CC≤3mAr.m.s.
Voltage display accuracy: ±1%+2 figures
Current display accuracy: ±2%+2 figures
5V Regular output power supply
Nominal output voltage: 5V±3% Nominal output current:3A
Current effect : ≤1×10-4+1mV
Load effect: ≤1×10-3
Ripples and noises: ≤ 0.5mVr.m.s
Overall dimensions340*260*155mm
Working hours: constantly working more than 8 hours
REMARK:
WE COULD DO THE PRODUCT ACCORDING TO CUSTOMERS’ REQUIREMENT.
