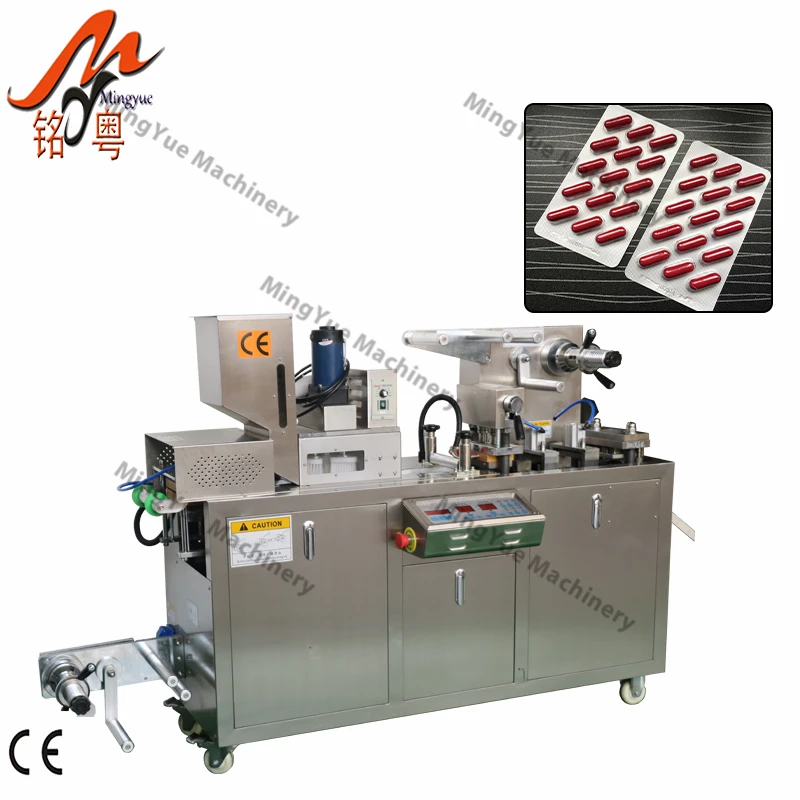

Mini manual blister sealing packing machines for capsule/pill/tablet MY-80
Product Description
The MY-80 Automatic Pill Blister Packing Machine is widely used for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry, for injector, syringes, pins, small component etc.
In electron or hardware industry as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing.
Main Technical Parameters
Cutting Frequency (Times/min) | 27 |
Capacity (10 thousand pcs/h) | 1.1-6.5 |
Stroke (mm) | 40-110 |
Max. Forming Area and Depth(mm) | |
Air Compressor(m³/min) | ≥0.3 (provided by user) oilless air compressor better |
Air Pressure (Mpa) | 0.4 |
Standard Plate(mm) | 80×57 can be manufactured as user's requirements |
Total Power | 380V/220V 50Hz 2.8kw |
PVC Hard Pieces(mm) | 0.25-0.35×90 |
PTP Aluminum Foil(mm) | 0.02-0.035×90 |
Mould Cooling | tap water or recycling water |
Overall Dimensions(mm) | 1300×400×1070(L×W×H) |
Weight(kg) | 450 |
Applications:
1.The key electric appliance of his machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement.
2.Machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion.
3.Each box of section processed through professional equipment, to assure high precision and good ex-changeability.
4.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.
5.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
6.Stroke can be adjust freely, widely used, ease of operation, stable running.
7.It adapts up and down net pattern concave-convex to conjugate, multi-step air cylinder, double-heat sealing. Quality sealing.
