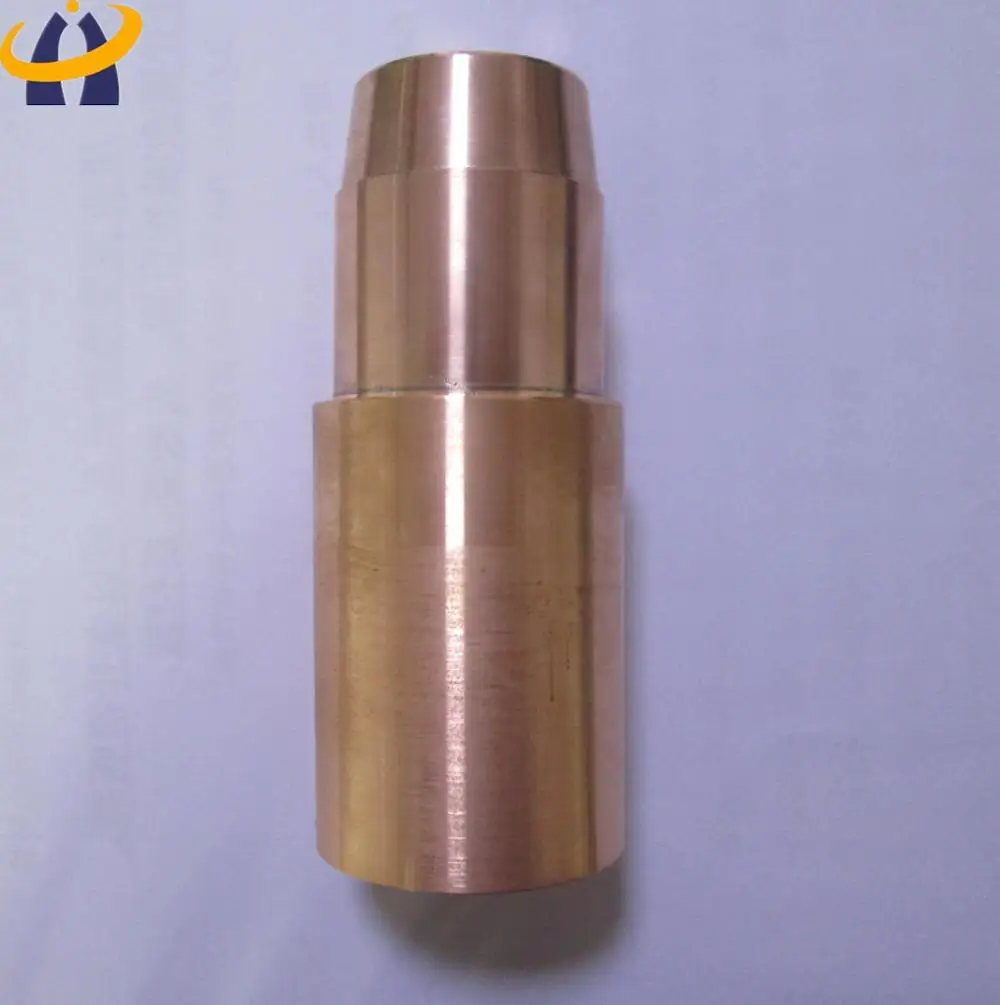

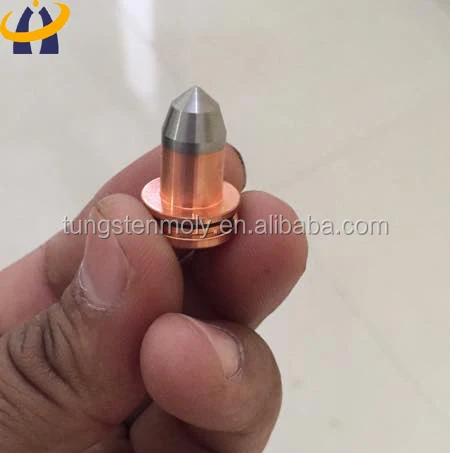

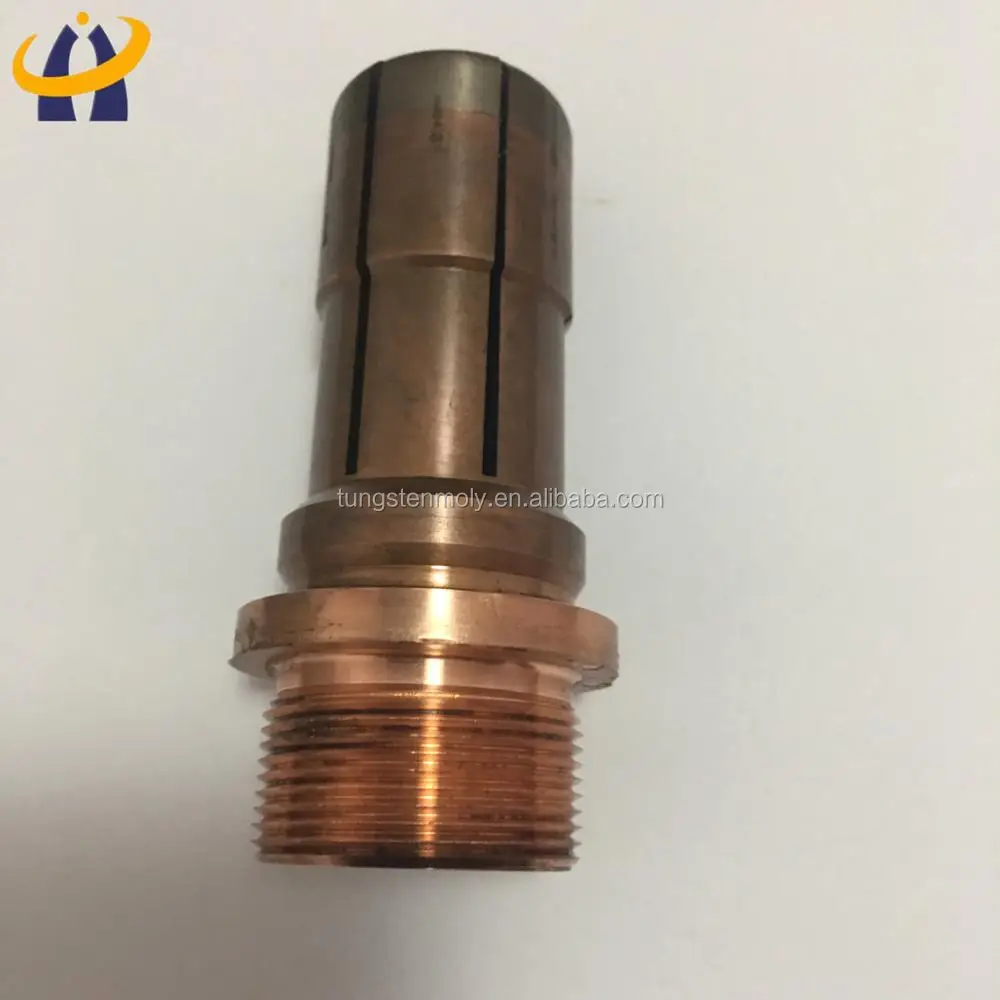

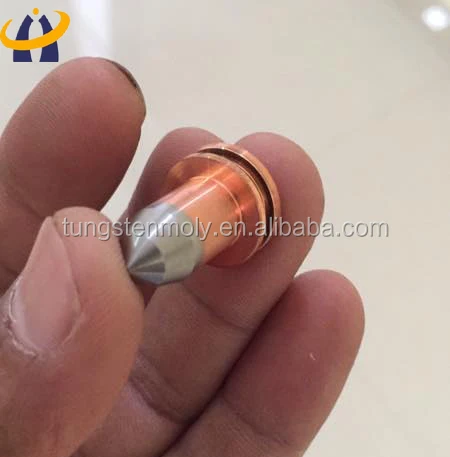

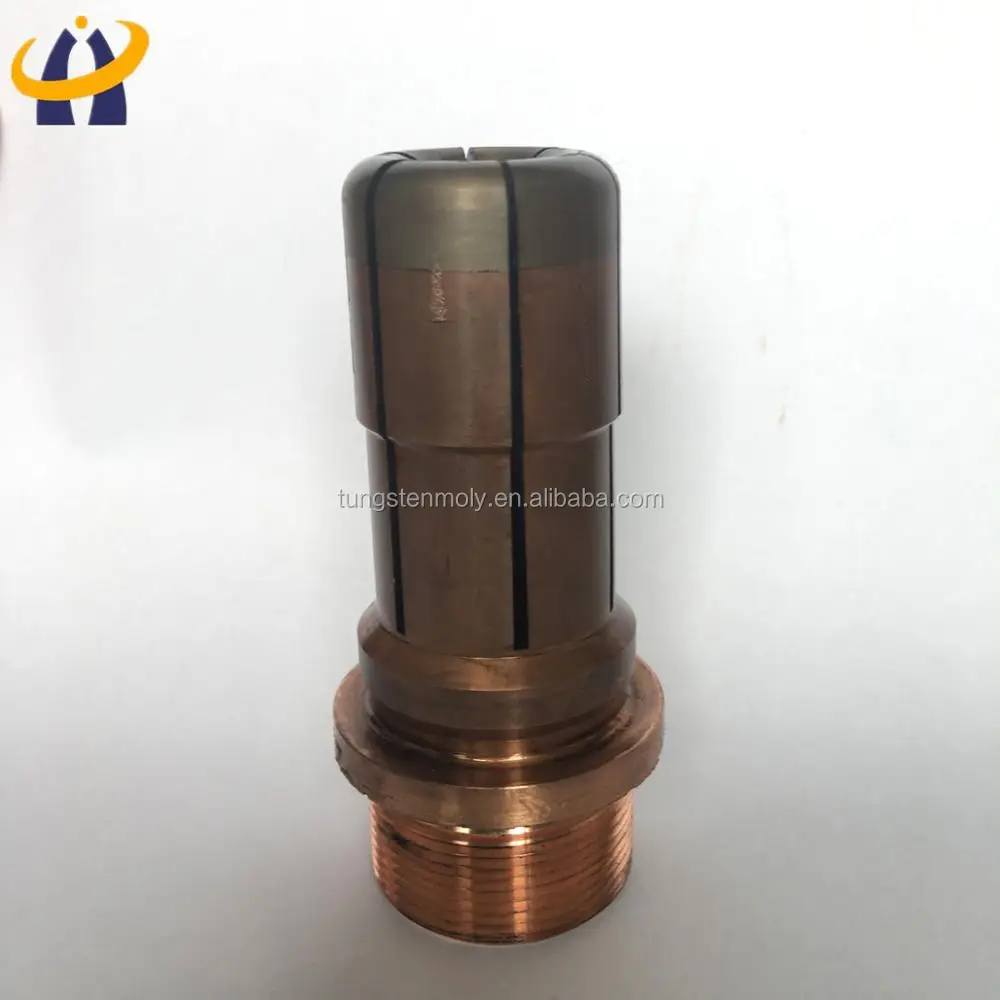

High melting point and good electrical conductivity tungsten copper alloy switch contactor for high voltage circuit breaker

tungsten copper contactor Owing to the good performance of electrical conductivity, tungsten copper contact can be used as electrical contact material, The high electrical and thermal conductivity of copper are combined with the arc-resistant and non-welding properties of tungsten or their carbides to form an extensive series of compositions. Each is designed to give the best performance for your particular application.
We are able to influence the copper tungsten alloy contacts' arc erosion properties by choosing the right mixture of tungsten and copper. With tungsten content reaching at 80 %, we achieve the lowest arc erosion rates. Depending on the voltage and current intensity as well as on economic considerations, we can vary the tungsten content between 50 and 93 % to meet the exact needs of clients' application.
For switch contacts, we also have copper tungsten carbide contacts or CuWC contacts for your inquiry. With high density, high strength and hardness, arc wear resistance, copper tungsten carbide contacts is wildly used as the electrical contact and electrode too.

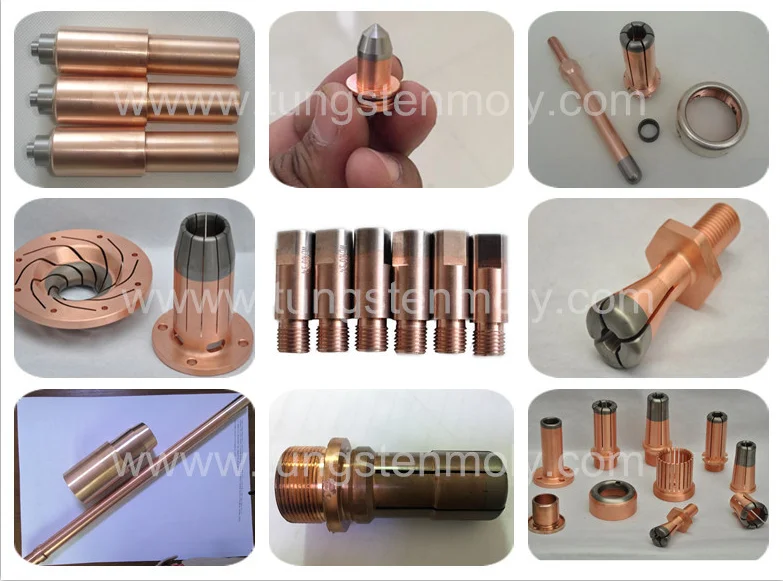

PLEASE BE NOTED THAT WE CAN PRODUCE THE COPPER TUNGSTEN COPPER CONTACTS ACCORDING TO CUSTOMERS' DRAWING OR SAMPLES.

What's Tungsten Copper Alloy?

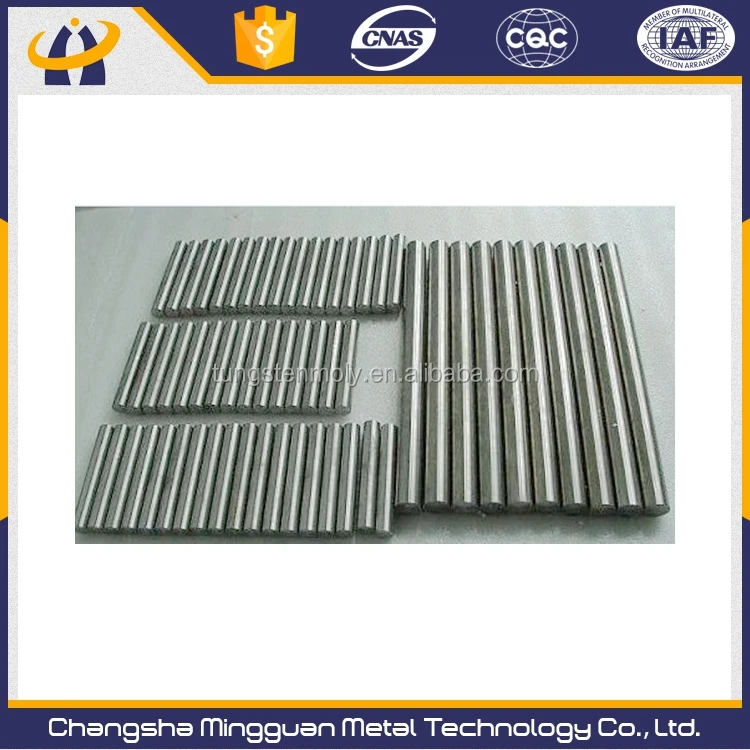

Tungsten copper alloy (Copper Tungsten Alloy, CuW, or WCu) is a pseudo-alloy of copper and tungsten. As copper and tungsten are not mutually soluble, the material is composed of distinct particles of one metal dispersed in a matrix of the other one. The alloy combines the properties of both metals, resulting in a material that is heat-resistant, ablation-resistant, high thermal and electrical conductivity, and easy to machine. Parts are made from the WCu alloy by pressing the tungsten particles into a desired shape, sintering the compacted part, then infiltrating with molten copper. Sheets, rods and bars of the alloy are available as well.

Tungsten copper parts provided by us are all with these properties. The electrical and thermal properties of the alloy vary with different proportions. Copper increases the thermal conductivity, which plays a huge part when being used in circuit breakers. Electrical resistivity with an increase in the percentage of tungsten present in the alloy, ranging from 3.16 at 55% tungsten to 6.1 when the alloy contains 90% tungsten. An increase in tungsten leads to an increase in ultimate tensile strength up until the alloy reaches 80% tungsten and 20% copper with an ultimate tensile strength of 663 MPa. After this mixture of copper and tungsten, the ultimate tensile strength then begins to decrease fairly rapidly.

Chemical Composition of our tungsten copper alloy

Q:What's your main products?
A:Tungsten /molybdenum /tungsten alloy products.

Q: Why should I choose your company for partner?
A: As you know, the raw material of low price makes your product more competitive in the market. That means it will make your sell much easier.

Q:Do you use first class tungsten /molybdenum powder?
A:We only use first class tungsten / molybdenum powder,no recycle.

Q Delivery tungsten alloy products can be shorter?
A: Usually we make sure all the order delivery with 30 days.Tungsten copper 15 days.

Q:Price can be cheaper?
A: We use first class tungsten powder,the cost is high.

Q:Tungsten /Molybdenum products MOQ?
A:Please email to enquire per different products.

Q:Tungsten /Molybdenum sample?
A:Sample available,within 7~14 days.
