BC5570020 Alligator clip Earth nail Test leads set for earthing resistance test

.Test leads set apply to test instrument for earthing resistance test

.Use high quality UL1803 18AWG double insulated wire.

 .The over lead is wrapped on the black holder.

 .The leads set include:

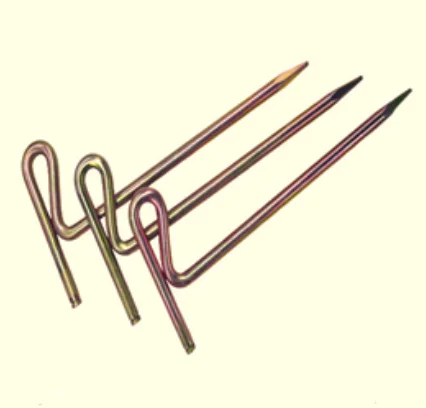

        3 pcs of 9mm dia. earth nail

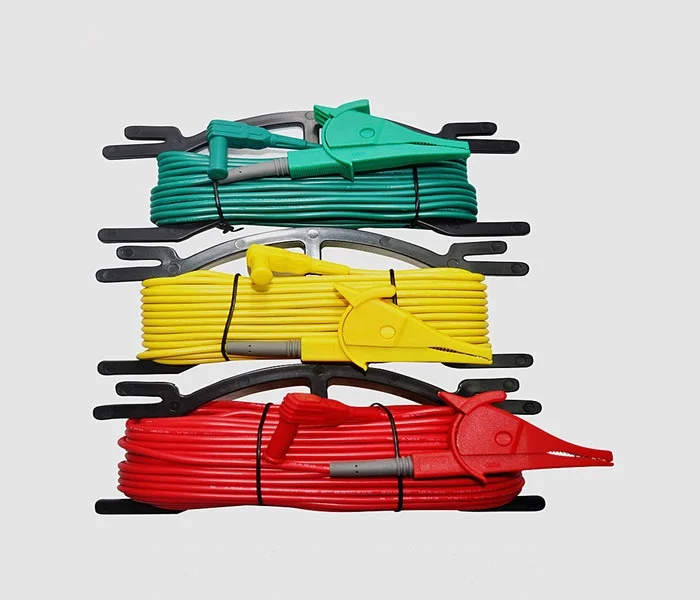

        3 alligator clip leads(black,red,yellow each 1)

Rated voltage :CATIII  1000V /CATIV 600V

Rated current:10A

Standard lead :5M,  10M,  20M  UL1803 18AWG Double insulation

Model  number:BC5570020

Available color:Black/Red/Yellow/Customer's color

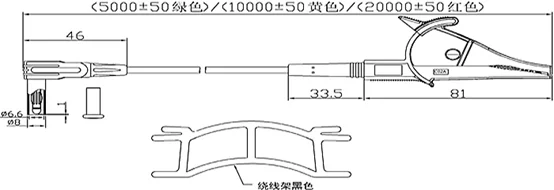

Drawing for reference:
