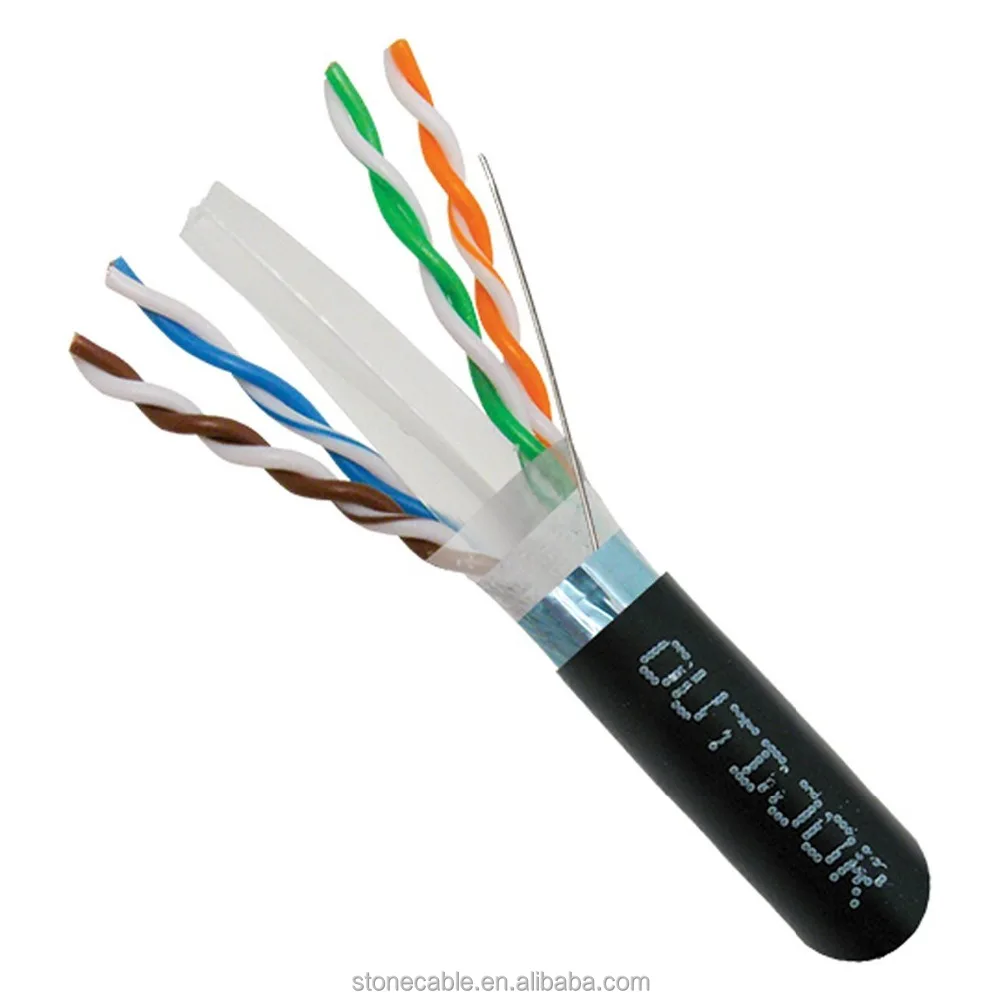

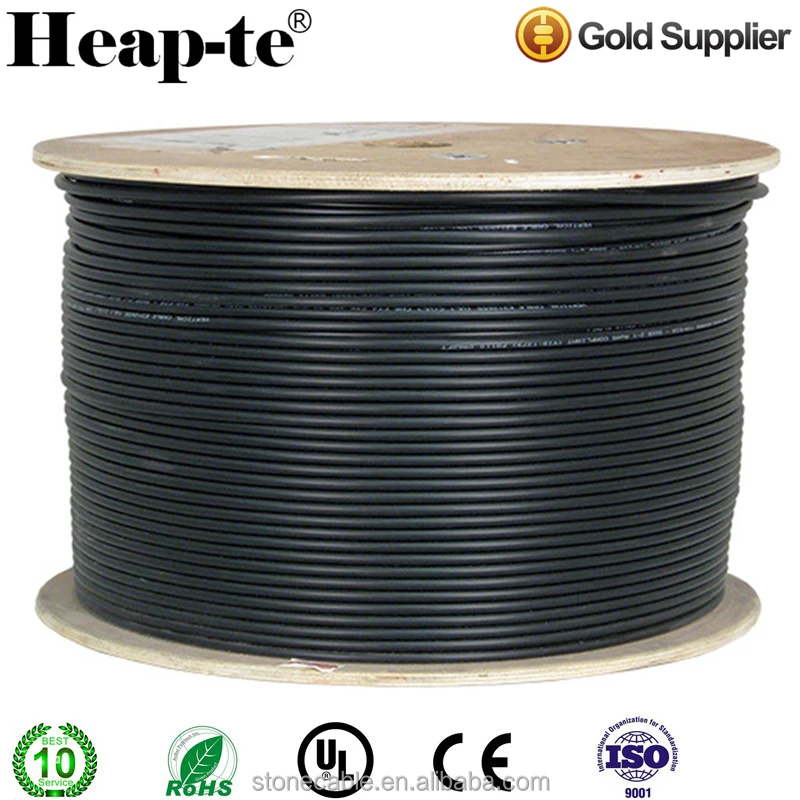

Cat6, Shielded Waterproof Tape, Direct Burial, 1000ft, Black, Bulk Ethernet Cable
- Category: >>>
- Supplier: Shenzhen Stone Cable Sales Depatrtment
Share on (60539780724):
Product Overview
Description
Product Description
1.Application:
Voice, T1, ISDN
10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3),
100 VG - anyLAN(IEEE802.12), 155/622 Mbps ATM
550 MHz Broadband Vedio
1000BASE-T Gigabit Ethernet
2.STANDARD COMPLIANCES:
All Proposed Category 6 requirements as per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards, ANSI/TIA/EIA 568-B.2-1 CAT.6
ISO/IEC 11801 CLASS E, 2nd Edition
IEC 61156-6
CENELEC EN 50173-1
CENELEC EN 50288-5-1,CENELEC EN 50288-5-2
Flame Retardancy is verified according to IEC 60332-1-2.

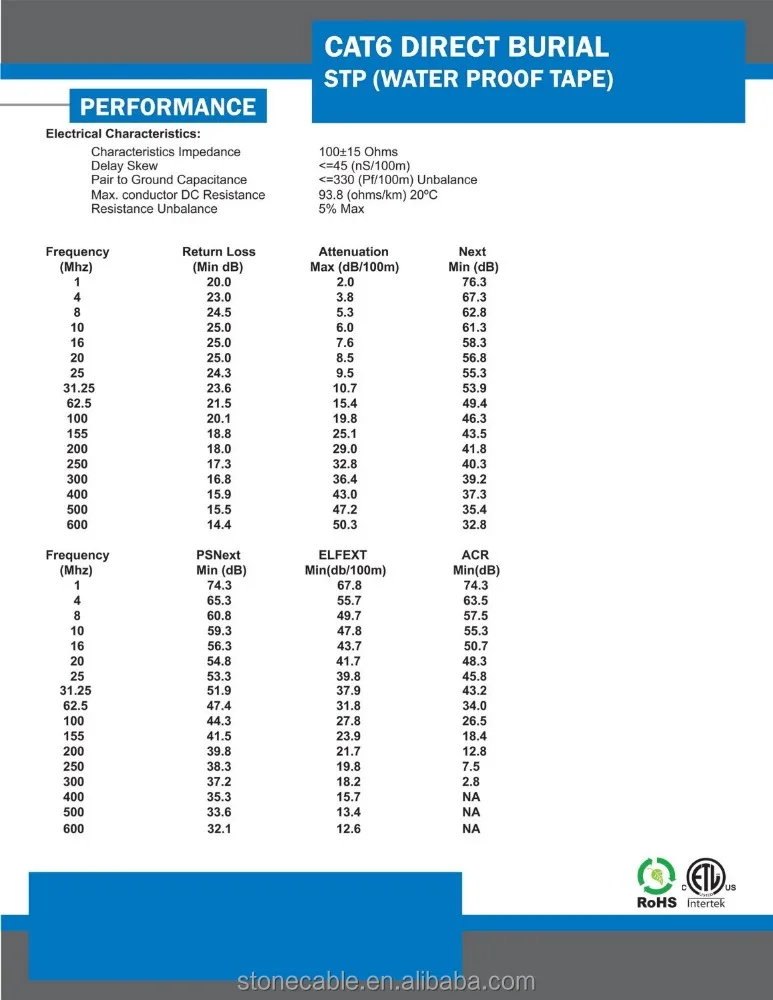

3. Electrical Performance
1. Spark Test 1050 V (AC)
2. Dielectric Strength 2500 V dc / 3 seconds
3. Insulation Resistance Test Min. 150 MO/Km
4. Conductor Resistance Max. 6.8 O/100m at 20
5. Resistance Unbalance Max. 2%
6. Capacitance Unbalance Max. 330 pF/100m
7. Mutual Capacitance Max. 5600 pF/100m
8. Impedance
64kHz 125O ± 20% 1~250MHz 100O ± 15%

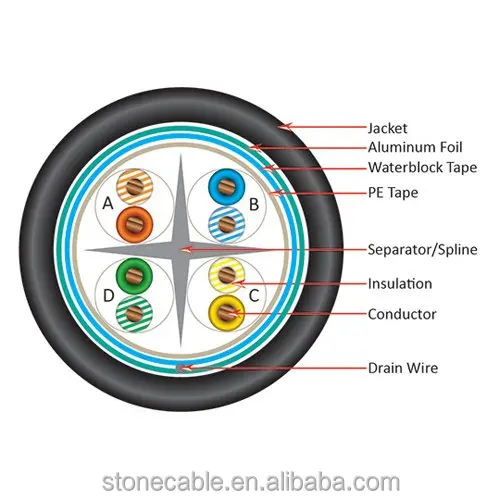

Conductor | Material | Bare Copper | |
Size | 23 AWG | ||
Construction | 1/0.560 ± 0.02 mm | ||
Insulation | Material | Foam-Skin PE | |
Thickness | Average: 0.414 mm Min. at any point: 0.364mm | ||
Material | 1.387 ± 0.05 mm | ||
Colors | Blue/White-Blue , Orange/White-Orange | ||
Green/White-Green , Brown/White-Brown | |||
Elongation | Min. 150 % | ||
Tensile strength | Min. 0.51 Kg/mm² | ||
Shield | Al-Mylar Type | Aluminum foil on outside | |
Mylar Type | |||
Braid | Material | Tinned Copper | |
Coverage | Min. 40% (Nom. 48 %) | ||
Sheath | Material | PVC | LSZH |
Thickness | Average: 0.54 mm | Average: 0.54 mm | |
Min. at any point: 0.40 mm | Min. at any point: 0.40 mm | ||
Diameter | 7.2 ± 0.3 mm | 7.2 ± 0.3 mm | |
Color | Assorted upon request | Assorted upon request | |
Elongation | Min. 100% | Min. 125% | |
Tensile strength | Min. 1.407 Kg/mm² | Min. 0.917 Kg/mm² | |
168100Aging at 100 for 168Hrs | :50% Min.elongation retention:50% :75% Min.tensile strength retention:75% | Min.elongation retention:75% Min.tensile strength retention:70% | |

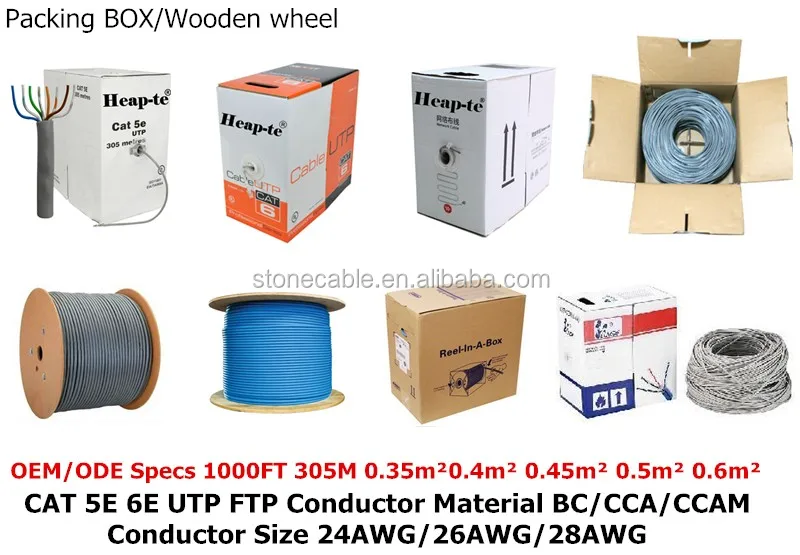

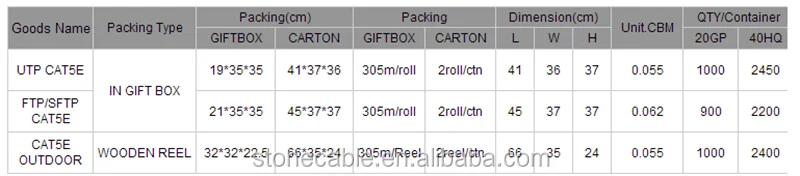

Packaging & Shipping
Our Services

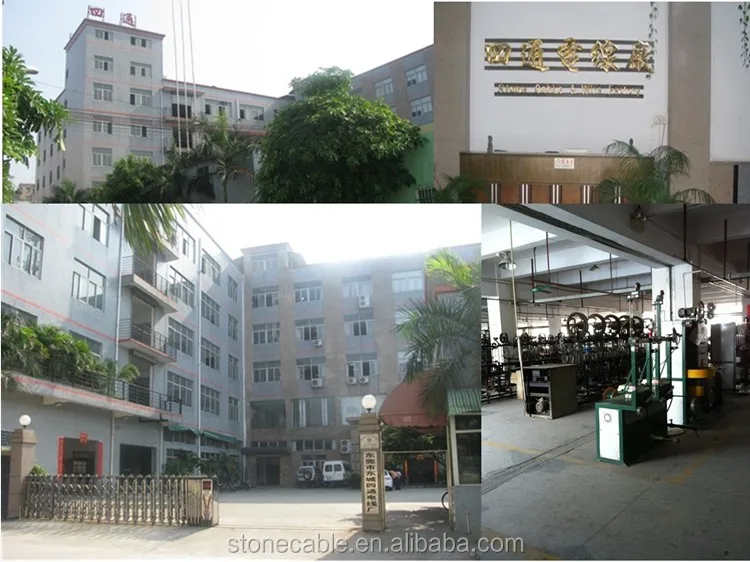

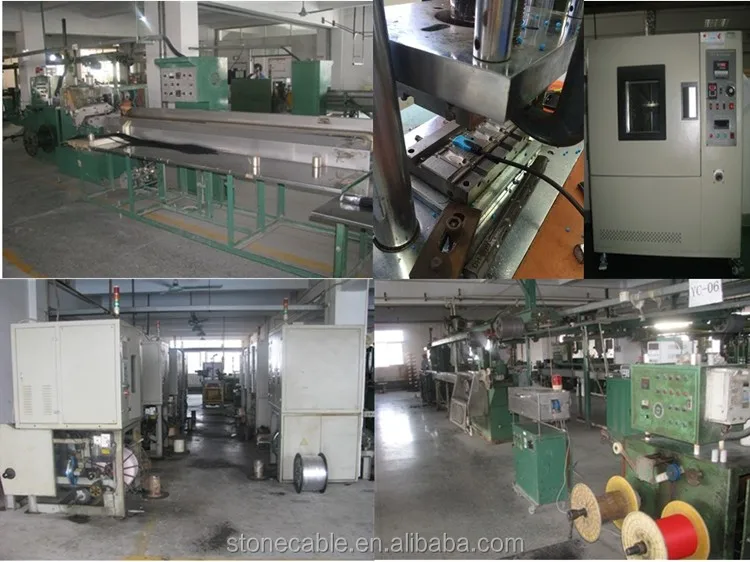

Company Information
