Single boom swivel lifting jib crane

Product Overview

Description

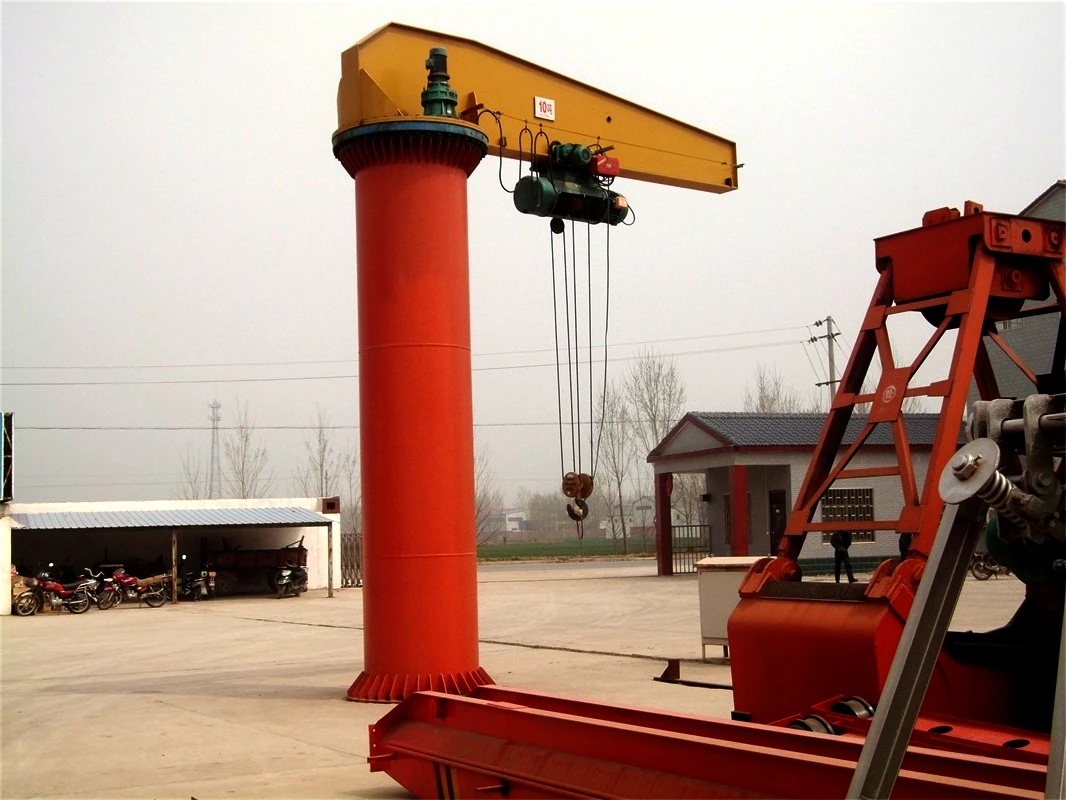

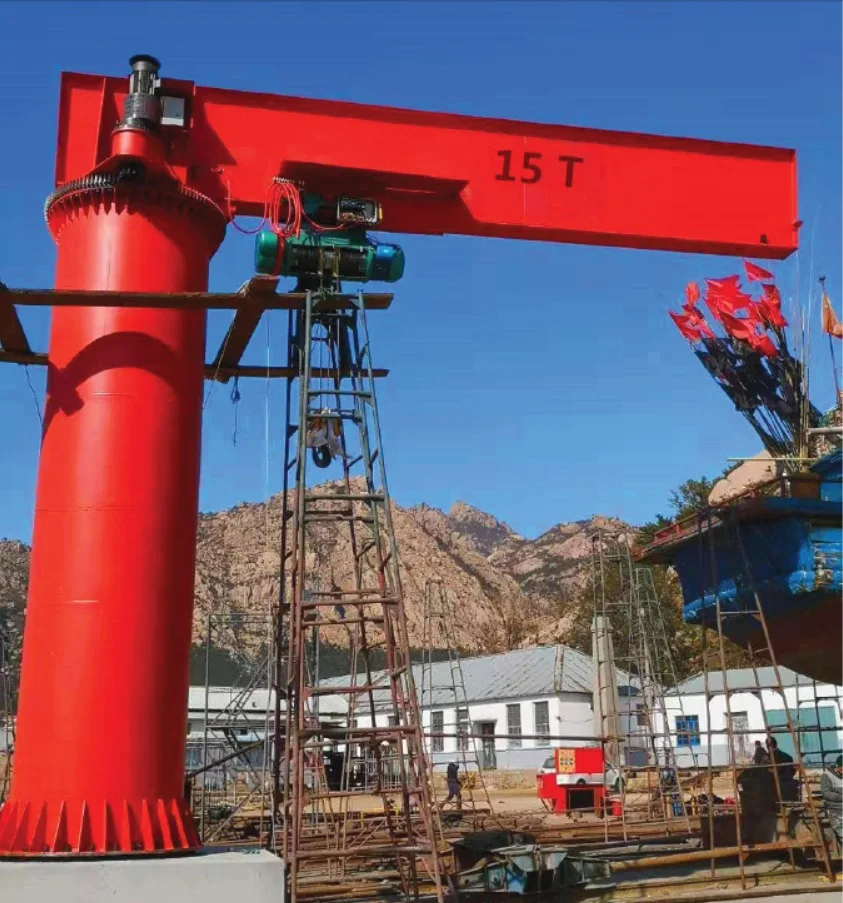

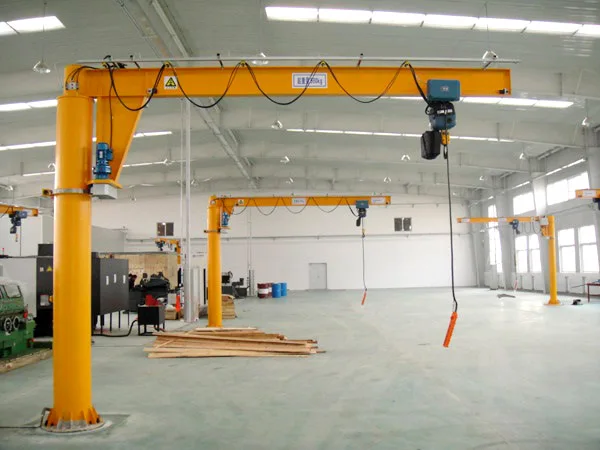

Single boom swivel lifting jib crane

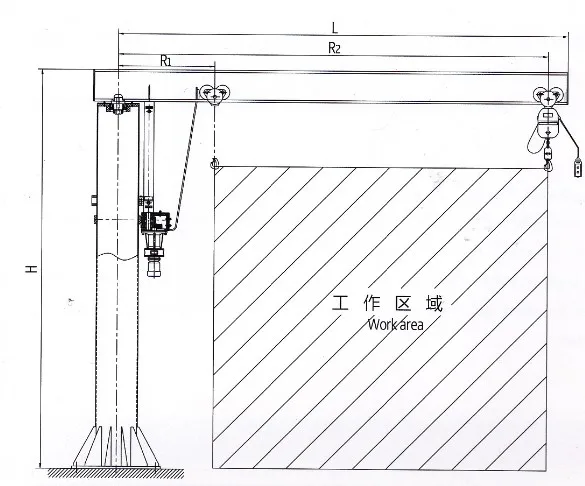

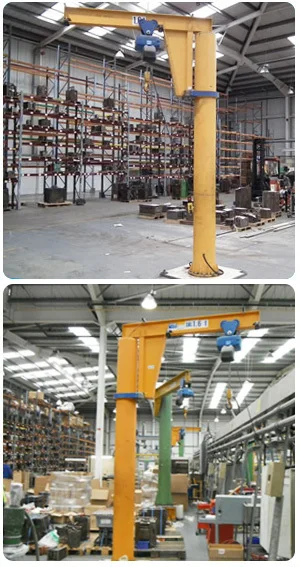

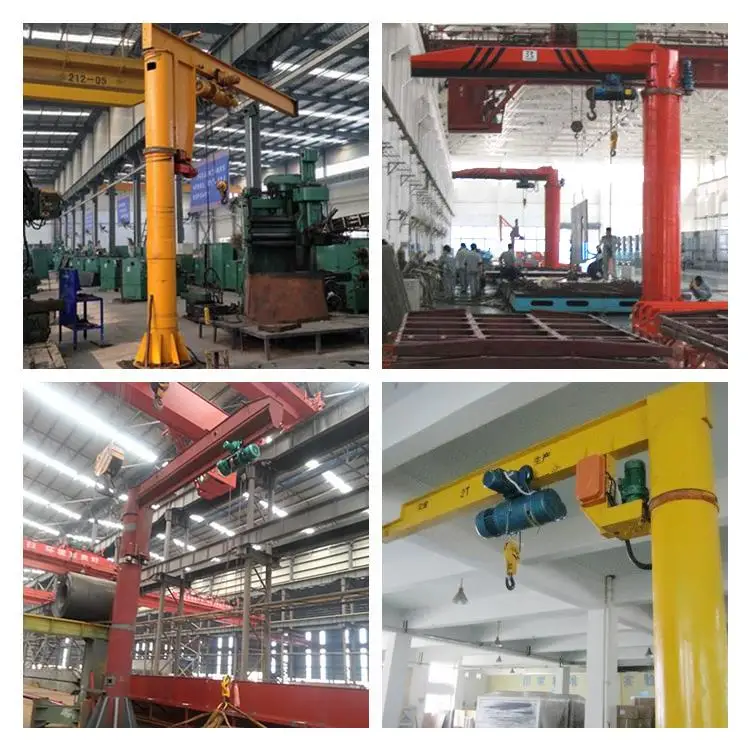

Single boom swivel lifting jib crane   This floor mounted slewing jib crane is designed for heavy lifting, able to rotate 360 degrees. Used indoors or outdoors for production lines, depatch areas or general workshop applications. The SHENGQI design allows maximum height of lift in restricted areas.   Crane comes complete with the following:   Set of signs to meet workcover requirements. 15 year structural warranty certificate. Operator and maintenance manual. Crane is supplied with end warning stripes, capacity sign & data plate.   Note:   Swing distance and height can be modified on request. Suitability of existing base structure for imposed loads is the responsibility of the purchaser.   Features:   Model Capacity Range: 0.5 ton to 10 ton Outreach Range: 2m to 12m Maximum Slew: 360 degrees Surface Treatment: Indoor or Outdoor Paint System Cranes Built to Quality Standard ISO9001   Crane Options:   Hoist and Trolley (motorised or manual) Jib Lock Slew limits Motorised or Manual Slew Drives Crane Electrics Explosion Protection in accordance to ATEX Custom Paint Systems, Hot Dip Galvanised       Sketch & Parameters Load Capacity: 0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton Arm Length, Span: 2m on wards Lift Height: 1.5m onwards   Load Capacity, t Arm Length, A, m Lift Height, h, m Total Height, H, m Lift Speed, m/min Travel Speed, m/min 0.5 As Required 1.5 h+0.5 7 10/20 1 As Required 1.5 h+0.55 8 10/20 2 As Required 1.5 h+0.55 8 10/20 3 As Required 1.5 h+0.6 8 10/20 5 As Required 1.5 h+0.7 7 10/20 10 As Required 1.5 h+0.75 7 10/20   Product Showing       Jib Crane for Building Construction   Company View       Equipment Showing       Spare parts Showing       Customer Visiting

Package & Shipment

Certificates
