L6.2-PT reel type 610008 connector alternate ket terminal
US $0.38-$0.75
Соединители с двойным крылатым проводом
- Category: Connectors & Terminals >>>
- Supplier: Suzhou Huihua Electronic Tech. Co. Ltd.
Share on (60540163698):
Product Overview
Description

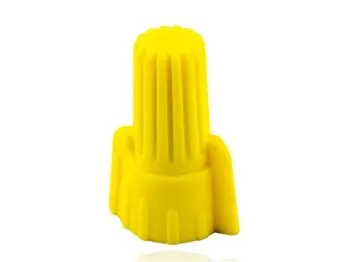

Winged twist-on wire connectors
Product Description

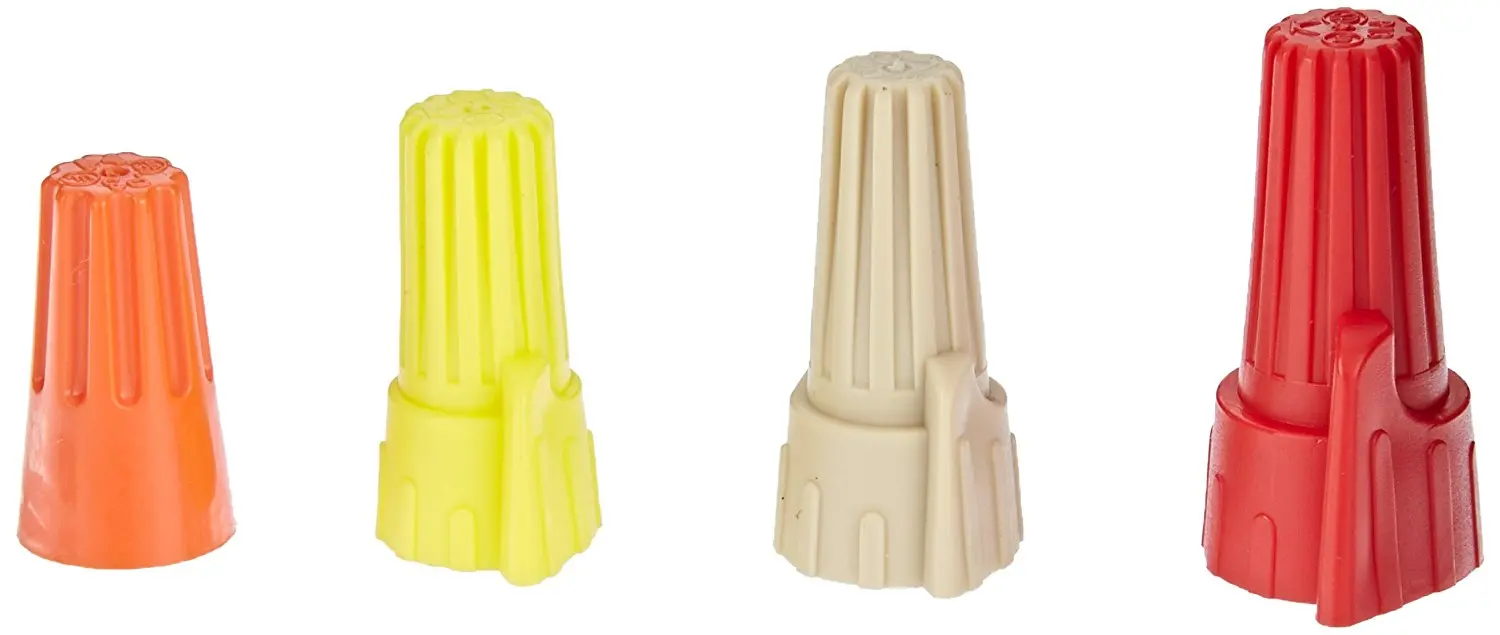

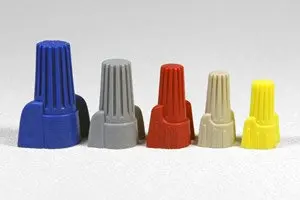

Winged Wire Connectors

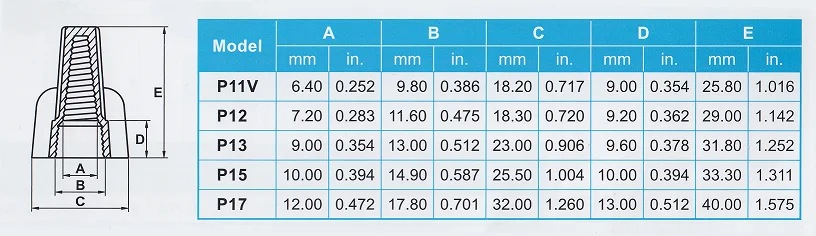

| Model No. | Color | Electrical Ratings & Temperature | Wire Range | Packing |
| P11V | Yellow | 300 V/600 V Max. | 18-10 AWG, Cu | 500 Pcs/Bag |
| 105°C (221°F) | Max. 2 #12 w/1 #14 | 5,000 Pcs/Ctn | ||
| Min. 3 #18 | ||||

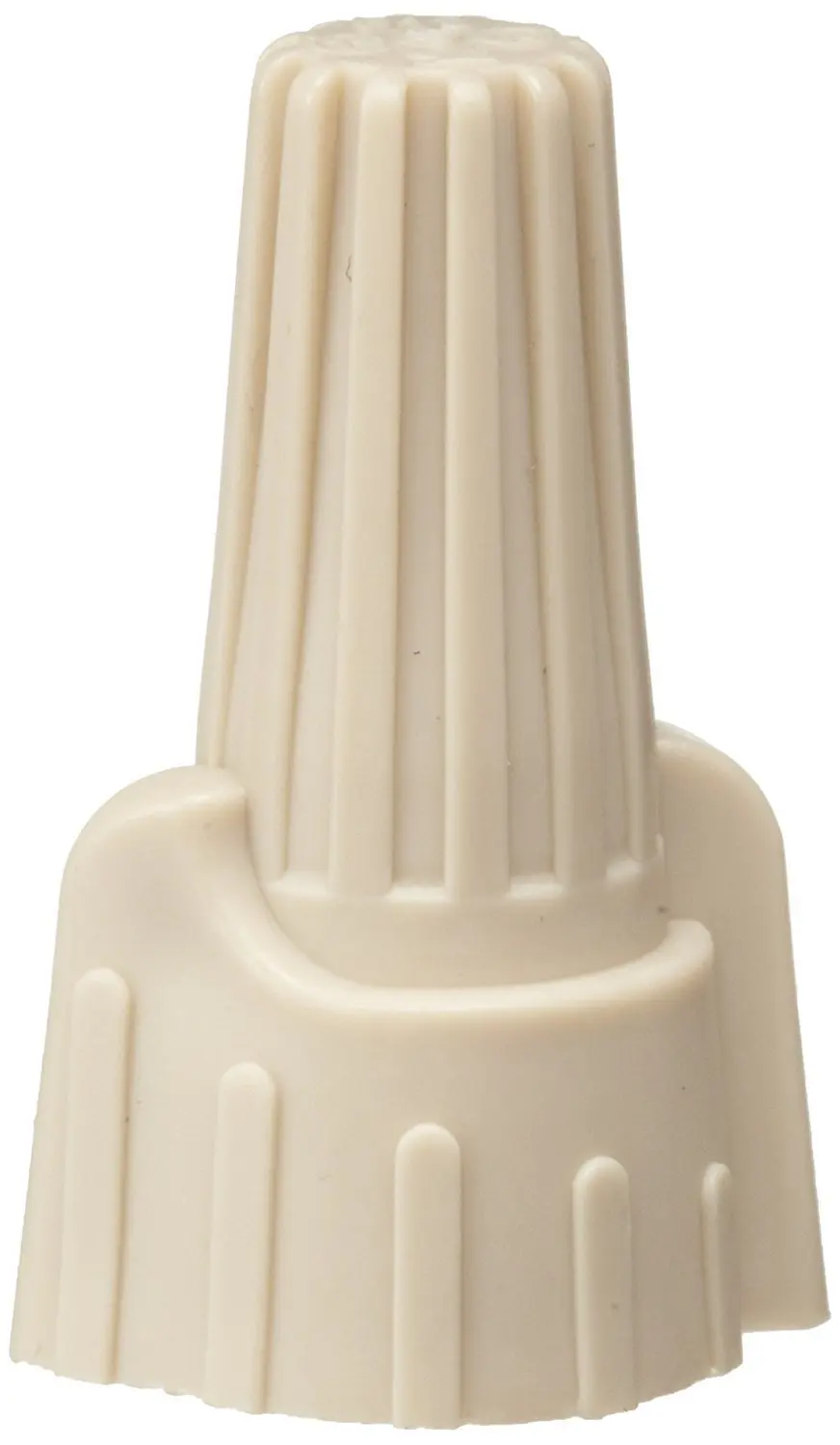

| P12 | Tan | 600 V Max. | 22-8 AWG, Cu | 500 Pcs/Bag |
| 105°C (221°F) | Max. 4 #12 | 5,000 Pcs/Ctn | ||
| Min. 3 #22 Sol | ||||

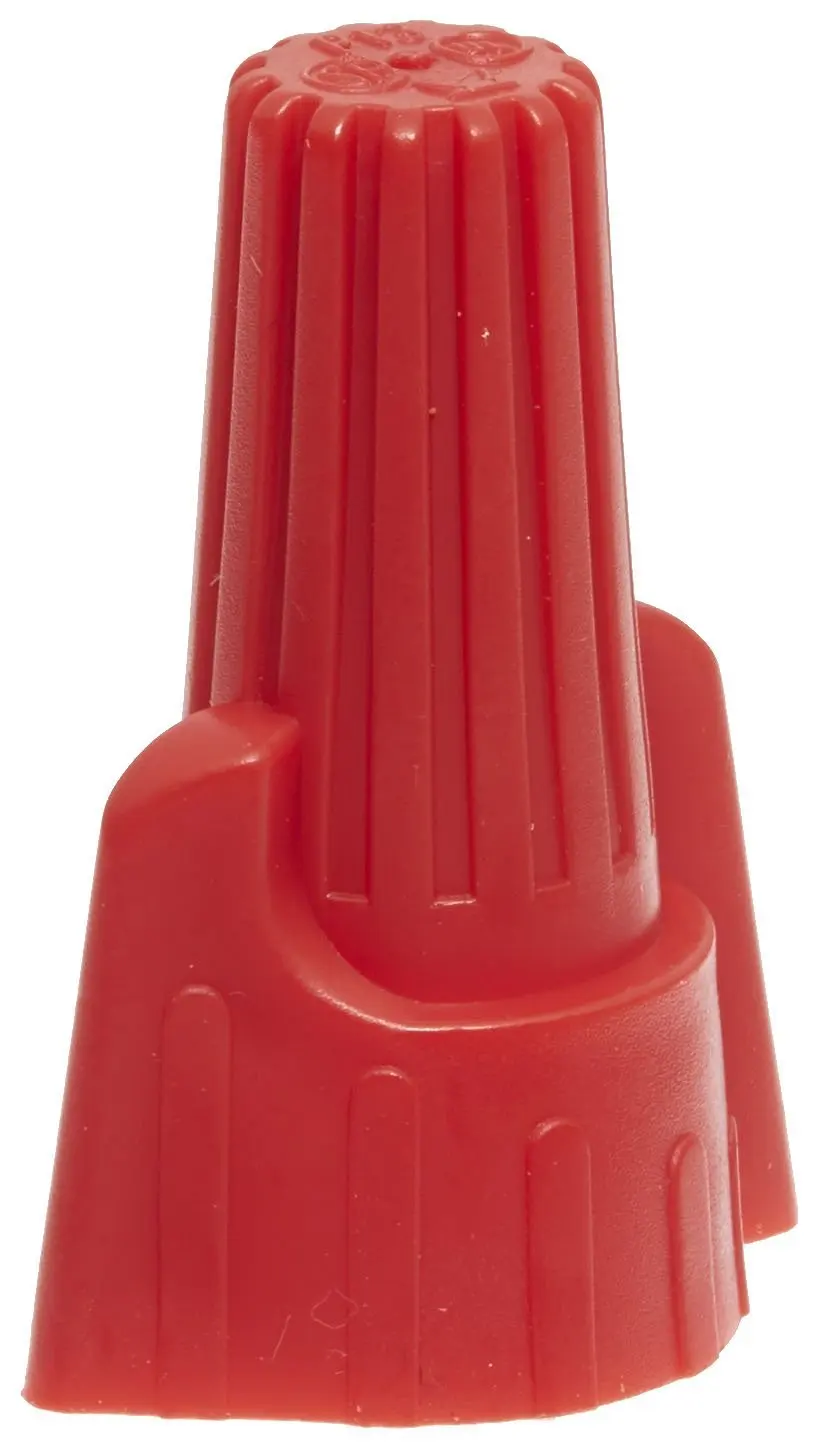

| P13 | Red | 300 V/600 V Max. | 18-8 AWG, Cu | 500 Pcs/Bag |
| 105°C (221°F) | Max. 5 #12 Sol | 5,000 Pcs/Ctn | ||
| Min. 3 #16 | ||||

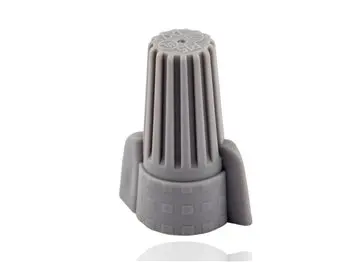

| P15 | Grey | 600 V Max. | 18-8 AWG, Cu | 250 Pcs/Bag |
| 105°C (221°F) | Max. 3 #10 | 2,500 Pcs/Ctn | ||
| Min. 3 #14 w/1 #18 | ||||

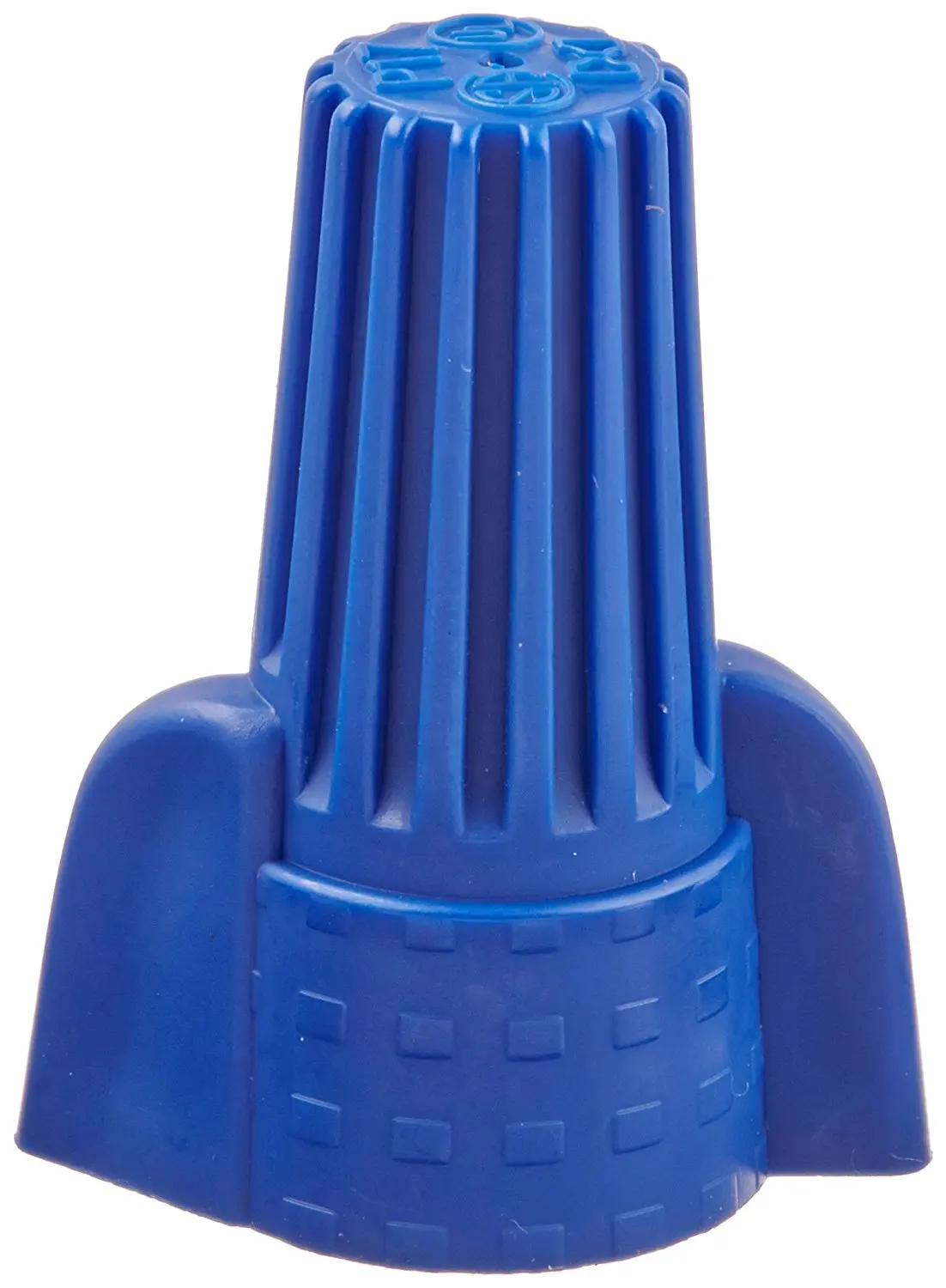

| P17 | Blue | 600 V Max. | 14-6 AWG, Cu | 100 Pcs/Bag |
| 105°C (221°F) | Max. 3 #8 Sol w/1 #12 | 1,500 Pcs/Ctn | ||
| Min. 2 #10 w/1 #12 |
Characters:
|
|
|
|
|
|
|
