Двухцветные пластиковые флексографские печатные машины

Share on (60540459989):


Price:10 000,00 $

Quantity:


Product Overview

Description


_01_01



Product Description


 This machine is suitable for printing such packing materials as polyethylene ,polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc .

Feature :
1.Easy operation ,flexible starting accurate color register.
2.The meter counter can set printing quantity according to the requirement .Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually ,It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation ,it will automatically break circuit when the machine stops.
6.360 continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



























































































TYPEYT-2600YT-2800YT-21000
Max.effective printing width560MM760MM960MM
Max. web width600MM800mm
Max.printing speed50M/MIN

50m/min



Max. Mechanical speed60m/min

60m/min



Max. diameter of roll materialφ450mmφ450mm  φ450mm
internal diameter of roll coreφ 76mmφ 76mmφ 76mm
range of repeat printing length191-914mm191-914mm191-914mm
accuracy of registration±0.5mm±0.5mm±0.5mm
plate thickness( both sie adhesive tape included2.38mm2.38mm2.38mm
Heating power7kw10.5kw14kw
 Total power11.5kw15kw18.5kw
weight of machine3000kg3500kg4000kg
overall dimension4300*1700*2500mm4300*1900*2500mm4300*2100*2500mm

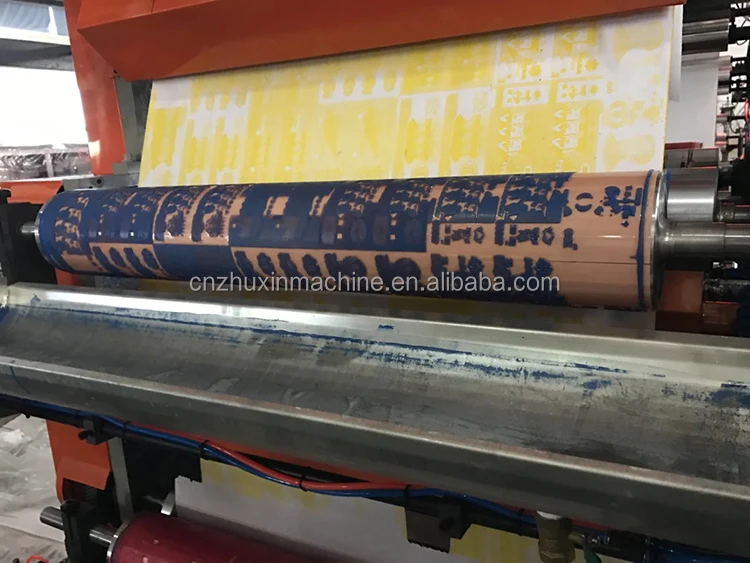

Printing Sample


 .jpg

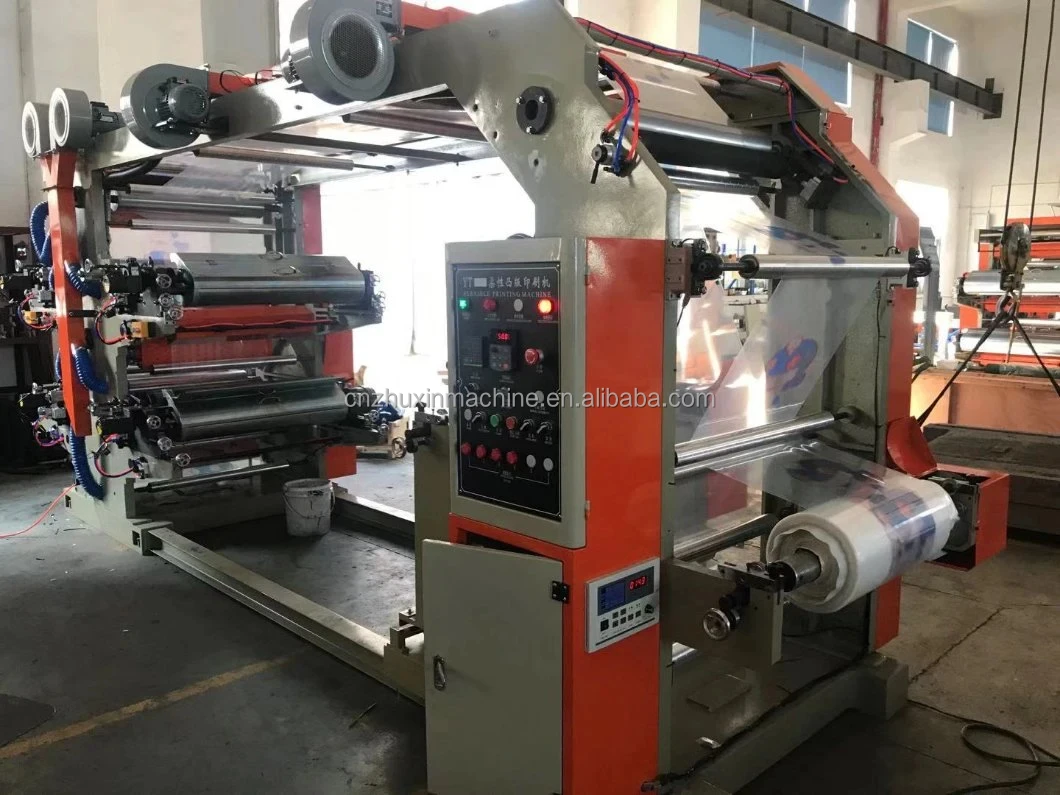

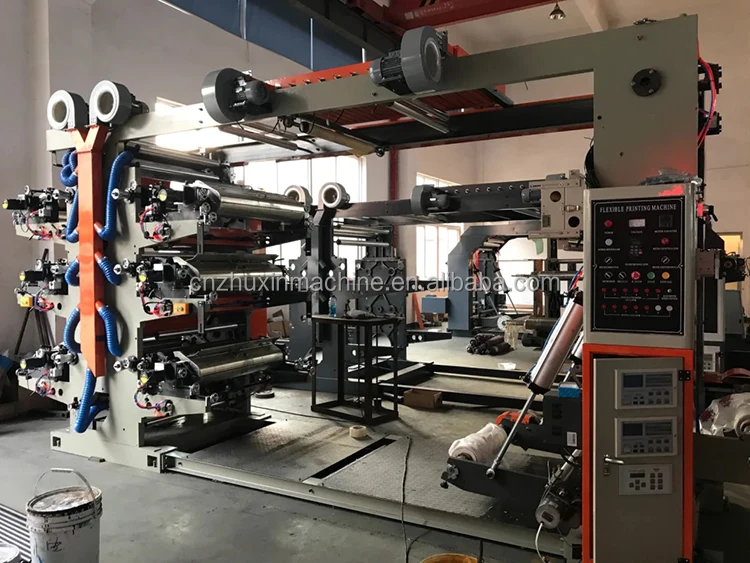

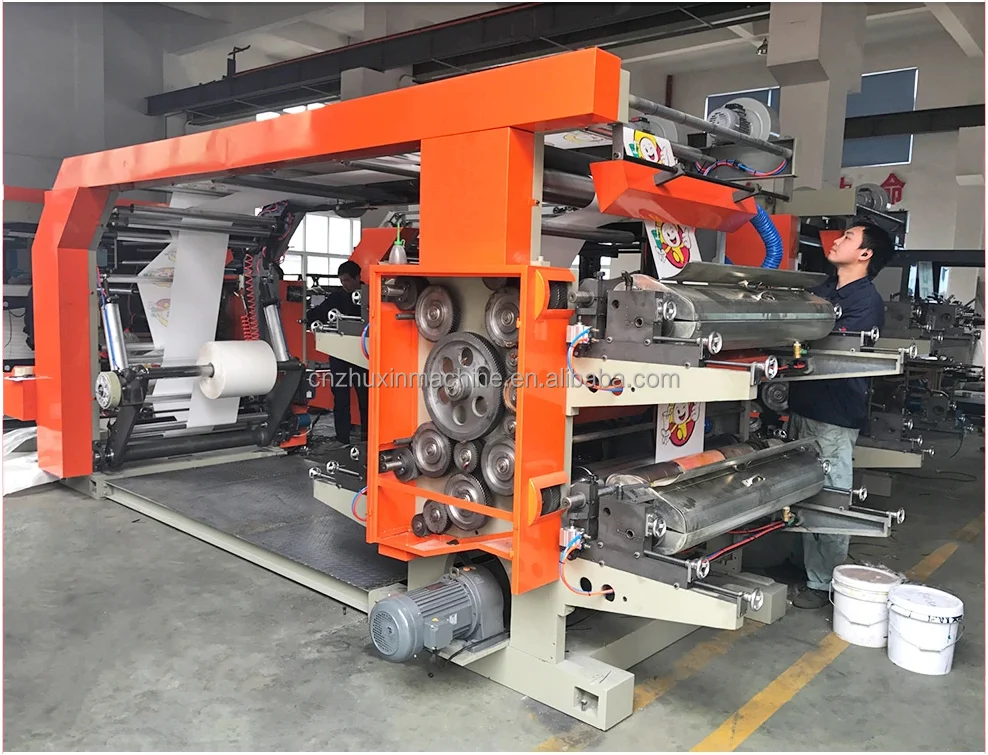

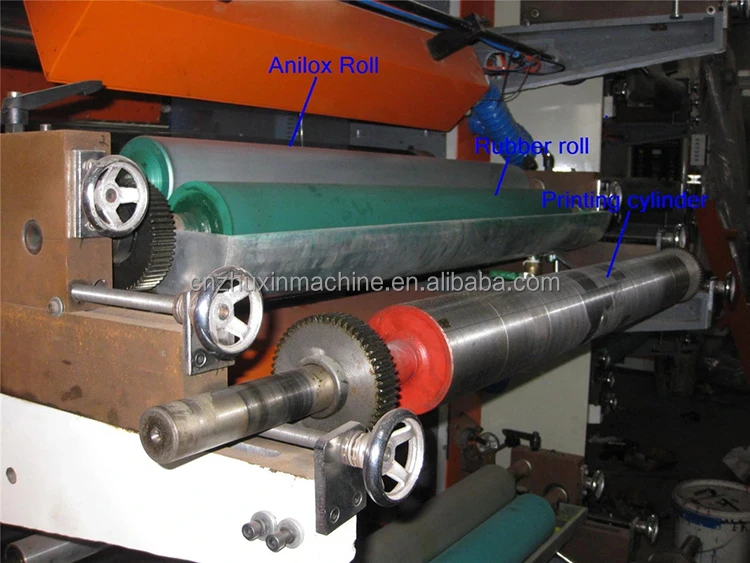

Machine Detail











_01_03

_01_09

_01_04

_01_05

_01_07

QQ20180417105542




Packaging & Shipping


 photobank_
