Product Overview
Description

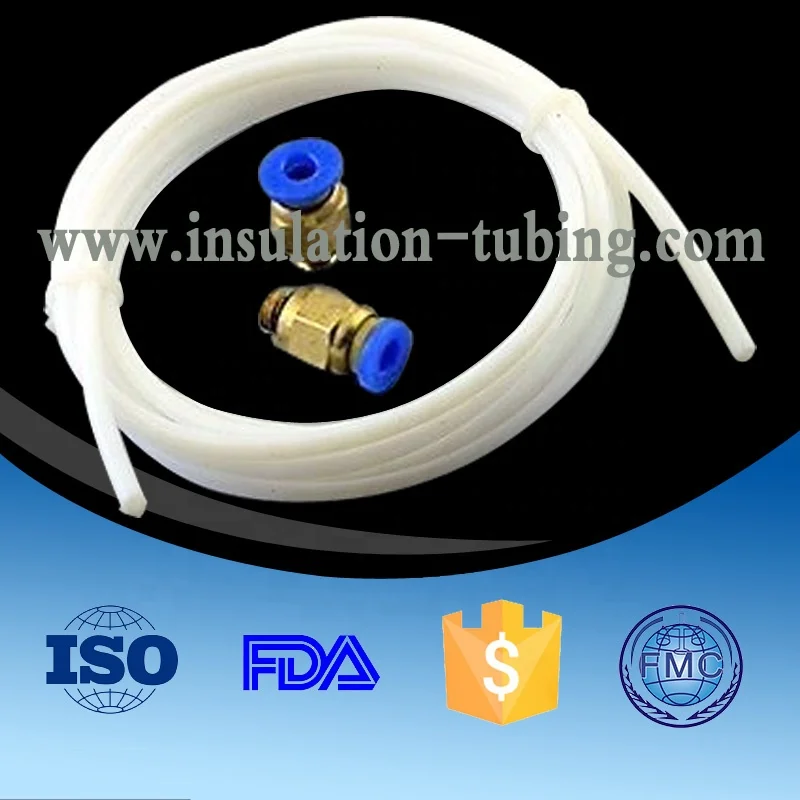

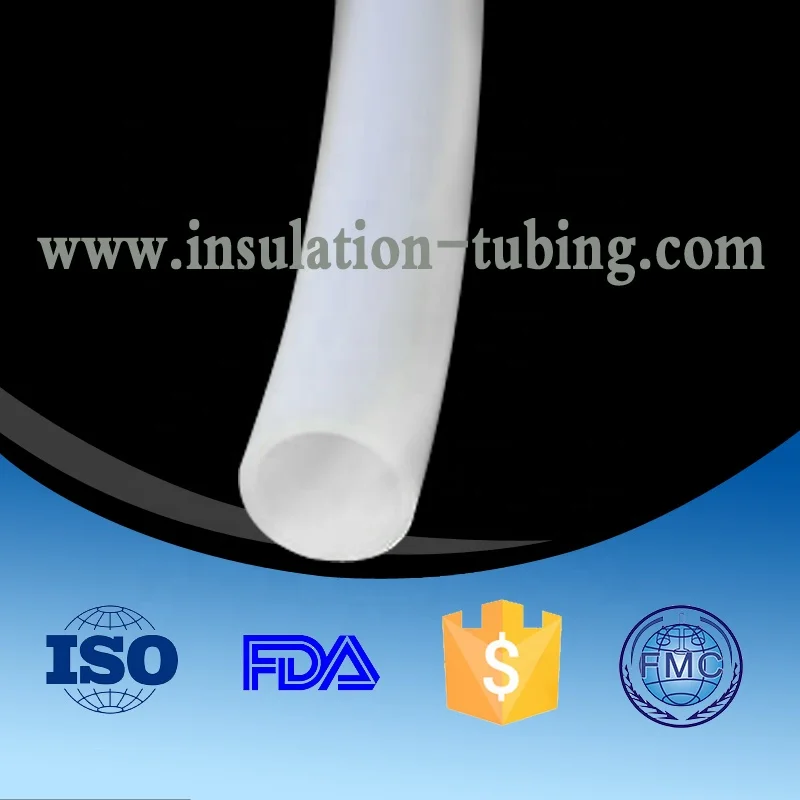

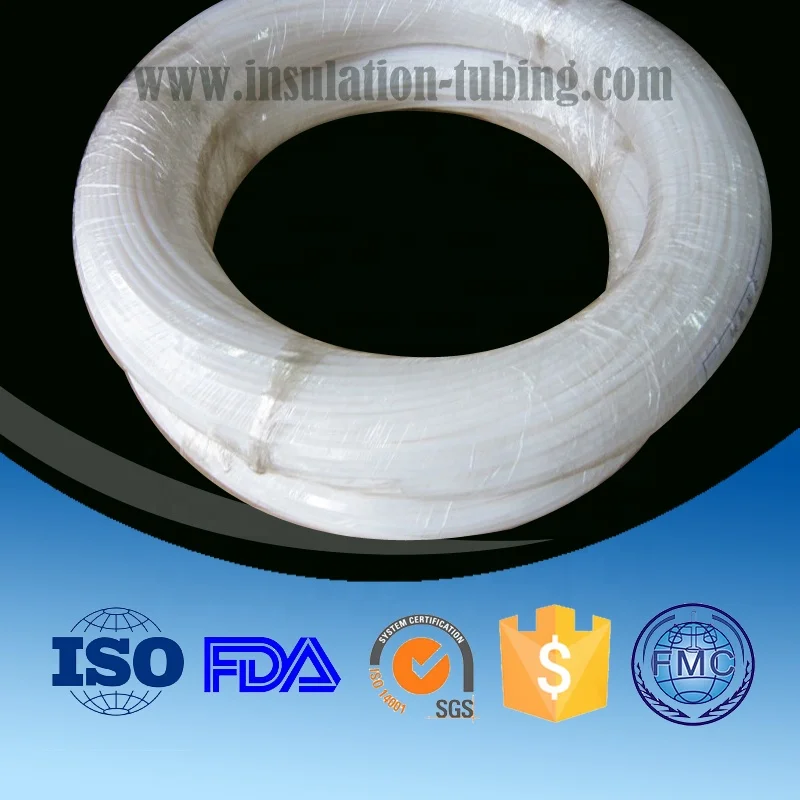

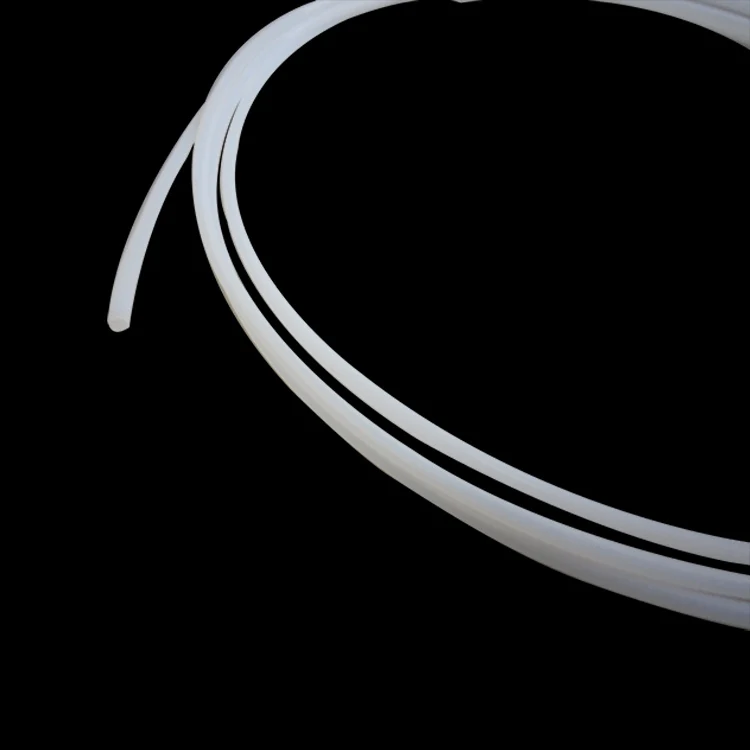

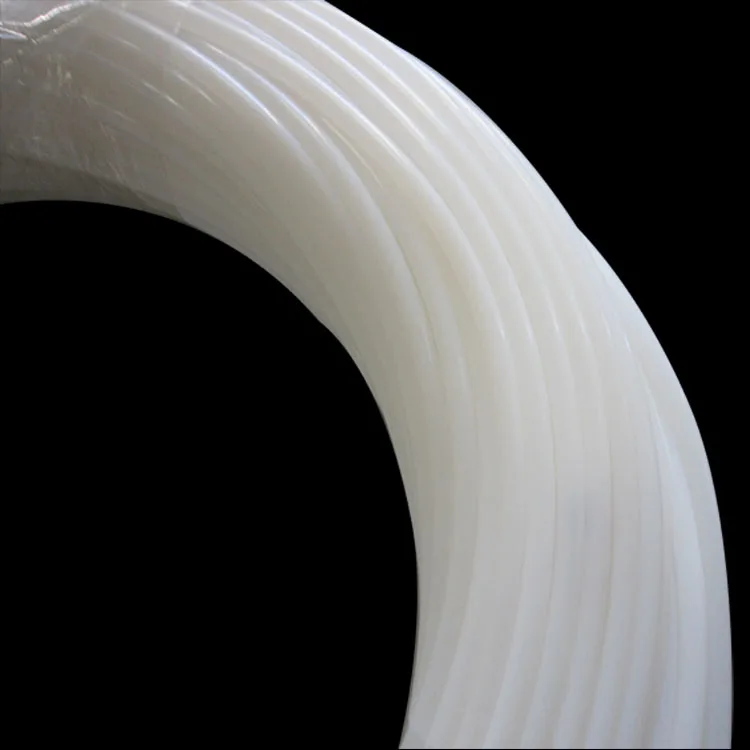

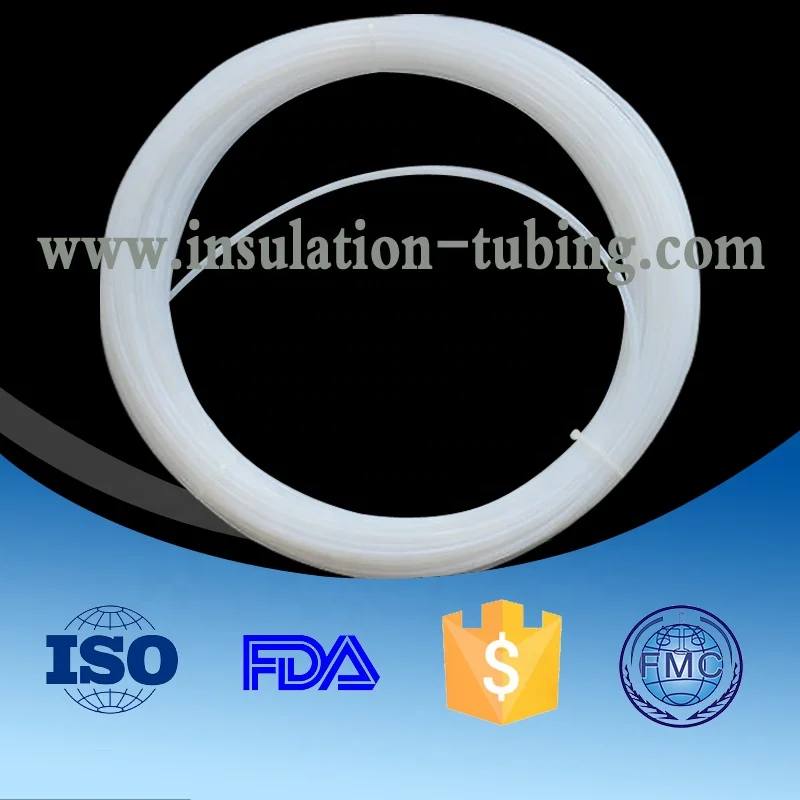

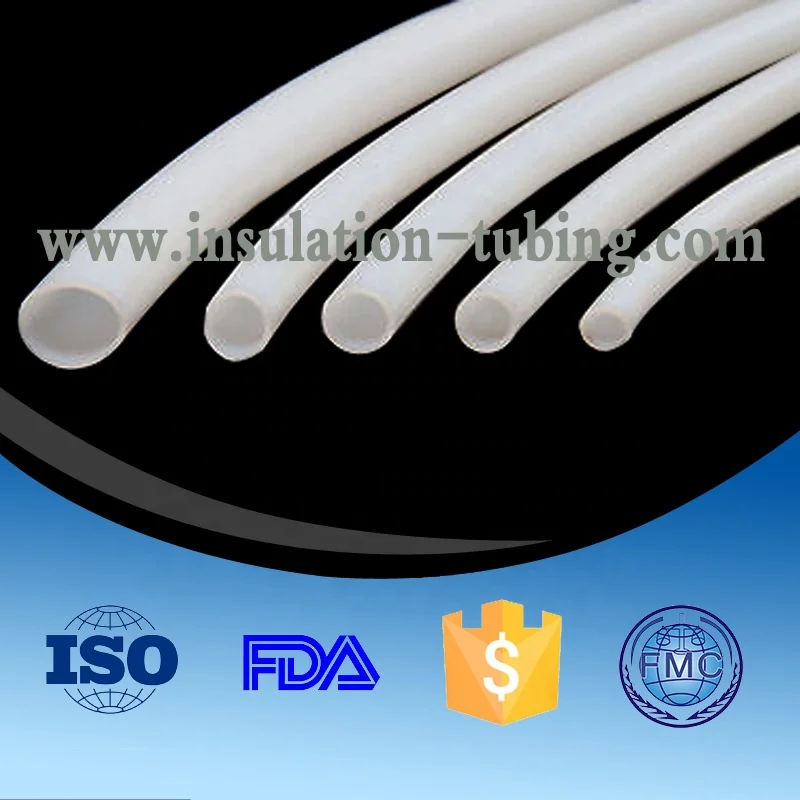

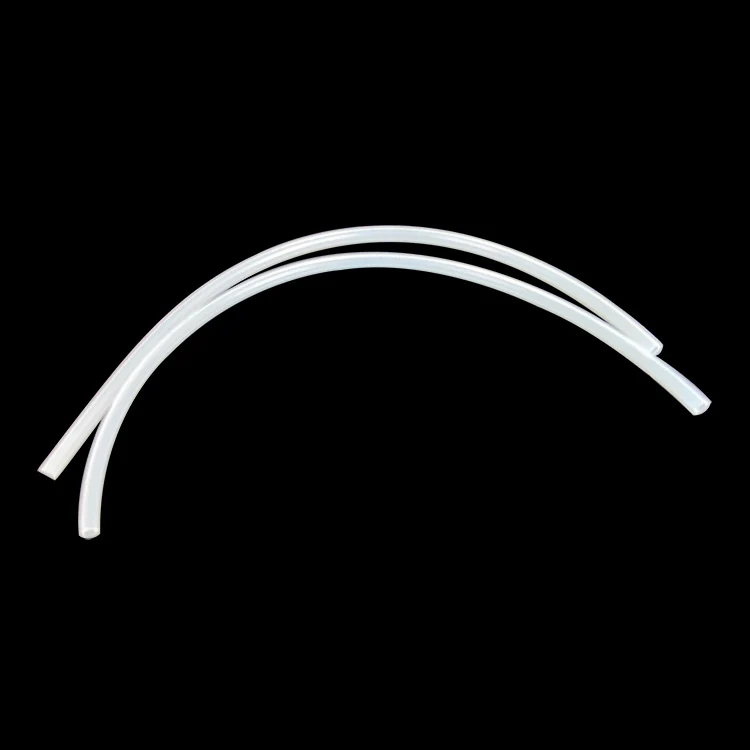

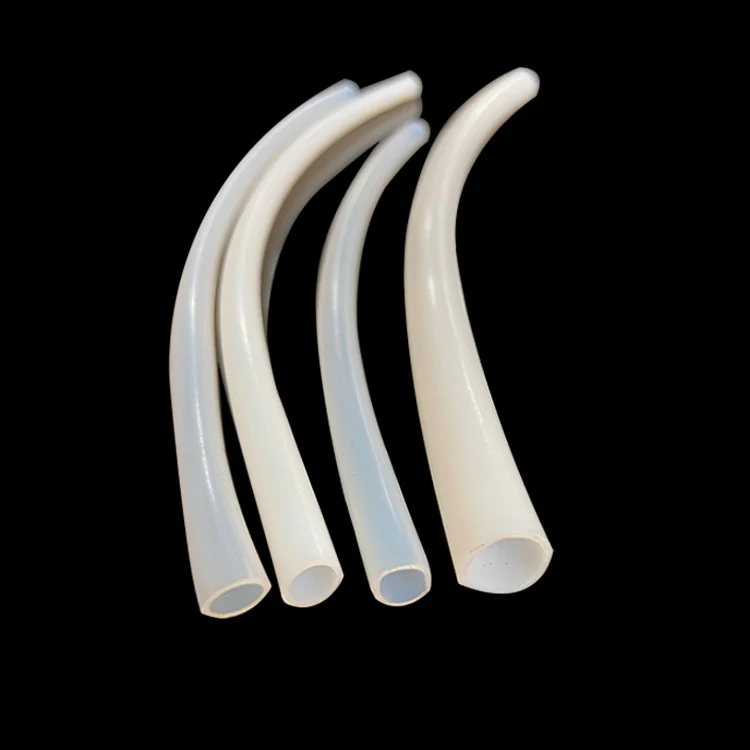

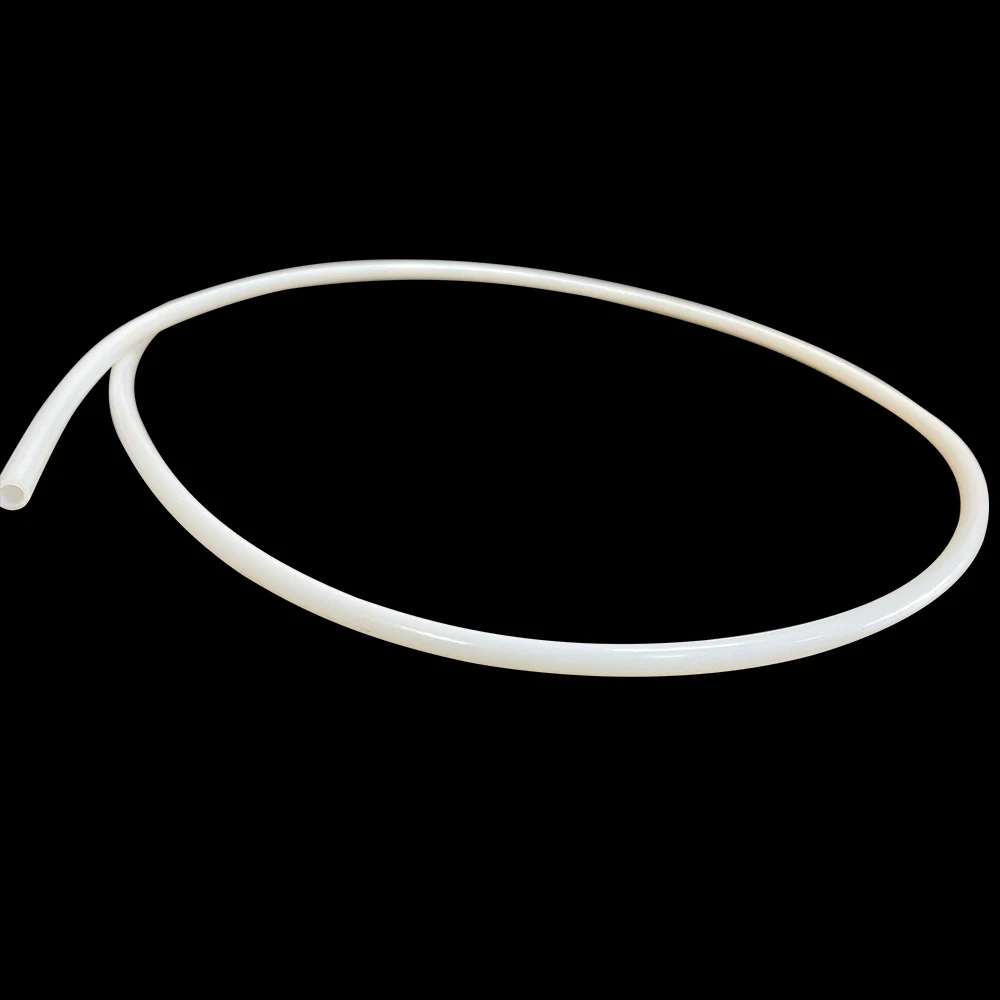

PTFE hose OEM Manufacturer From China, tubing
PTFE Tube Pipe hose
High temperature resistant--working temperature to 250 celcius. High low temperature
resistance--high mechanical toughness;even if the temperature drops to 196 ℃, also can keep
5% elongation. Corrosion resistance -- to most chemicals and solvents, inert, acid alkali, water
and a variety of organic solvents. Weather - to be the best in the plastic in aging life. High
lubrication -- is the lowest in the friction coefficient in solid materials. Don't stick --the surface
tension of the solid material don't adhere to any material. Non-toxic-- a physiological inertia, long
as artificial blood vessels and organs implanted without adverse reaction.
Specifications / Features:
• Material: PTFE
• Length: 2m
• External: 4mm
• Internal: 2mm
• Color: white
• Feature: hard texture, high strength, not easy to damage, is not easy to age
Quick details
Place of Origin : China (mainland) Brand Name: Forbest ,
Material : PTFE
Speicification: Dia 0.8 to 26mm Length: customed Thickness : customized
Standard: customized
High-low temperature : -270C TO 260C fireresistant,:YES USAGE: medical applications, aerospace,
analytical sciences, and other demanding applications.
Packaging & Delivery
Packing details : Standard Export Carton Packing
Delivery Detail: 10-12 days
TECHNICAL INDEX
Item | (Test Method) | (Specifications) |
(g/cm3) (Specific Gravity) | ASTM D792 | 2.16 |
(V) (Rated Voltage) | UL-224 | 600V(S) 300V(T) 150V(L) |
(℃) UL Rated Temperature | -- | -80~200 |
(MPa) Tensile Strength | ASTM D638 | 24.5 |
(%) Elongation Ratio | ASTM D638 | 350 |
(MPa) (Flexural Modulus) | ASTM D790 | 490 |
(Impact Strength) | ASTM D256+23℃-54℃J/m | -No Break- 107 |
(Shore D) (Hardness) | ASTM D2240 | 55 |
(Coefficient Of Dynamic Friction) | -- | 0.1 |
(Melting Point) | -- | 327 |
(Service Temperature 20000h With 50% Retention Of Ultimate Elongation) | -- | 260 |
(Inflammability) | UL-224 | VW-1 |
(Dielectric Constant At 103-106Hz) | ASTM D150 | 2.1 |
(2500V/60s) Dielectric Strength | UL-224 | YES |
(Dissipation Factor At 106Hz) | ASTM D150 | 0.0002 |
(S) (Arc Resistance) | ASTM D495 (Stainless Steel Electrodes) | >300 |
(Ω·cm) (Volume Resistivity) | ASTM D257 | >1018 |
(Weather Resistance) | “Weather-O-Meter” (2000h) |
No cracking |
(Solvent Resistance) | ASTM D543 | Excellent |
(Chemical Resistance) | ASTM D543 | Excellent |
PTFE Tube Specification
( ID *OD ) ITEM NO | (ID * OD )ITEM NO |
2/3-A231 | 8/10-A280 |
3/4-A241 | 11/12.6-A207 |
1.6/3.2-A229 | 8.5/10.5-A285 |
4/5-A248 | 12/13.5-A209 |
2.5/4-A234 | 5/8-A257 |
1.5/3.5-A230 | 12.5/14-A214 |
2.3/4-A233 | 9/11-A287 |
5/6-A261 | 9.5/11.5-A289 |
2/4-A232 | 7.5/10-A276 |
4.35/5.6-A294 | 10/12-A201 |
2.75/4.5-A236 | 10.2/12.2-A203 |
3.2/4.8-A244 | 6/9-A267 |
6/7-A264 | 10.5/12.5-A204 |
2.5/4.5-A235 | 11/13-A208 |
2.7/4.7-A237 | 4/8-A252 |
7/8-A274 | 6.35/9.5-A273 |
3/5-A242 | 12/14-A210 |
3.2/5.2-A245 | 12.5/14.5-A213 |
8/9-A279 | 7.5/10.5-A278 |
4.8/6.4-A254 | 12.7/14.7-A216 |
5/6.6-A262 | 13/15-A217 |
9/10-A293 | 8/11-A281 |
4/6-A249 | 6.5/10-A270 |
9.6/10.6-A290 | 14/16-A220 |
6.7/8.1-A271 | 9/12-A288 |
10/11-A205 | 15/17-A222 |
4.35/6.35-A255 | 9.5/12.5-A291 |
6.5/8-A269 | 16/18-A224 |
6/7.6-A265 | 12.5/15-A215 |
4.6/6.6-A250 | 12.5/15-A215 |
5/7-A256 | 13.3/15.7-A218 |
6/7.8-A263 | 9.5/12.7-A292 |
6.2/8-A268 | 8/12-A282 |
5.5/7.5-A259 | 12/15-A211 |
4/6.5-A253 | 16/18.5-A225 |
3/6-A243 | 13/16-A219 |
8.5/10-A284 | 10/14-A206 |
6/8-A266 | 15/18-A223 |
3.5/6.5-A246 | 16/19-A226 |
8.6/10.2-A286 | 12/16-A212 |
5.5/7.8-A260 | 19/22-A228 |
7/9-A275 | 14/18-A221 |
8.2/10-A283 | 20/23-A238 |
9.5/11.1-A295 | 22/25-A239 |
4/7-A251 | 16/20-A227 |
7.5/9.5-A277 | 25/28-A240 |
10/11.6-A202 | 32/36-A247 |
