PACO universal automatic 12v 24v lead acid car battery charger for electrical appliance
- Category: >>>
- Supplier: Ligao (zhongshan) Electrical Appliance Co. Ltd.
Share on (60540667939):
Product Overview
Description

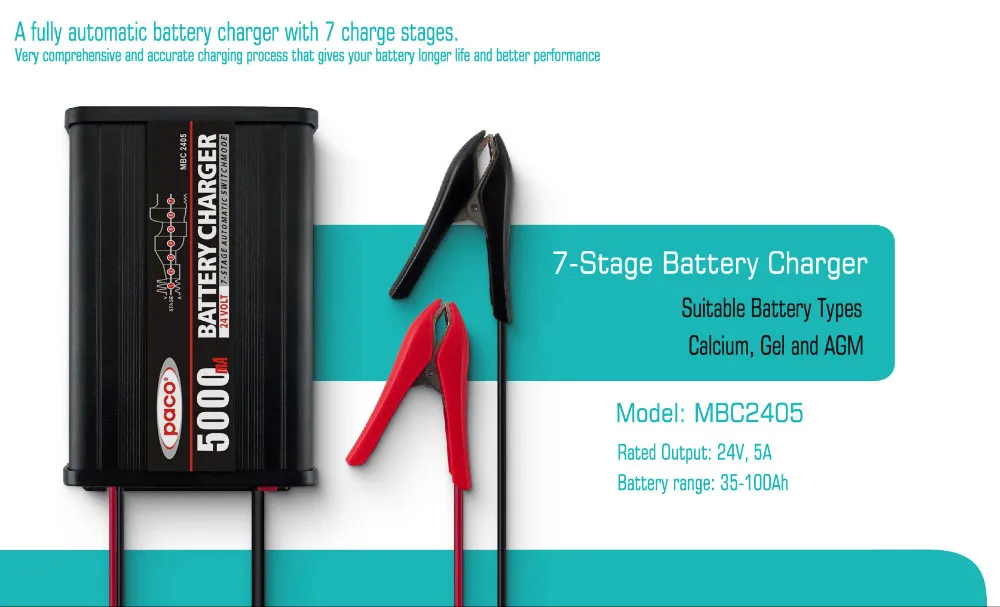

PACO universal automatic 12v 24v lead acid car battery charger
Product Description
Features
Microprocessor Control (CPU)
·Fully automatic battery charger with 7 charge stages
·Can leave the charger connected to the battery indefinitely
·Gives your battery longer life and better performance
·Suitable for Calcium, Gel and AGM batteries, help restore drained and sulphated batteries
Switchmode technology: | Yes |
Polarity protection: | Yes |
Output short protection: | Yes |
Non battery link protection: | Yes |
Over voltage protection: | Yes |
Over temperature protection: | Yes |
Cooling fan: | Automatic temperature controlled |
Input voltage: | 220-240V AC, 50/60Hz / 110V AC, 50/60Hz. |
Input power: | 296W |
Rated output: | 24V DC, 5000mA |
Minimum start voltage: | 2.0V |

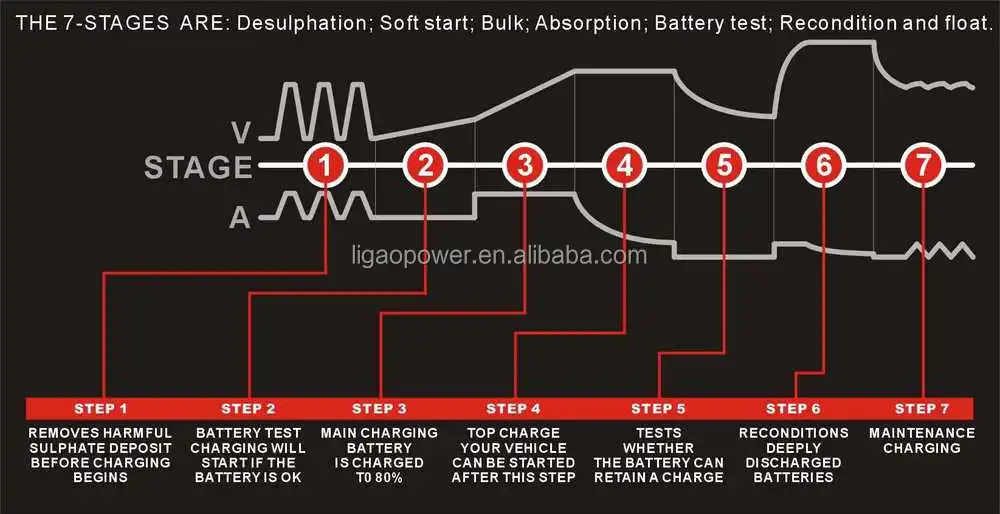

The 7 stages are: | Desulphation; Soft Start; Bulk; Absorption; Battery Test; Recondition and Float. |
Battery range: | 35-100Ah |
Thermal protect (fan on): | 65℃+/-5℃ |
Cooling fan: | Automatic temperature controlled. |
Efficiency: | App. 85%. |
Compliant standards: | CB,CE, IEC60335, EN61000, EN55014 |
Dimension (L×W×H): | 215×115×62mm |
Weight: | 1.2kg |
Company Information
-20-Year-Exprience of Manufacturing
-Professional R&D Department
-Passionate Marketing Department
FAQ
Why choose us:
- We have 28 years in power product R&D, production and rich of sales experience;
- All of our products have ISO9001:2008/CE/CB/RoHS approval ;
- High quality and competitive price are our advantage;
- We have an excellent R&D, production, debugging, RoHS and testing equipment.
-Professional pre-sale and after sale service;
-Ligao has a powerful R&D team and skilled production workers.
- Any questions will be replied in 24 hours.
-Our products are exported to over 60 countries and regions abroad.
- We have 28 years in power product R&D, production and rich of sales experience;
- All of our products have ISO9001:2008/CE/CB/RoHS approval ;
- High quality and competitive price are our advantage;
- We have an excellent R&D, production, debugging, RoHS and testing equipment.
-Professional pre-sale and after sale service;
-Ligao has a powerful R&D team and skilled production workers.
- Any questions will be replied in 24 hours.
-Our products are exported to over 60 countries and regions abroad.
Q. How do I know if the battery is charged?
A. The charger’s FULLY CHARGED LAMP will illuminate (solid). Alternatively use a BatteryHydrometer A reading of 1.250 or more in each cell indicates a fully charged battery.
Q. I have connected the charger properly but the ‘CHARGING LAMP’ does not come on?
A. In some cases batteries can be flattened to the point where they have very little or no
voltage. This can occur if a small amount of power is used for a long time, for example
a map reading light is left on for a week or more. MBC/MXC battery chargers are
designed to charge from as little as 12V charger 2.0 Volts and 24V charger 4.0 Volts
If the voltage is lower than 2.0 Volts and 4.0 Volts use a pair of booster cables to connect between
two batteries to provide more than 2.0 Volts and 4.0 Volts to the battery being charged. The charger
can then start to charge the battery and the booster cables can be removed.
Q. Can I use the charger as a power supply?
A. MBC/MXC battery chargers are designed to only supply power to the battery clips when
they are connected correctly to a battery. This is to prevent sparks during connection to
the battery or if connected incorrectly by mistake. This safety feature prevents the
charger from being used as a ‘Power Supply’. No Voltage will be present at the clips
until connected to the battery.

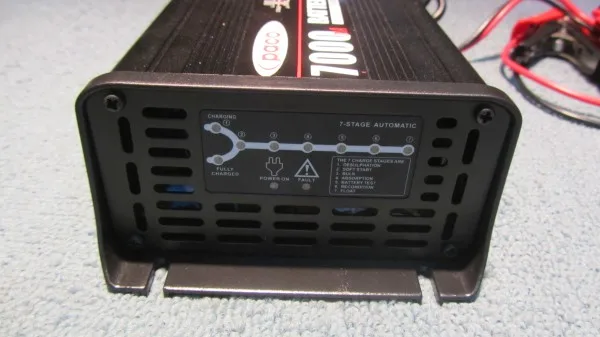

Q. How can I know what stage the battery charger is in?
A. MBC Below are the conditions that are displayed by the lamp for each of the charge stages.
| 1 Desulphation | 2 Soft Start | 3 Bulk | 4 Absorption | 5 Battery Test | 6 Recondition | 7 Float | Fully Charged |
Charging
| * | * | * | * | * | * | * | ¤ |
