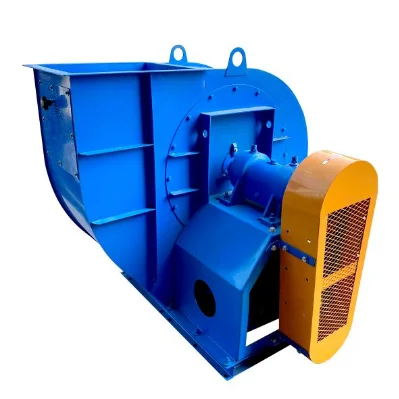

YUTON 4 72 series Industrial Centrifugal Fan exhaust dust fire fume draft blower
- Category: >>>
- Supplier: Guangdong Gaoze Ventilation Equipment Co. Ltd.
Share on (60540691931):
Product Overview
Description
Headers
Product Description

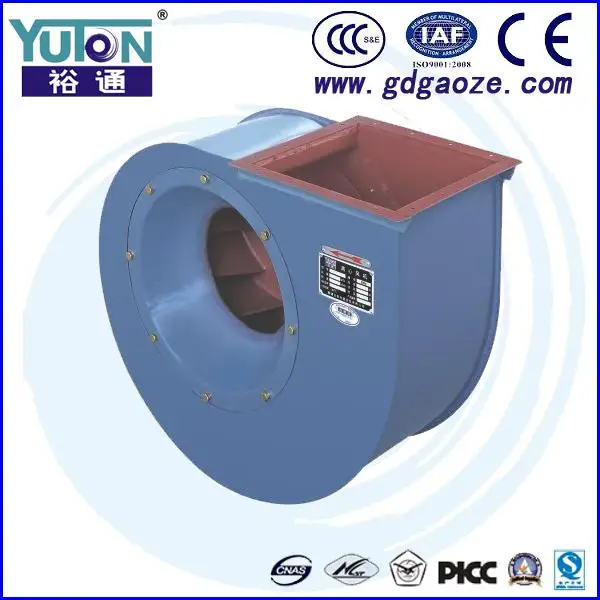

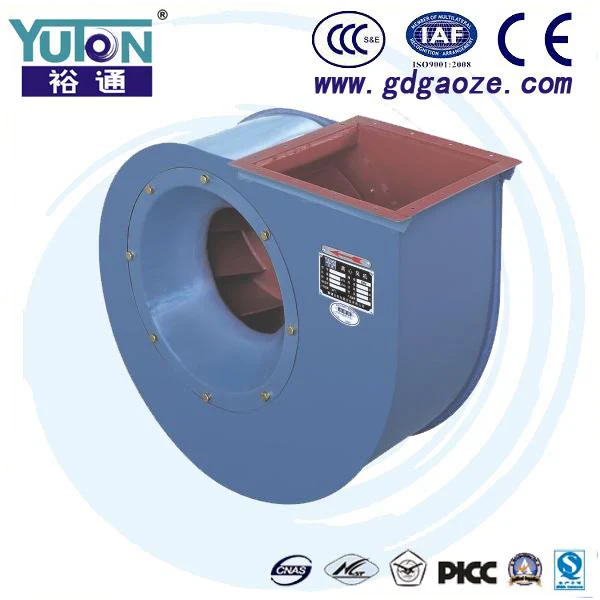

YUTON Industrial Centrifugal Fan and Blower
1.Typical Feature and Application
| In Centrifugal flow, airflow changes direction twice- once when entering and second when leaving. This kind of medium Pressure big air delivery centrifugal fans have very excellent performance, high efficiency ,large air volume, and low noise, stable operation. They are widely used for indoor ventilation, cooling and dust extracting in mineral factory, gym, cinema, basement, hotel, department store and large-scale building. The transmitted medium contains non-corrosive and non-hypergolic air, harmless air. The air flow shall not contain any adhesive material, such as dust and grain, the particulates are no bigger than 150 mg/m³. The temperature of the air flow is no higher than 80 centigrade. |
2. Performance Range
Fan Type | Medium Pressure Centrifugal Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 220V/380V |
Frequency | 50HZ |
Power | 0.75KW-7.5KW |
Speed | 960-2900 RPM |
Air Volume | 794 m³/h up to 14113 m³/h |
Static Pressure | 243 Pa up to 3195 Pa |
Motor | Standard Motor |
3.Applications
Mining Factory |
Gym |
Opera house |
Basement |
Hotel |
Supermarket |
Large building |
4.Composition
Fan Housing | Cast Iron Material with Powder coating |
Impeller | Cast Iron Material |
Inlet and Outlet Ducts | Connect with flanges |
Motor | Standard Motor, cast Iron with pure copper |
5.Fan Operation
Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts. |
When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c |
If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away. |
6.Fan Certificate and Quality Control
| By our efforts,our company Gaoze was selected as the member of China Gneral Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institure China"; Furthermore,a number of products are applied patents,which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification,most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System. |
7.Fan Maintain
Periodically clean the inner dust, dirt and other impurities |
Periodlically check the fan to avoid rusting |
Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation. |
8.Technical Specification
Model No. | Power | Revolution | Air Volume | Pressure |
3A | 1.5 | 2900 | 1588-3049 | 1142-716 |
0.75 | 1450 | 794-1524 | 285-179 | |
3.5A | 3 | 2900 | 2522-4841 | 1556-976 |
1.1 | 1450 | 1261-2421 | 388-243 | |
4A | 5.5 | 2900 | 3764-7226 | 2036-1275 |
1.1 | 1450 | 1882-3613 | 506-318 | |
4.5A | 7.5 | 2900 | 5360-10288 | 2582-1616 |
1.1 | 1450 | 2680-5144 | 641-402 | |
5A | 1.1 | 2900 | 7352-8318 | 3195-3145 |
1.5 | 2900 | 9284-14113 | 3067-1998 | |
2.2 | 1450 | 3676-7057 | 792-497 | |
6A | 4 | 1450 | 6352-12194 | 1142-716 |
1.5 | 960 | 4206-8073 | 499-313 |
