High performance semi auto finger joint machines
- Category: Finger Jointer >>>
- Supplier: Qingdao High-Class Service Import & Export Co. Ltd.
Share on (60540817490):
Product Overview
Description
High performance semi-auto finger joint machines
Product Description
Full automatic finger joint production line(tenon shaper/gluing/tenon jointer)
| Technical Parameters | Figer jointer | Figer shaper MXB3518A-B | Figer shaper MXB3518C-C | Belt conveyor |
| Max working length | 5000mm/6200mm | 150mm-900mm | 150mm-900mm | 900mm |
| Effective working width | 30mm-150mm | 590mm | 590mm | 590mm |
| Effective working length | 12mm-70mm | 18mm-150mm | 18mm-150mm | 18mm-150mm |
| Cutting saw rotary | 2840r/min | 4150rpm | 4150rpm | |
| Fret saw motor | 2840rpm | 2840rpm | ||
| rotary speed | ||||
| Shaper spindle diameter | 50mm | 50mm | ||
| Shaper spindle | 6750rpm | 6750rpm | ||
| rotary speed | ||||
| Shaper motor power | 11kw | 11kw | ||
| Cutting saw motor | 2.2kw | 4kw | 4kw | |
| Fret saw motor | 0.75kw | 0.75kw*2pcs | ||
| Feeding motor power | 0.55kw | 0.55kw*2pcs | 0.55kw*1pcs | |
| Oil station motor power | 4kw | 2.2kw | 2.2kw | |
| Working speed | 70m/min | |||
| Working air pressure | 0.8Mpa | |||
| Max oil pressure | 130kgs/c m² | |||
| Oil station motor power | 4kw | |||
| Frequency motor power | 1.1kw | 1.1kw | ||
| Machine dimension(mm) | 6100*1250*1600 / 7300*1250*1600 | 2800*1650 *1450mm | 3300*1900 *1450mm | 1700*730*980mm |
Product Show
Characteristic:
1.Guide rail of finger joint shaper’s conveyor is japan precision linear guide rail to gurantee the shaping accuracy .
2.The design for finger joint shaper is double blades+tooth-tenon knife assembly to provide high precision.
3.The conveyor table of finger joint shaper adopts German pneumatic hydraulic conveyor system to control bakc and forth ,smoothly,low maintenance,high quality .
4.The second push part of finger joint assembler adopts long+short double pushing board design,
by this kind of structure ,it can assemble very short workpiece to reduce the cost .
5.Whole machine is conveniently operated by PLC Central integrated programmable controller.
 | |

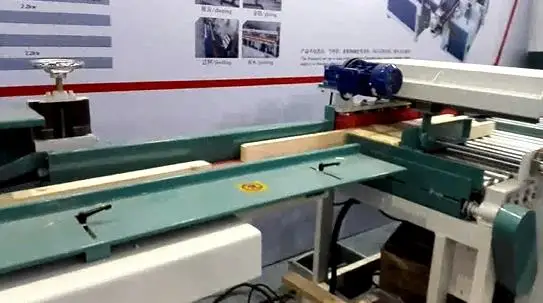

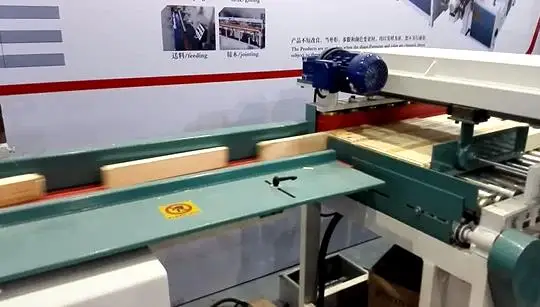

| Model:RL-520A2 Belt conveyor | Model:MXB3518A-B finger tenon shaper |
 | |
| Model:MXB3518A-B finger tenon shaper | Roller conveyor |
 | |

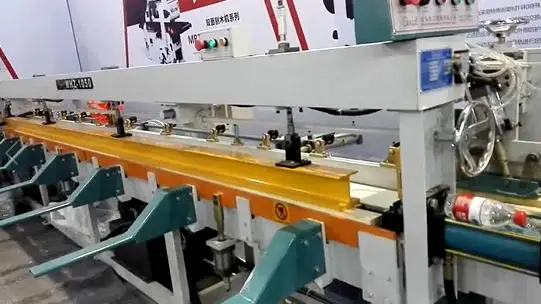

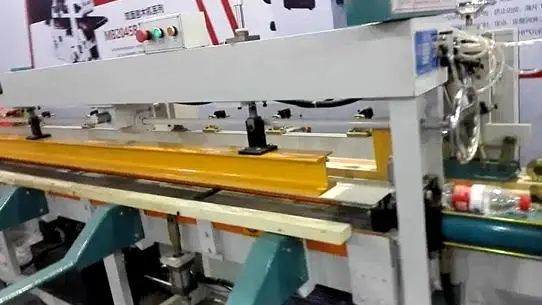

| Chain conveyor | Model: Finger joint machine |
