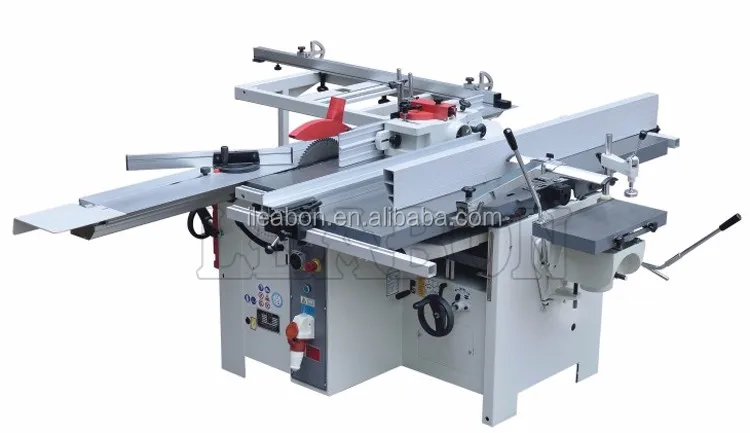

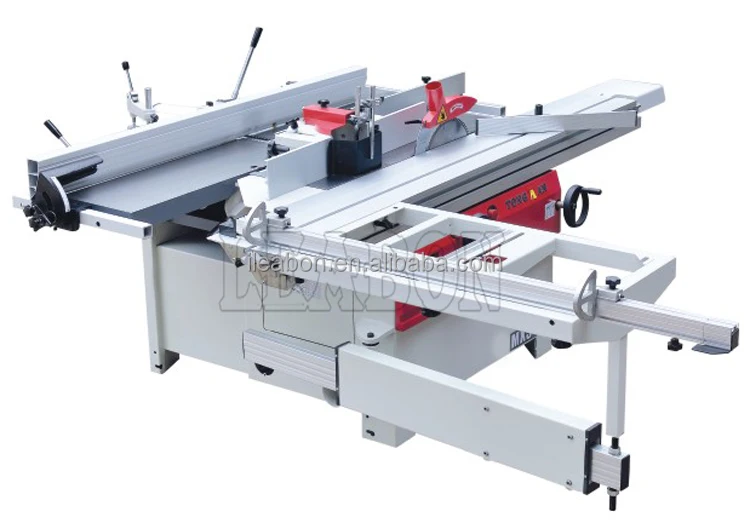

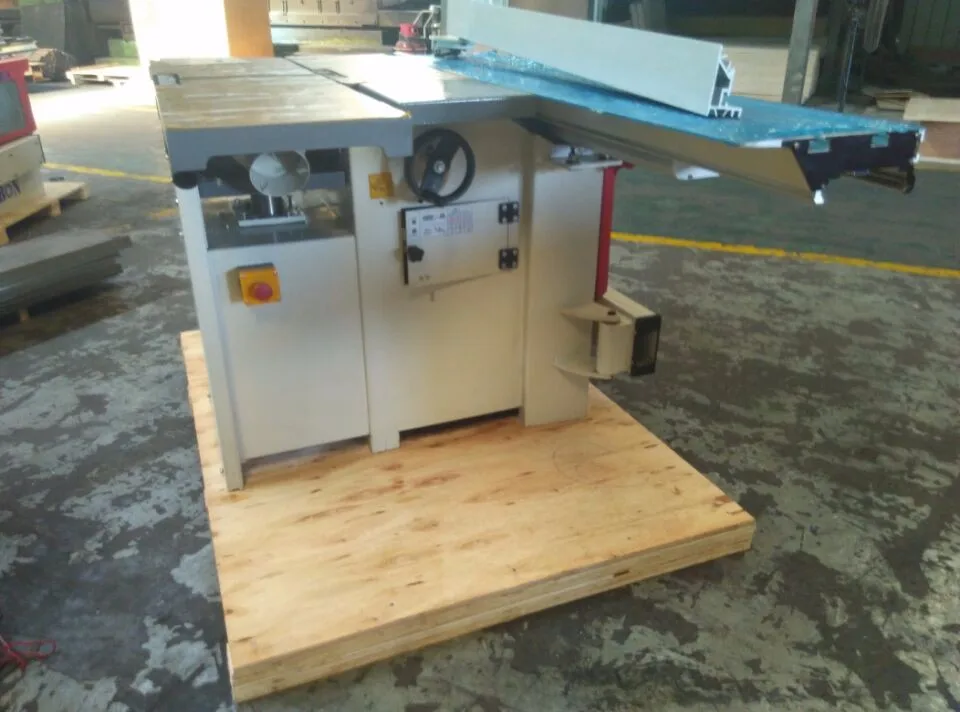

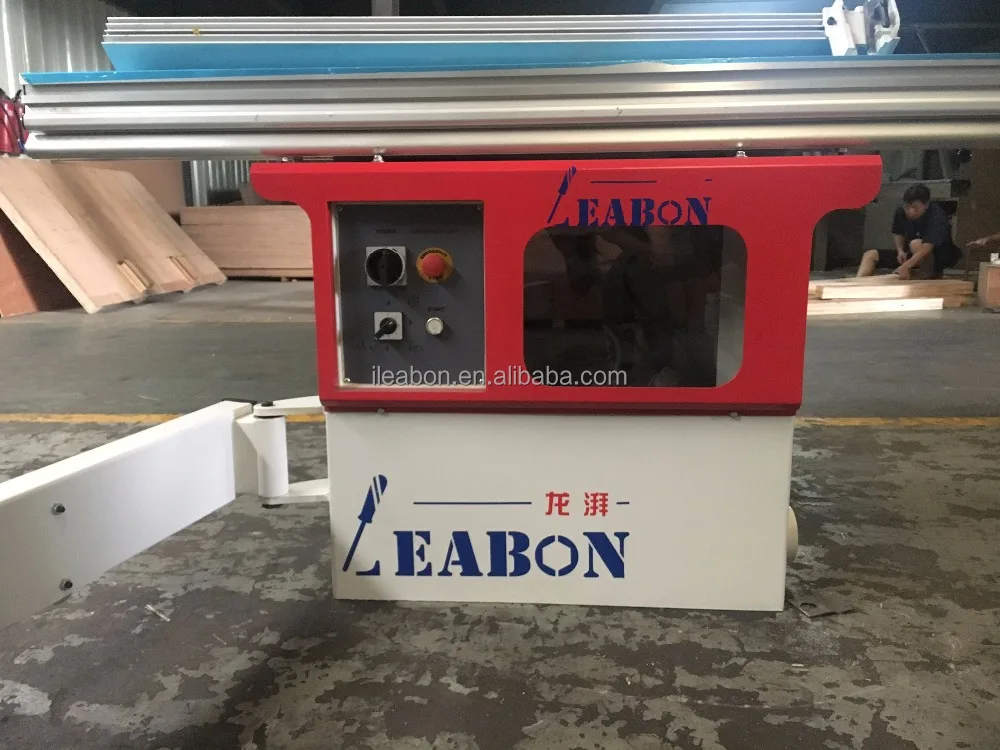

Universal Combination Machines LMX5400

Product Application

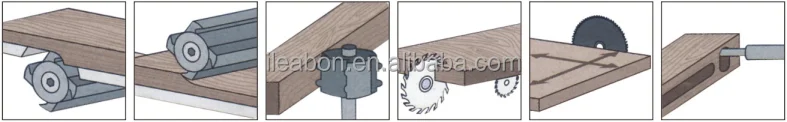

Multi-functional wood working machine LMX5400 combined with 6 functions: surface planer, thicknesser, mortiser, shaper, drilling and sawing.  One machine serves several purposes. With the advantages of small size, multiple used, reasonable structure, flexible used and application scope wide, it is suitable for small or medium enterprises, mould, homemade, DIY workshops and decoration construction team.

The LMX5400 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a table saw and sliding table, planer, thicknesser, spindle moulder and heavy duty slot mortiser. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.

Being a professional standard machine, LMX5400 of course is fully adjustable and the accuracy is second to none. With four independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts.

The saw has a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured.

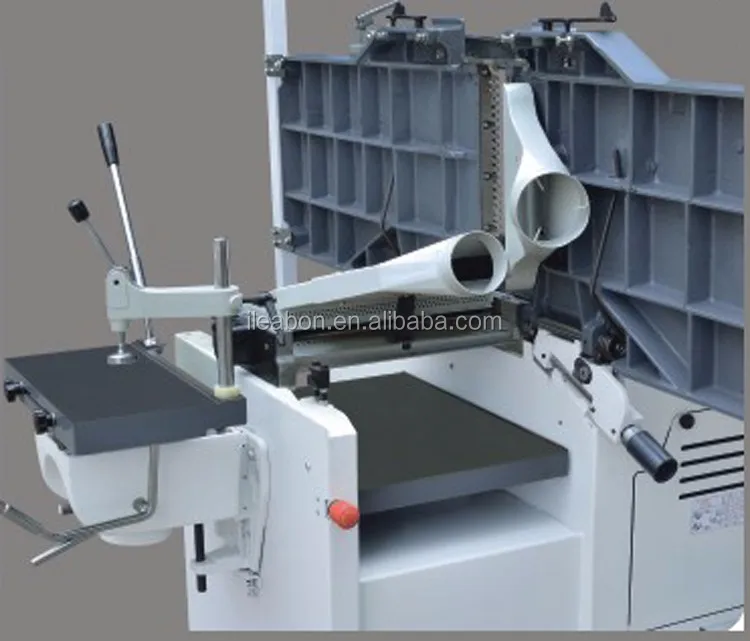

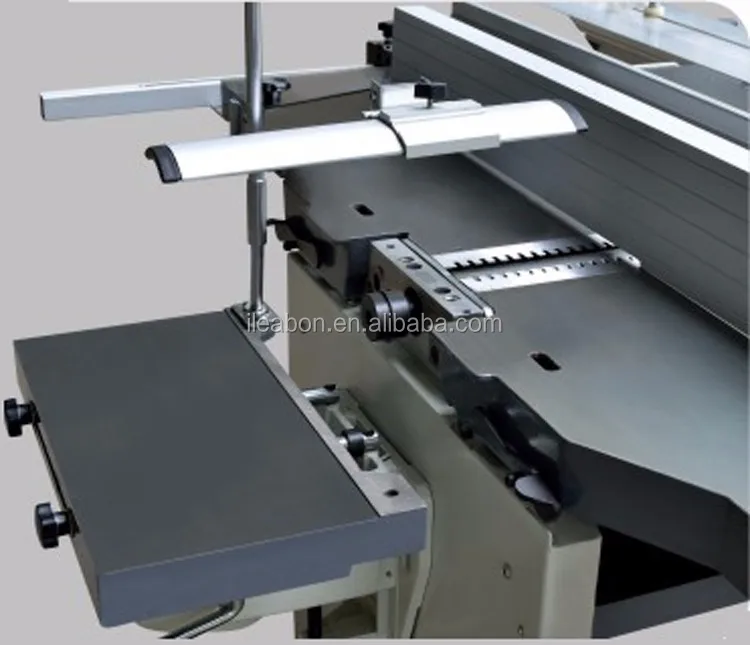

The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.

Several further options are also available, each machine can therefore be tailored to the users voltage needs. Single Phase/3 phases, 380V/220V, 50Hz/60Hz.

Main Features

1. A combination of multi-purpose wood working machine for solid wood and panel.

2. Combined with six functions: including sliding table saw, vertical milling, planer, thicknesser, tenon, drilling and so on.
3.  220V Single phase motor or 380V Three phase motor, can be customized.

4. Small size, multiple used, reasonable structure, flexible used and application scope wide

5. All our products new and high quality metal, the saw weight is much more than other same model. It's important to avoid vibration for processing.

Precision Saw Tilt

Use special high precision tilt control system, high precision aluminium alloy frame, the tilt angle 45° from 90°, can achieve exactly your requested cutting angles.

Just for tailor-made

Provides machines based on customization.

4 Motors and 2 Suction Pipes

These machines generally have 4 motors, one for the surface planer, one for the thicknesser, and one for the shaper, last one for panel saw.
