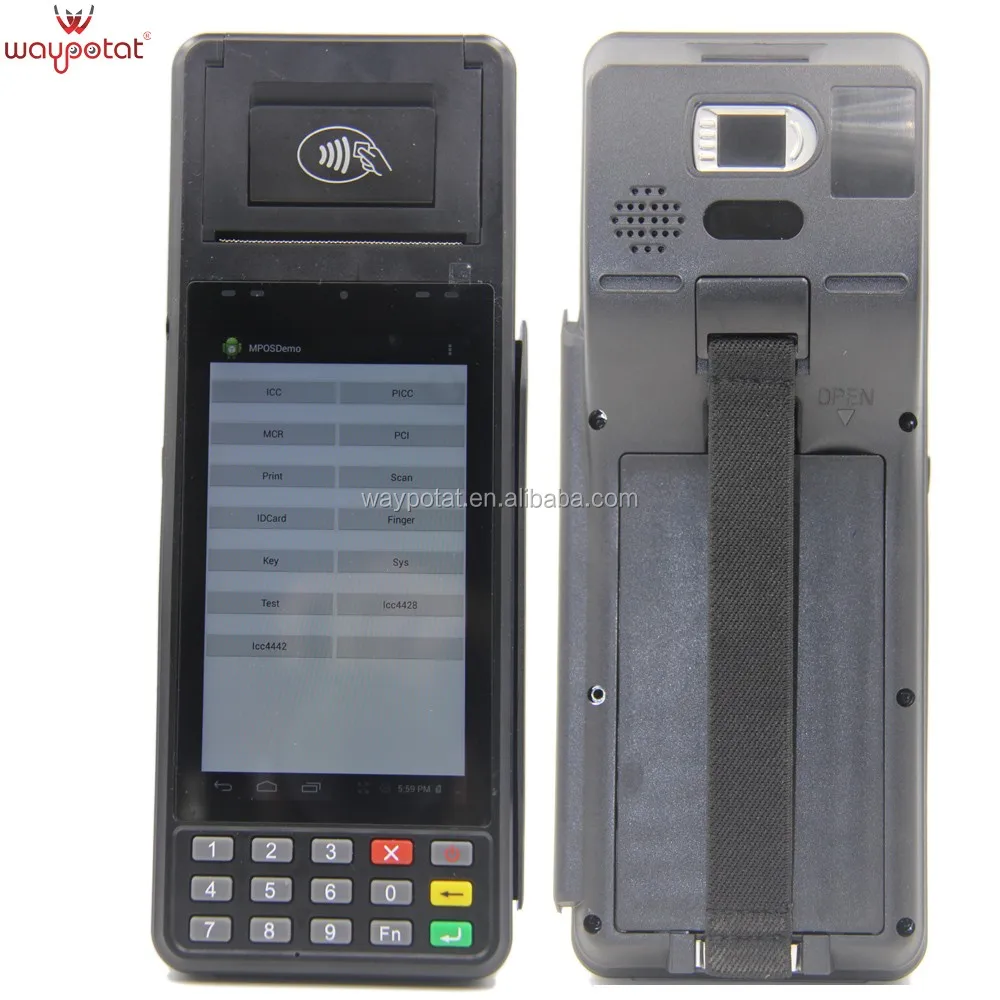

Waypotat latest 4G LTE Android smart pos terminal support fingerprint 2D barcode and EMV certified VPOS3385

Security Processor：ARM Cortex-M4
Performance Processor：Cortex A7 Quad-Core, up to 1.4GHz
Memory： eMMC: 8GB, LPDDR:1GB
Operation System：Android 4.4
Display Resolution：5inch, 720*1280 Pixels
Touch Panel：Capacitor touch panel, works with Active stylus ATP-19
WLAN: 802.11b/g/n
Bluetooth: BT4.0 +HS
GPS(Optional): GPS Navigation
Audio: Speaker 8Ω 0.5W*1, Microphone*1
Sensor: Light sensor
Key Specification: 0~9 etc, total 15 keys, include power key
Magnetic Stripe Reader: Track 1/2/3, bi-directional
Contactless Card Reader(Optional): RFID/13.56MHz, support ISO14443 Type A/B & ISO18092 & Mifare
PSAM Card: 2PSAM slot

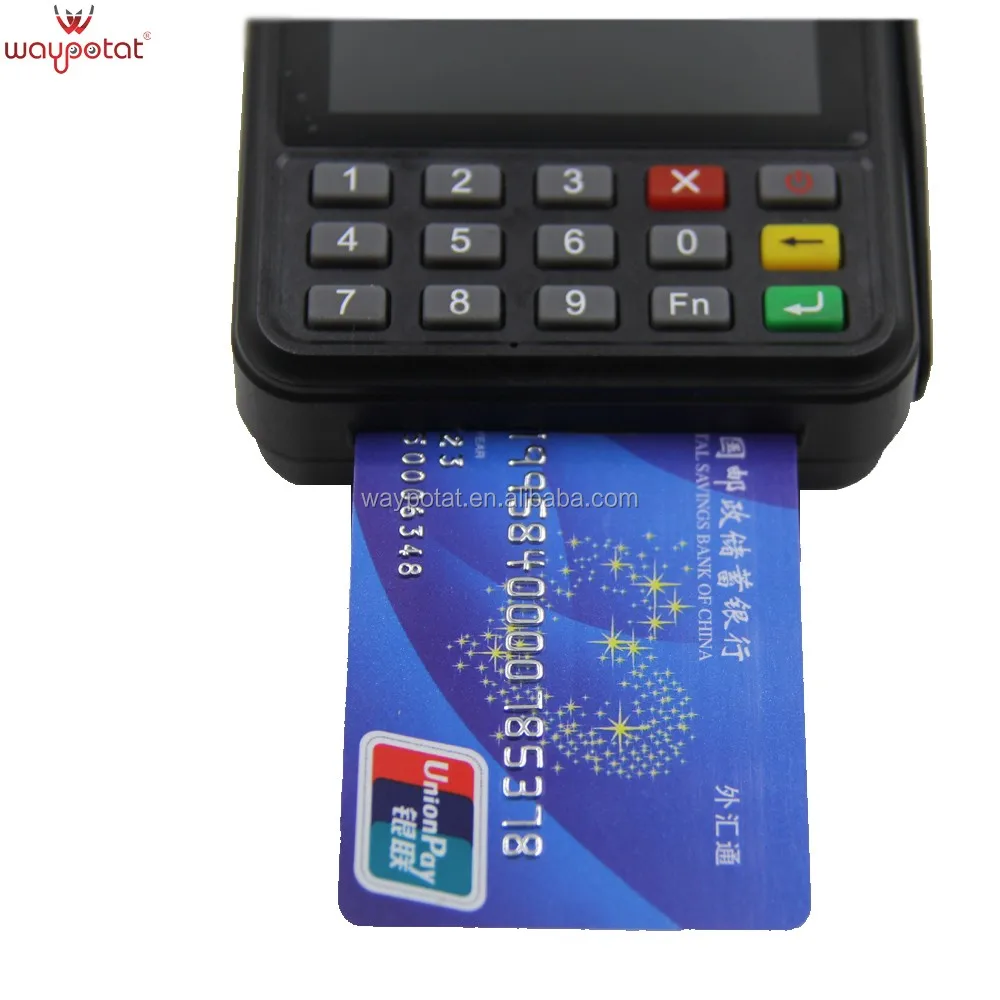

IC Card Reader: ISO 7816 & PBOC/EMV compliant

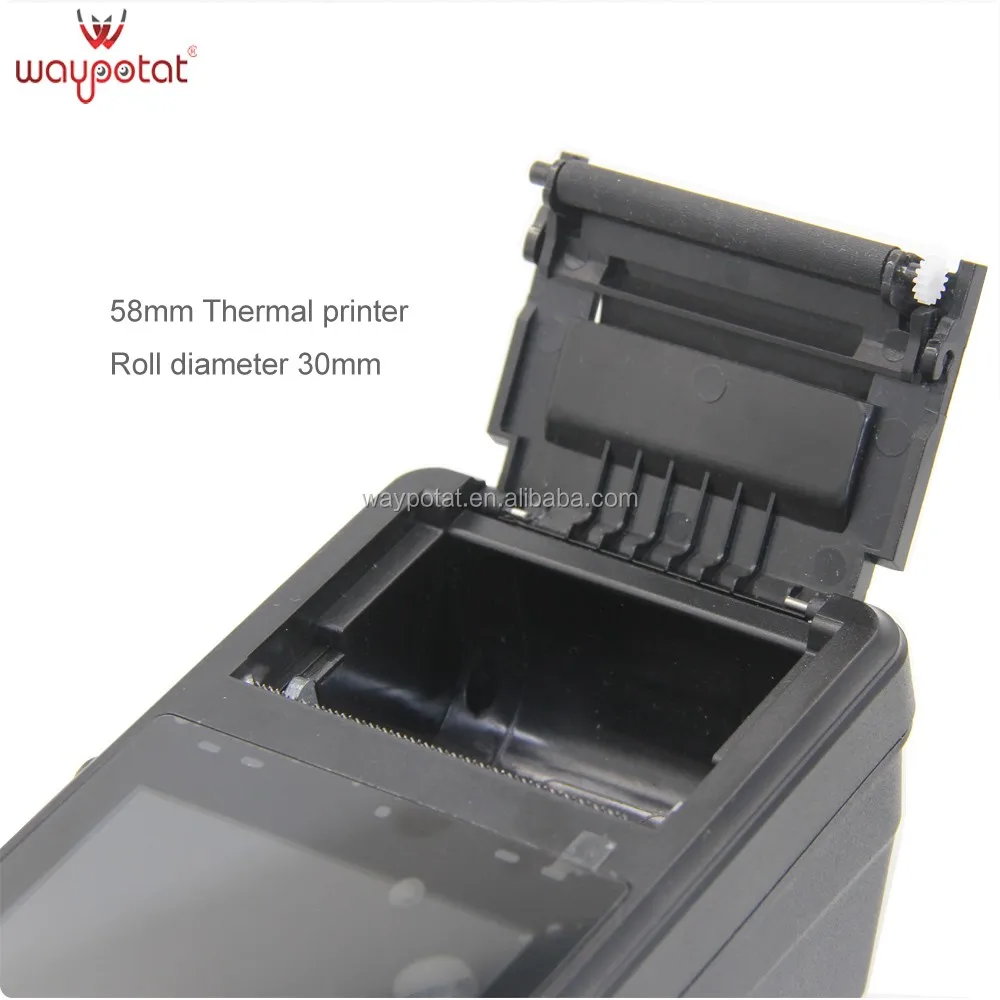

Printer: 2inch Thermal Printer, 58mm paper, diameter 30mm, High speed, low noise
LEDs Indicate: RFID indicate: 4PCS Battery Chare indicate: 1PCS LED(Red)
Scanner(Optional): 1D: Laser barcode Scan engine

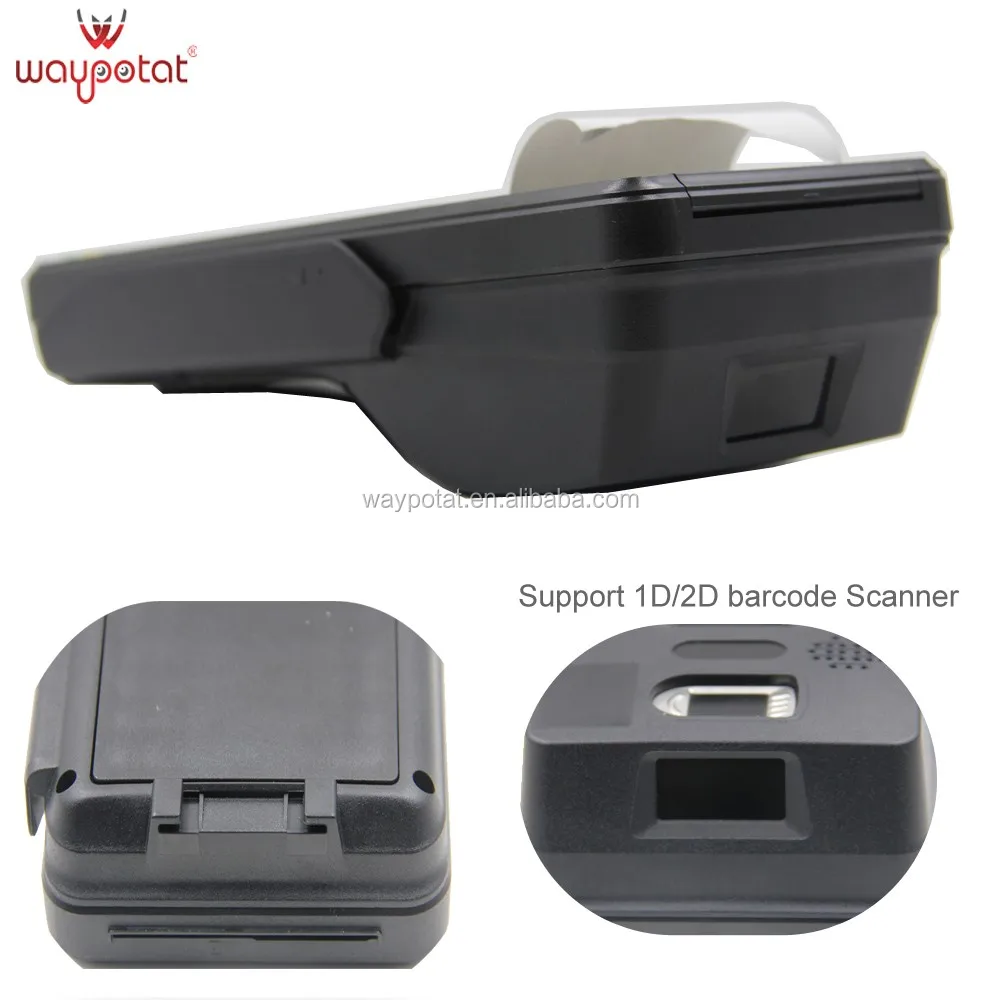

                                       2D: Support high speed scanning of 1D and 2D
Camera: 5.0M pixel AF
Fingerprint: UPEK TCS2SS module, Biometric system fingerprint acquisition
Wireless (Optional), Only for data, no voice call features
                GSM: 850/900/1800/1900MHz
               TD-SCDMA: 1880~1920MHz/2010~2025MHz
                3G: WCDMA or CDMA2000 or TDS-CDMA
               4G: TDD, FDD LTE
               SIM Card: 1 SIM slot
Power Supply: Adaptor DC 9V/3A Battery: 7.4V 3200mAh Li-ion battery

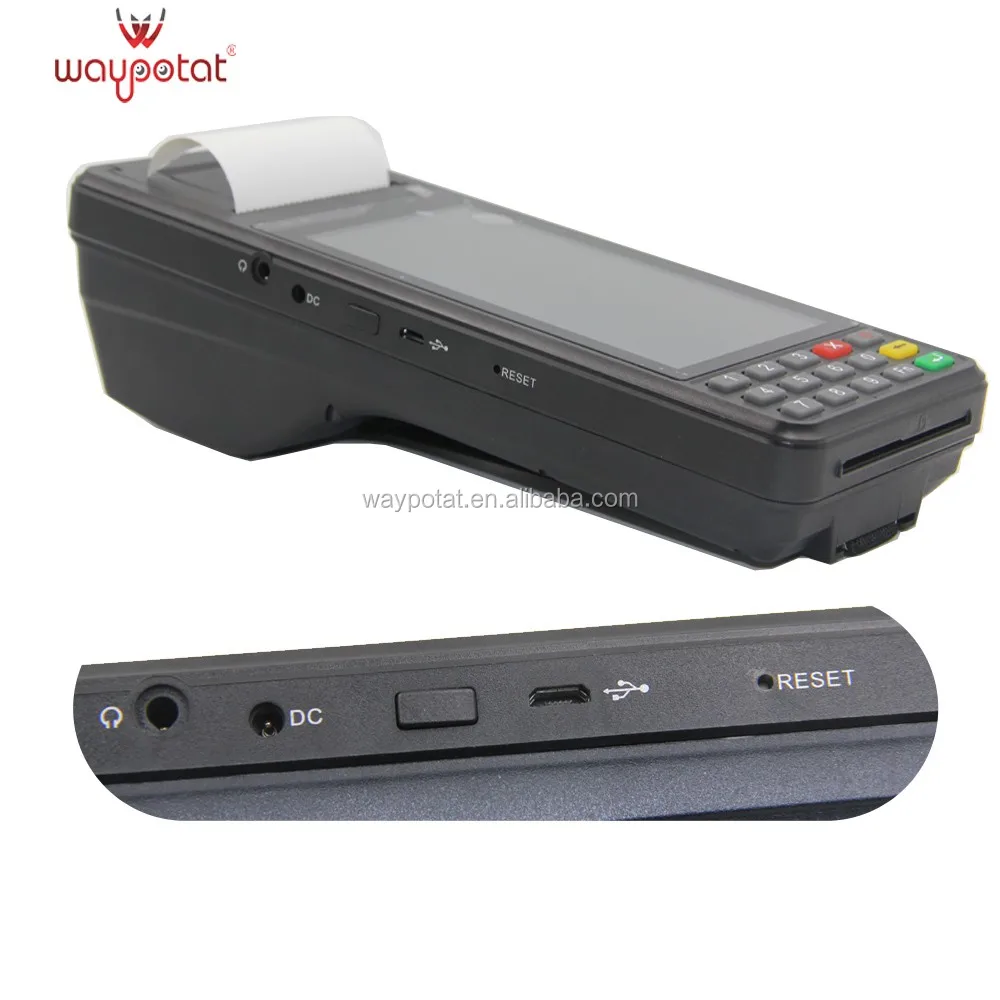

External interface: USB OTG: Micro USB*1
                                     Audio: 3.5mm earphone Jack * 1

                                     Expansion slot: Micro SD *1
Function Key: Reset key & Function key *2
DC Input: Power Jack * 1
Environmental:   Operation temp.:0℃~50℃
                                 Storage temp.: -20℃~70℃
                                  Relative humidity: 10% ~90%, non-condensing
Operation System Power On/Off: Press on 2~3s power on/off
Physical(L*W*H): 225*90.5*58mm
Weight:  500g
Test certificate  1, PCI 4.X
                               2, CUP POS Security Certification
                               3, PBOC/EMV L1 & L2
                               4, QPBOC L1 & L2
                               5, CUP UAT
