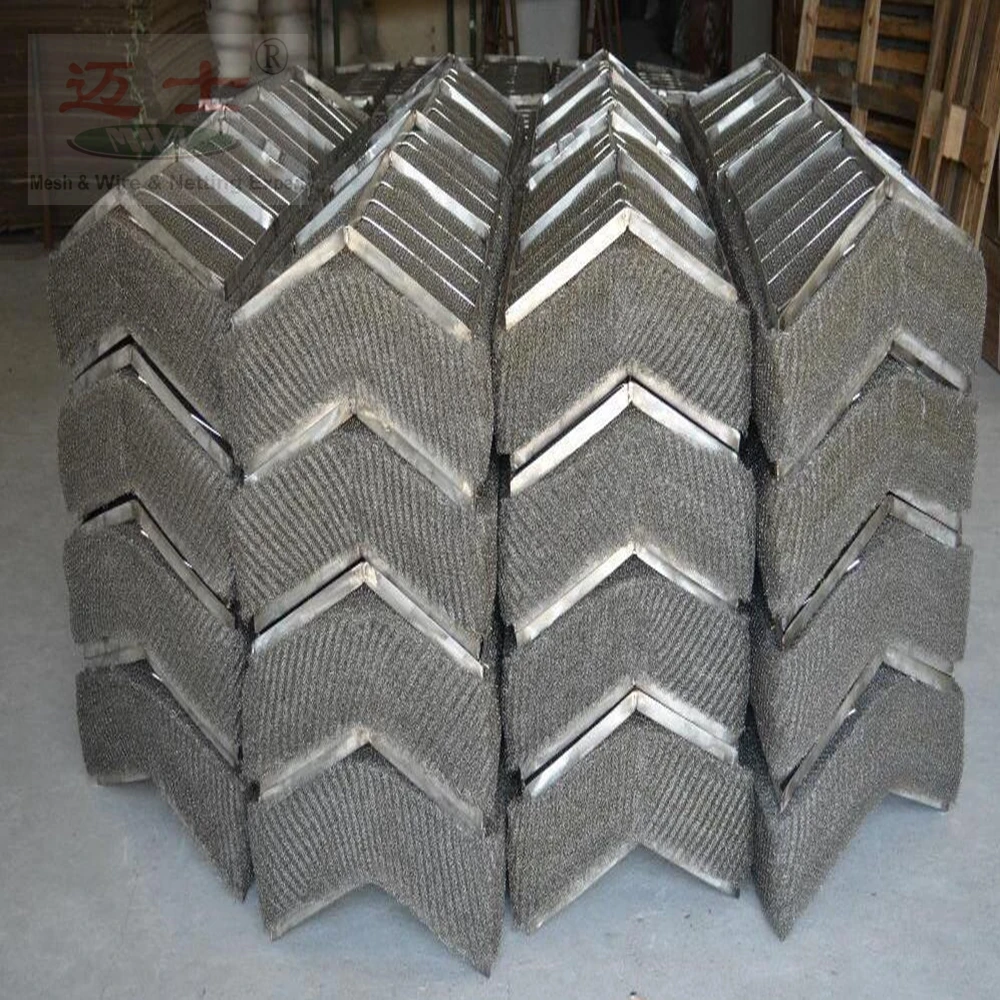

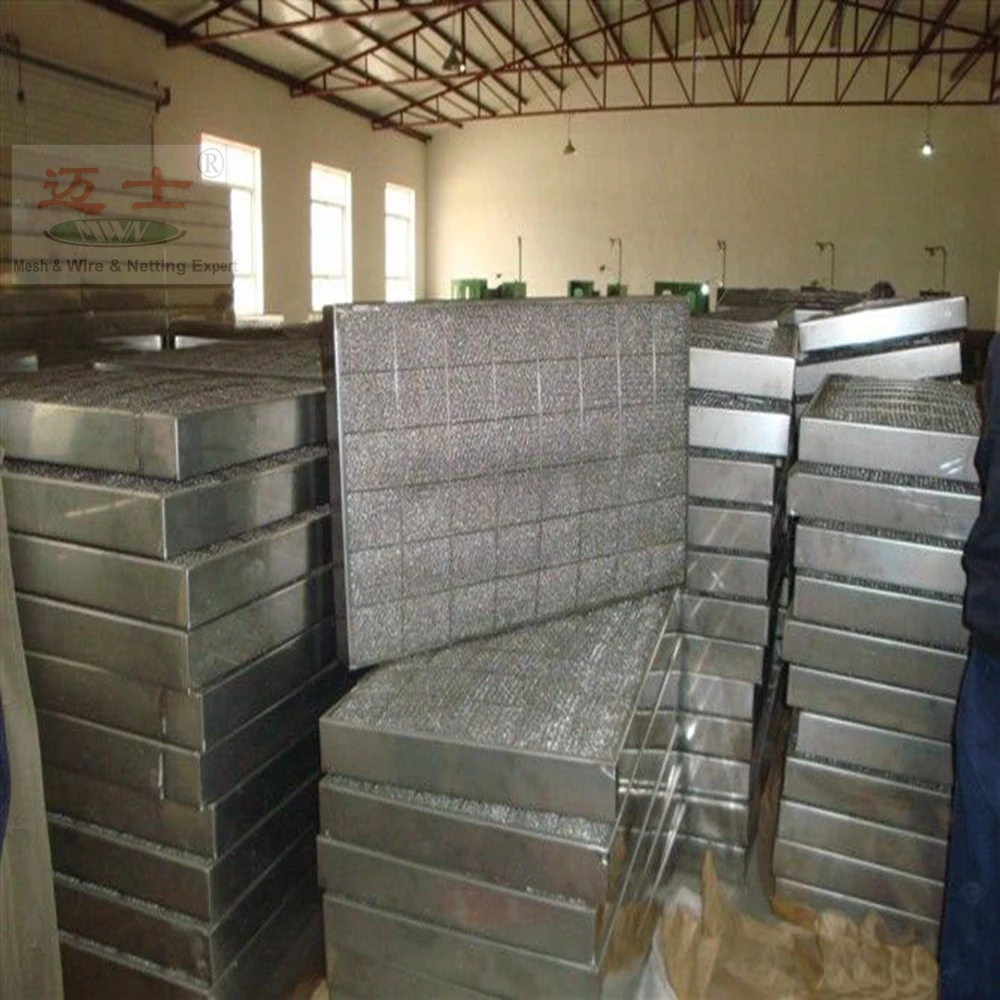

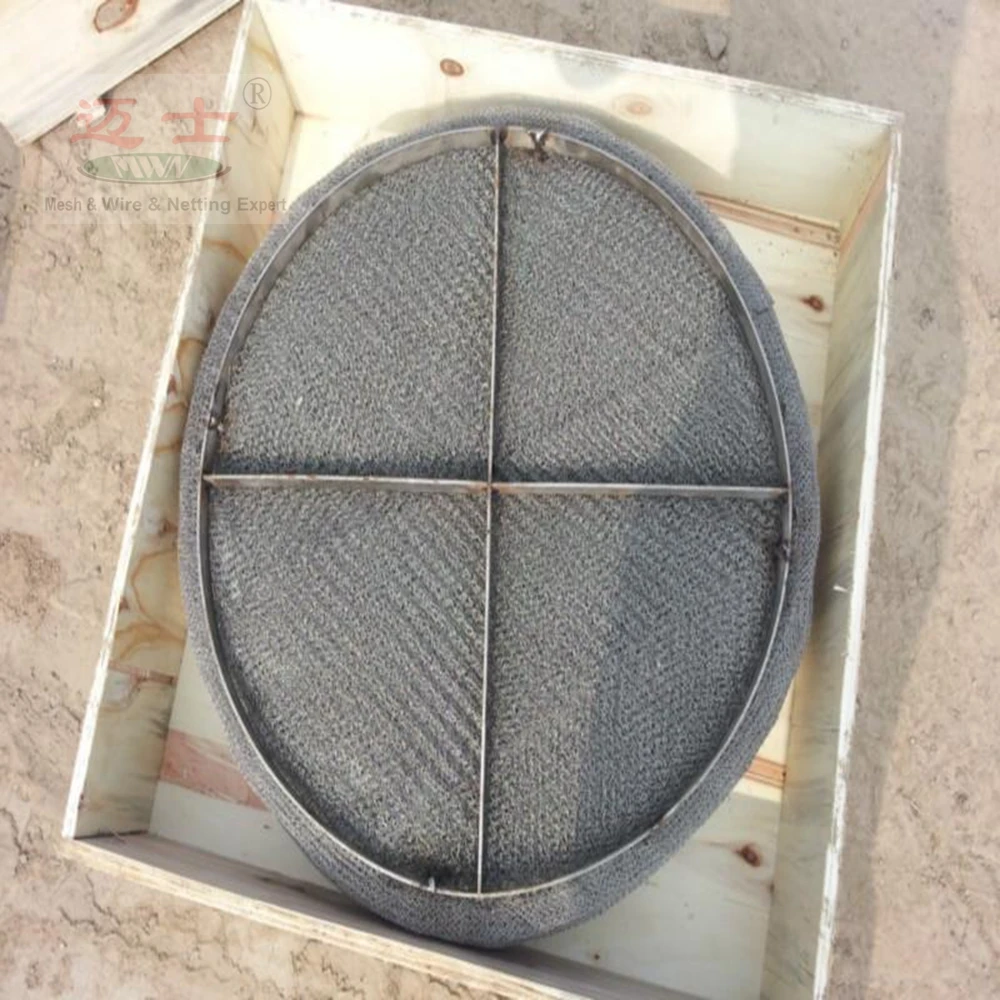

coalescer demister pad with mesh style york 431

Wire Mesh Demister (also is known as mist eliminator, demister pads) is a highly efficient gas-liquid separation device.

Features:
1. High collection efficiency of up to 99% of fluid at velocity of 1 to 8m/sec
2. Provides free area of up to 98% for operation and low pressure drop (0.1" ~ 1.0" W/G)
3. A variety of materials in accordance with temperature and corrosion resistance
4. Easy to install by using manhole. Usable without any restriction and replaceable with existing facilities
5. Designed for self - cleaning (semi - permanent and economical)

Selection of Demister

The below table as standard style has selected through referred articles, practical consumers and the company research for most suitable type according to the broad ranges of usage for DEMISTERSMS recently. It helps to identify basic type for use and refer to change of specifications as standards.

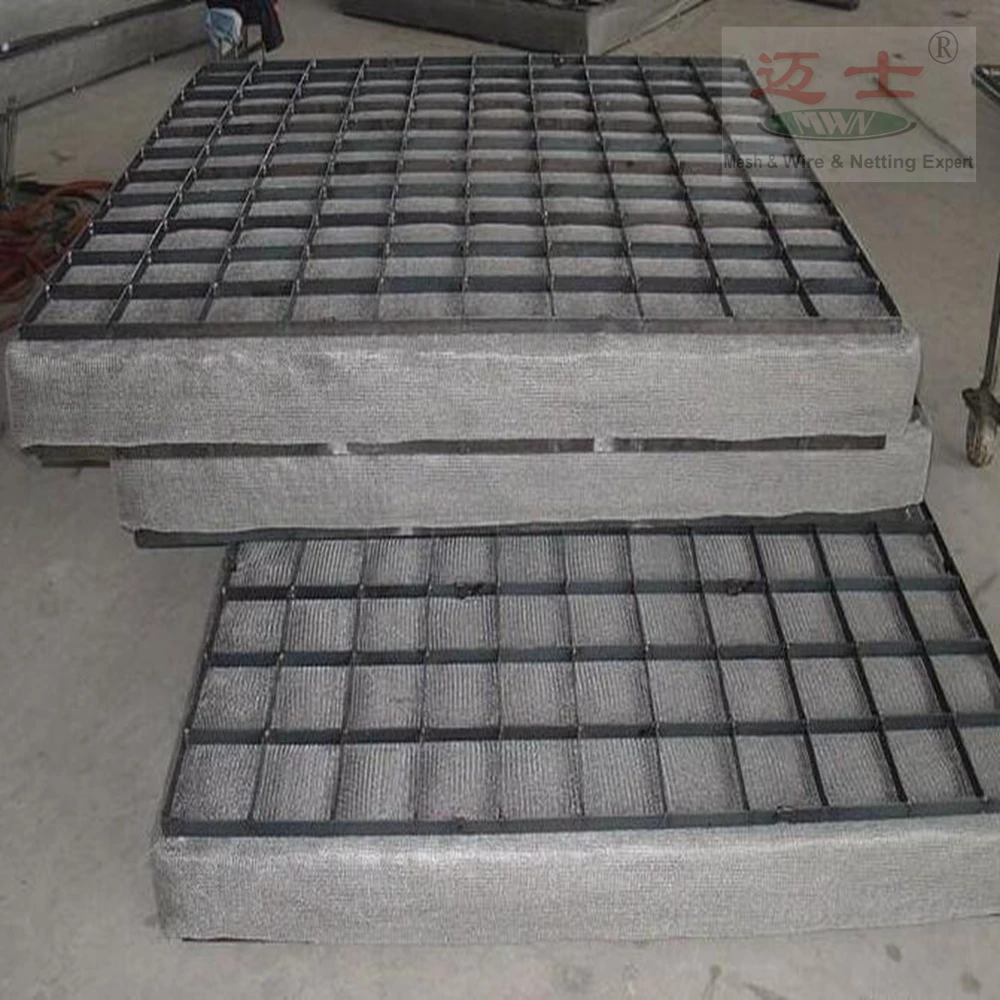

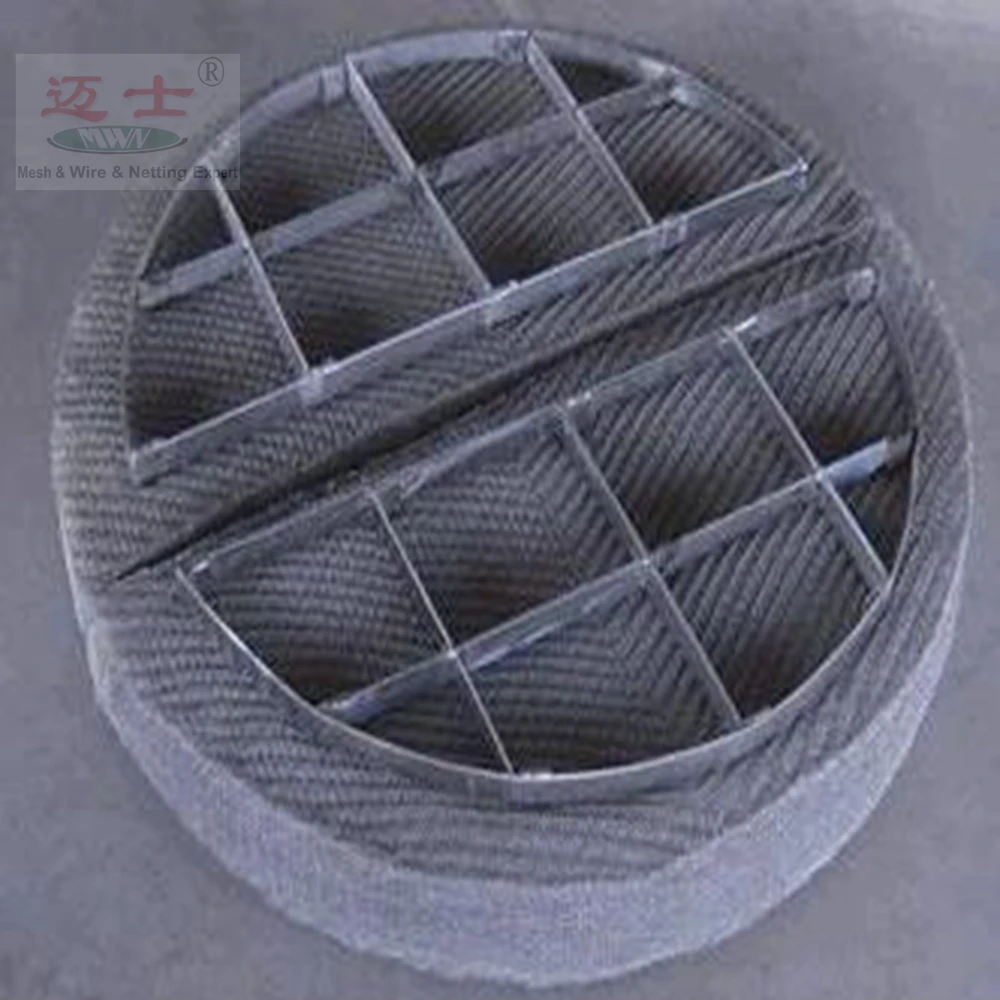

DEMISTER in tower must be fixed and supported at level and Support Grid is commonly used for fixing bottom side or the upper and lower sides, which was made by welding FB 25x3t. RB6 (the same material with DEMISTER PAD) at regular intervals (APP 150mm). In addition wire of diameter 1 or 1.6 is used for fixing GRID and PAD and how to fix them as follows.
