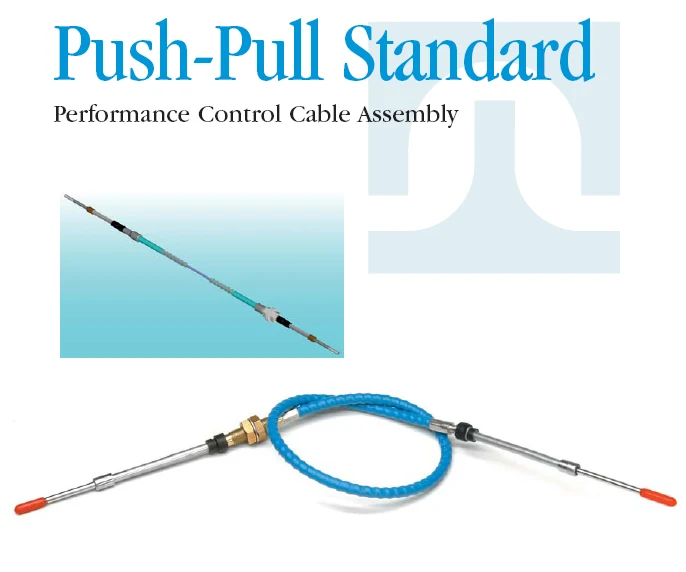

[Push-Pull Standard Performance Control Cable Assembly]

Description: Applications: Features
Push-Pull Standard • Vent air • Travel: 1.00"- 6.00"
Performance Control • Mechanical starter • Grooved conduit caps
Cable Assembly • Carb ice • 10-32 end rod threads
• Aircraft • TT, TG & GG options are
all available
Material: End Fittings:
• Nylon Covered Innermember • Full Range End Fittings
• Plastic Covered Conduit
• Stainless Steel
[Push-Pull Performance]
This push-pull control excels in applications where the use of a 2-cable pull-pull system with pulleys is undesirable. Typical applications include vent air controls and mechanical starters in aircraft. Travel is 1"-6".

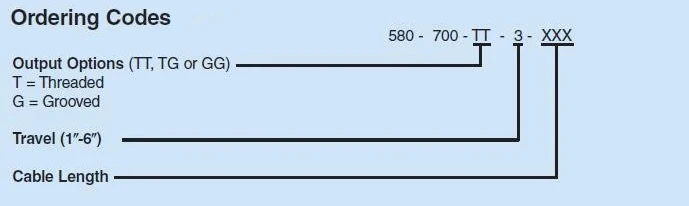

[Push -Pull Order Code]
Performance Push-Pull Control Cable

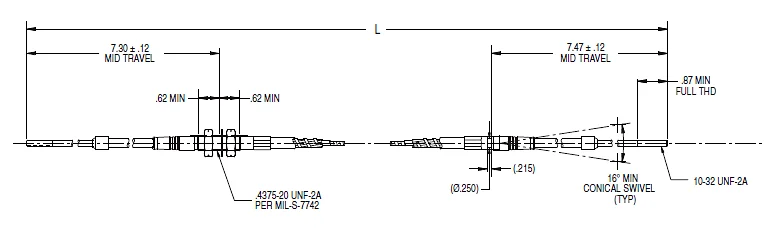

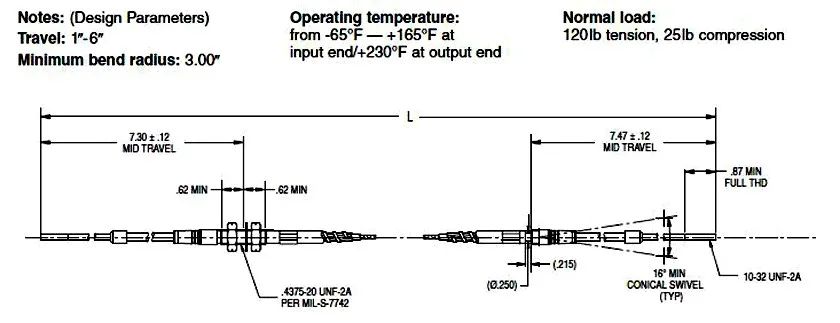

All line art dimensions are represented in inches



If you are interested in our products,please tell us which model,quality you want to order.
A performa invoice will be made for your order.
We will deliver the product ASAP when we receive your payment.
Please contact us without hesitation, we are pleased to welcome to you!!!
