PE, ABS, EVA plastic masterbatch granules making machine
- Category: >>>
- Supplier: Nanjing Yongjie Qixin Machinery Equipment Co. Ltd.
Share on (60542293545):
Product Overview
Description

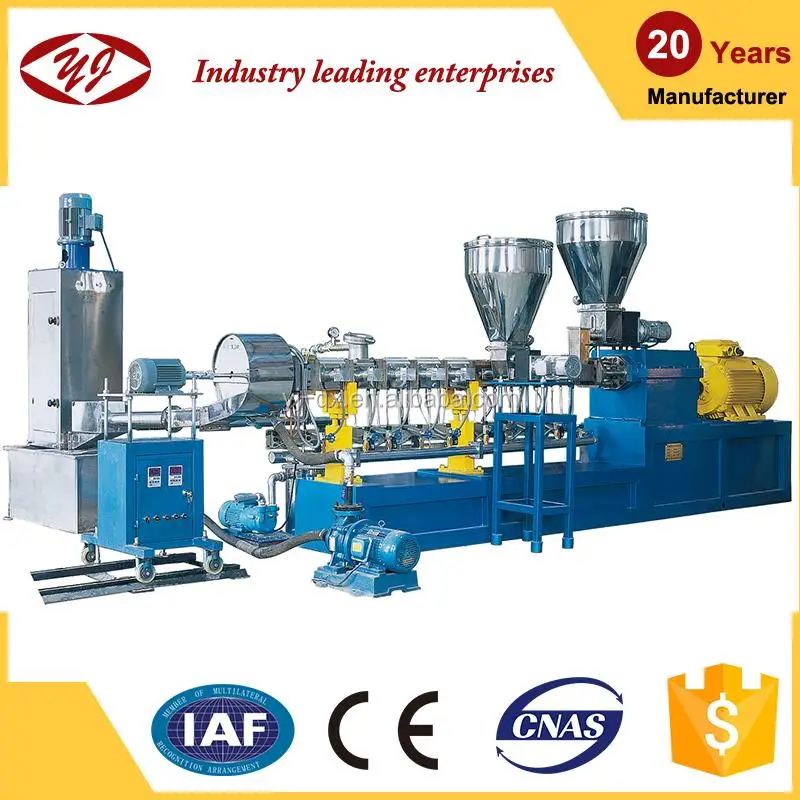

PE, ABS, EVA plastic masterbatch granules making machine
The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.
| Model | Diameter(mm) | L/D | RPM ( r/min) | Power (Kw) | Torque(N.m) | T/N | Capacity (Kg/h) |
| SJSL-20 | 20 | 32-44 | 600 | 5.5 | 30 | 4.8 | 6.5-15 |
| SJSL-36 | 36 | 32-48 | 600 | 15 | 115 | 4.2 | 30-75 |
| SJSL-51A | 51 | 32-52 | 500 | 45 | 405 | 5.1 | 100-200 |
| SJSL-51B | 51 | 32-52 | 600 | 55 | 415 | 5.2 | 150-25 |
| SJSL-63A | 63 | 32-62 | 400 | 55 | 620 | 4.4 | 160-250 |
| 500 | 75 | 675 | 4.8 | 200-300 | |||
SJSL-63B | 63 | 32-64 | 600 | 90 | 675 | 4.8 | 225-375 |
| 800 | 110 | 620 | 4.4 | 300-500 | |||
| SJSL-75A | 72 | 32-64 | 400 | 90 | 1015 | 4.7 | 225-350 |
| 500 | 110 | 1005 | 4.6 | 300-550 | |||
| SJSL-75B | 72 | 32-64 | 600 | 132 | 990 | 4.6 | 400-650 |
| 800 | 160 | 900 | 4.2 | 480-800 | |||
| SJSL-92A | 92 | 32-64 | 400 | 250 | 2815 | 5.9 | 650-1050 |
| 500 | 2250 | 4.7 | 750-1250 | ||||
| SJSL-92B | 92 | 32-64 | 600 | 280 | 2365 | 5.0 | 900-1500 |
| 800 | 2250 | 4.7 | 1200-2000 | ||||
| SJSL-135A | 135 | 32-48 | 400 | 315 | 6190 | 4.6 | 1500-2500 |
| SJSL-135B | 135 | 32-48 | 500 | 400 | 6750 | 5.1 | 200-3500 |

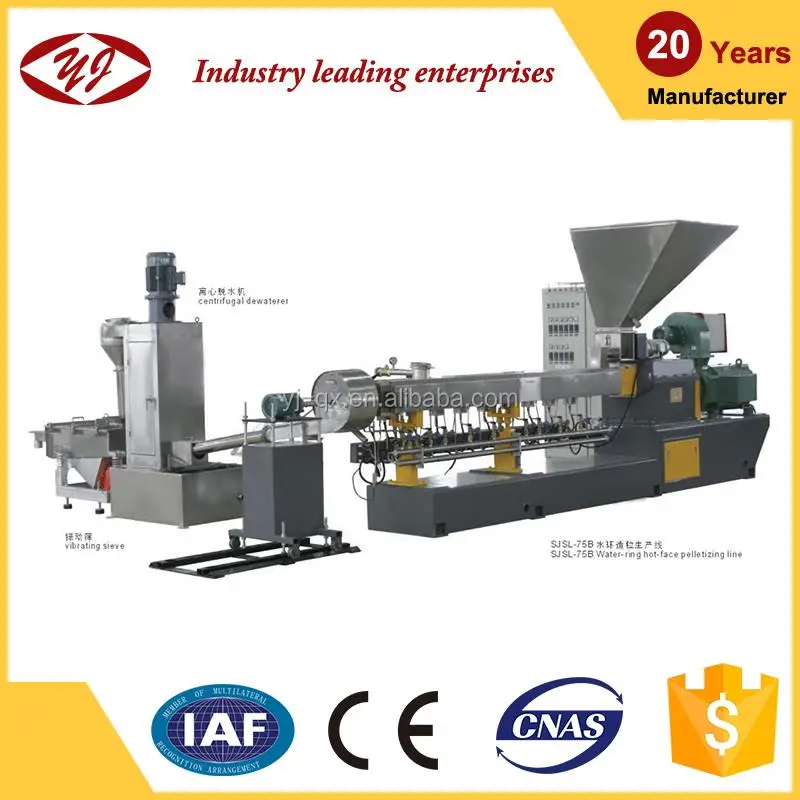

Application for water-ring hot face production line
1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.
2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,
cable coating material , thermal contraction pipe material.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic
elastomer, EVA and hot melt additives.

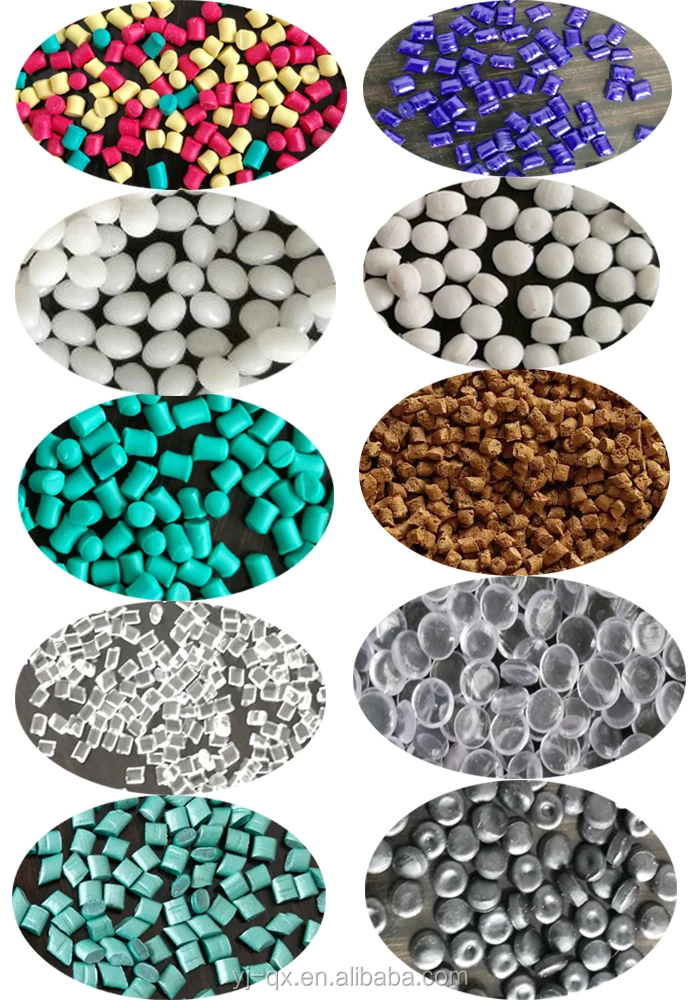

4. Color mater batch: PE, ABS, PS, EVA master batch, etc.
5. ABS, EVA flaming retarding master batch, etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Auxiliary
Water-ring cover |
|
pelletizer |
|
Centrifugal dehydrator |
|
Vibrating sieve |
|
Bin |
|
Other product

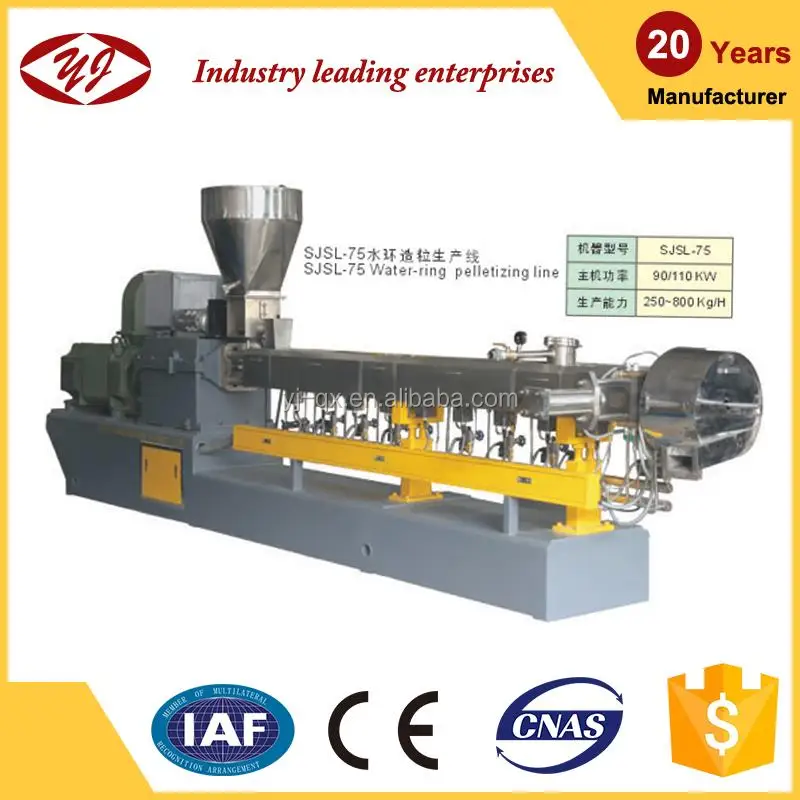

Pelletizing in the water line
Air-cooling strand pelletizing line
Air-cooling hot-face pelletizing line

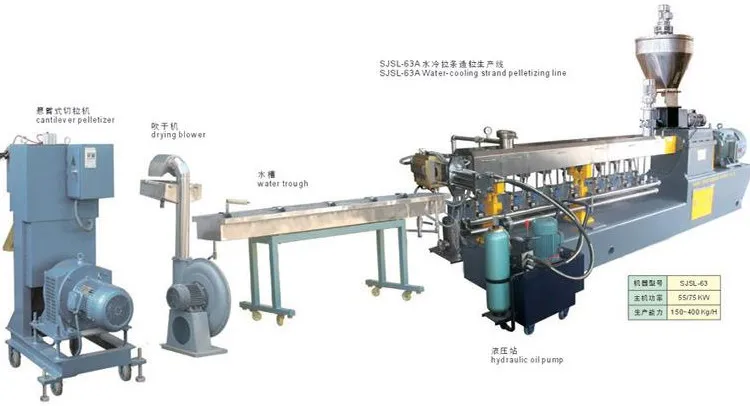

Water-cooling stand pelletizing line
FAQ
1. Are you a factory or trading company?
Both.
2. Where is your factory located? How can I visit there?
Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.
(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
3. What's your advantages?
(1) Excellent quality control
(2) First-class service
(3) Professional Tech. and R&D team
(4) Quick manufacturing time
(5) Quite competitive price
4. How long is the delivery time?
Under normal conditions, products are delivered within 35 days.
5. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
6. How long is the warranty?
We can offer one-year warranty for the whole machine.
