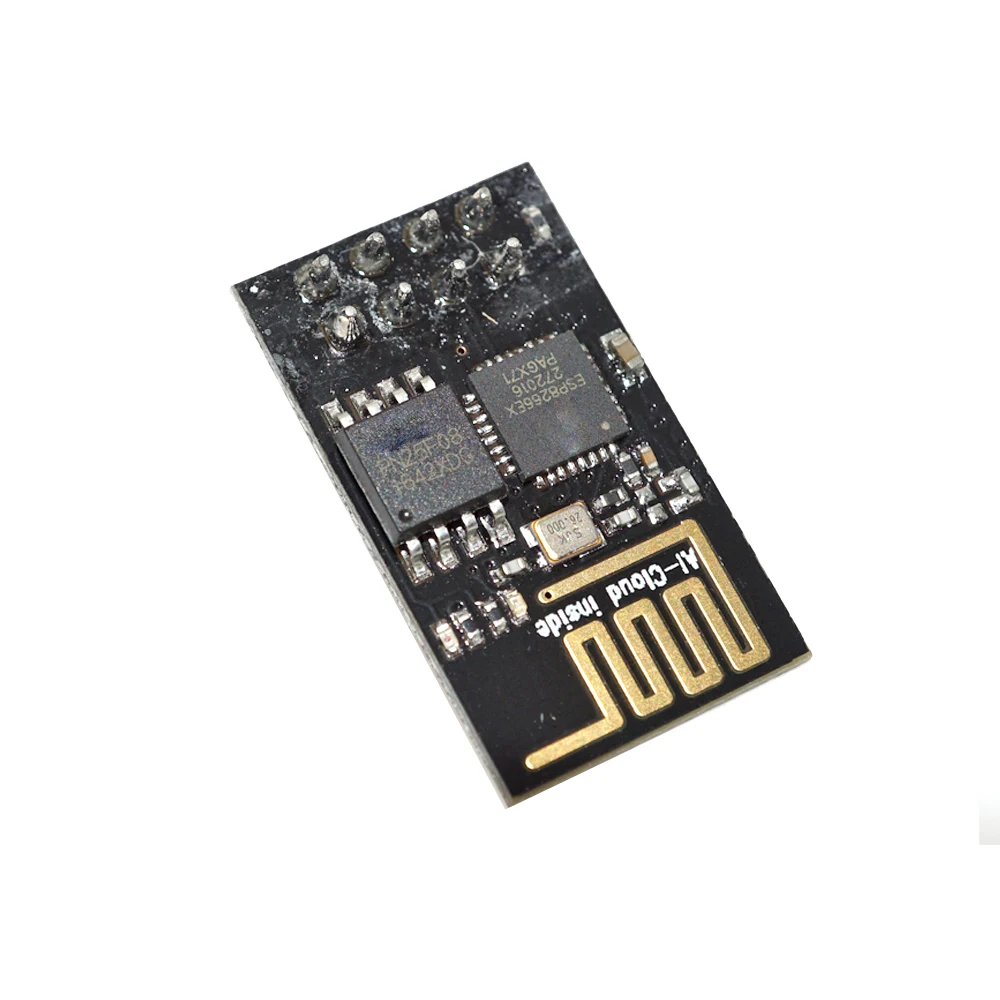

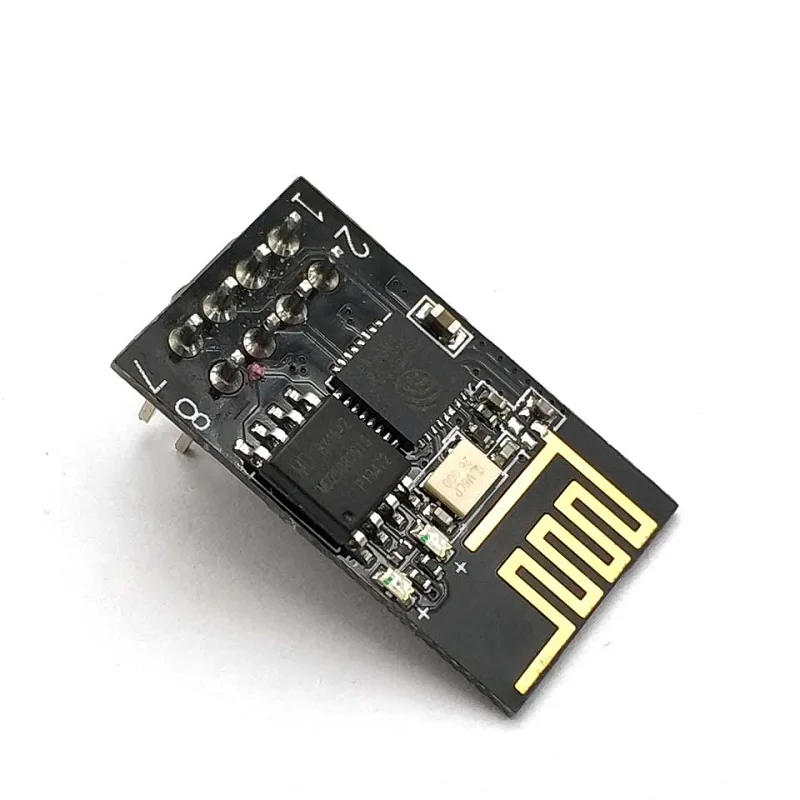

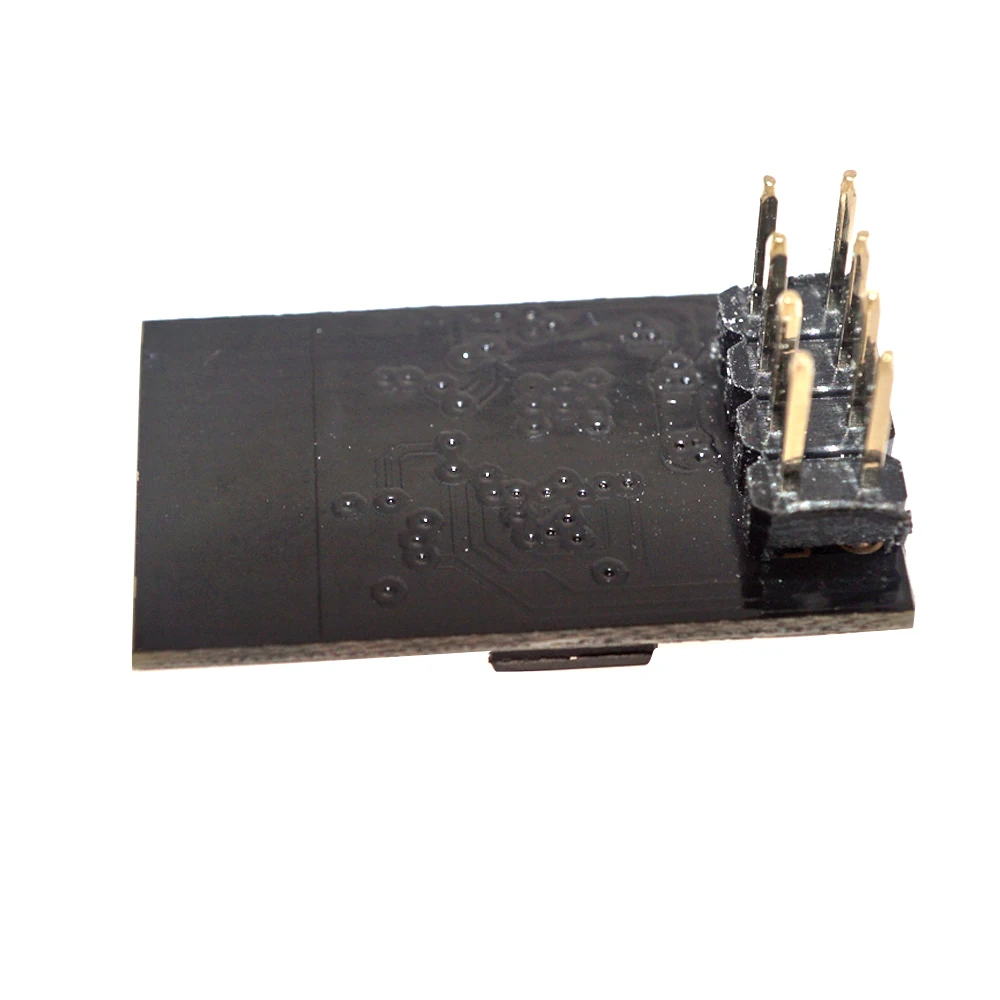

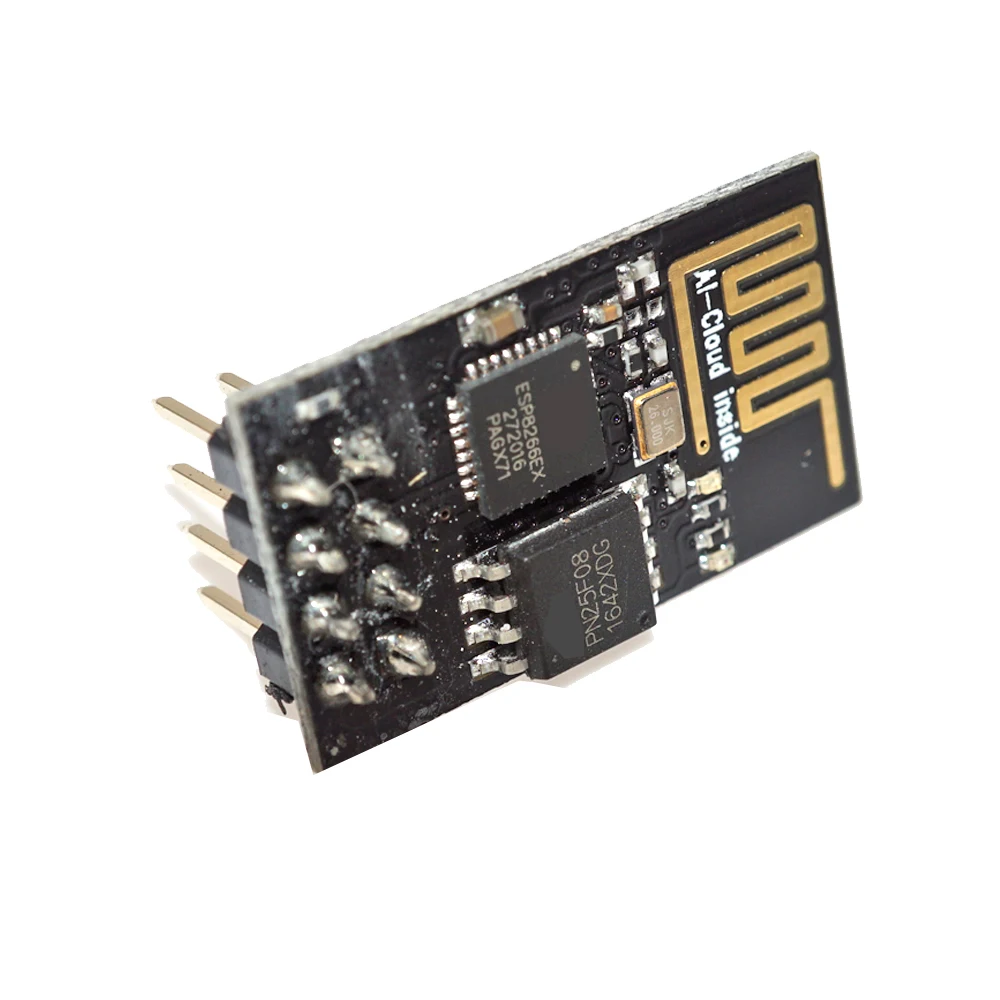

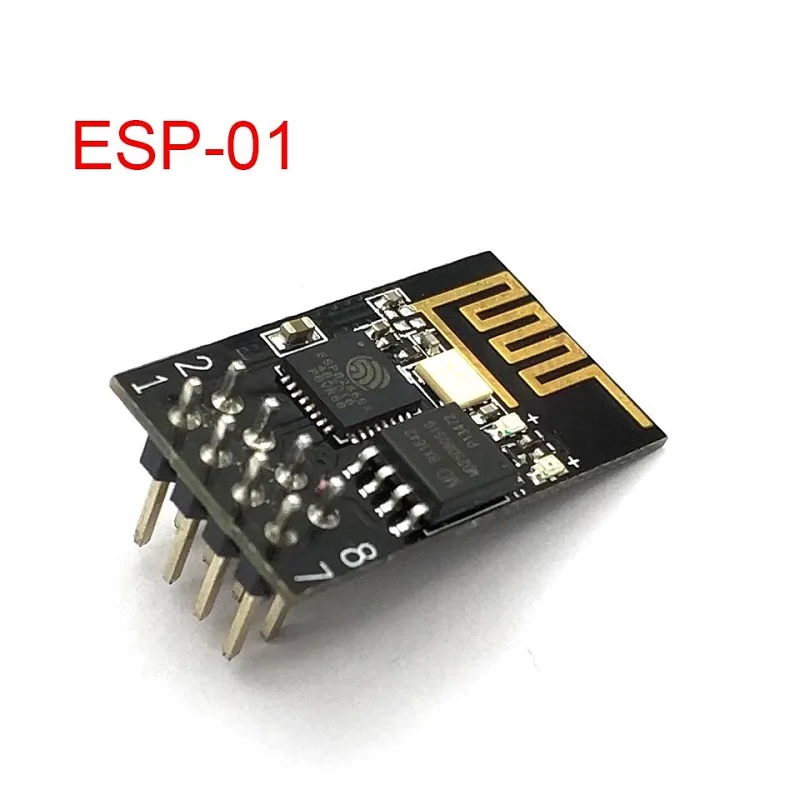

ESP8266 ESP 01 ESP01 Serial Wireless WIFI Module Transceiver Receiver Board Module
- Category: >>>
- Supplier: Okystar Technology Co. Ltd.
Share on (60542528039):
Product Overview
Description
Why Choose Us
Description
porduct name | ESP8266 remote Wireless Module Stable WIFI to UART Module ESP-01 | |||
Features | This is WiFi serial transceiver module, based on ESP8266 SoC. The SOC has Integrated TCP/IP protocol stack. We have a set of documents in Chinese. We are preparing tutorials and demo software to showcase utility of this module. Please buy this module only when you understand the existing documents. ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor. ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of onchip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. | |||
package | 1. Retailing Package:Anti-static bag 2. Bulking Packing:50Pcs/Lot 3. Retailing Box package design according to your requirement( Order > 500PCS) | |||
Decription | 1M Flash 802.11 b/g/n Wi-Fi Direct (P2P), soft-AP Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLLs, regulators, DCXO and power management units +19.5dBm output power in 802.11b mode Power down leakage current of <10uA Integrated low power 32-bit CPU could be used as application processor SDIO 1.1/2.0,, UART STBC, 1×1 MIMO, 2×1 MIMO A-MPDU & A-MSDU aggregation & 0.4ms guard interval Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3) | |||
Warm Note | Welcome ODM/OEM orders ,we are professional | |||
to improve,design,process,manufacture products | ||||
according to your requirement . | ||||
Package included: | 10*ESP8266 remote Wireless Module Stable WIFI to UART Module ESP-01 |
Product Picture
Packaging example
Customer Feedback
Exhibition
FAQ
1. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
4.what is the warranty?
1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
