Extruded Polystyrene Foam Insulation Fireproof Kitchen Wall Panel

Product Overview

Description

Extruded Polystyrene Foam Insulation Fireproof Kitchen Wall Panel





SPECIFICATION

Convenient construction	Extruded Polystyrene Foam Insulation Fireproof Kitchen Wall Panel is a kind of environmental friendly light weight construction material, and this new frameless decorative material is 100% no Asbestos Contained and no radioactivity.
Raw material	The materials of magnesium oxide board are Magnesia(MGO), Magnesium Chlorid(Mgcl2)and Alkali glass fiber net.
Size	1200*2400/ 1220*2440/ 1200*3000mm
Thickness	3.5-20mm
Product capacity	10,000/day
Notes	other specifications are available



TECHNICAL DATA



Density	0.95g/cm³
Bending strength	19.5MPa
Typical moisture content	6%
Drying shrinkage	0.26%
Moisture movement	0.50%
Impact strength	6.2KJ/m²

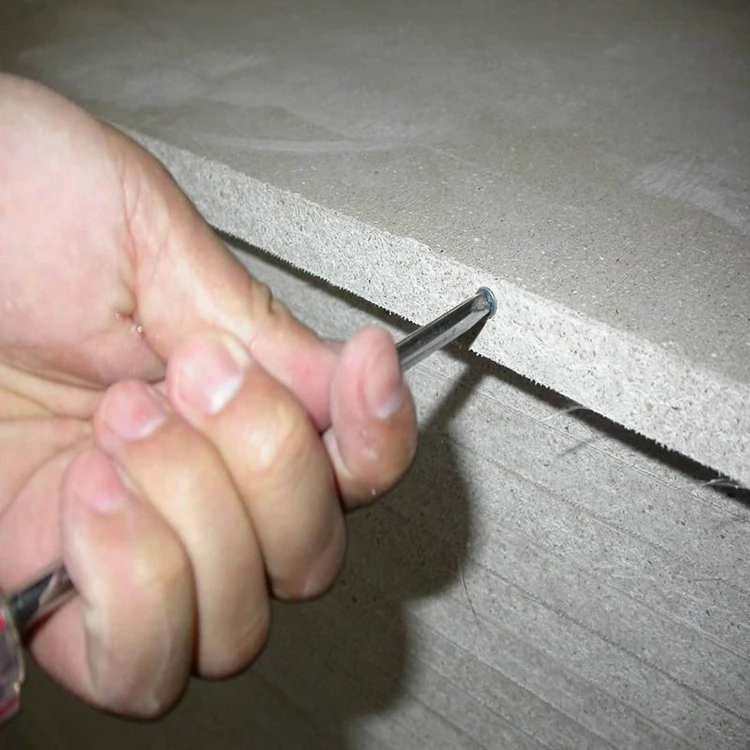

Pull put force of Screw	37.1N/mm
Non combustible performance	According to GB8624-1997, Combustibility is A1 Class.
Fire rating limited	6mm:>2Hours; 12mm:>4Hours;
Thermal Coefficient	0.109W/(m.k)



DESCRIPTION

Extruded Polystyrene Foam Insulation Fireproof Kitchen Wall Panel is made from Magnesium Oxide(MGO), Magnesium Chloride(Mgcl2), fiberless mesh, sawdust, perlite etc. Using highly purified active Mgo as the main fireproof material of board, high-quality Mgcl2 as the main cementing material to solidify other materials, alkali-resistance fiberglass mesh to ensure the high strength of board, soft sawdust and light non-combustible perlite as filling materials. It is a kind of Eco-friendly fireproof board widely used in construction and decoration.





FEATURE

1). Fireproof

Extruded Polystyrene Foam Insulation Fireproof Kitchen Wall Panel was tested by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC). Its fireproof level is rated level A (nonflammable level).



2). Dam proof

It is excellent in moisture-resistance. Dry bending strength is 15Mpa. Bending strength under absorbed moisture is 22Mpa.



3). Heat insulation

It has heat prevention material incorporated and great feature of heat prevention. Thermal resistance is 1.14m2k/w.



4). Soundproof

It is proved to have good noise insulation property after inspected by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC). The noise insulation factor of the wall canreach 44dB and 47dB. It has the best noise insulation constitution in China, especially the 95mm wall comprised by the 10mmboard. It is light, it can save time, space, weight and expense. It is a new and high efficient wall.



5). Compact resistance

It is a light board. Its density is less than 1.0×1.03kg/m3. At the same time its bending strength and impact resistance is excellent. Also, it will maintain its' quality during construction.



SURFACE

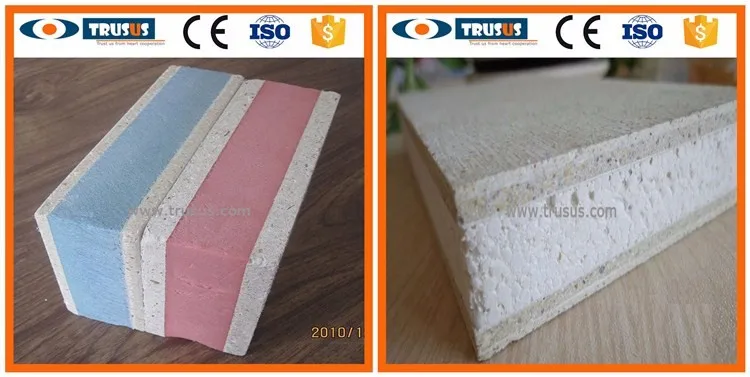

1)XPS Sandwich Panel&EPS Sandwich Panel





2)HPL MGO Board

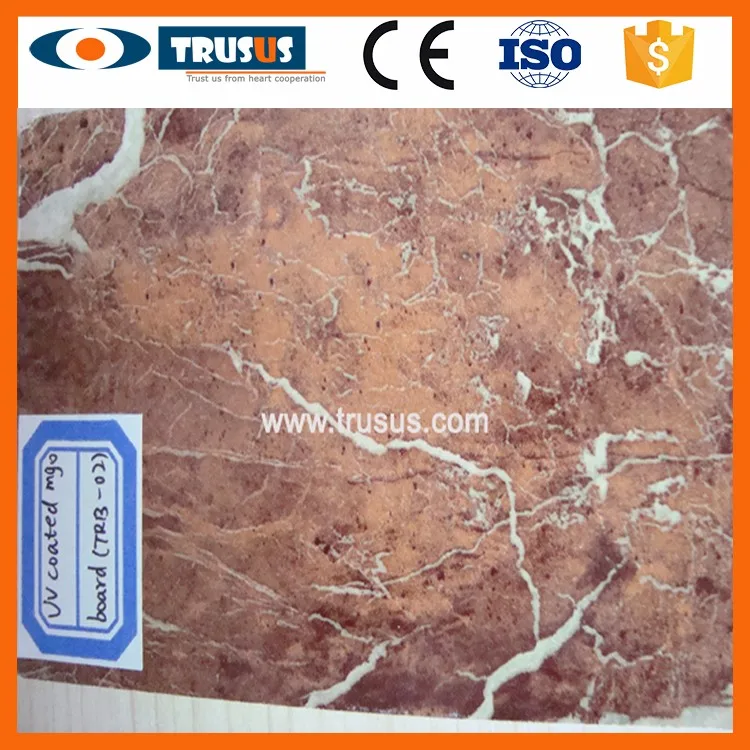

3)UV Coated MGO Board

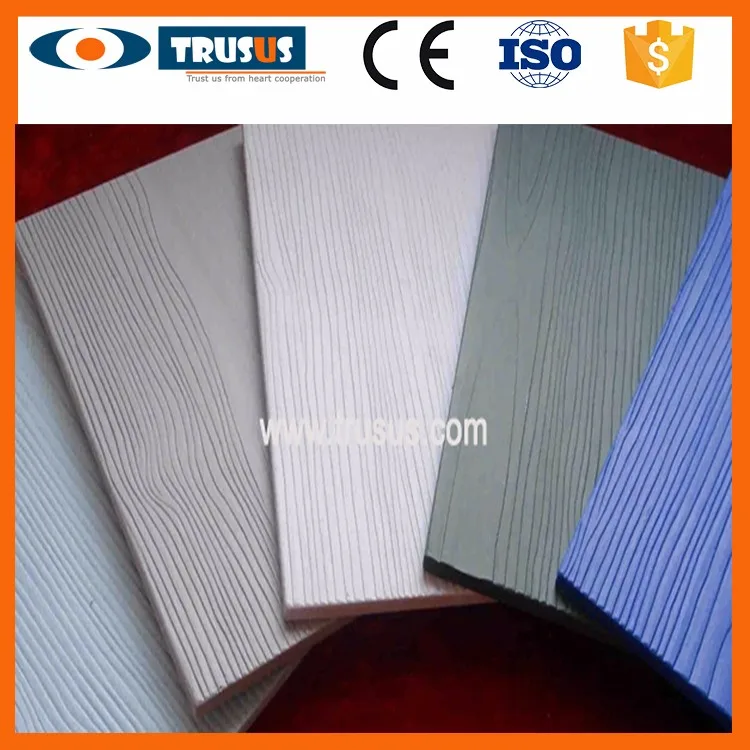

4)Wooden Grain MGO Board



APPLICATION

1)Extruded Polystyrene Foam Insulation Fireproof Kitchen Wall Panel can can be used for interior or exterior partition and ceiling.

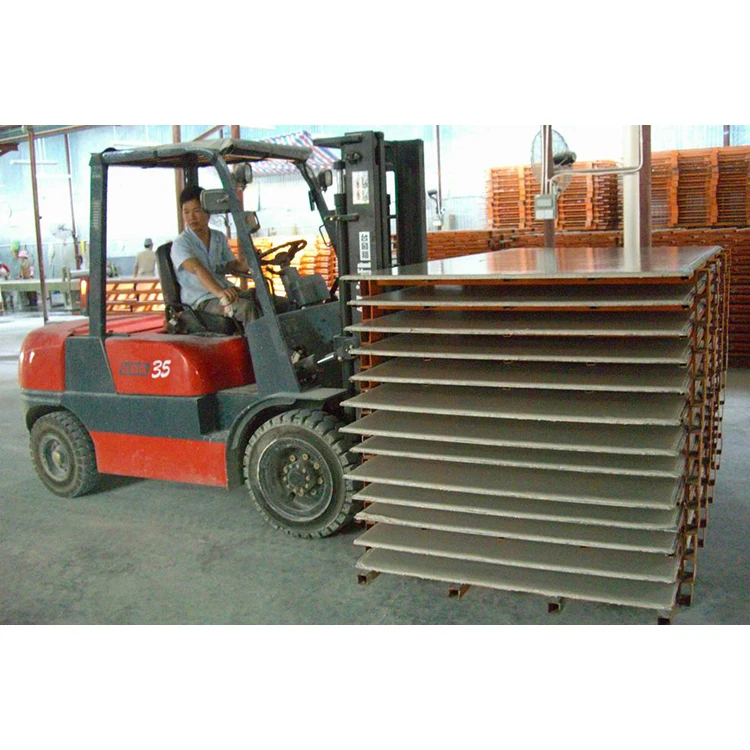

WORKINGSHOP OF EXTURDED FIREPROOF KITCHEN WALL PANEL



PRODUCTION LINE OF FOAM INSULATION FIREPROOF KITCHEN WALL PANEL

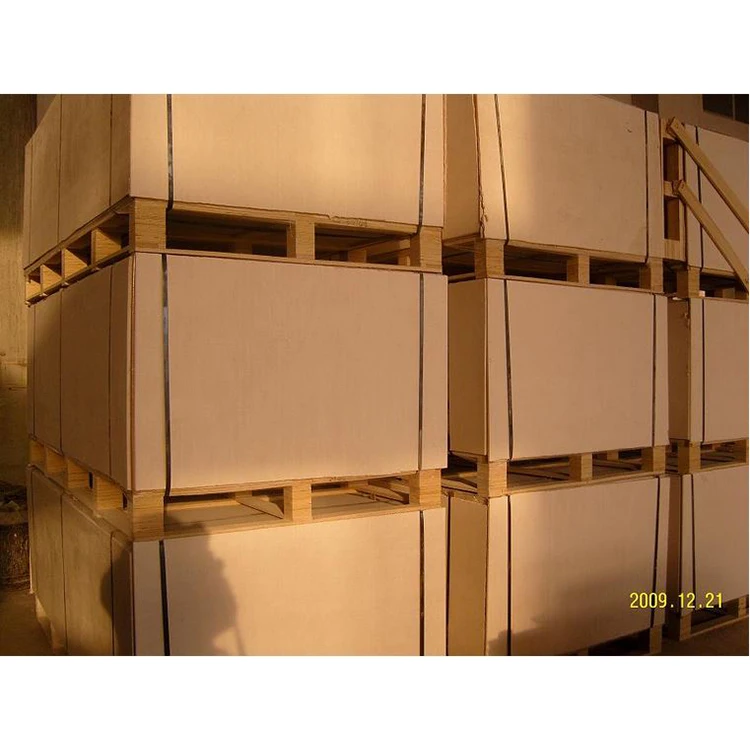

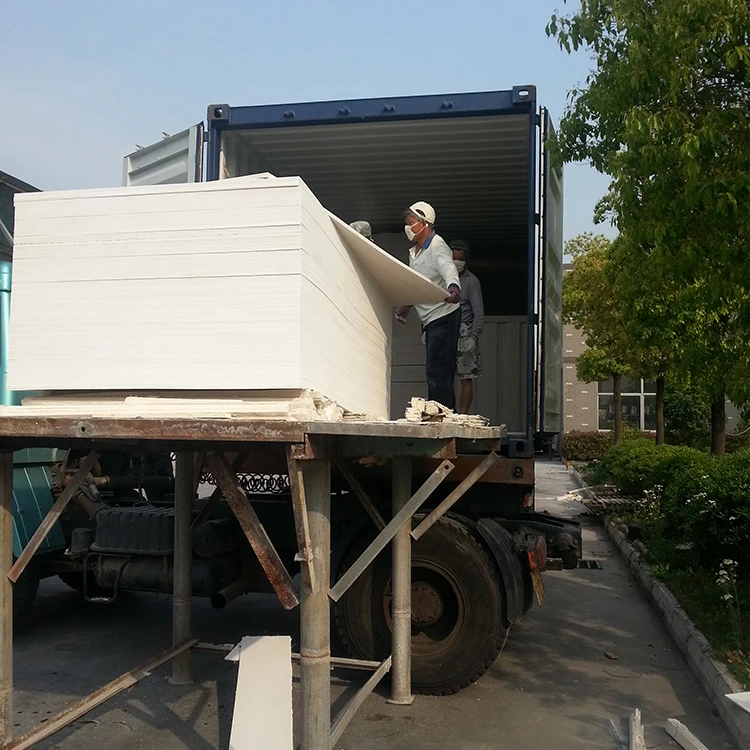

PACKING OF POLYSTYRENE FIREPROOF KITCHEN WALL PANEL

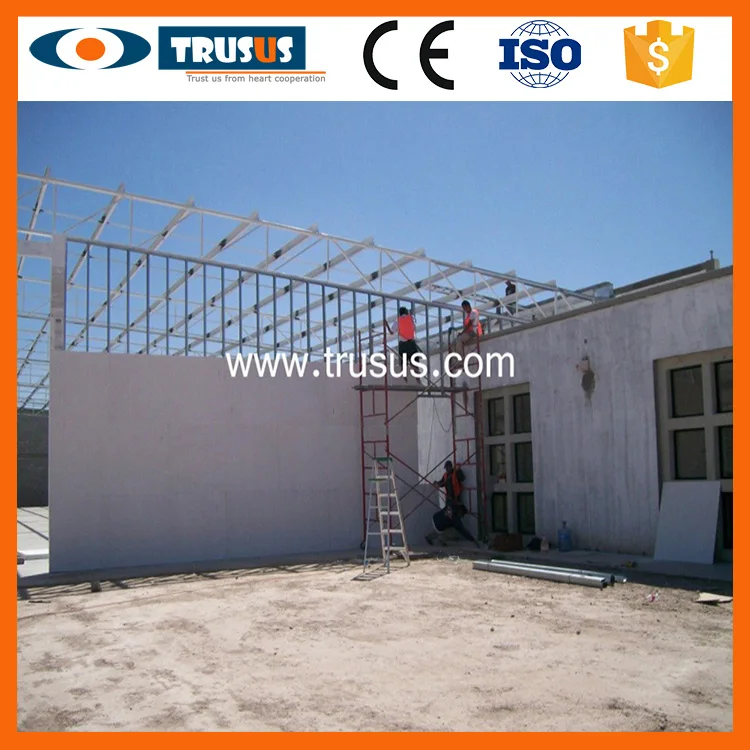

INSTALLATION



OTHERS

 We also have Steel Channel,You can click on the following URL:

https://www.alibaba.com/product-detail/Zinc-Coated-Metal-Different-Sizes-Furring_60508064547.html



ACCESSORIES

We can also provide the accessories, such as:

1. Main channel, furring channel, wall angel, U track etc, sizes upon your detailed request

2. Joint compound: 5kg/bag

3. Drywall screws: 3.5mmx25mm, 3.5mmx35mm, 3.5mmx50mmm etc

4. Paper Joint Tape: 50mmx50m etc

5. Self adhesive fiber glass tape: 50mmx90m etc.

CUSTOMER FEEDBACK

Our products are exported to a large of foreign countries, our evaluation is very high.



RECENT OVERSEAS EXHIBITION

We will always have exhibitions abroad, welcome to participate in them.

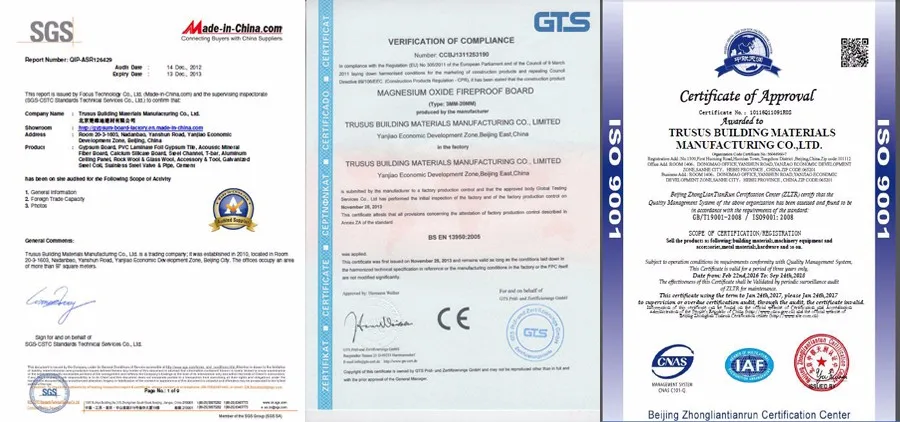

CERTIFICATION
