Heavy Duty Throttle Electronic Accelerator Pedal

Product Overview

Description

[Heavy - Duty Throttle Industrial Pedal Foot Control]



Description:                                                                   Applications:

Heavy-Duty Throttle                                                          • Medium-duty trucks
Industrial Pedal Foot Control                                             • Heavy-duty trucks

                                                                                           • Construction equipment
                                                                                           • Farm equipment
                                                                                           • Buses





Features:                                                                         Material:

• Die cast & steel components                                            • Coated sheet metal
• Multiple base bolt patterns                                                • Plastic bushings
• Spring returned pedal                                                       • Plastic boot plated steel hardware
• Adjustable pedal angle
• Throttle cable exit is adjustable
• Travel: 2.00 maximum                                                    Suggested:
• -25°F — 160°F temp range                                                End Fittings
  (-14°C — 90°C)                                                                     • Clevis and pin,
• Corrosion-resistant die cast                                                     or end fitting with
  components, plated steel                                                         right angle bend
  hardware, and plastic bushings





[Foot Control Industrial]

The 165-574-001 and -002 throttle pedals are intended for medium and heavy-duty trucks, construction and farm equipment, and buses. The -001 configuration is a foot throttle only design.
The -002 configuration adds hardware allowing for a manual remote hand operated throttle control. A torsion spring is incorporated for idle position return. Environmental contamination is minimized by a plastic boot installed between the pedal and mounting base. Idle pedal position and throttle travel is adjustable to meet user requirements. The entire lower portion of the assembly can be inserted through a cutout in the floor, and will rotate 360° and down 30° maximum from horizontal to optimize throttle cable routing. Multiple fastener holes are incorporated into the base to accommodate different mounting patterns.
The pedal surface is ribbed to reduce foot slippage and increase strength. Corrosion-resistant die cast components, plated steel hardware, and plastic bushings all provide years of smooth, trouble-free service.



[Heavy- Duty Throttle]

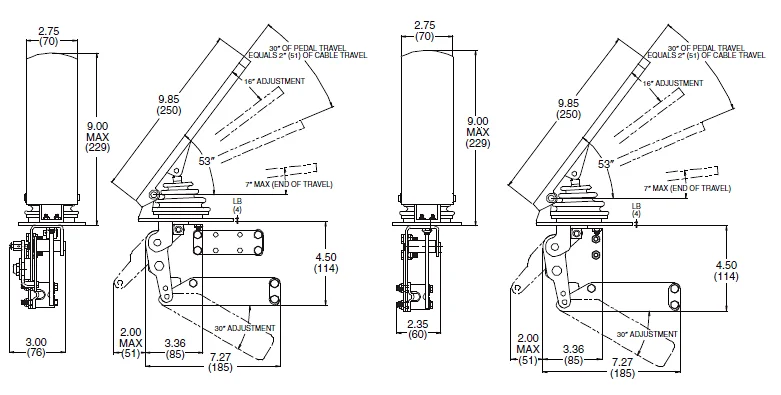

Standard Pedal 165-574-001

For use with one Pull-Only accelerator cable.







All line art dimensions are represented as follows: in (mm)
