LDK wholesale POSB8 inch male thread ball joint rod end bearing
- Category: Rod End Bearings >>>
- Supplier: Xinyuan,Bearing,Industrial,Co.,Ltd.,Quanzhou
Share on:
Product Overview
Description
Product Description

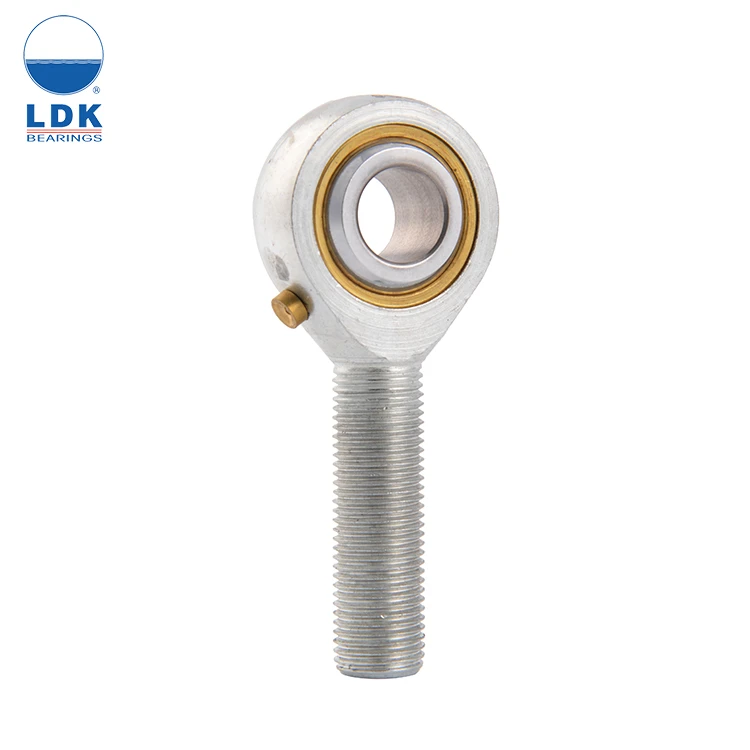

LDK wholesale POSB8 inch male thread ball joint rod end bearing
| Bearing No. | Dimensions(mm) | Ball dia | a° mis. angle | Load ratings (KN) | weight ≈kg | |||||||||
| d +0.038 -0 012 | B | C1 | d1 | d2 | d3 UNF-2A | h | L1 | L2 | Dynamic | Static | ||||
| POSB3 | 4.826 | 7.92 | 6.35 | 7.77 | 15.88 | 10-32 | 31.75 | 19.05 | 39.69 | 11.11 | 10 | 2.8 | 3.8 | 0.013 |
| POSB4 | 6.35 | 9.53 | 7.14 | 9.02 | 19.05 | 1/4-28 | 39.67 | 25.4 | 49.2 | 12.7 | 13 | 4.8 | 6.4 | 0.022 |
| POSB5 | 7.938 | 11.10 | 8.74 | 11.35 | 22.23 | 5/16-24 | 47.63 | 31.75 | 58.75 | 15.87 | 10 | 5.9 | 8.7 | 0.037 |
| POSB6 | 9.525 | 12.7 | 10.31 | 13.13 | 25.4 | 3/8-24 | 49.22 | 31.75 | 61.92 | 18.26 | 9 | 8.2 | 12.4 | 0.055 |
| POSB7 | 11.11 | 14.27 | 11.1 | 14.88 | 28.58 | 7/16-20 | 53.98 | 34.93 | 68.27 | 20.62 | 11 | 10 | 17 | 0.078 |
| POSB8 | 12.7 | 15.88 | 12.7 | 17.73 | 33.32 | 1/2-20 | 61.92 | 38.1 | 78.58 | 23.8 | 9 | 15 | 23.4 | 0.120 |
| POSB10 | 15.88 | 19.05 | 14.27 | 21.31 | 38.1 | 5/8-18 | 66.68 | 41.28 | 85.73 | 28.57 | 11 | 18 | 26.7 | 0.180 |
| POSB12 | 19.05 | 22.23 | 17.45 | 24.84 | 44.45 | 3/4-16 | 73.02 | 44.45 | 95.25 | 33.33 | 10 | 27 | 36.6 | 0.290 |
| POSB16 | 25.4 | 34 93 | 25.4 | 32.23 | 69 85 | 5/4-12 | 104 78 | 53.98 | 139 7 | 47.62 | 14 | 60 | 101 | 1.100 |
Wholesale cheap POSB inch male thread ball joint rod end bearing Characteristic:

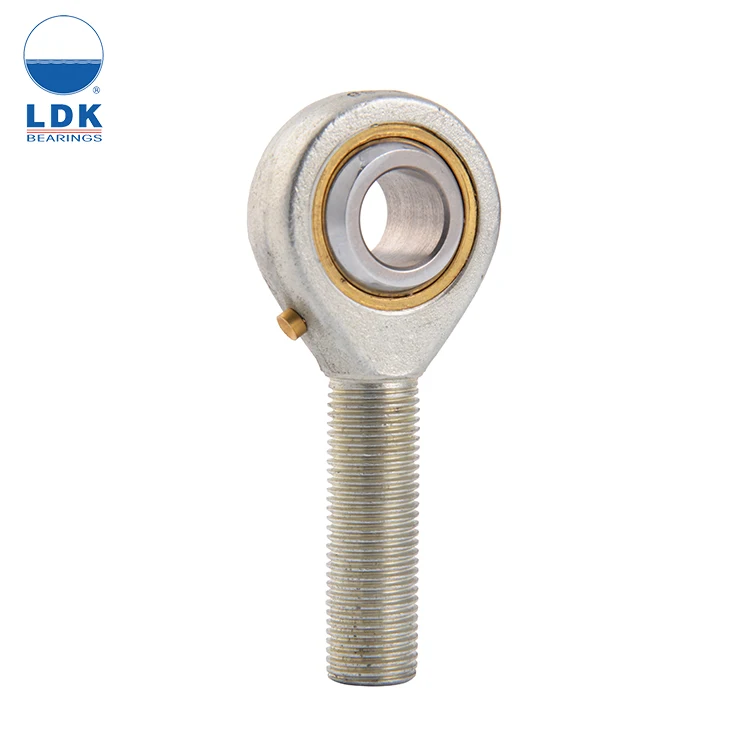

Economy type; requiring maintenance ; steel/brass; turned and forged body are available according to different body processing; and turned one have better appearance; zinc plated body surface
