The Uk..zz series is a freewheel incorporating a 62..series bearing.
the self-centring freewheels are already grease-lubricated and come with dust-proof protectio
The UKC..ZZ model is equipped with a keyway on the inner race and should be fitted on k6 tolerance shafts. Seat fitting must be carried out with n6 keying tolerance. The UKCC..ZZ model is equipped with a keyway on the inner and outer race, the tolerances are h6 for the shaft and h6 for the rigid seat.
Catalogue of Types of One Way Clutch Bearings for your choice
Tips: All the UK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.
Type
Size
Bearing series
Bearing loads
Weight
Drag torque
dynamic
static
UKC...ZZ
d
TKN1)
nmax
D
L
b
t
C
C0
TR
[mm]
[Nm]
[min-1]
[mm]
[mm]
[mm]
[mm]
[kN]
[kN]
[kg]
[Ncm]
12
6201
9.3
10000
32
10
6.1
2.77
0.04
0.7
15
6202
17
8400
35
11
7.4
3.42
0.06
0.9
17
6203
30
7350
40
12
7.9
3.8
0.07
1.1
20
6204
50
6000
47
14
9.4
4.46
0.11
1.3
25
6205
85
5200
52
15
10.7
5.46
0.14
2
30
6206
138
4200
62
16
11.7
6.45
0.21
4.4
35
6207
175
3600
72
17
12.6
7.28
0.3
5.8
40
–
325
3000
80
22
15.54
12.25
0.5
7
UKCC...ZZ
15
6202
17
8400
35
11
2
0.6
7.4
3.42
0.06
0.9
17
6203
30
7350
40
12
2
1
7.9
3.8
0.07
1.1
20
6204
50
6000
47
14
3
1.5
9.4
4.46
0.11
1.3
25
6205
85
5200
52
15
6
2
10.7
5.46
0.14
2
30
6206
138
4200
62
16
6
2
11.7
6.45
0.21
4.4
35
6207
175
3600
72
17
8
2.5
12.6
7.28
0.3
5.8
40
–
325
3000
80
22
10
3
15.54
12.25
0.5
7
45
_
218
1600
85
19
12
2.5
18.36
15.35
0.44
9.3
50
_
230
1500
90
20
12
2.5
19.53
17.68
0.49
UKC...2RS
12
–
9.3
10000
32
14
6.1
2.77
0.05
3
15
–
17
8400
35
16
7.4
3.42
0.07
4
17
–
30
7350
40
17
7.9
3.8
0.09
5.6
20
–
50
6000
47
19
9.4
4.46
0.145
6
25
–
85
5200
52
20
10.7
5.46
0.175
6
30
–
138
4200
62
21
11.7
6.45
0.27
7.5
35
–
175
3600
72
22
12.6
7.28
0.4
8.2
40
–
325
3000
80
27
15.54
12.25
0.6
10

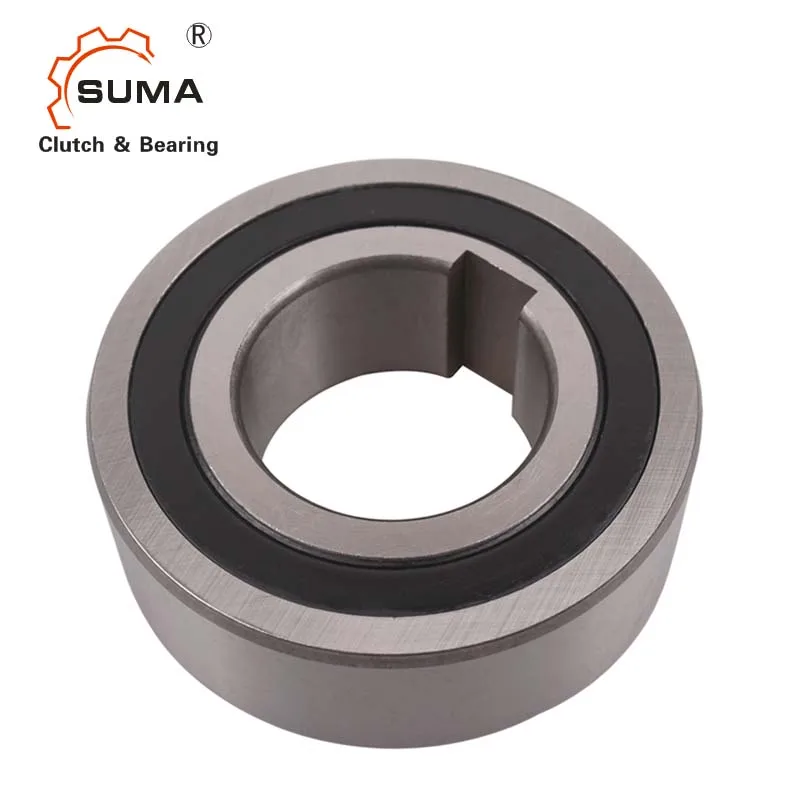

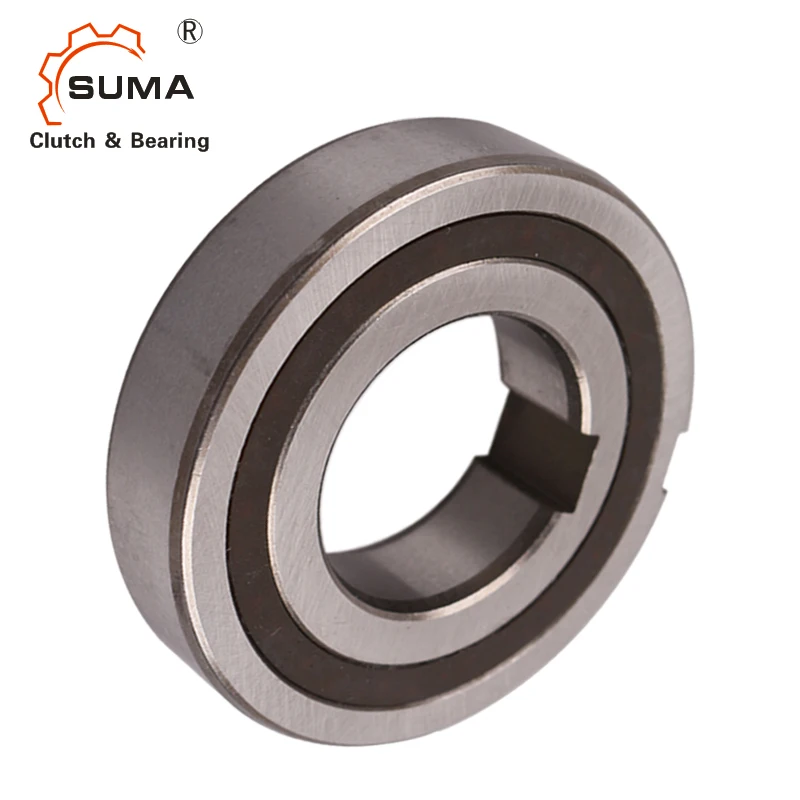

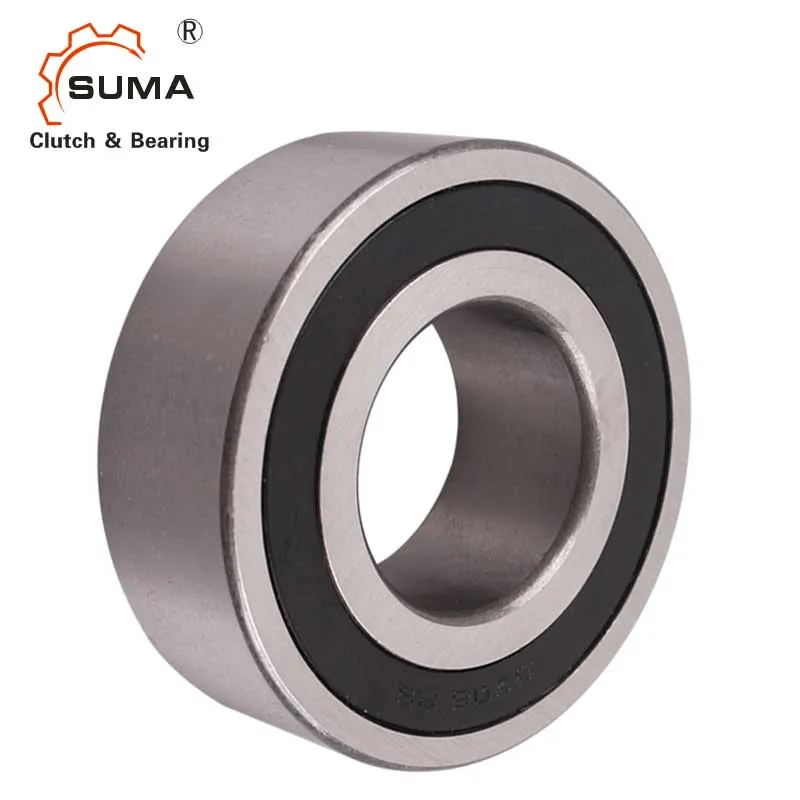

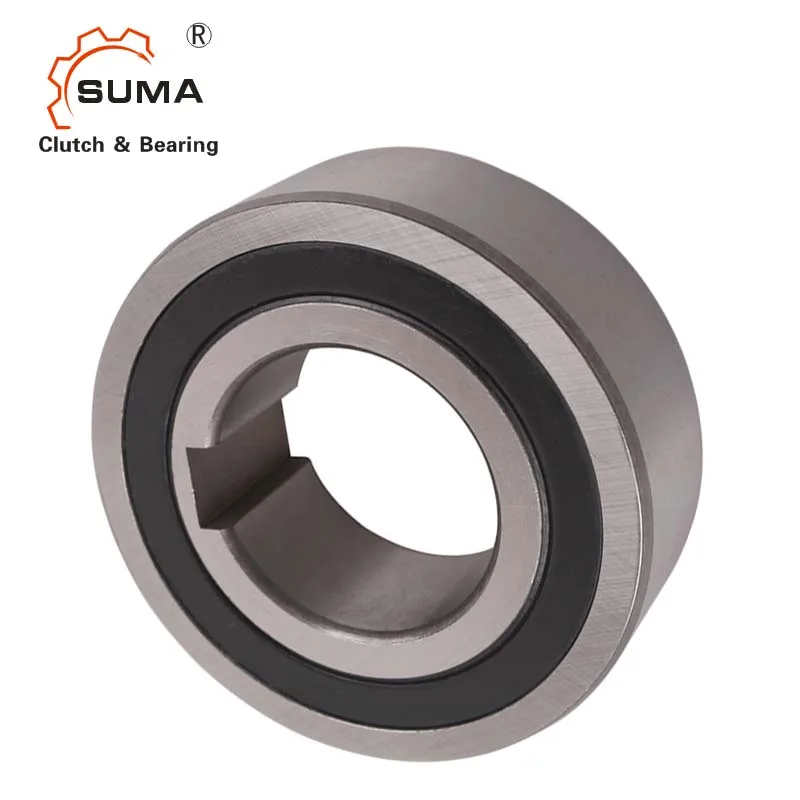

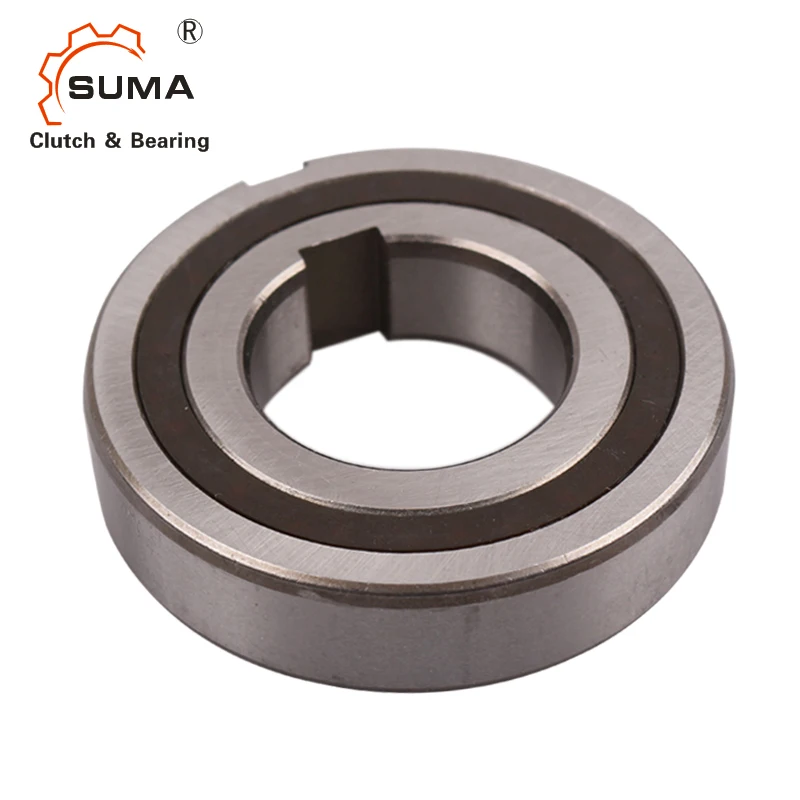

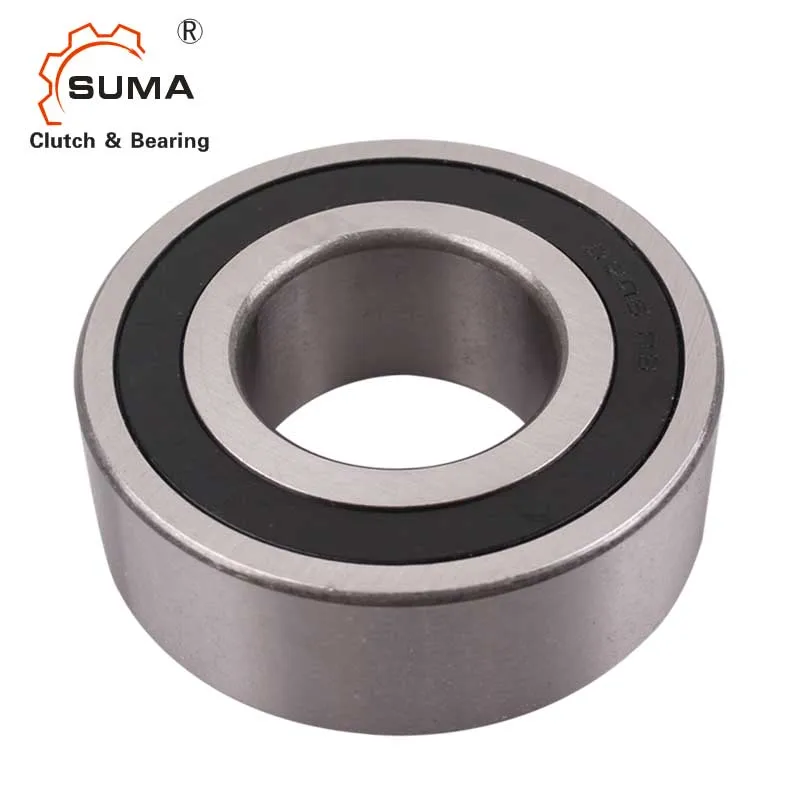

Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Production flow
Clients Visit
After-Sales Service
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
FAQ
Q: How do you pack the goods?
Total less than 25 KG:Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG :Carton box +Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
