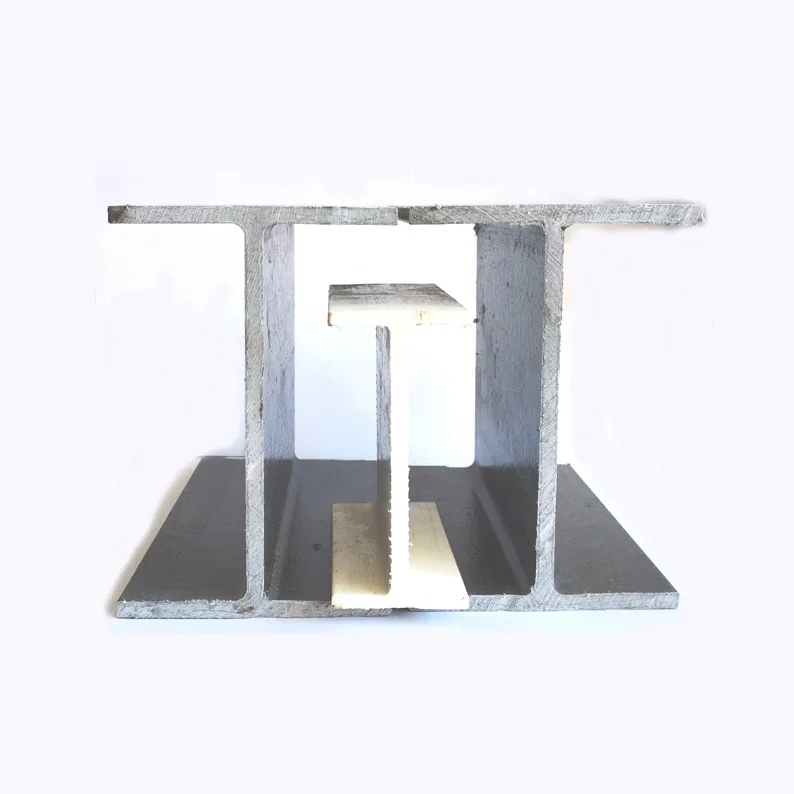

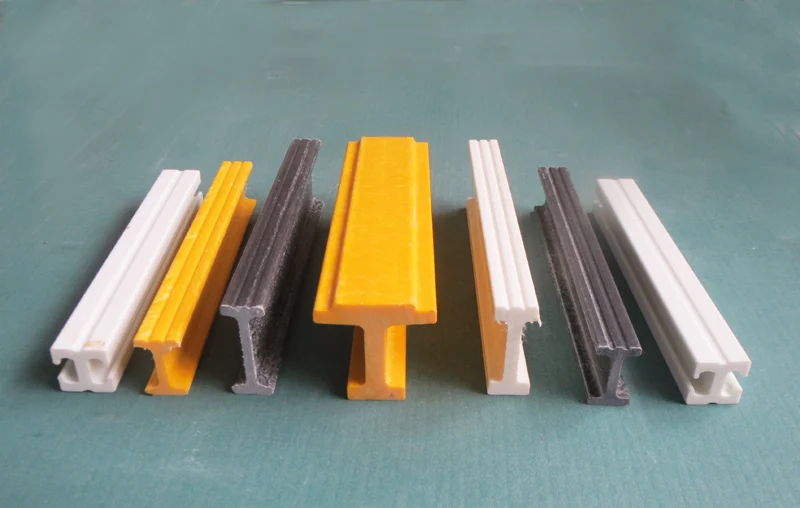

FRP I shape beams, structure support pultruded FRP profiles I beams, fiberglass plastic H beam

Share on (60543446880):


Price:$3.00

Quantity:


Product Overview

Description



Product Description




FRP I shape beams, structure support pultruded FRP profiles I beams, fiberglass plastic H beam









Advantages


High strength - Fiberglass tube is stronger than structural steel on a pound-for pound basis. It has been used to buildings, walkway, sub-floors and platforms.
Light weight - Fiberglass tube is 20-25% the weight of steel and 70% the weight of aluminum. FRP are easily transported, handled and lifted into place. Total structures can often be preassembled and shipped to the job site ready to installation.
Anti-corrosion - Fiberglass tube will not rot and are impervious to a broad range of corrosive elements. This feature makes FRP a natural selection for indoor or outdoor structures in pulp and paper mills, chemical plants, water and sewage treatment plants, structural near salt water and other corrosive environments.
Electro-magnetic transparency - Fiberglass tube are transparent to radio waves, microwaves and other electromagnetic. It is widely used to make antennas.

Non-conductive - Fiberglass tube has low thermal/ electrical conductivity.
Dimensional stability - The coefficient of thermal expansion of Fiberglass tube is slightly less than steel and significantly less than aluminum.
Aesthetics - Fiberglass tube are pigmented throughout the thickness of the part and can be made to virtually any desired custom color. Special surfacing veils are also available to create special surface appearances such as wood grain, marble, granite, etc.



Resin base choosing is important for FRP product work well in different environment
such as sunshine expose, chemical corrosion, electric insulation, fire retardant, etc.


resin Base
Description
Corrosion Resistance
Application
Ortho
Moderate Corrosion Resistance
Moderate
No fire resistant requirement
Ortho
Moderate correction resistance and Fire retardant
Moderate
general performance in Acid ,Alkali resistant environment
ISO
Industrial Grade Corrosion Resistance and Fire Retardant
very good
good performance in Acid, Alkali resistant environment
ISO
Food grade corrosion resistance and fire retardant
very good
Meat product plant and food processing factory
VINYL Ester
Industrial Grade Corrosion Resistance, without Fire Retardant
very good
High above normal performance in Acid ,Alkali resistant environment
VINYL Ester
Superior Corrosion Resistance and Fire Retardant
excellent
superior performance in Acid ,Alkali resistant environment
Phenolic Resin
Low smoke and superior fire resistance
excellent
highest requirement in acid ,Alkali resistant environment


Related Products


Click photos for more details



FRP fiberglass fence/handrail

Fiberglass step ladder

fiberglass step ladder



Fiberglass channel

FRP wind guard board frp panels

frp grating fiberglass platform grate



fiberglass 3-way connector

fiberglass purlin

fiberglass antenna cover



anti-slip fiberglass decking strip

fiberglass halter for roof panel

fiberglass warning marker/post



Yalong standard frp profile size list:
if not find the one you need, please contact us for more details
rectangular tube
19X2.6mm
20x13x2.2mm
24.5x16x2.2mm
35x22x3mm
30x20x2x2.25mm
30x20x2.5mm
38×4mm
50x30x4mm
50x50x4mm
60x32x3.5mm
64x26x3.5mm
65x31x4mm
67x30x3mm
65x62x4mm
67x65x4mm
73x65x4mm
76x51x4mm
110×50×4.5×4mm
frp rod
6.9mm
7.3mm
7.9mm
8.5mm
9.5mm
10mm
11mm
12mm
12.7mm
16mm
18mm
25mm
frp round tube
18x11mm
25x2mm
30x3mm
30x2.4mm
30x4mm
40x3mm
40x5mm
45x3mm
50x5mm
50x4mm
50x2.5mm
51x3mm
64×3.5 mm
64×7.2mm
76×6.4 mm
89×3.2 mm
89×5mm
89×6.4 mm
99×5 mm
100×6.4mm
114×3.2 mm
114×5 mm
114×6.4mm
114×9.5mm
150×3.2 mm
150×5.4mm
150×6.4 mm
150×9.5 mm
Channel(mm)
18x10x2.5
20×15
50x32x5
50x25x2.5
55x25x3.5
55x28x4
50x26x3.3
50x32x5
63x30x3
70x26x3.5
70x30x3.8
70x30x4.5
76.2x25.4x6.35
79x28.5x3
80x25x3
80x30x3.5
80x30x3*5
80x30x4.5
84x30x4
84×30×3.8×4.5
84x30x3.5x5
88x35x5
94.5x20x2.8
100×65×4.6
110×30×4.6
180x50x6
180x50x8
200×100×4.6
210×30×4.6
300×150×5.6
312×50×5.6
I beam(mm)
19×19×4
20x15x3.5
25×15×3.5
25×30×3.6
38×15×3.5×4
38×15×4.5×5.5
40×30×3.6
40*40x5
50x15x4
58×15×4.5×5
58×15×5×6
65×30×3.6
70×15×4.5×6
80×15×4.5×5
80×30×4.
110×50×4
Angle
20x20x2
25x25x5mm
30x25x3
40x40x5
35x30x3mm
40x60x5
42x47x2.3
60x60x6
76x50x6.35
150x99x3
Flat bar/plate
30x4
40x4
43.2x16
45×16
50x3
64x6
147x3
150x4
254x3.5
646x3.5
770x3.5
796x5

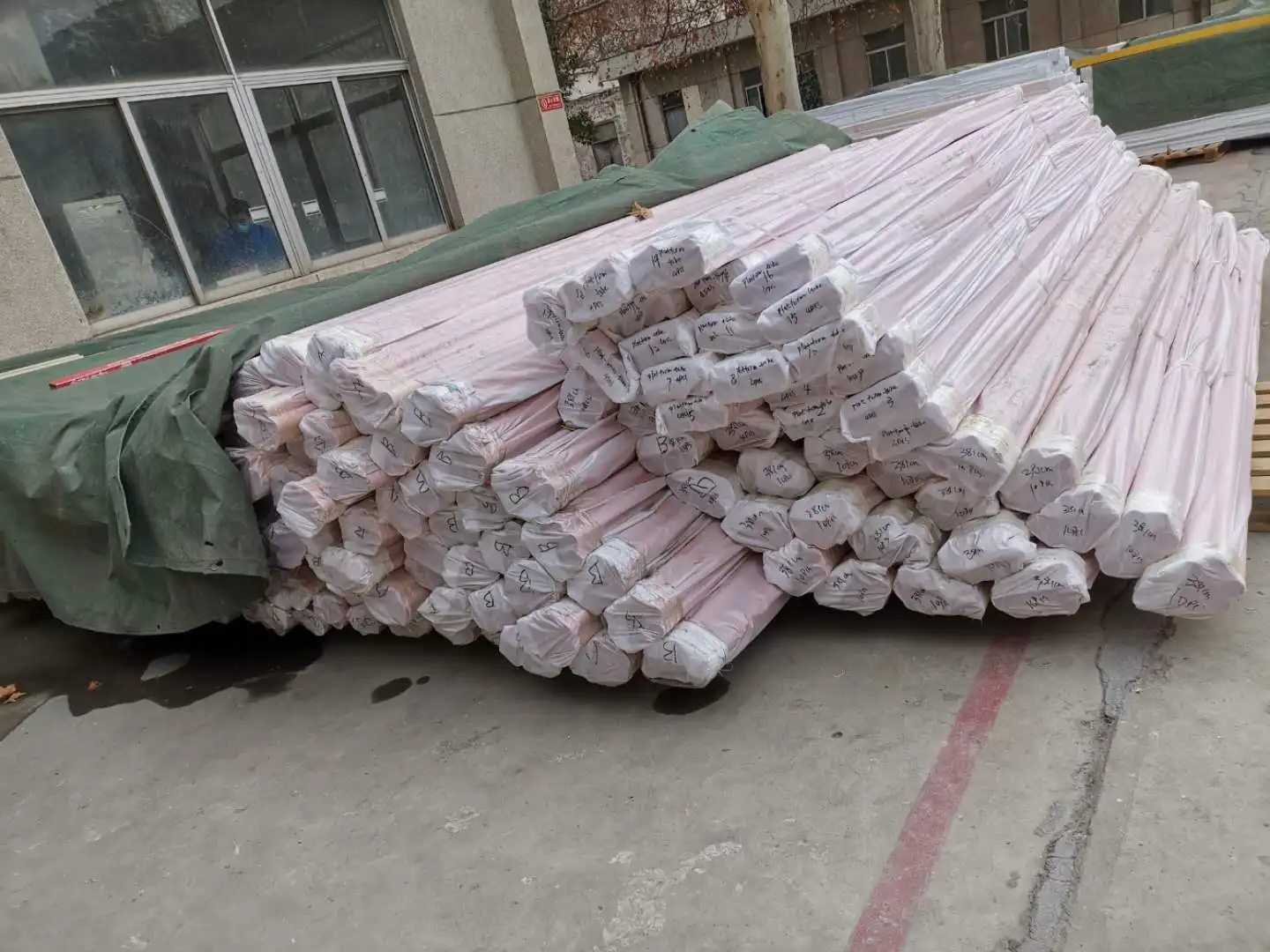

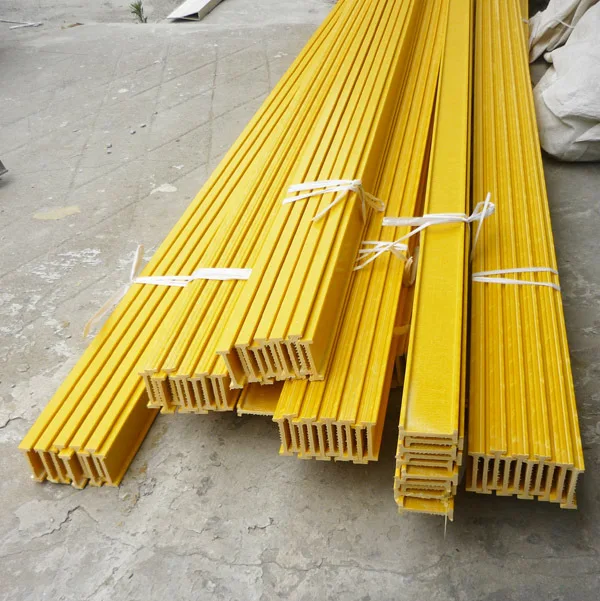

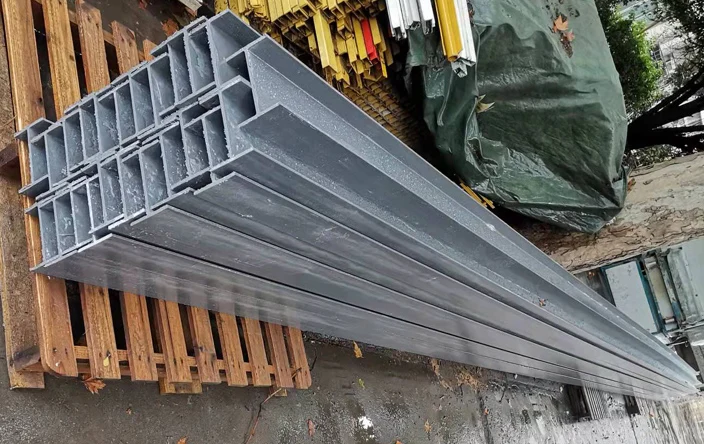

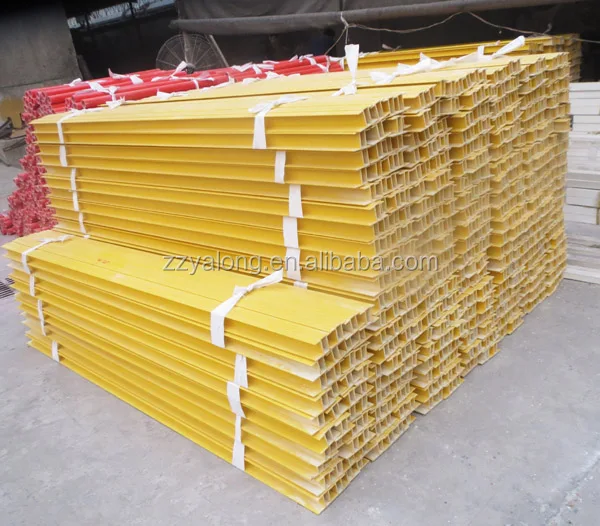

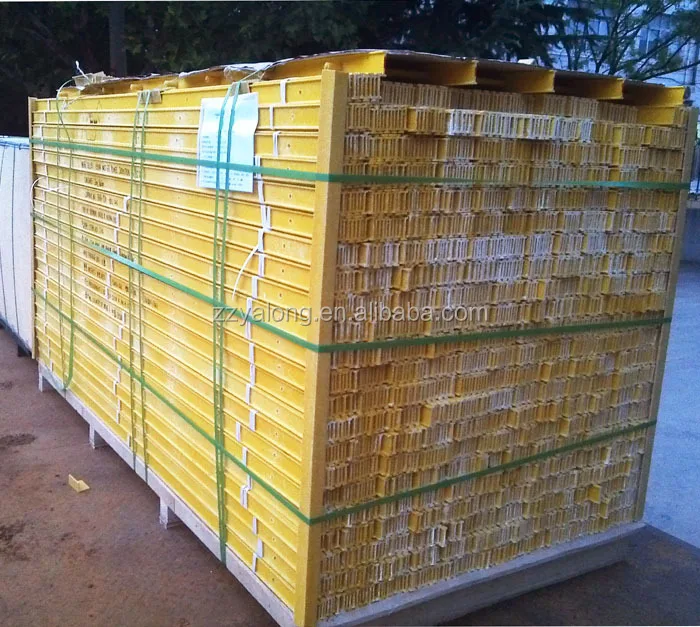

Packing & Delivery


Packing:
Plywood case/ wood pallet/ carton/ container.
According to the sizes, quantities and customers’ request.
Delivery:
Usually, we ship the goods from Qingdao,Shanghai and Tianjin Port.
If have any need, we also can send the goods to other ports or delivery places.





Factory Background


- Company Name: ZHENGZHOU YALONG PULTREX COMPOSITES CO., LTD.

- Address : #3, Xuesong Road, High-Tech district, Zhengzhou, China
- Year Established: 1994 s
- Factory Area (square meter): 6667sqm,1 office building,1 pultrusion production workshop,3 assembly workshop
- Main Products: Pultrusion fiberglass profile and related assembled product
- Pultrusion Production line: 7 lines
- Mold Room: 160 molds
- Quality Control System : ISO9001-2008





Our Service


1. Your inquiries related to our products will be replied in 24 working hours;
2. Free samples offered in certain quantity and delivered in 3-7 days;
3. OEM service are provided, we can design and produce according to your needs;
4. Arrange shipping and custom declaration.
5. Colors are available on request. Our regular colors include red, white, black, yellow, green, blue ect. we can offer any color you request.
6. Unit length is also on your request, if it’s easy for shipping.
7. Relevant products sourcing and management service.

8. Trial orders are acceptable.



Certifications




FAQ


Q: Are you trading company or manufaturer?
A: We are manufacturer with 22 years production experience in Zhengzhou.
Q: How long is your delivery time?
A: 7-15 days after receiving the deposit based on he MOQ, Normally, within 30 days to finish the order for 20ft container. More details about the delivery time, please feel free to contact us.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer certain samples for free charge but you need pay the cost of freight. Please contact us to confirm.
Q: How can you guarantee your product quality?
A: Our products passed the quality control system certification ISO9001:2008 which we always follow strictly. Double checking is one of essential steps before packing. No matter where our product delivery, we are responsible for its quality. Customer's satisfaction is very important for us, it's decide to our long term cooperation.
Q: What is your terms of payment?
A: 30% deposit, the balance before shipment or L/C at sight. Western Union, Paypal, Moneygram, Alipay, Credit card are acceptable for sample order. More details, please don't hesitate to contact us.
Q: Can I vist your factory?
A: Welcome to our factory and we will pick you up at the Zhengzhou Xinzheng International Airport.
Our address: No.3 Xuesong Road, Hi-Tech industrial development zone of Zhengzhou,China
