Product Overview

Description


Product Description

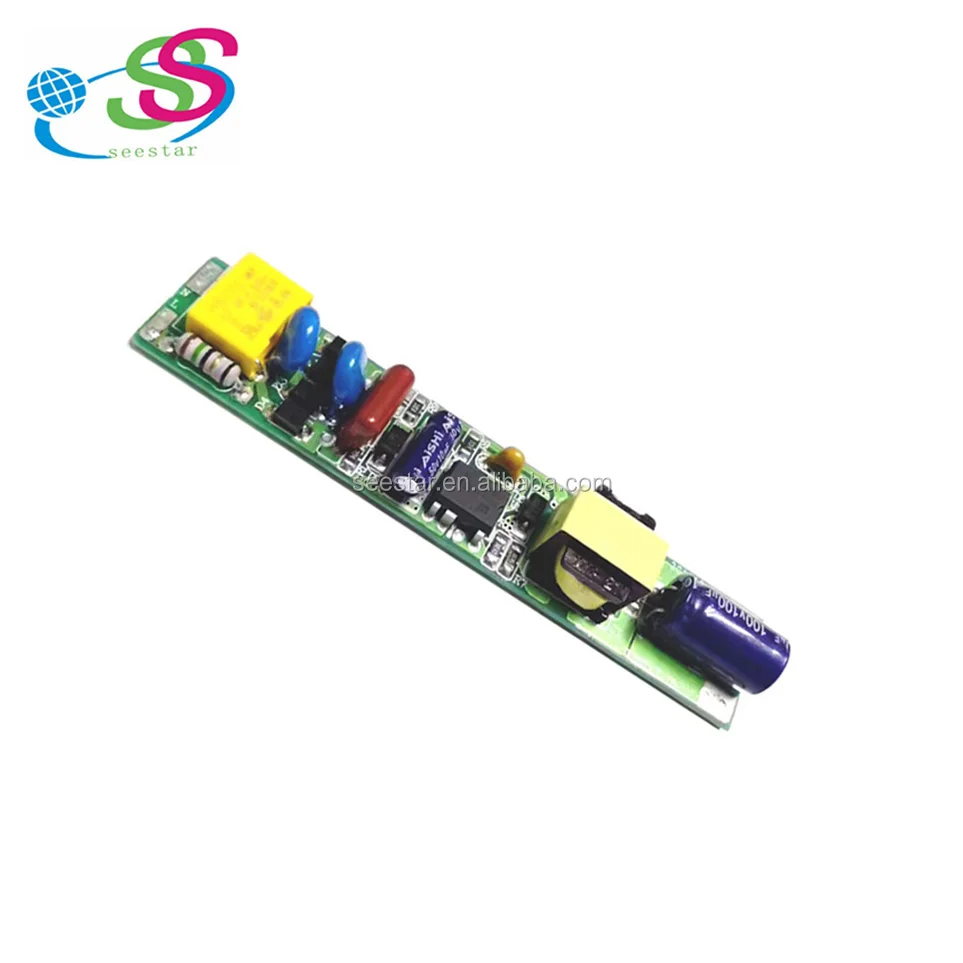

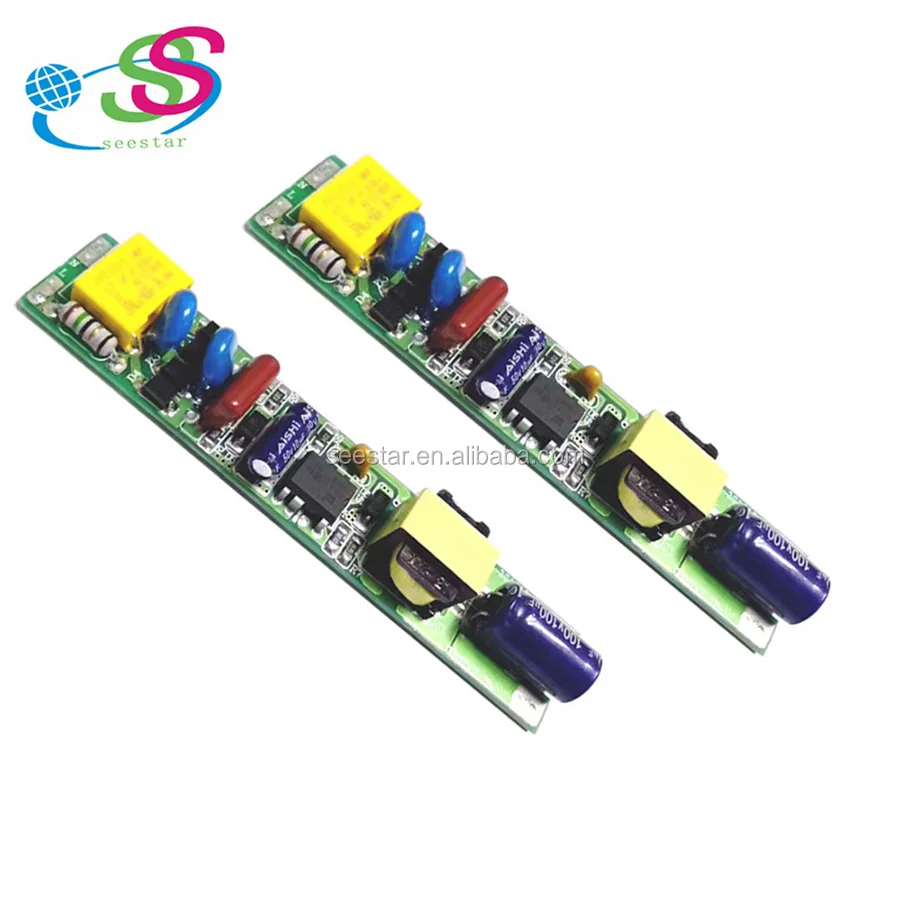

2.5KV tube driver (1).jpg
Product name:
tube power driver
Model:
SSD-18w240-TGN
Input Voltage
AC 85-320V
Frequency
50/60Hz
Output Power
18W
Output Voltage
DC36-85V /240mA
PF
0.95
Efficience
> 88%
Protection
OVP / OCP / SCP /OLP
THD
< 20%
Surge Protection
2.5KV
Guarantee
3 Years
Ambient Temp
-20---80℃
Storage Temp
-40---90℃



AISHI/ECD capacitor

Normal electrolytic capacitor of BIS driver,we use AISHI or ECD brand.

Life span:

8000 Hours @ 105℃

30000 Hours @85℃

3 Years warranty




SST-18W240-TDN

Input:85-265vac Output: 36-85v 240ma
Power: 9-20w     PF 0.6



SST-18W240-TGN-S
Input:85-265vac Output: 36-85 240ma
Power: 9-22W    PF >0.9

SST-18W240-TGN



Input:85-320vac   Output: 36-85v 240ma
Power: 9-24w    pf >0.9



SST-18W240-TGC
Input:85-300vac Output: 36-85v 240ma Power:9-20w PF>0.9 EMC
passed



SST-18W240-TGN-NF
Input:85-265vac Output: 36-85v 240ma
Power: 9-20W    PF>0.9  No flicker



SST-18W240-TGC-E
Input:85-265vac Output: 36-85v 240ma
Power: 9W-20W  PF>0.9 EMC passed


Model PowerI/p VoltO/P Volt

 Current

PFCSend an Enquiry
SST-18W240-TLN18WAC 85-265VDC 36-85V240mA0.6
SST-18W240-TGN-S18WAC 85-265VDC 36-85V240mA0.95
SST-18W240-TGN18WAC 85-265VDC 36-85V240mA0.95
SST-18W240-TGC18WAC 85-265VDC 36-85V240mA0.95

Shenzhen Seestar Technology Co.,Limited  located in Shenzhen China since 2006,is a High-tech Enterprise which is engaged in designing,manufacturing and selling all kinds of LED drivers,AC/DC switching power supplies, that owe 3000 square meters manufacturing area.We have experienced R&D team and advance R&D test equipment.

Product involved in constant current street/flood light driver,panel/downlight driver,T5 T8 driver,LED bulb driver,DC/DC converters,etc.,can offer OEM / ODM service. Seestar products have been passed CE ROHS TUV,SAA BIS certification,the product sells all around Europe,Northern America, Southeast Asia and Latin America



Production Line

Producton line in seestar factory,have a daily capacity of 100,000pcs.

Crest Welder

We have automatic quick working production equipment like crest welder.

EMC Analyzers

Most of our products have passed EMI and EMS,CE,SAA,RHOS,TUV,BIS.



R&D Center

13 engineers to tell you the solutions   products at the soonest.
