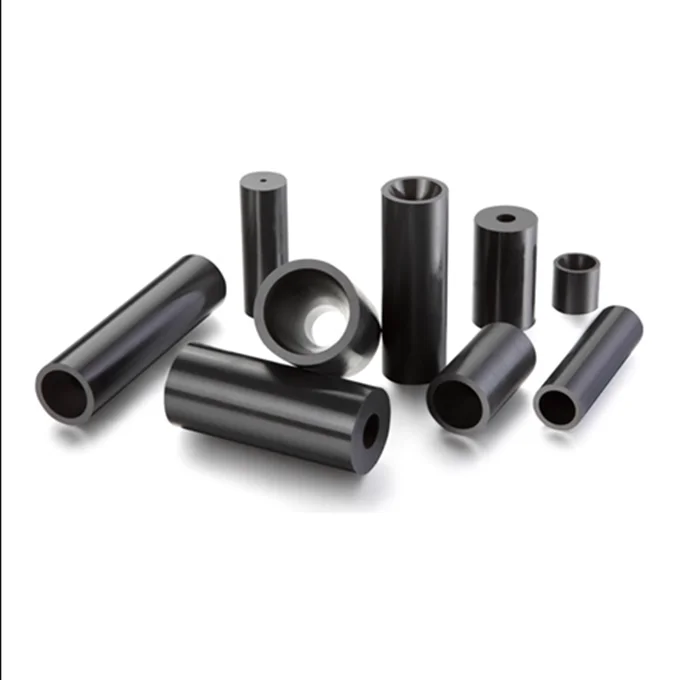

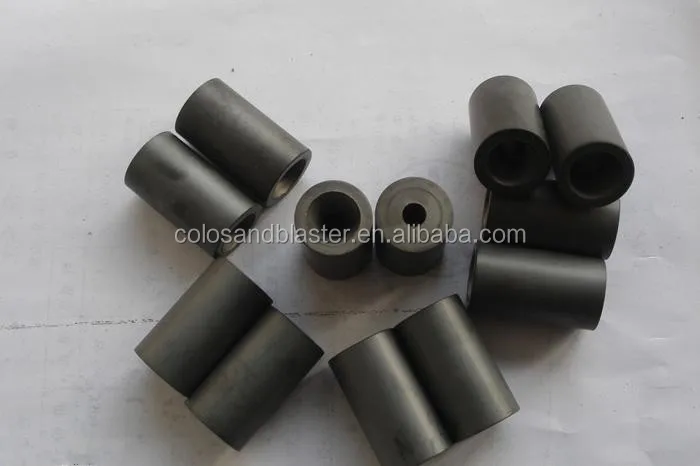

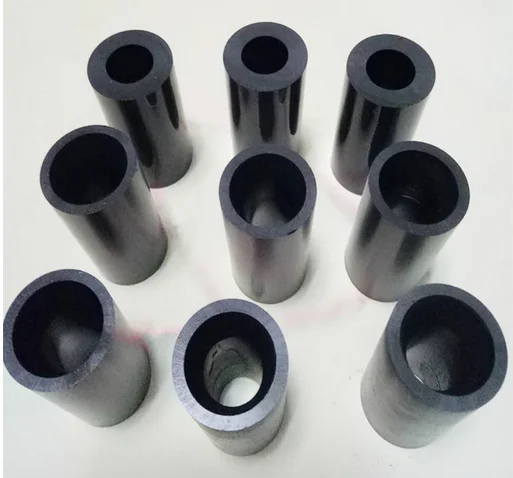

This kind of nozzle is made from boron carbide by hot pressing with straight bore and venturi bore type. Because of its hardness, low density, high temperature resistance, excellent wear and anti-corrosion, Boron Carbide Nozzle has been widely used in sandblasting and shot peening equipments, offering a longest life with optimum air and abrasive use.
Advantages
1. Longer service life. In terms of service life, boron carbide nozzle has the longest one such as for sand
blasting and shot peening.
2. Lower cost per use. Boron carbide costs more but will outlast tungsten carbide by 3 to 10times.
3. To reduce down time.
4. To maintain efficiency.
The General Size of Boron Nozzle:
the length
external diameter
inner diameter
35mm
20mm
3mm
35mm
20mm
4mm
35mm
20mm
5mm
35mm
20mm
6mm
35mm
20mm
8mm
35mm
20mm
10mm
45mm
15mm
6mm
45mm
15mm
8mm
45mm
20mm
6mm
45mm
20mm
8mm
45mm
20mm
10mm
55mm
15mm
6mm
55mm
15mm
8mm
60mm
20mm
6mm
60mm
20mm
8mm
60mm
20mm
10mm
80mm
20mm
8mm
80mm
20mm
10mm
80mm
20mm
12mm
Packaging & Shipping
Every item is in good package of wooden case or carton.
We usually ship the item with 3-7days after payment received.
FAQ
How to choose sand blasting machine?
1.Based on the size of workpiece, you can choose box type sand blasting machine, mobile sand blasting machine or auto sand blasting machine.
2.The specifications of sand blasting machine refer to the shape of workpiece. There are usually fixed specifications for workpiece under 1 meter. If the workpiece is much larger, the sand blasting machine should be open type or custom-made.
3.The requirements on the workpiece’s surface depend on dry blasting or wet blasting. If dry blasting, there will be more choices for abrasives; if wet blasting, it usually takes glass-bead.
4.You need to be familiar with spare parts of sand blasting machine. Sand blasting gun and sand blasting gloves are often required to be replaced for the severe abrasion.
