110V AC Black tempered Glass 433 wireless Touch Doorbell Plate System

Product Overview

Description

110V AC Black tempered Glass 433 wireless Touch Doorbell Plate System

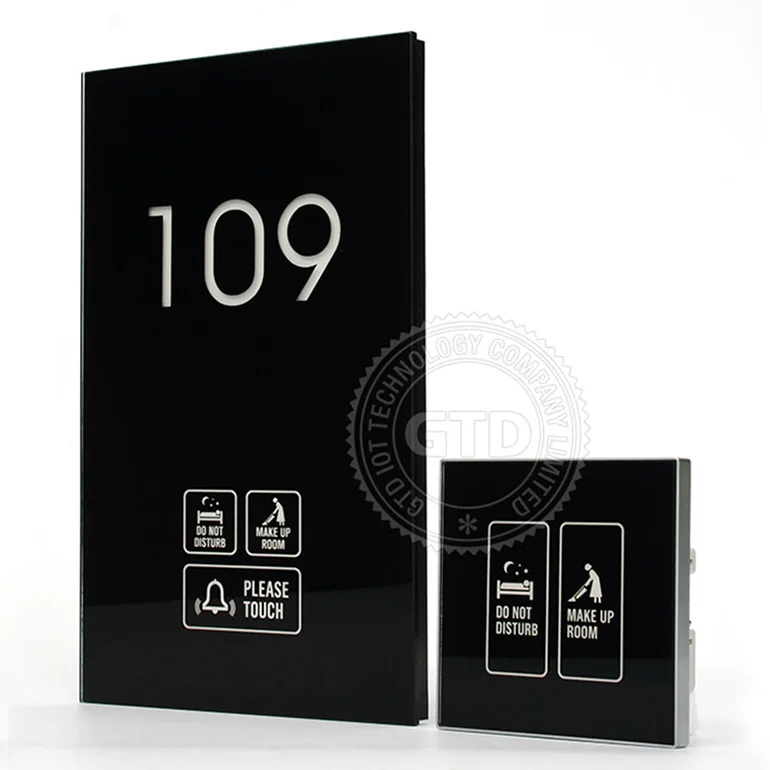

Nice 4mm thickness black tempered glass panel

It is whole tempered glass panel, 4mm thickness with good crystal effect.

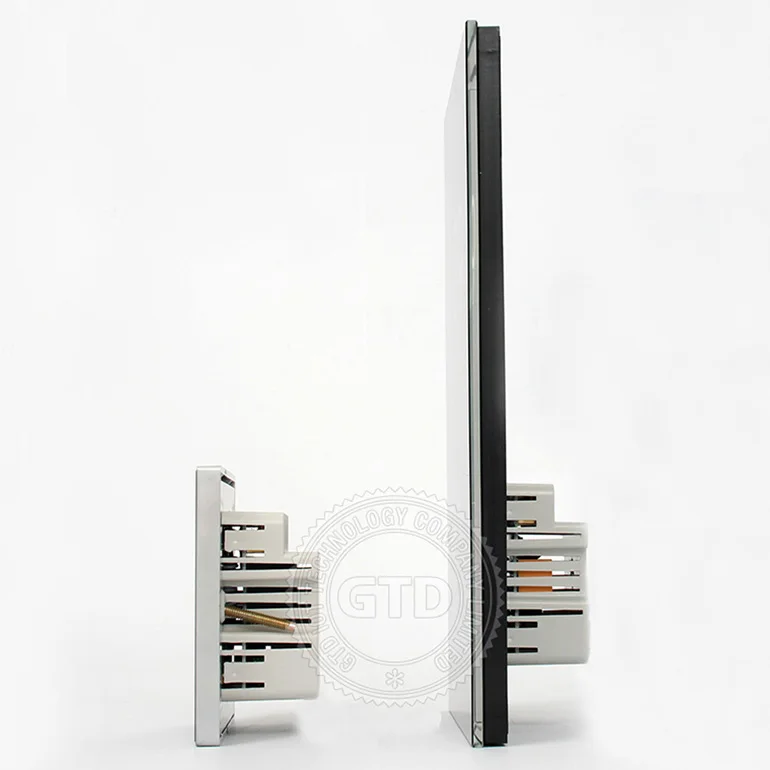

Suitable doorplate size (W) 226 x (H) 140 x (D) 44 mm

The outdoor plate size is 226*140*44mm, not too big or too small, good choice to be installed outside door.

Also, if you need, small 86*86*44mm size, 350*139*44mm size, or other size customize are also available.



All words font size and symbol can be customize

It is with nice design font of words, suitable size, nice symbol of DND, MUR and Please touch bell. Combination of icons and text, guests can quickly and easily identify and operating. Customize content is available.



Different function option on the panel

Display panel: -LOGO printed

                       -ROOM NUMBER

                       -DO NOT DISTURB

                       -MAKE UP ROOM

                       -DOORBELL

                       -PLEASE WAIT

                       -CHECK IN

All above outdoor display panel function, you can choose with or remove as need, indoor panels will match accordingly.



Different color nice LED back-light

There is nice led back light indicator on the touch panel for different function button, red, green, blue, white, yellow choice as your like.

They will clear indicator guide the guest in night, and help their operating.

This will also well improve whole product level.



Normal Operating and status clear as below

-In normal conditions, press key "DOORBELL" of touch screen to trigger the bell, and the guest will know there are visitors at the door when hear the euphonious ring,

-The guests press the indoor panel button "DO NOT DISTURB" key indoors, the touch screen of control panel "DO NOT DISTURB" sign backlight was lit, The dispaly panel outdoors "DO NOT DISTURB" sign will also light on. The outdoors panel doorbell key light on but would not work at this time.

-The guest press the control panel key "MAKE UP ROOM" key, control panel as well as display panel "MAKE UP ROOM" sign backlight will be lit, and "DO NOT DISTURB" backlight will be off automatically. Outdoor panel doorbell will light on and can work ring.

-It is also with room status function version option, When guests in the room, card inserted to the key card switch, outdoors panel bell will be on, and when guests leave room, push out card, the outdoor panel bell will be off. So the hotel workers can see if guest is in the room or not.

(customize logic control between panels are also available)



Special 110V AC 2 indoor control panels option, and they are 433 wireless double related control each other, no need special wire connect between them

This version is our special made,  whole set system is:

1 outdoor panel + 2 indoor panel + bell

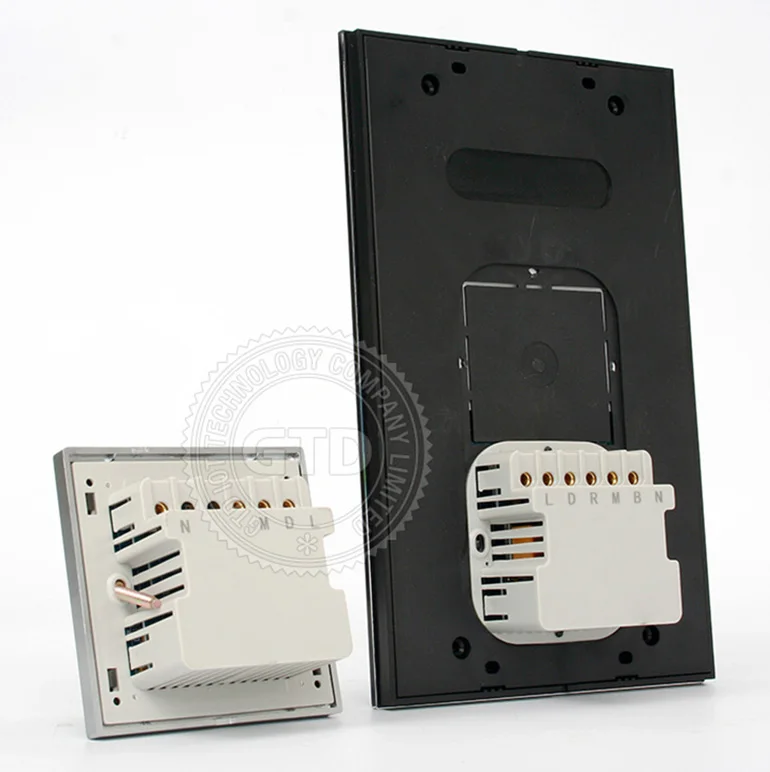

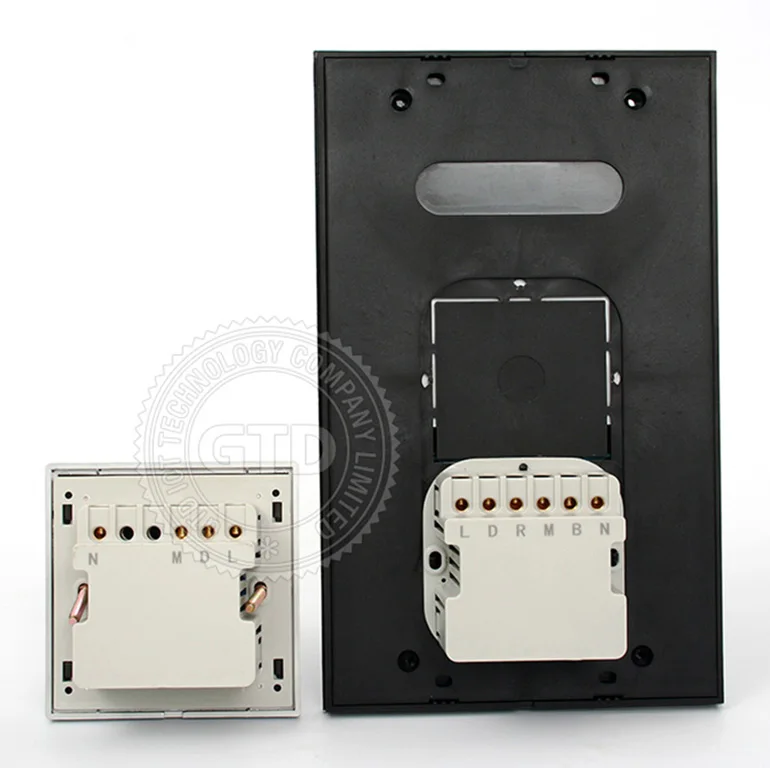

When diagram, you only need normal connect between 1 outdoor panel + 1 indoor panel + bell, then, the other indoor panel only need L and N cable power connect, after setting, by 433 wireless, 2 indoor panels can achieve related double control each other, similar as above pictures reference.
