High Efficiency and Easy Operation Automatic Wall Plastering Machine
$1,400.00-1,500.00
Gypsum Plaster Wall Putty Machine Rendering Machine Wall Plastering Tools for Plasterer
- Category: >>>
- Supplier: Henan Coal Scientific Research Institute Co. Ltd.
Share on (60543947425):
Product Overview
Description
KLW-3 Plastering Machine
Gypsum Plaster Wall Putty Machine Rendering Machine Wall Plastering Tools for Plasterer
Product Description
Plastering Machine Features:
1. KLW-3 Cement Mortar Automatic Wall Plastering Machine
2.Keming Cement Mortar Plastering Machine has small size and light weight, flexible movement, convenient operation and maintenance.
3.Low noise, high pressure, high capacity, high efficiency, reliable performance, long service life.
Plastering Machine Application:
1.The Plastering Machine is a new desinged multi-functional plastering equipment.
2.The Plastering Machine can be used for pumping and spraying ready-mixed mortar material, such as cement mortar, lime plaster, gypsum plaster, masonry mortar.
3.The Plastering Machine can be used for plastering fluid materials, such as thermal insulation material of walls, refractory material, fire-proof material, water-proof material, acoustic material etc.
Plastering Machine Specification:
Model | KLW-3 Plaster Machine |
Capacity | 3m³/h |
Rated working pressure | 3MPa |
Total power | 7.5kw |
Main electricity motor | 3phase, 380v, 5.5kw |
Rated air output | 250L/min |
Max. conveying dist. | 20/10m(Horizontal:Horizontal) |
Hopper capacity | 50L |
Loading height | 800mm |
Conveying hose ID | 25/32 |
Air hose ID | 13mm |
Dimensions | 1400*600*900 (mm ) |
Weight | 340kg |

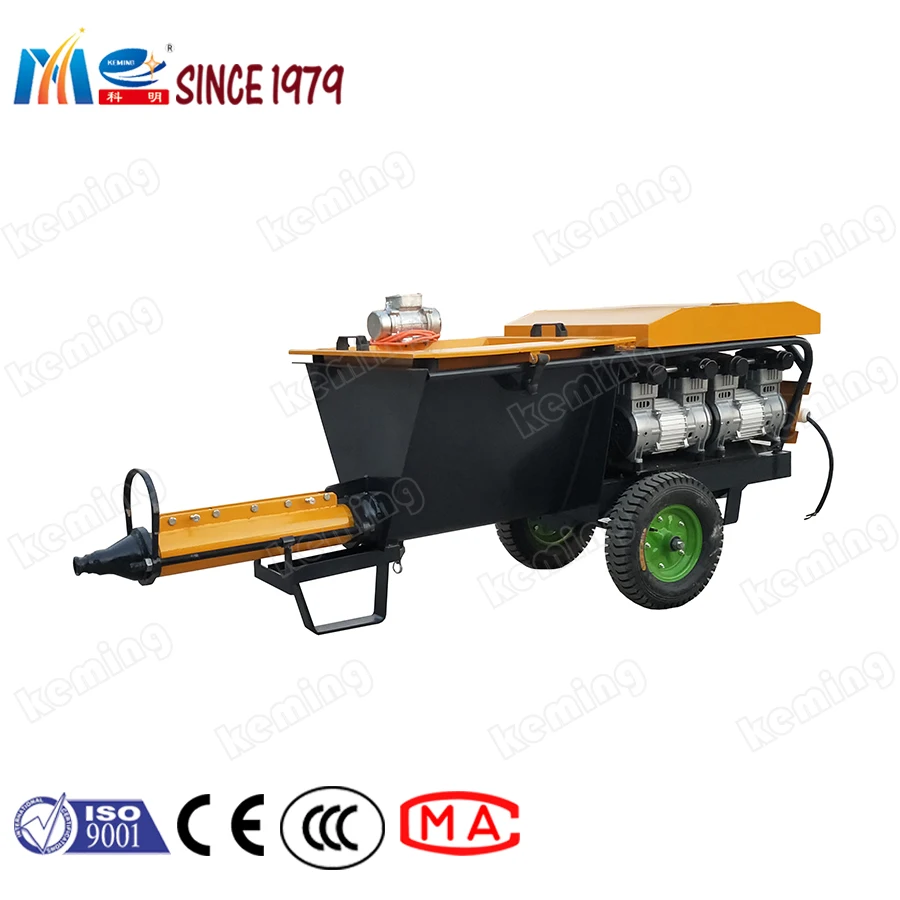

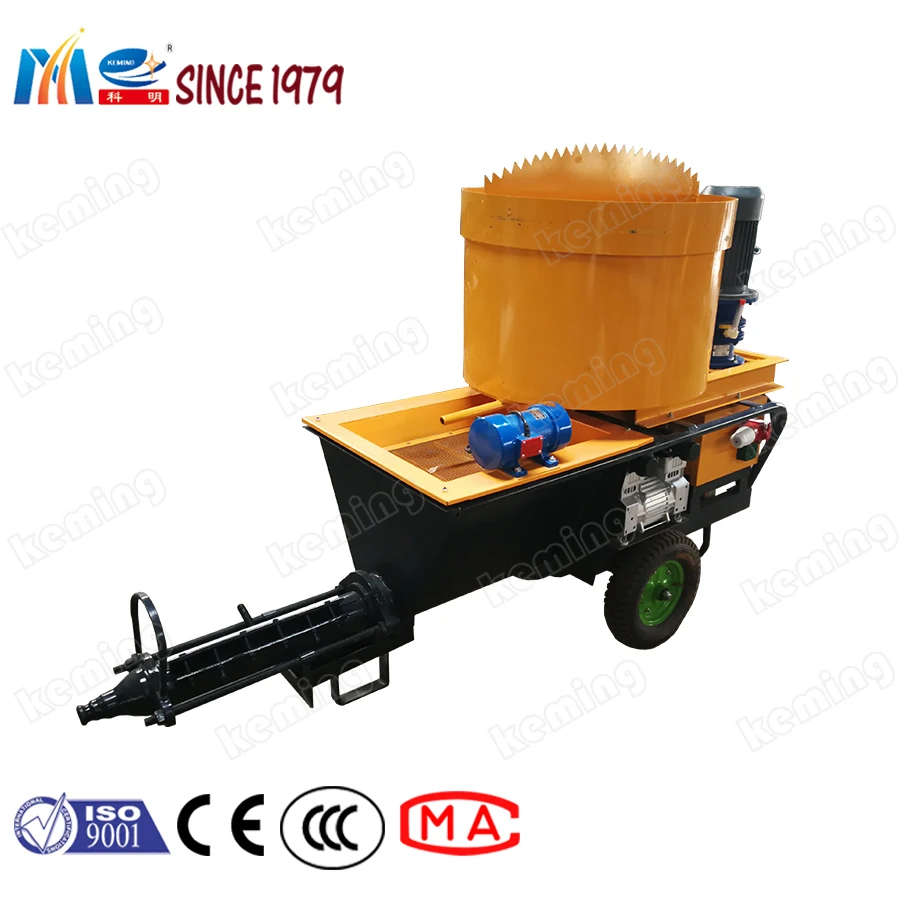

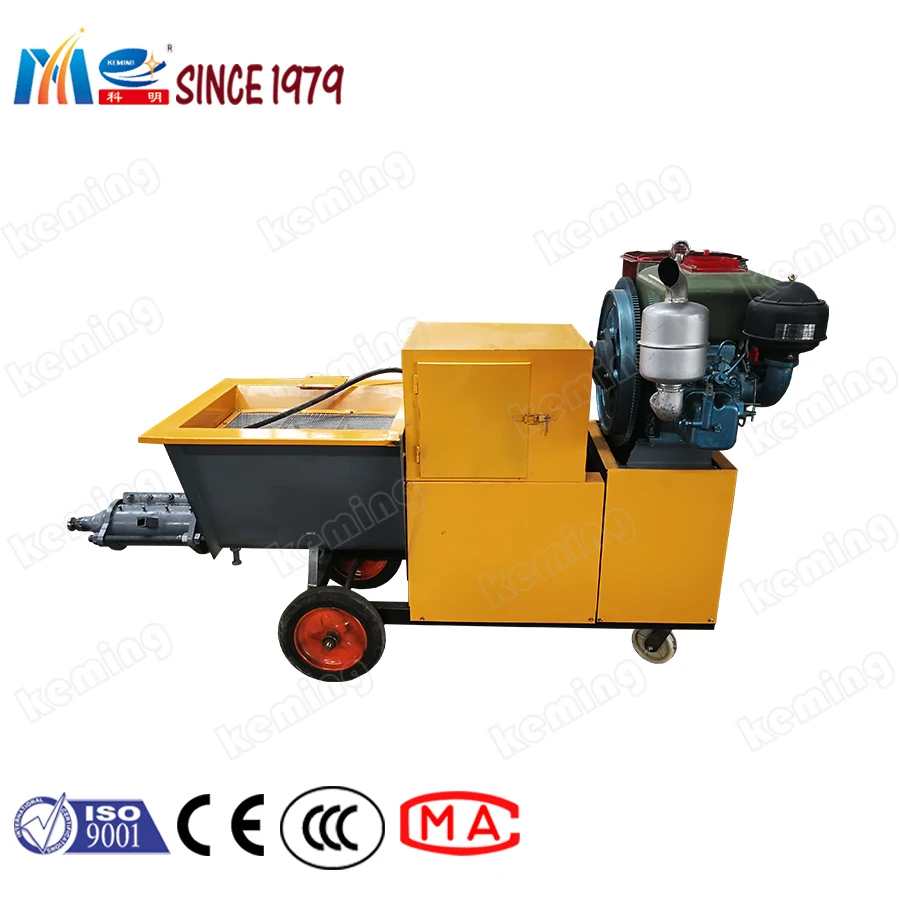

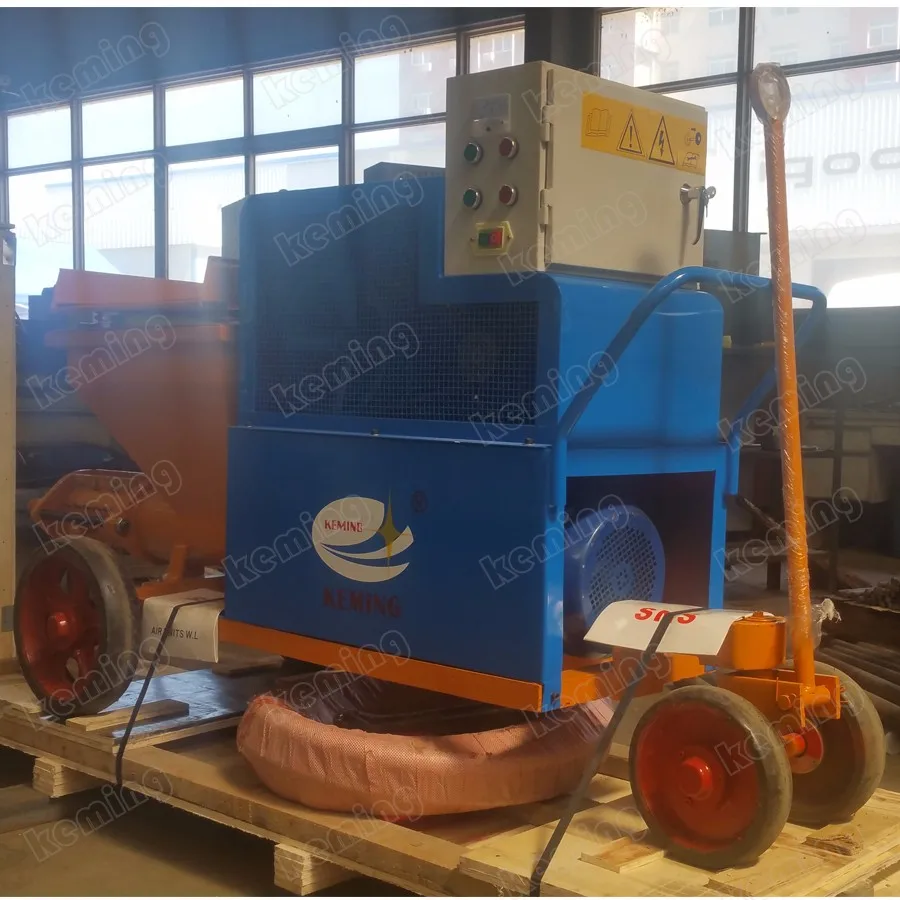

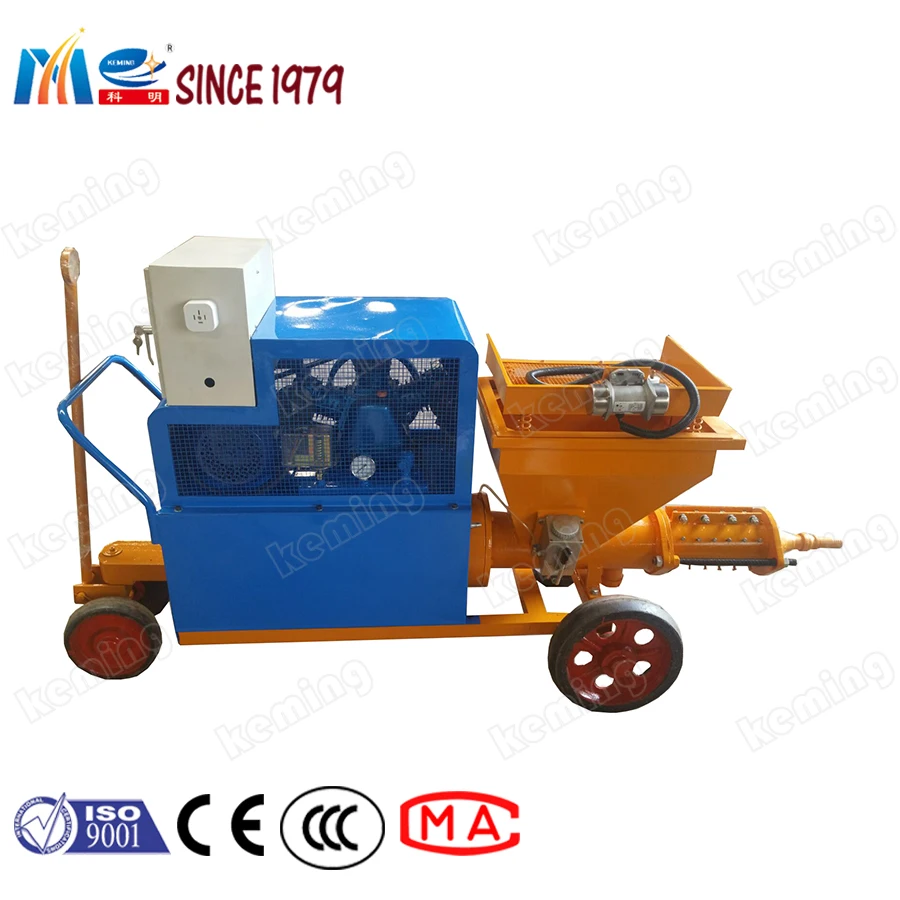

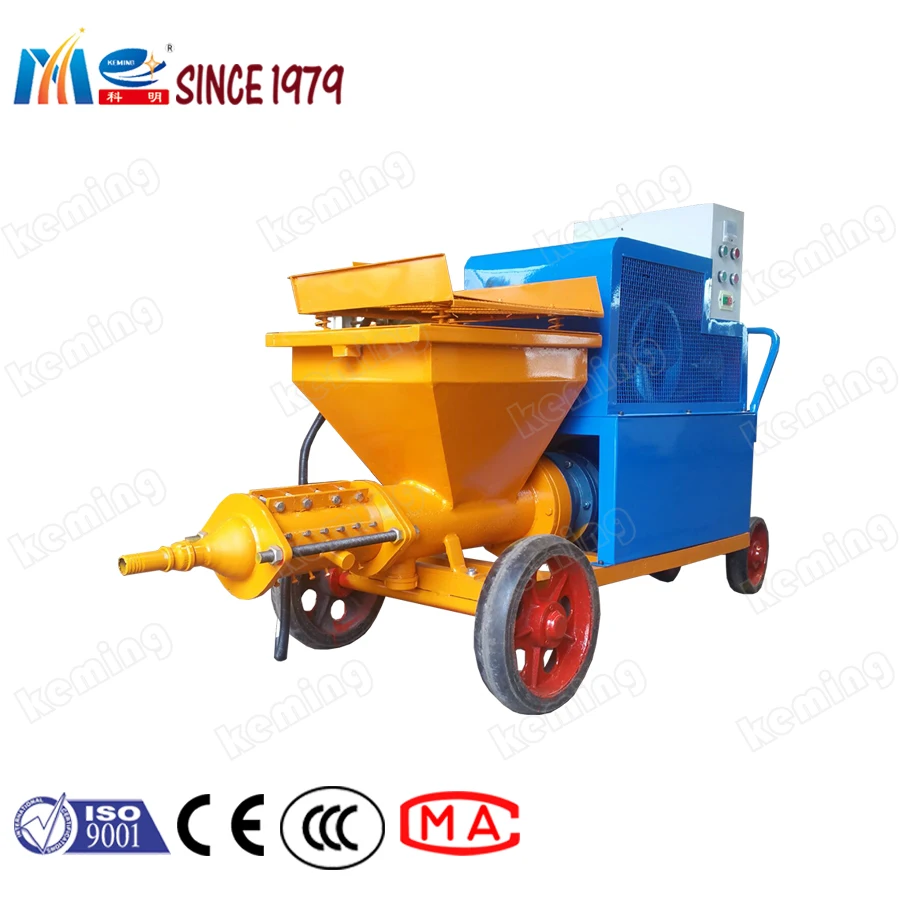

Plastering Machine Detailed Images:
Related Products-R
 |  |
KLW-120 Plastering Machine * Screw Type * Wet Mixture * Electric motor | KLW-120D Diesel Plastering Machine * Screw Type * Wet Mixture * Diesel Engine |
 |  |
KLW-150 Plastering Machine * Screw Type * Wet Mixture * Electric motor | KLW-150D Diesel Plastering Machine * Screw Type * Wet Mixture * Diesel Engine |
|  |
KLW-180 Plastering Machine * Screw Type * Wet Mixture * Electric motor | KLW-180J Plastering Machine with Mixer * Screw Type * Wet Mixture * With Cement Sand Mixer |
|
|
KHT-3 Plastering Machine * Hose Squeeze Type * Wet Mixture * Electric motor
| KLL-3 Plastering Machine * Screw Type * Dry Mixture * Electric motor |
Company Information
Henan Coal Scientific Research Institute Co., Ltd. was established in March 1979. In 1999, it was ranked among the first batch of 242 coal research institutes, and implemented localized management by Henan Province. In 2006, it was transformed successfully into a scientific and technological enterprise, and renamed officially as Henan Coal Scientific Research Institute Co., Ltd.
Achievements: As one of the standard setting unit of national shotcrete equipment industry, the company has obtained more than 170 research and development achievements, more than 110 technical consulting services, 82 technology awards and15 national invention patents and utility model patents.
Application: mining well project, hydropower engineering, highway (railway) tunnel, subway engineering, bridge and slope maintenance, air-raid shelter construction, municipal construction, environmental greening project, blast-furnace refractories spraying, etc.
Main Products: wet/dry shotcrete machine, concrete/shotcrete pump, grouting pump, cement pump, mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine, plastering machine etc.
Certifications
FAQ
--Plastering Machine, Cement Mortar Spraying Machine
1. Q: Which plastering machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: putty, cement, mortar, or other materials;
dry / damp mixture, or ready mixed wet mixture
- Capacity: 120m2/h, 150m2/h, 160m2/h, 180m2/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the stator & rotor, spraying nozzle may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many square meters you will spray.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
