High Technology DR system Flat Panel Detector, X ray radiation detector for X ray Radiology

Share on (60543974561):


Price:RUB 7,581.80 - RUB 682,362.00

Quantity:


Product Overview

Description

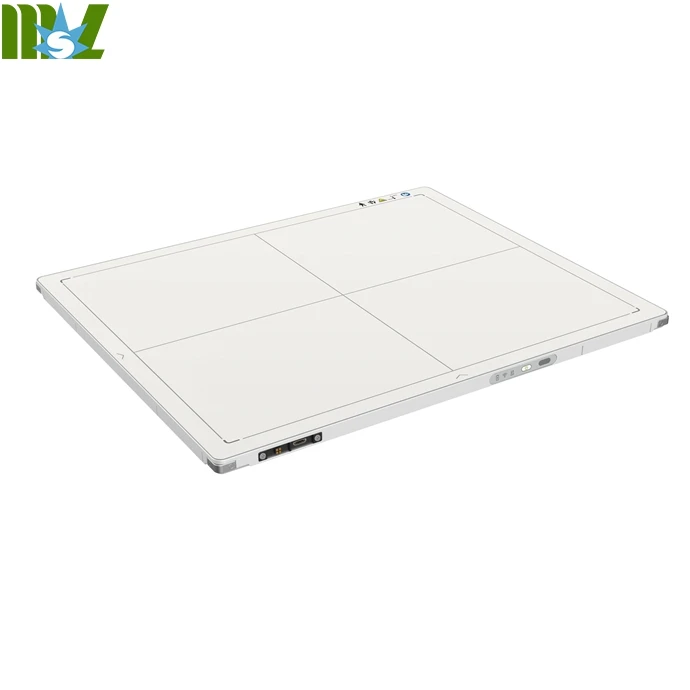

Model number: MSLFP06
Model name: Csl 17*17 Wireless Flat Panel detector
MSLFP06 is a smart 17x17 inch wireless, cassette-sized FPD for rediographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The MSLFP06 supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.

▲Wireless cassette detector per ISO 4090, fits in bucky
▲139μm pixel pitch, with 16 bit ADC for more image details
▲ Stable iSync+ Automatic Exposure detection (AED)
Technical parameters
Detector Technology
Amorphous Silicon
Scintillator
Csl
Active Area (mm²)
427x427
Pixel Matrix
3072x3072
Pixel Pitch (μm)
139
Resolution (Ip/mm)
3.6
AD Conversion (bit)
16
Battery Autonomy (h)
5
WIFI
2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode
AED/Software
Full Image Time (s)
Typ.5
Dimension (mm)
460x460*15
Weight (kg)
4.6
Static Loading
150kg Uniformly
Ingress Protection
IPX1
Operating Temperature (℃)
5-35
Storage&Transport Temperature with Package (℃)
-20~55
Operating Humidity
10%~90%
Storage&Transport Humidity with Package
5%~95%
Customer feedback
Detailed Images
Why choose us
Our company
After sale Service
1.Within guarantee period: Supply all-free repair and maintenance . For small problems, we can provide remote guidance and send the buyer free spare parts. For big problems that cannot be solved by buyer himself, we will recall the machine and repair it in our company. Spare parts my company provide for free. 2. Beyond warranty period, for small problems, we can also provide remote guidance, and the buyer only need to pay for the cost of the spare part and express fee. For big problems that cannot be solved by the buyer, we will recall the machine and repair it in our company. The clients are responsible for the transport and repair expenses.
