GGS 118 Plastic Ampoule Oral Liquid Filling Sealing Machine

Product Overview

Description

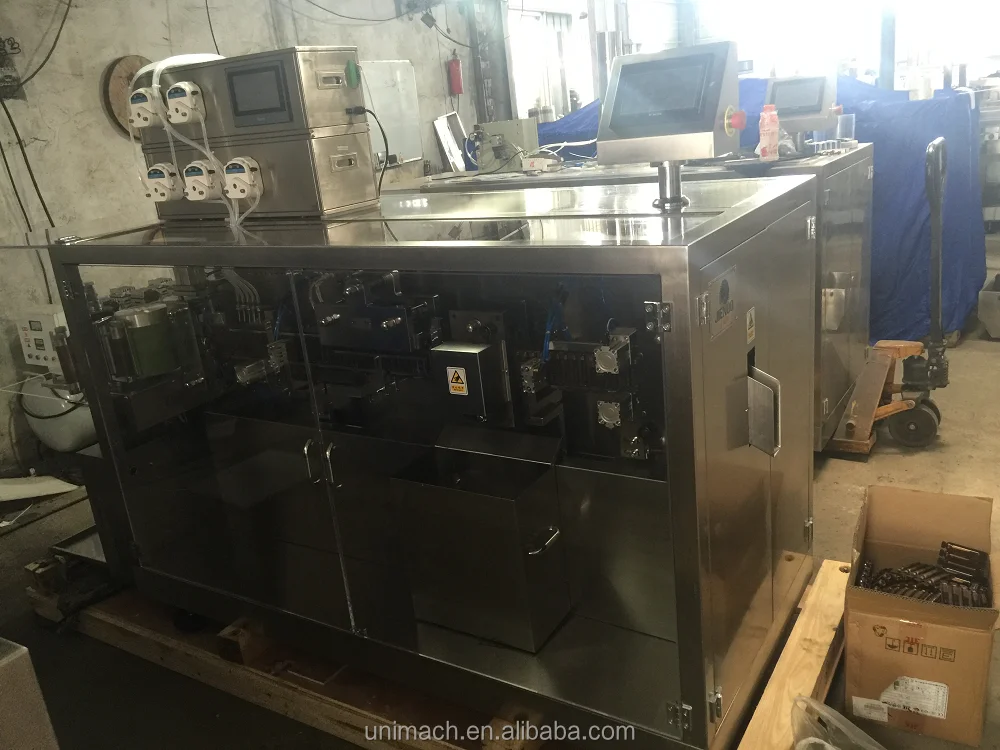

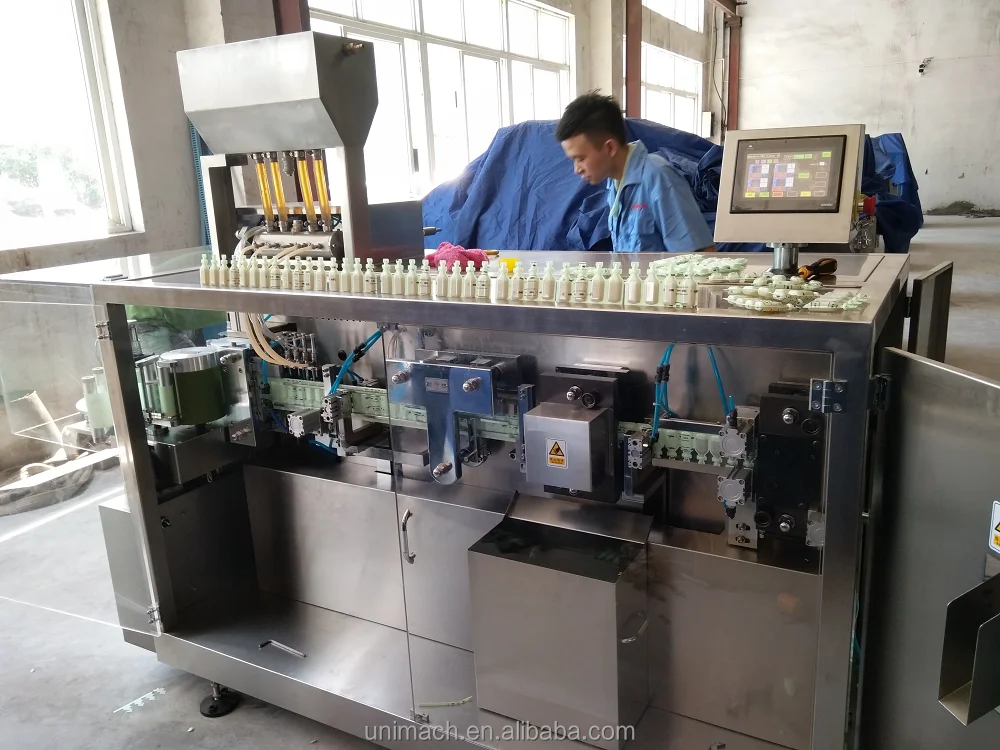

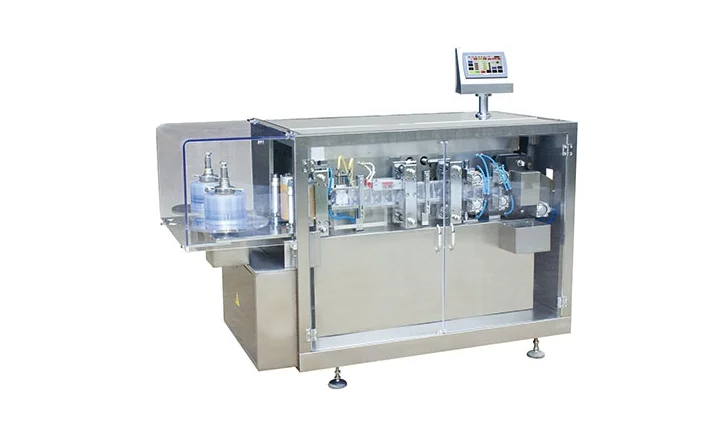

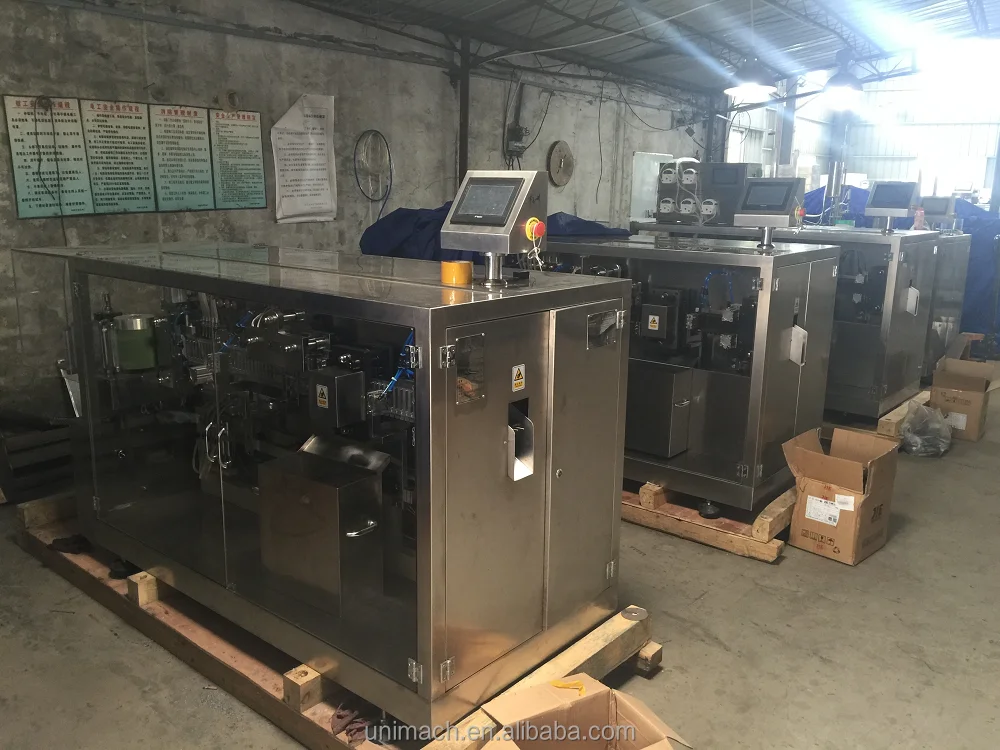

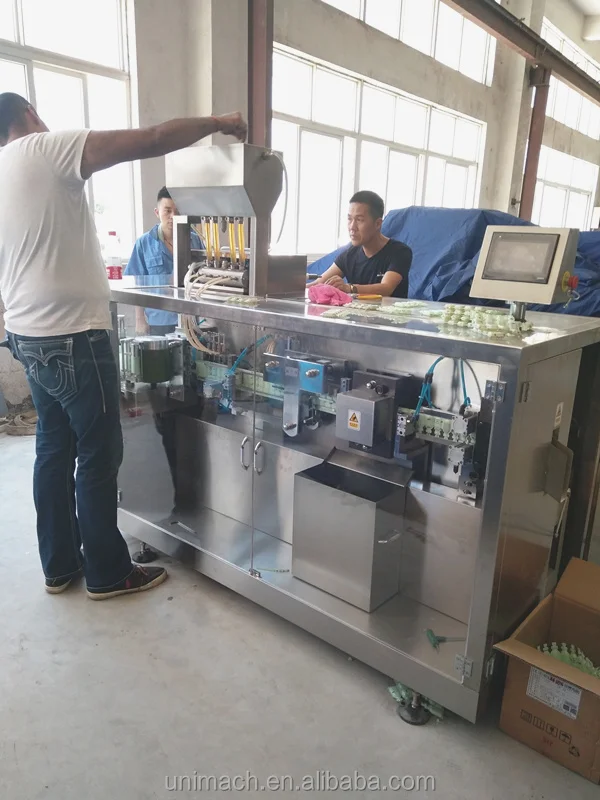

GGS - 118 Plastic Ampoule Oral Liquid Filling Sealing Machine



Product Summary:

GGS-118 Micro Liquid Forming Filling & Sealing Machine is applicable for liquid, sticky, semi-sticky and so on. This machine can be used for pharmaceuticals, food, health care products, cosmetic. It also can be used in industry and agriculture in similarity products. This machine can finish forming, filling, sealing once time.

 Description:

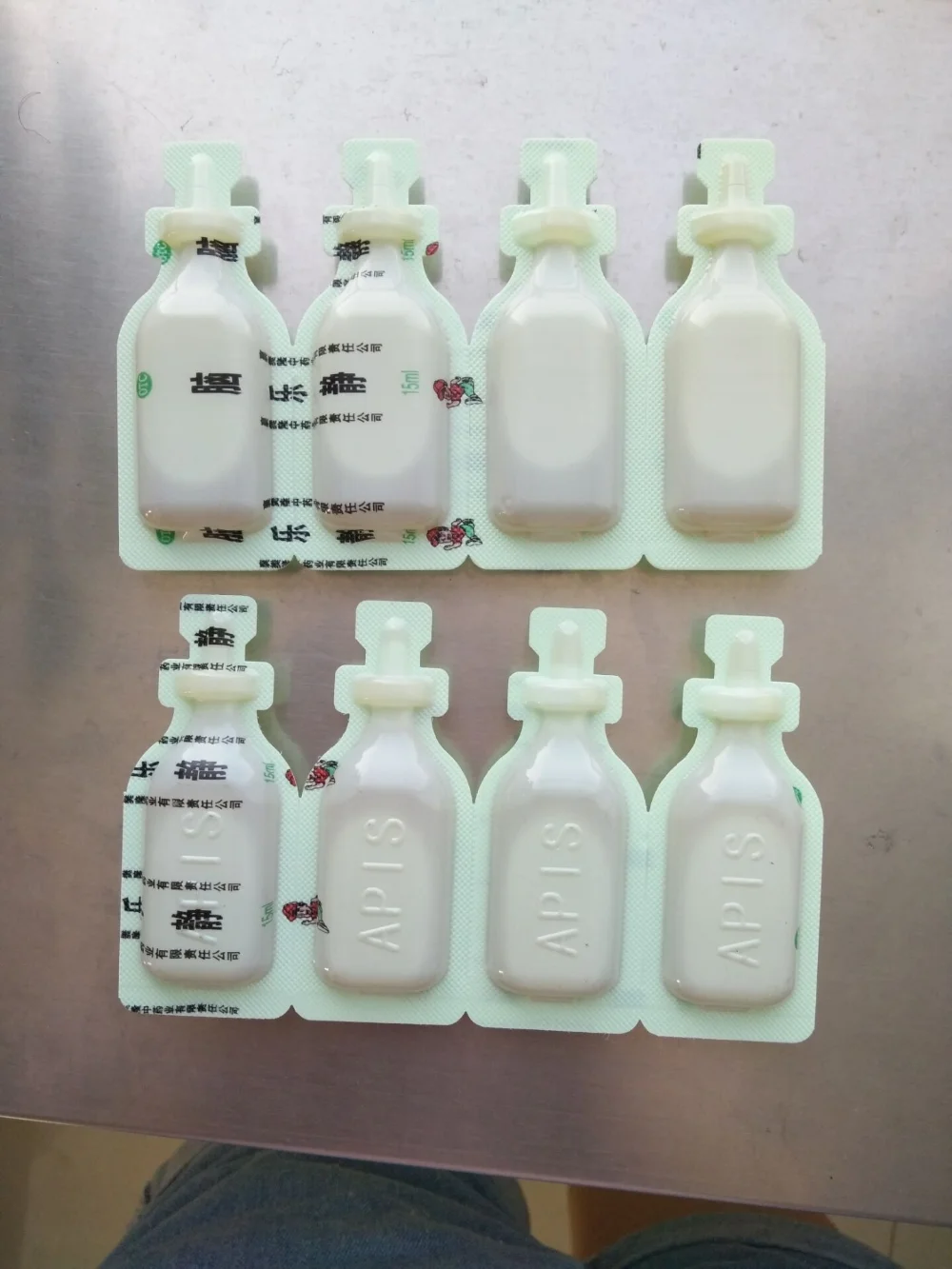

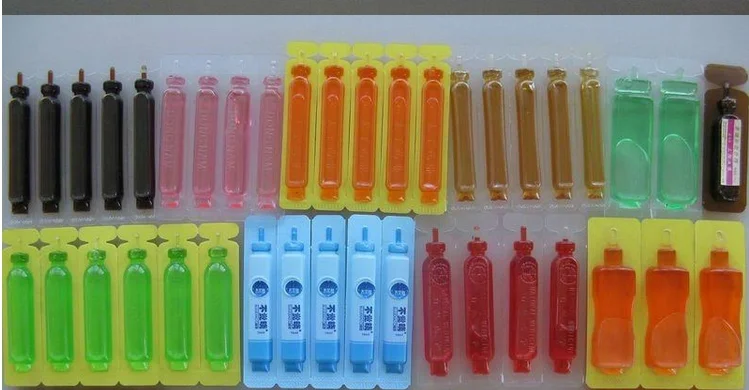

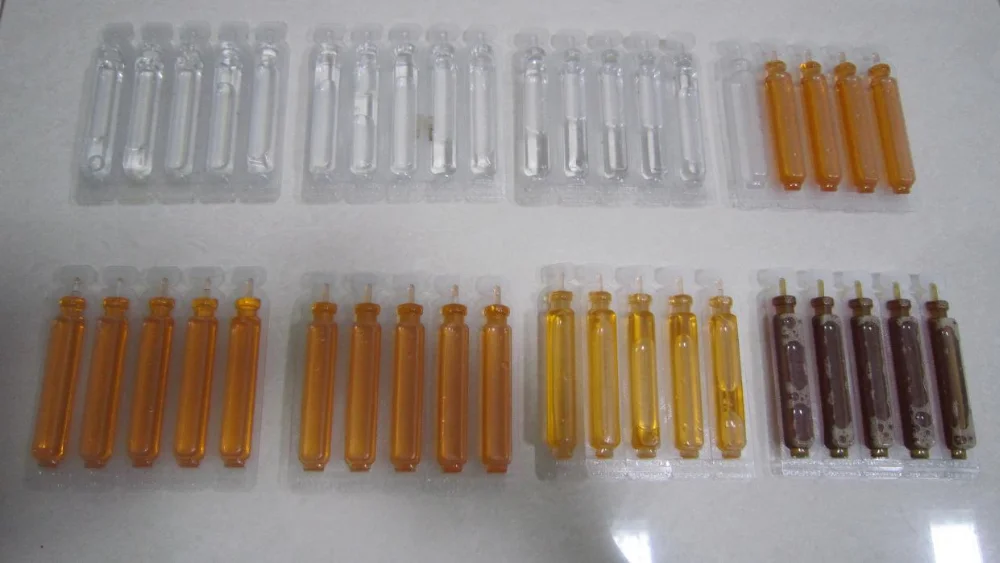

Take out the film, Plastic bottle-forming, filling, date printing, sealing and cutting can be completed automatically. Save cost and time.

This machine is applied to fill liquid or semiliquid, such as oral liquid, oil, cosmetic

(shampoo, cream) and honey etc.

This machine is widely used in pharmacy, daily cosmetic, petrochemical and foodstuff

Features:

1. Controlled by PLC, the frequency conversion in finely variable speeds.

2. All 6 processes from spreading roll, AMP bottle forming, filling, sealing the end,
printing serial numbers, cutting the end ,cutting apart, controlled by programming.

3. The computer human interface has simple and clear operation.

4. The filling head does not drop, leak, rise in bubbled and spill over.

5. All are made of high-quality stainless steel, accord with the standard GMP.

6. Mostly pneumatic components and wirings adopt inward fittings.

7. Automatic and mechanical filling, precise calculation and limited deflection.



Technical Parameter:

Max forming depth	12mm
Cutting frequency	0-25times
Aching materialPackaging	PVC\\PE(0.2-0.40) *120mm
Capacity	1-50ml
Indtalled power	3.5KW
Voltage	220v-380v|50Hz
Wholemachine’s weight	750kg
Outer size L*W*H(mm)	2300*850*1500
