Product Overview
Description
SBS/APP modified bitumen waterproofing membrane production line Polyester reinforced 2mm 3mm 4mm modified bitumen membrane sheet making machine
Company Information
Jiangsu Changzhou XinYuan Waterproof Equipment Factory is a professional manufacture which is specialized in researching, producing, marketing and service waterproof equipment. Our company was founded in 1990. As a private-owned enterprise, Our company is the most famous supplier in the line of waterproof equipment in China, is also an important supplier in international markets.
On the basis of absorbing foreign advanced science and technology, our factory has developed various kinds of advanced waterproof equipment plants, and has got many national patents. The factory has passed ISO-9001-2000 international quality system certification, is also strictly in accordance with international quality system to ensure product quality.
Our factory pursues the enterprise culture of sincere, realistic and innovation, adheres to the service goal of honesty, customer-oriented and win-win situation. We are struggling to create an excellent bread in international markets.
Detailed Images

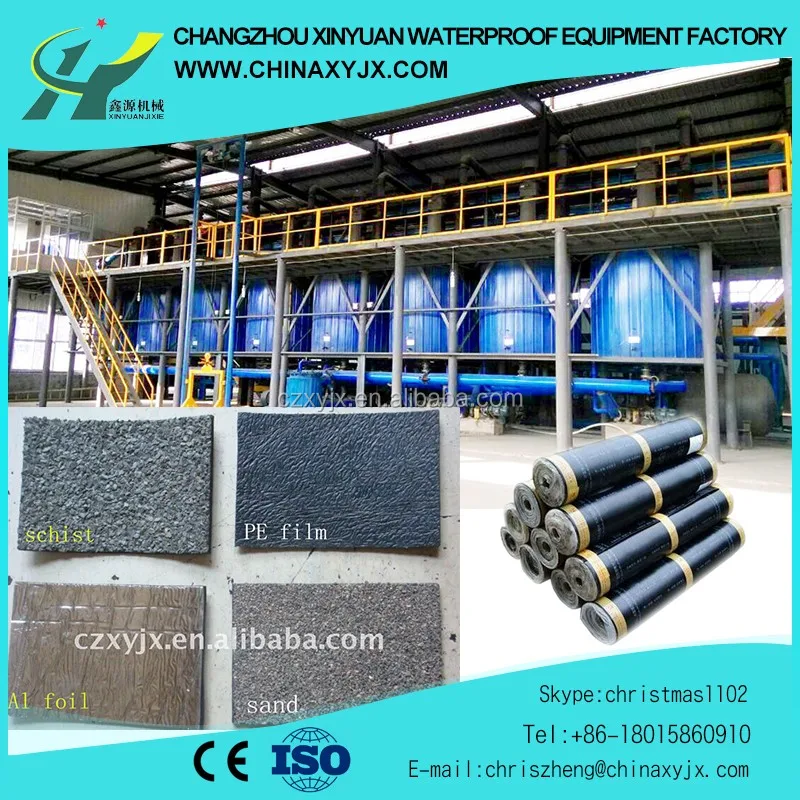

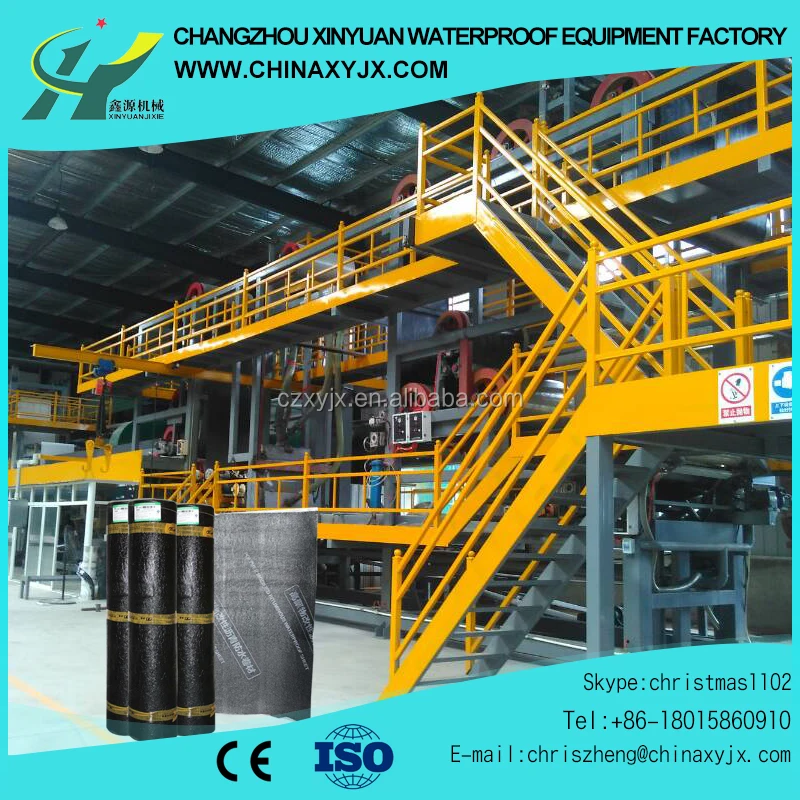

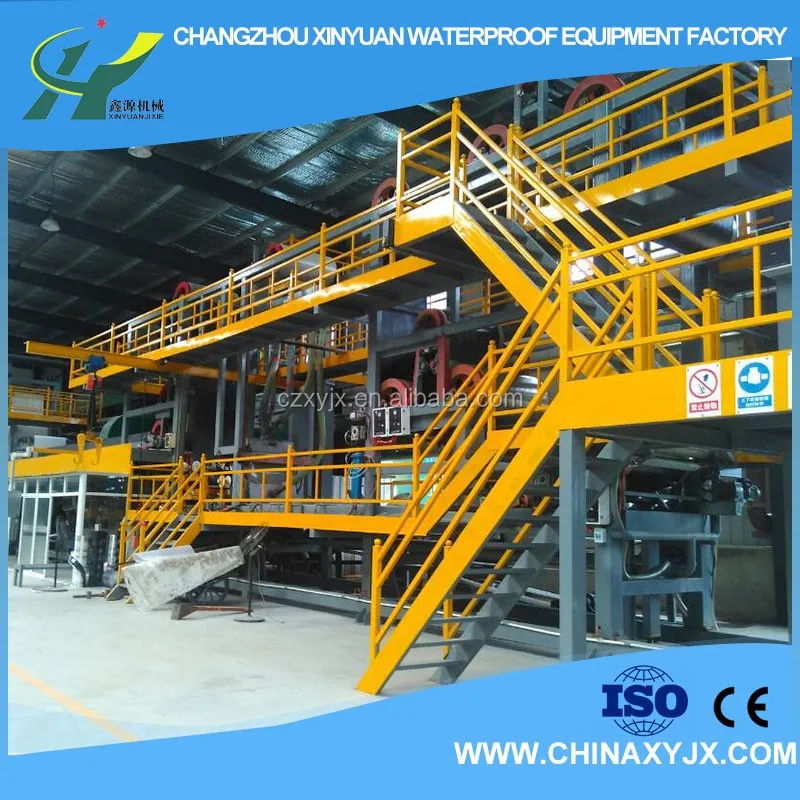

Modified bitumen waterproofing membrane making machine

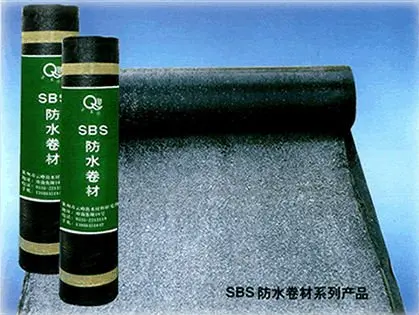

Finished Products
Product Description
1.Technical parameters
1.1 Capacity: Annually output 1.5 million square meter of various types of modified bitumen waterproofing membrane, one shift per day,8 hours per shift,300 days per year ,calculated on basis of 3mm of Products.
1.2 Reinforcement(Base material): Polyester felt:140-300g/M²,Fiberglass felt:150-250 g/ M² , Composite reinforcement(5×5-8×8)
1.3 Modified material: SBS, APP
1.4 Facing material: sand, schist, PE film, Aluminum foil
1.4.1 One side PE film, the other side sand (schist)
1.4.2 One side PE film, the other side aluminum foil
1.4.3 Both sides be with PE film
1.4.4 Embossing or smooth
1.5 Thickness: 2-5 mm
1.6 Linear velocity : 5~25m/min adjustable
1.7 Diesel consumption: 60Kg/h, Thermal efficiency≥73%,oil burning boiler which is of 500000 Kcal to heat conduction oil . The buyer should be responsible for purchasing and installing the boiler.
1.8 Compressed air, 0.7Mpa,0.6 M3/min
Compressed air is used in reinforcement unwinding device, reinforcement splicing device, immersion oil roller, embossing device and semi-automatic winder, etc.
1.9 Total installed capacity: 200KW
1.10 Water consumption: 05T/Day
Cooling water is recycling in cooling pond, suspending cooling water baths and cooling rollers . Buyer should be responsible for cooling pool which of concrete structure with capacity of 200 M3
1.11 200 M3 bitumen storage tank:1 set;
1.5 M3 discharging oil pool:1set
Bitumen storage tank is used to store 100# liquid bitumen, it also can be replaced by a concrete structure (including heating coil)
Certifications
Our Services
1.If any improper changes or repairs of Equipment are performed by theBUYER or by the third parties without prior written notice sent to the SELLER in accordance to this Contract the present warranty lapses in this respect.
2. The period of guarantee is 12 months from the date of finishing the installation and testing.
3.engineer availuable to service install machinery overseas after sales .
4.workers are all 24 hours online
FAQ
1.what is the product used for ?
we say that it used for construction .
2. Is your product have certification ?
yes ,we have CE ,and ISO9001 .
3.Is your product have invironment protect treatment ?
yes ,we have invironment protect systerm .
4.How many years experience in this field ?
we have 20years experience.
5.What is your target market ?
Algiria / middle east /Africa/ South America/Southeat Asia
6.what is the advantage of your machinery ??
excellent quality ;professianal R&D team ;
